USC10L-FCZRHW (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

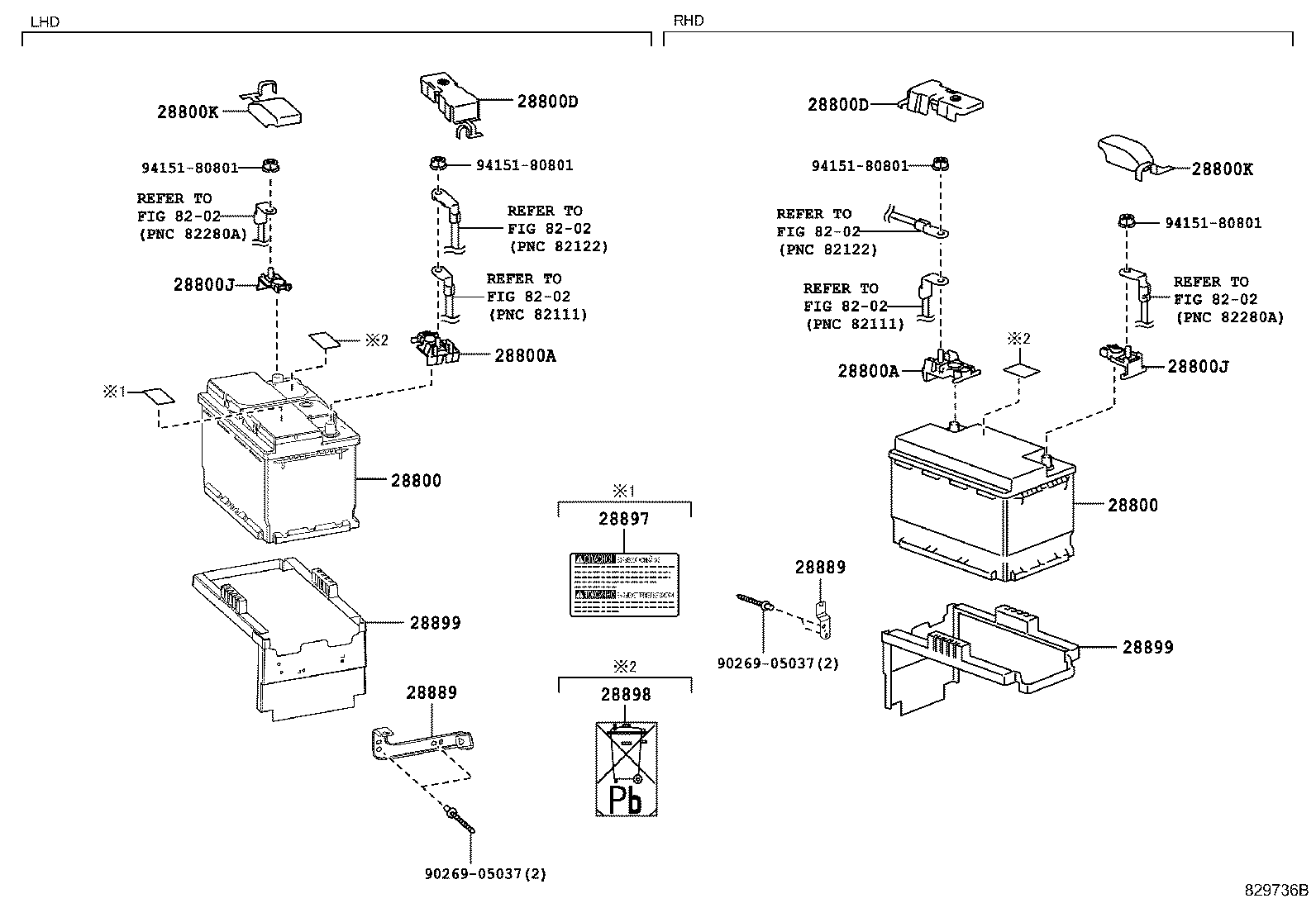

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800D 28800D 28800J 28800J 28800K 28800K 28889 28889 28897 28898 28899 28899 8202 8202 8202 8202 8202 8202 9026905037 9026905037 9415180801 9415180801 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-38170

2URGSE..USC10..LHD

LN3R

 1
28800 - BATTERY
28800-38170

2URGSE..USC10..LHD

LN3R

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-24030

2URGSE..USC10..LHD

 1
28800A - TERMINAL, BATTERY POSITIVE
82675-24030

2URGSE..USC10..LHD

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24190

2URGSE..USC10

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24190

2URGSE..USC10

 1
28800J - TERMINAL, BATTERY NEGATIVE
82675-24040

2URGSE..USC10..LHD

 1
28800J - TERMINAL, BATTERY NEGATIVE
82675-24040

2URGSE..USC10..LHD

 1
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-24200

2URGSE..USC10

 1
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-24200

2URGSE..USC10

 1
28889 - BRACKET, BATTERY WIRE CLAMP
82715-24340

2URGSE..USC10..LHD

 1
28889 - BRACKET, BATTERY WIRE CLAMP
82715-24340

2URGSE..USC10..LHD

 1
28897 - PLATE, BATTERY CAUTION
28897-31040

2URGSE..USC10..LHD

KAZAKHSTAN SPEC

 1
28897-31040

2URGSE..USC10..LHD

RUSSIA SPEC

 1
28897-38070

2URGSE..USC10..LHD

KAZAKHSTAN SPEC

 1
28897-38070

2URGSE..USC10..LHD

RUSSIA SPEC

 1
28898 - PLATE, BATTERY
28898-46020

2URGSE..USC10

 1
28899 - INSULATOR, BATTERY
28899-38050

2URGSE..USC10

 1
28899 - INSULATOR, BATTERY
28899-38050

2URGSE..USC10

 1
Common parts
90269-05037
94151-80801
Linked diagrams
8202
