ZGZ15L-AWXLPW (2014)

Toyota Lexus Nx Series

Production Oct 2014 - Sep 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1709)

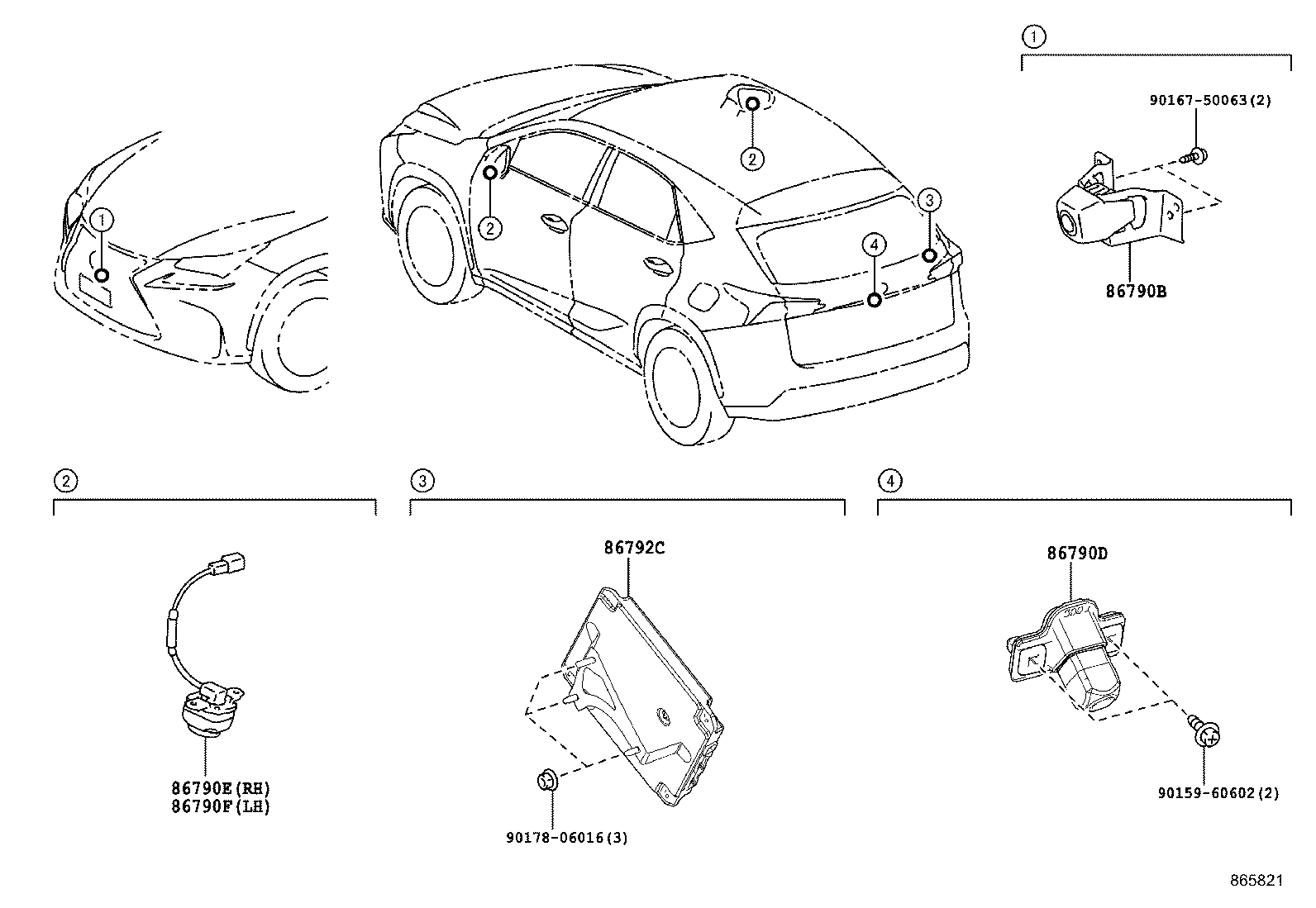

Click highlighted areas on diagram

diagram 86790B 86790D 86790E 86790F 86792C 9015960602 9016750063 9017806016
Part # Description Qty Price
86790D - CAMERA ASSY, TELEVISION, RR
86790-78020

AGZ1#,AYZ1#,ZGZ1#..L

BACK MONITOR-WITH

 1
86790-78021

AGZ1#,AYZ1#,ZGZ1#..L

BACK MONITOR-WITH(EMVN & GUIDE)

 1
86790-78020

AGZ1#,AYZ1#,ZGZ1#..L

BACK MONITOR-WITH(EMVN & GUIDE)

 1
86790-78021

AGZ1#,AYZ1#,ZGZ1#..L

BACK MONITOR-WITH

 1
Common parts
90159-60602
90167-50063
90178-06016
