ZGZ15L-AWXLPW (2014)
Toyota Lexus Nx Series

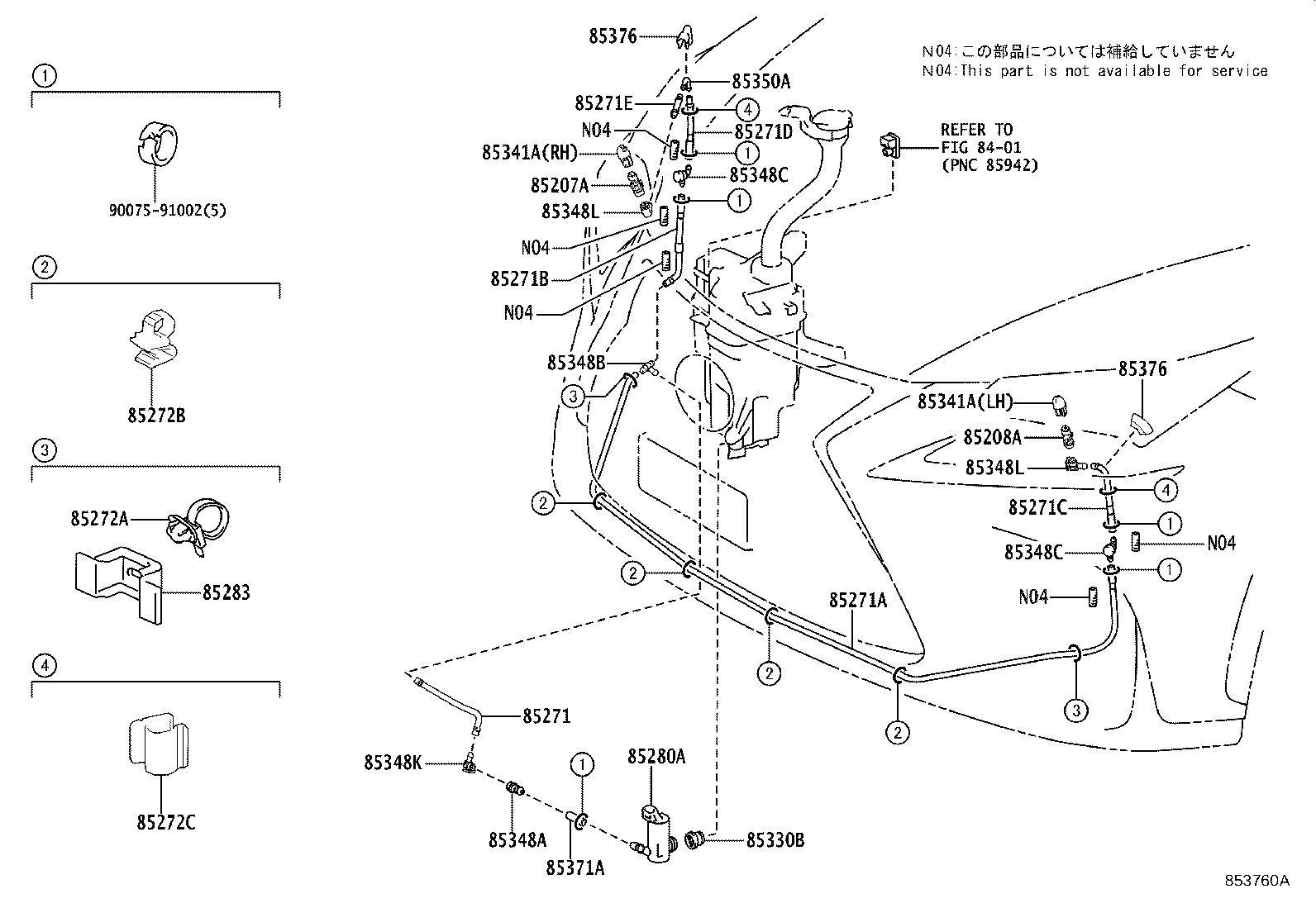

(1407-1703)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-78010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85207-78030 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-78030 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85208-78010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15097 |
ZGZ1# L=140,HEADLAMP CLEANER-WITH |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-78010 |
ZGZ1# L=2150,HEADLAMP CLEANER-WITH |
1 | ||
| 90075-15077 |
AGZ1#,AYZ1#,ZGZ1# L=1950,HEADLAMP CLEANER-WITH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15096 |
ZGZ1# L=400,HEADLAMP CLEANER-WITH |
1 | ||
| 90075-15057 |
AGZ1#,AYZ1#,ZGZ1# L=220,HEADLAMP CLEANER-WITH |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 82711-16830 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 82711-45020 |
ZGZ1# HEADLAMP CLEANER-WITH |
4 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 90075-90512 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-33030 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85283 - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,RH |
1 | ||
| 85354-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,LH |
1 | ||
| 85353-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH |
1 | ||
| 85353-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,RH |
1 | ||
| 85353-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,RH |
1 | ||
| 85353-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,RH |
1 | ||
| 85354-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,LH |
1 | ||
| 85353-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,RH |
1 | ||
| 85354-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,LH |
1 | ||
| 85353-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 85353-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85353-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,RH |
1 | ||
| 85353-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,RH |
1 | ||
| 85354-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,LH |
1 | ||
| 85354-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,LH |
1 | ||
| 85354-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 85354-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,LH |
1 | ||
| 85354-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,LH |
1 | ||
| 85354-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85354-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,LH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,RH |
1 | ||
| 85354-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,LH |
1 | ||
| 85353-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH |
1 | ||
| 85353-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,RH |
1 | ||
| 85353-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,RH |
1 | ||
| 85353-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,RH |
1 | ||
| 85354-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,LH |
1 | ||
| 85353-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,RH |
1 | ||
| 85354-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,LH |
1 | ||
| 85353-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 85353-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85353-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,RH |
1 | ||
| 85353-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,RH |
1 | ||
| 85354-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,LH |
1 | ||
| 85354-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,LH |
1 | ||
| 85354-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 85354-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,LH |
1 | ||
| 85354-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,LH |
1 | ||
| 85354-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85354-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17012 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15053 |
ZGZ1# L=35,HEADLAMP CLEANER-WITH |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-50040 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-50040 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| Common parts | ||||
| 90075-91002 | ||||
| Linked diagrams | ||||
| 8401 | ||||

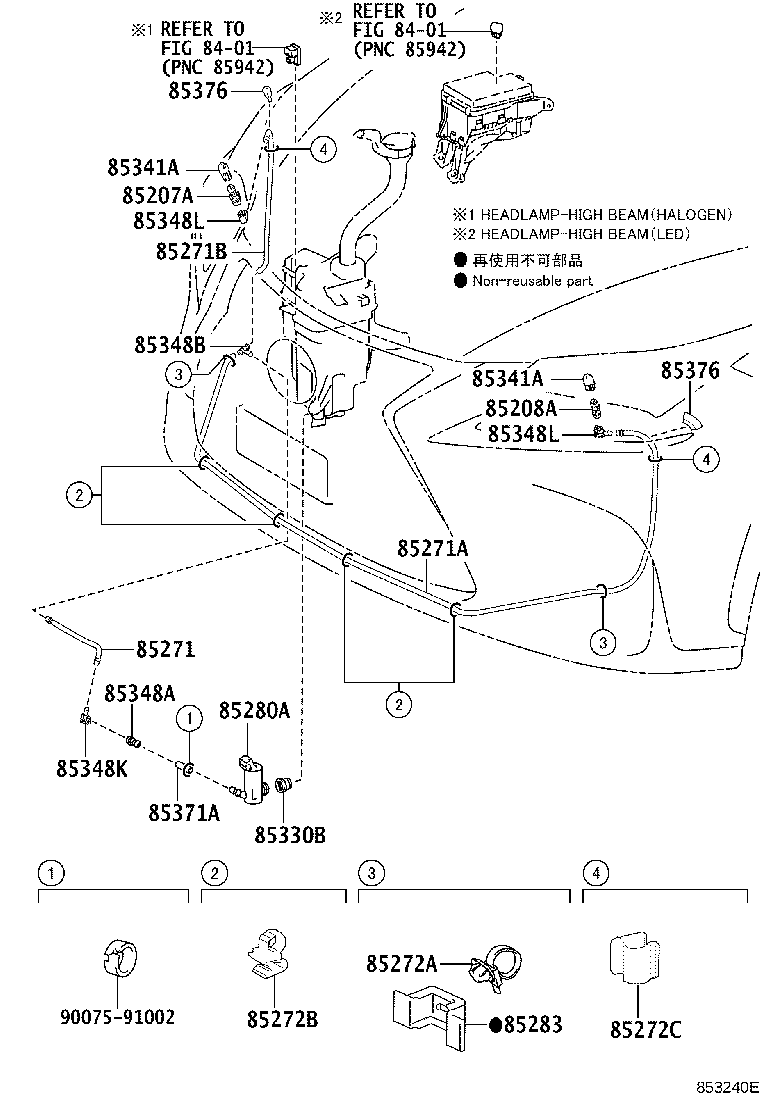

(1703-1709)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-78010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85207-78030 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-78030 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85208-78010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85271 - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 90075-15097 |
ZGZ1# L=140,HEADLAMP CLEANER-WITH |
1 | ||
| 85271A - HOSE, HEADLAMP CLEANER, NO.2 | ||||
| 85275-78010 |
ZGZ1# L=2150,HEADLAMP CLEANER-WITH |
1 | ||
| 90075-15077 |
AGZ1#,AYZ1#,ZGZ1# L=1950,HEADLAMP CLEANER-WITH |
1 | ||
| 85271B - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 90075-15096 |
ZGZ1# L=400,HEADLAMP CLEANER-WITH |
1 | ||
| 90075-15057 |
AGZ1#,AYZ1#,ZGZ1# L=220,HEADLAMP CLEANER-WITH |
1 | ||
| 85271C - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 90075-15064 |
AGZ1#,AYZ1#,ZGZ1# L=200,HEADLAMP CLEANER-WITH |
1 | ||
| 85271D - HOSE, HEADLAMP CLEANER, NO.5 | ||||
| 90075-15070 |
AGZ1#,AYZ1#,ZGZ1# L=140,HEADLAMP CLEANER-WITH |
1 | ||
| 85271E - HOSE, HEADLAMP CLEANER, NO.6 | ||||
| 90075-15068 |
AGZ1#,AYZ1#,ZGZ1# L=65,HEADLAMP CLEANER-WITH |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 82711-16830 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85272B - CLAMP, HEADLAMP CLEANER, NO.2 | ||||
| 82711-45020 |
ZGZ1# HEADLAMP CLEANER-WITH |
4 | ||
| 85272C - CLAMP, HEADLAMP CLEANER, NO.3 | ||||
| 90075-90512 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-33030 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85283 - BRACKET, HEADLAMP CLEANER WASHER | ||||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
2 | ||
| 89348-50050 |
ZGZ1# HEADLAMP CLEANER-WITH&CLEARANCE & BACK SONAR-WITH |
2 | ||
| 85330B - BUSH, HEADLAMP CLEANER WASHER JAR | ||||
| 90099-32089 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,RH |
1 | ||
| 85354-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,LH |
1 | ||
| 85353-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH |
1 | ||
| 85353-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,RH |
1 | ||
| 85353-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,RH |
1 | ||
| 85353-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,RH |
1 | ||
| 85354-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,LH |
1 | ||
| 85353-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,RH |
1 | ||
| 85354-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,LH |
1 | ||
| 85353-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 85353-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85353-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,RH |
1 | ||
| 85353-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,RH |
1 | ||
| 85354-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,LH |
1 | ||
| 85354-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,LH |
1 | ||
| 85354-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 85354-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,LH |
1 | ||
| 85354-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,LH |
1 | ||
| 85354-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85354-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,LH |
1 | ||
| 85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE | ||||
| 85353-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,RH |
1 | ||
| 85354-78020J0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLUE ME.,8U1,LH |
1 | ||
| 85353-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,RH |
1 | ||
| 85353-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,RH |
1 | ||
| 85353-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,RH |
1 | ||
| 85353-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,RH |
1 | ||
| 85354-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,LH |
1 | ||
| 85353-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,RH |
1 | ||
| 85354-78020J2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,LH |
1 | ||
| 85353-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,RH |
1 | ||
| 85353-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,RH |
1 | ||
| 85353-78020C0 |
ZGZ1# HEADLAMP CLEANER-WITH,BLACK,212,RH |
1 | ||
| 85353-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,RH |
1 | ||
| 85354-78020A0 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,LH |
1 | ||
| 85354-78020E1 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,AMBER CS.,4X2,LH |
1 | ||
| 85354-78020B1 |
ZGZ1# HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4,LH |
1 | ||
| 85354-78020B2 |
ZGZ1# HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,LH |
1 | ||
| 85354-78020D0 |
ZGZ1# HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,LH |
1 | ||
| 85354-78020B0 |
ZGZ1# HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,LH |
1 | ||
| 85354-78020C2 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,LH |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 90075-17012 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 | ||||
| 90075-17010 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-77010 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-77010 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 90075-17009 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85350A - JOINT,HEADLAMP CLEANER ELBOW, NO.3 | ||||
| 90075-17013 |
AGZ1#,AYZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 90075-15053 |
ZGZ1# L=35,HEADLAMP CLEANER-WITH |
1 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-50040 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| 85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85277-50040 |
ZGZ1# HEADLAMP CLEANER-WITH |
2 | ||
| Common parts | ||||
| 90075-91002 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
