AYZ15R-AWXLBW (2017)
Toyota Lexus Nx Series

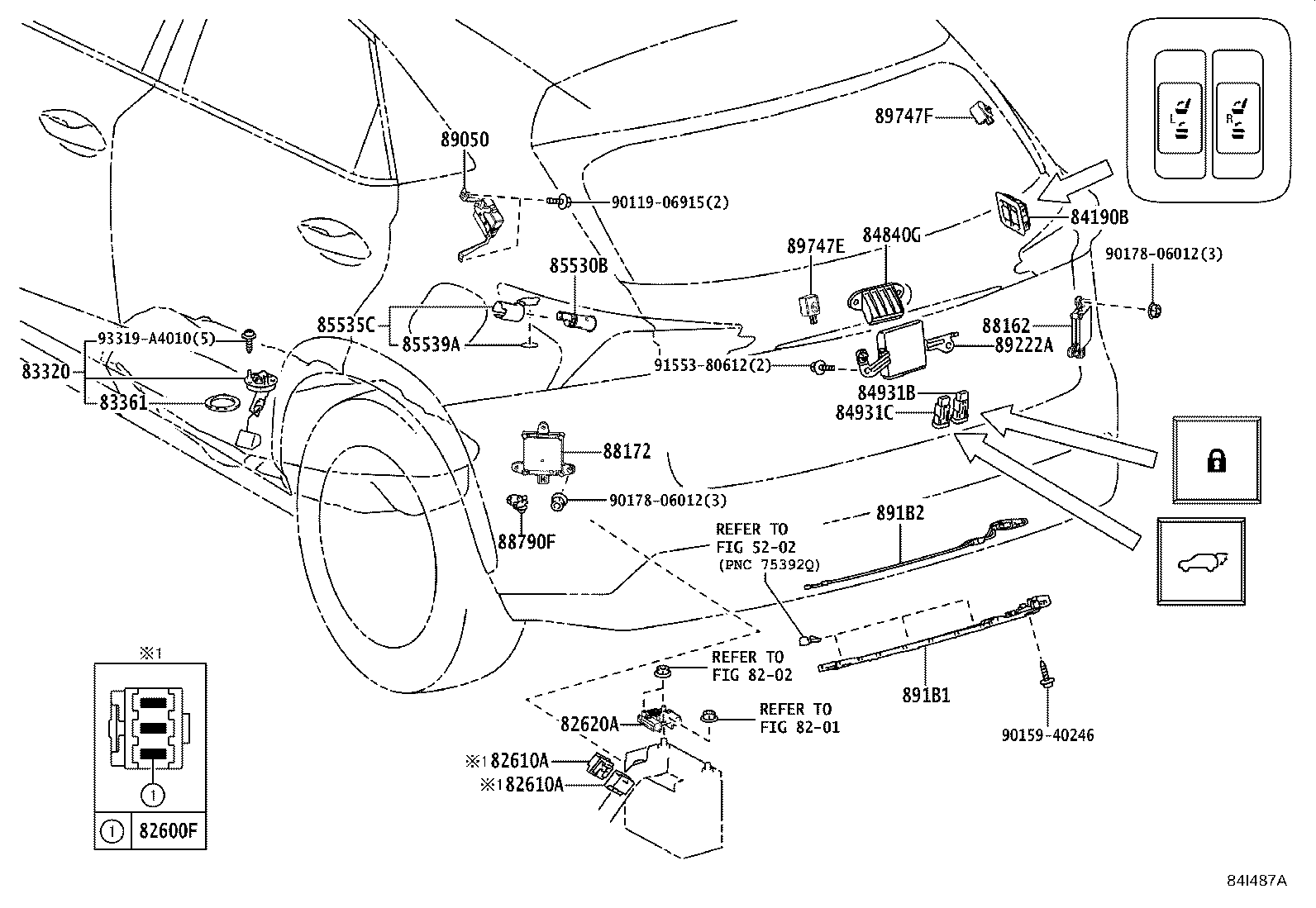

ILLUST NO.10 OF10(1709- )AYZ1#
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
AYZ1# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AYZ1# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AYZ1# 20A,MINI FUSE,YELLOW |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
AYZ1# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-0K030 |
AYZ1# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-78010 |
AYZ1# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-49255 |
AYZ1# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-78010C0 |
AGZ1#,AYZ1#..L REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#,9# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-42030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 84840-48020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-78030 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 84930-78030 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84931C - SWITCH, BACK DOOR CONTROL | ||||
| 84930-78020 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 84930-78020 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080C0 |
AGZ1#,AYZ1#..L BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 85535-35080C1 |
AGZ1#,AYZ1#..L BLACK,TRIM0#,2#,3#,4#,5#,6#,7# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 14SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 10SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 14SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 10SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78041 |
AGZ1#,AYZ1#..L BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78040 |
AGZ1#,AYZ1#..L BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 10SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78040 |
AGZ1#,AYZ1#..L BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 14SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78041 |
AGZ1#,AYZ1#..L BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78060 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 10SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-78020 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 14SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88790F - THERMISTOR ASSY | ||||
| 88790-28100 |
AYZ1# |
1 | ||
| 88790-22131 |
AYZ1# |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-78012 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 89050-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-78020 |
AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W071 |
AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 891B2-0W070 |
AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-78040 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89222-78030 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89222-78040 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 89222-78030 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 89222-78031 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 89222-78031 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-30040 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89747-30040 |
AGZ1#,AYZ1#,ZGZ1#..L AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 14SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
AGZ1#,AYZ1#..L BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
AGZ1#,AYZ1#..L OUTSIDE REAR VIEW MIRROR-*ERCDM & *MIH & ANTI-GLARE&AUDIO-EMVN & 10SPEAKER&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-40246 | ||||
| 90178-06012 | ||||
| 91553-80612 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 5202 | ||||
| 8201 | ||||
| 8202 | ||||
