AYZ15R-AWXLBW (2014)
Toyota Lexus Nx Series
Production
Jul 2014
-
Sep 2017
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

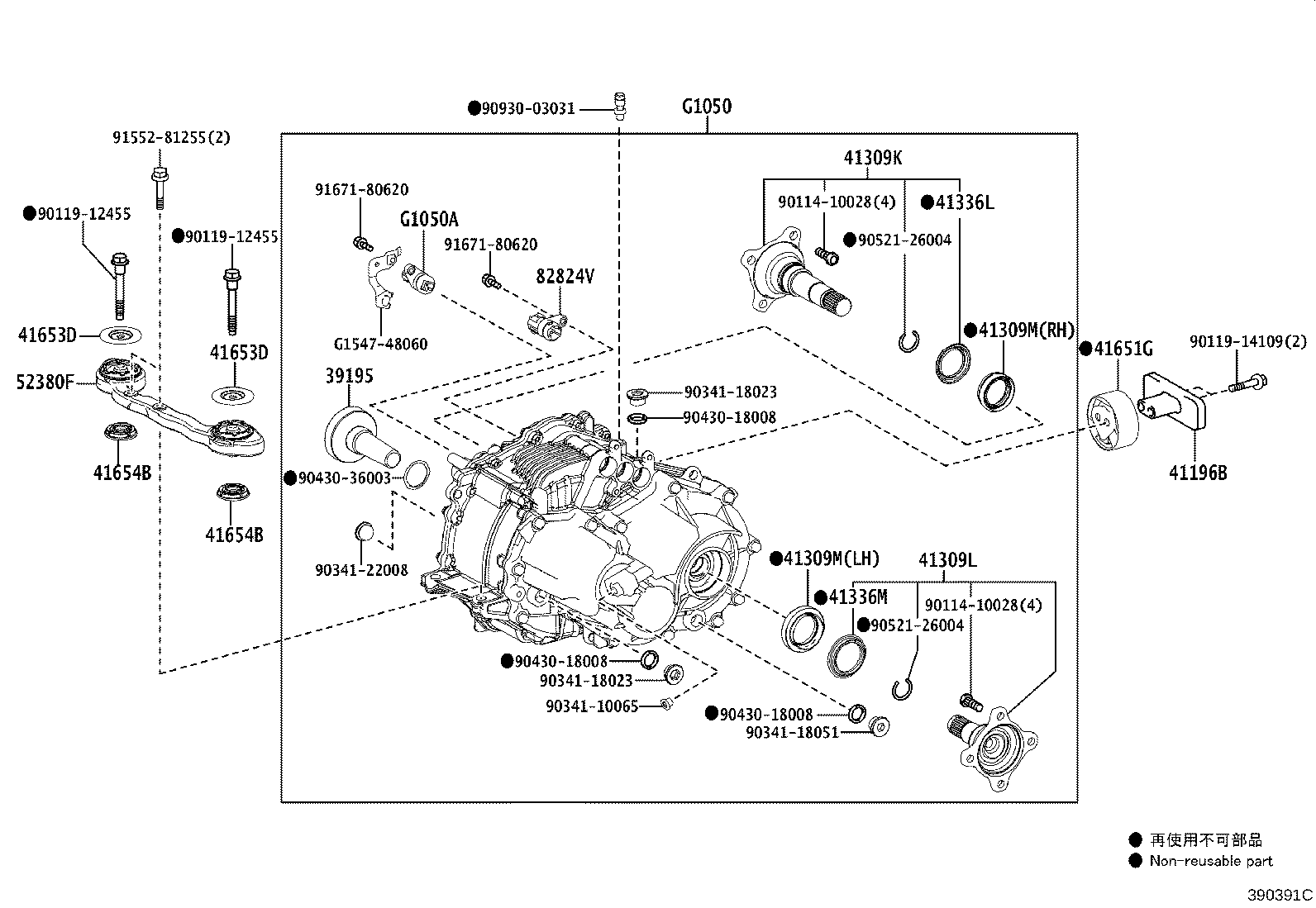

ILLUST NO. 3 OF 3(1407- )AYZ15
Click highlighted areas on diagram
RR TRACTION W/TRANSAXLE MOTOR ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 39195 - DAMPER, HV TRANSAXLE MASS | ||||
| 39195-28011 |
AYZ15 |
1 | ||
| 41196B - DAMPER, DIFFERENTIAL DYNAMIC | ||||
| 41196-48060 |
AYZ15 |
1 | ||
| 41309K - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH | ||||
| 41309-28060 |
AYZ15 |
1 | ||
| 41309L - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH | ||||
| 41309-28050 |
AYZ15 |
1 | ||
| 41309M - SEAL, OIL(FOR REAR TRANSAXLE SIDE GEAR) | ||||
| 90311-38085 |
AYZ15 RH |
1 | ||
| 90311-42038 |
AYZ15 LH |
1 | ||
| 41309M - SEAL, OIL(FOR REAR TRANSAXLE SIDE GEAR) | ||||
| 90311-38085 |
AYZ15 RH |
1 | ||
| 90311-42038 |
AYZ15 LH |
1 | ||
| 41336L - DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH | ||||
| 41336-28050 |
AYZ15 |
1 | ||
| 41336M - DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH | ||||
| 41336-28040 |
AYZ15 |
1 | ||
| 41651G - CUSHION, DIFFERENTIAL MOUNT | ||||
| 41651-48060 |
AYZ15 |
1 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-48010 |
AYZ15 |
2 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-48010 |
AYZ15 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-48010 |
AYZ15 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-48010 |
AYZ15 |
2 | ||
| 52380F - SUPPORT ASSY, DIFFERENTIAL, FRONT | ||||
| 52380-48100 |
AYZ15 |
1 | ||
| 82824V - CONNECTOR, WIRING HARNESS(FOR MOTOR REVOLUTION SENSOR) | ||||
| 82824-47100 |
AYZ15 |
1 | ||
| G1050 - MOTOR ASSY, RR TRACTION W/TRANSAXLE | ||||
| G1050-48020 |
AYZ15 |
1 | ||
| G1050A - CONNECTOR, WIRING HARNESS(FOR MOTOR TEMPERATURE SENSOR) | ||||
| 82824-47090 |
AYZ15 |
1 | ||
| Common parts | ||||
| 90114-10028 | ||||
| 90119-12455 | ||||
| 90119-14109 | ||||
| 90341-10065 | ||||
| 90341-18023 | ||||
| 90341-18051 | ||||
| 90341-22008 | ||||
| 90430-18008 | ||||
| 90430-36003 | ||||
| 90521-26004 | ||||
| 90930-03031 | ||||
| 91552-81255 | ||||
| 91671-80620 | ||||
| G1547-48060 | ||||

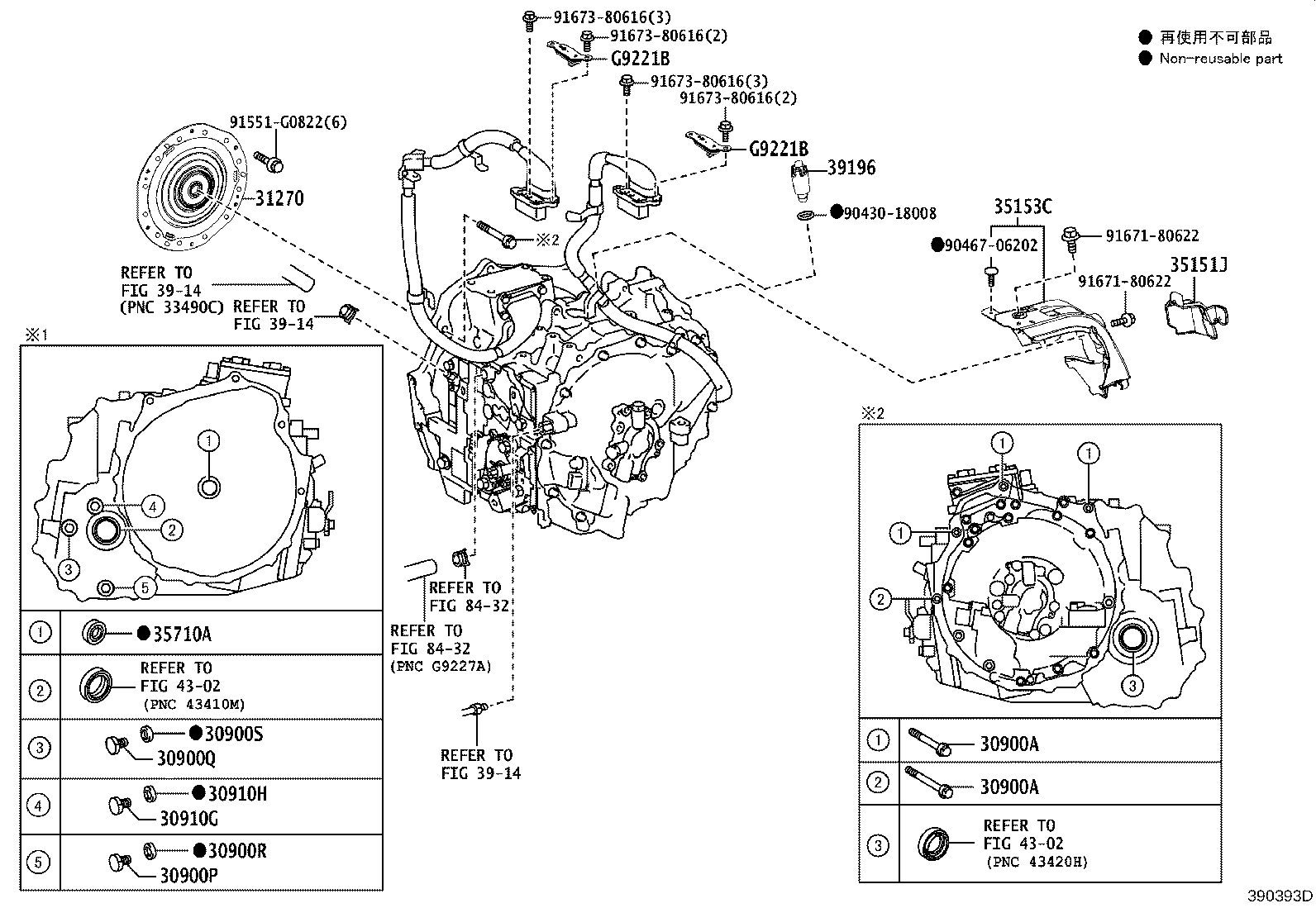

ILLUST NO. 2 OF 3(1407- )AYZ1#
Click highlighted areas on diagram
HYBRID VEHICLE TRANSAXLE ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900A - BOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AYZ1# *12-1.25PX55-30 |
3 | ||
| 91512-61065 |
AYZ1# *10-1.25PX65-30 |
1 | ||
| 30900A - BOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING) | ||||
| 90119-12168 |
AYZ1# *12-1.25PX55-30 |
3 | ||
| 91512-61065 |
AYZ1# *10-1.25PX65-30 |
1 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
AYZ1# |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
AYZ1# |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
AYZ1# |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
AYZ1# |
1 | ||
| 30910G - PLUG, STRAIGHT SCREW W/HEAD(FOR TRANSMISSION CASE) | ||||
| 90341-18078 |
AYZ1# |
1 | ||
| 90341-18016 |
AYZ1# |
1 | ||
| 30910H - GASKET(FOR TRANSMISSION CASE) | ||||
| 90430-18008 |
AYZ1# |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-30010 |
AYZ1# |
1 | ||
| 35151J - COVER, AUTOMATIC TRANSMISSION CASE | ||||
| 35151-33090 |
AYZ1# |
1 | ||
| 35153C - COVER, AUTOMATIC TRANSMISSION CASE, NO.3 | ||||
| 35153-48020 |
AYZ1# |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-25027 |
AYZ1# |
1 | ||
| 39196 - DAMPER, HV TRANSMISSION MASS | ||||
| 39195-33020 |
AYZ1# |
1 | ||
| G9221B - COVER, INVERTER, UPR | ||||
| G9221-33010 |
AYZ1# |
2 | ||
| G9221B - COVER, INVERTER, UPR | ||||
| G9221-33010 |
AYZ1# |
2 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90467-06202 | ||||
| 91551-G0822 | ||||
| 91671-80622 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 3914 | ||||
| 4302 | ||||
| 8432 | ||||

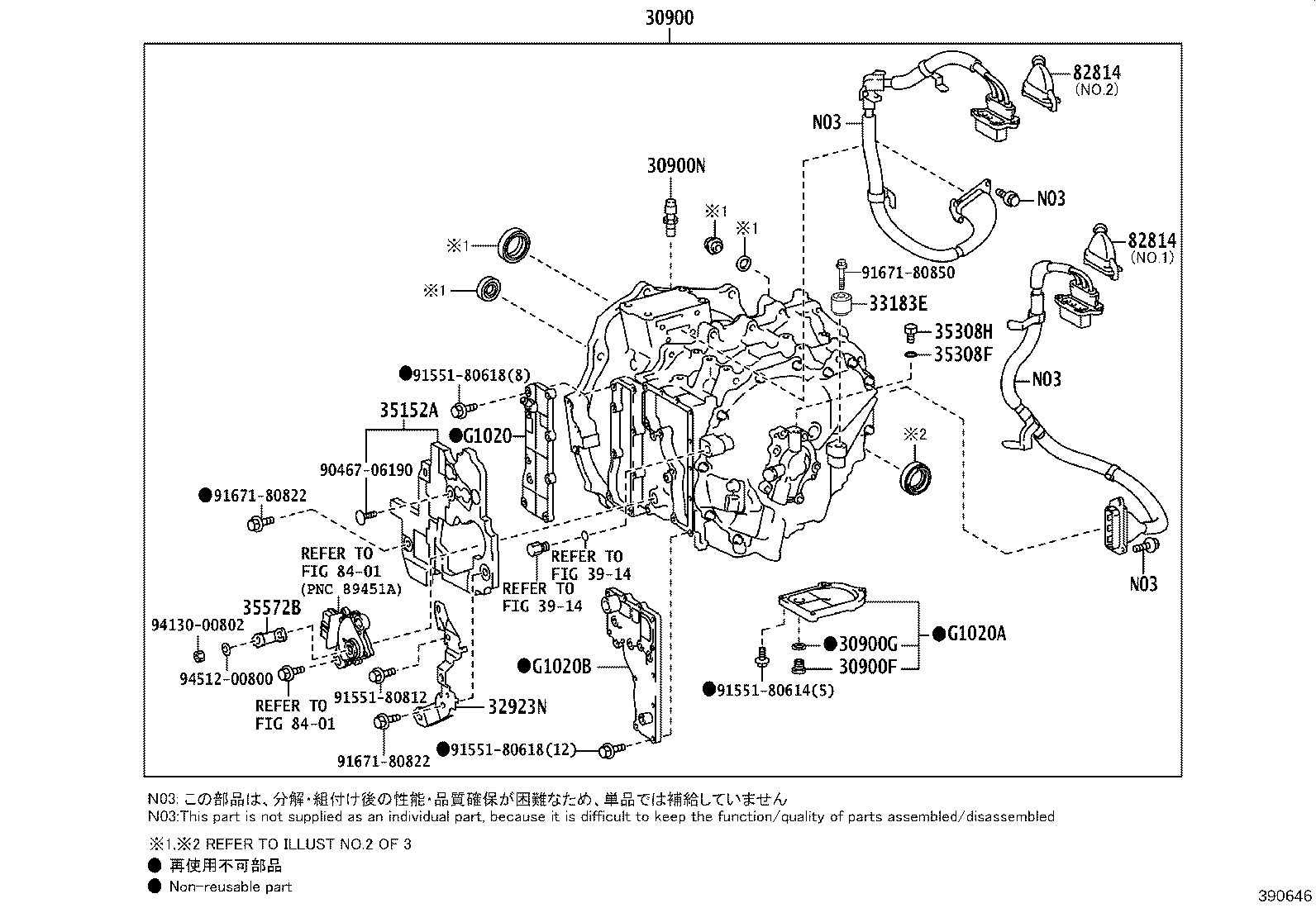

ILLUST NO. 1 OF 3(1407- )AYZ1#
Click highlighted areas on diagram
HYBRID VEHICLE TRANSAXLE ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-48121 |
AYZ15 |
1 | ||
| 30900-48120 |
AYZ15 |
1 | ||
| 30900F - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & C | ||||
| 90341-18016 |
AYZ1# |
1 | ||
| 30900G - GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AYZ1# |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
AYZ1# |
1 | ||
| 32923N - CLAMP, OIL COOLER TUBE | ||||
| 32923-48040 |
AYZ1# |
1 | ||
| 33183E - DAMPER, DYNAMIC | ||||
| 33183-48010 |
AYZ1# |
1 | ||
| 35152A - COVER, AUTOMATIC TRANSMISSION CASE, NO.2 | ||||
| 35151-33100 |
AYZ1# |
1 | ||
| 35308F - RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
AYZ1# |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
AYZ1# |
1 | ||
| 35572B - LEVER, TRANSMISSION, OUTER | ||||
| 35572-33030 |
AYZ1# |
1 | ||
| 82814 - BOOT, WIRE HARNESS | ||||
| 82814-48030 |
AYZ1# NO.2:REFER ILLUST. |
1 | ||
| 82814-48020 |
AYZ1# NO.1:REFER ILLUST. |
1 | ||
| 82814 - BOOT, WIRE HARNESS | ||||
| 82814-48030 |
AYZ1# NO.2:REFER ILLUST. |
1 | ||
| 82814-48020 |
AYZ1# NO.1:REFER ILLUST. |
1 | ||
| G1020 - COVER ASSY, MOTOR WATER JACKET, NO.1 | ||||
| G1020-33010 |
AYZ1# |
1 | ||
| G1020A - COVER ASSY, MOTOR WATER JACKET, NO.2 | ||||
| G1020-48030 |
AYZ1# |
1 | ||
| G1020B - COVER ASSY, MOTOR WATER JACKET, NO.3 | ||||
| G1020-48040 |
AYZ1# |
1 | ||
| Common parts | ||||
| 90467-06190 | ||||
| 91551-80614 | ||||
| 91551-80618 | ||||
| 91551-80812 | ||||
| 91671-80822 | ||||
| 91671-80850 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3914 | ||||
| 8401 | ||||
