AYZ15L-AWXLBW (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )LHD

Click highlighted areas on diagram

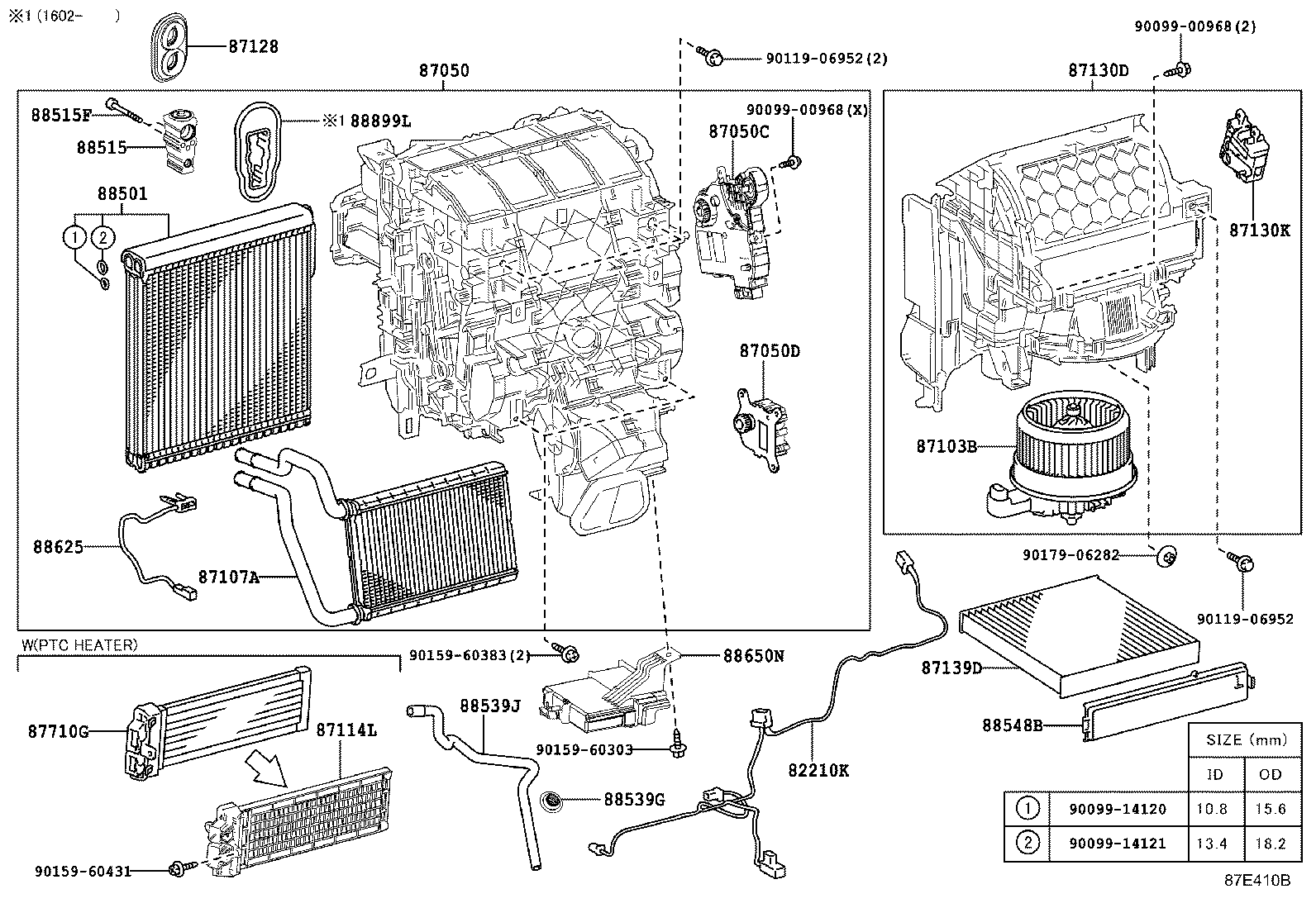

diagram 82210K 87050 87050C 87050D 87103B 87107A 87114L 87128 87130D 87130K 87139D 87710G 88501 88515 88515F 88539G 88539J 88548B 88625 88650N 88899L 9009900968 9009900968 9009914120 9009914121 9011906952 9011906952 9015960303 9015960383 9015960431 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-78010

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-78040

AYZ15..LHD

BELARUS SPEC

 1
87050-78040

AYZ1#..LHD..L

RUSSIA SPEC

 1
87050-78040

AYZ15..LHD

KAZAKHSTAN SPEC

 1
87050-78020

AYZ1#..LHD

 1
87050-78040

AYZ1#..LHD..L

CHILE SPEC

 1
87050-78040

AYZ1#..LHD..L

UKRAINE SPEC

 1
87050-78040

AYZ1#..LHD..L

TAIWAN SPEC

 1
87050-78040

AYZ15..LHD

MONTENEGRO SPEC

 1
87050-78040

AYZ15..LHD

AZERBAIJAN,ARMENIA,GEORGIA SPEC

 1
87050-78040

AYZ1#..LHD..L

SERBIA,MACEDONIA,BOSNIA SPEC

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-48170

AGZ1#,AYZ1#,ZGZ1#

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-48180

AGZ1#,AYZ1#,ZGZ1#

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-78010

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-78010

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
87128 - GROMMET, HEATER
87128-76010

AGZ1#,AYZ1#,ZGZ1#

 1
87130D - BLOWER ASSY
87130-78010

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-28240

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
87139D - ELEMENT, AIR REFINER
87139-50100

AGZ1#,AYZ1#,ZGZ1#

 1
87710G - QUICK HEATER ASSY
87710-48020

AYZ1#,ZGZ1#

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-48340

AYZ1#

 1
88515 - VALVE, COOLER EXPANSION
88515-48110

AGZ1#,AYZ1#..LHD..L

UKRAINE SPEC

 1
88515-48110

AGZ15,AYZ15..LHD

BELARUS SPEC

 1
88515-48110

AGZ1#,AYZ1#..LHD..L

RUSSIA SPEC

 1
88515-48110

AGZ1#,AYZ1#..LHD..L

SERBIA,MACEDONIA,BOSNIA SPEC

 1
88515-48110

AGZ15,AYZ15..LHD

KAZAKHSTAN SPEC

 1
88515-48110

AGZ15,AYZ15..LHD

MONTENEGRO SPEC

 1
88515-78010

AGZ1#,AYZ1#

 1
88515-48110

AGZ1#,AYZ1#..LHD..L

CHILE SPEC

 1
88515-48110

AYZ1#..LHD..L

TAIWAN SPEC

 1
88515-48110

AGZ15,AYZ15..LHD

AZERBAIJAN,ARMENIA,GEORGIA SPEC

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542

AGZ1#,AYZ1#,ZGZ1#

 2
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26030

AGZ1#,AYZ1#,ZGZ1#

 1
88539J - HOSE, DRAIN COOLER
88539-78010

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
88548B - CASE, AIR FILTER
88548-42020

AGZ1#,AYZ1#,ZGZ1#..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88620-28050

AGZ1#,AYZ1#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-78020

AYZ1#..LHD..L

SERBIA,MACEDONIA,BOSNIA SPEC

 1
88650-78020

AYZ15..LHD

AZERBAIJAN,ARMENIA,GEORGIA SPEC

 1
88650-78020

AYZ1#..LHD..L

TAIWAN SPEC

 1
88650-78020

AYZ15..LHD

MONTENEGRO SPEC

 1
88650-78040

AYZ1#

 1
88650-78020

AYZ15..LHD

BELARUS SPEC

 1
88650-78020

AYZ15..LHD

KAZAKHSTAN SPEC

 1
88650-78020

AYZ1#..LHD..L

RUSSIA SPEC

 1
88650-78020

AYZ1#..LHD..L

CHILE SPEC

 1
88650-78020

AYZ1#..LHD..L

UKRAINE SPEC

 1
88650-78140

AYZ1#..LHD..L

UKRAINE SPEC

 1
88650-78140

AYZ15..LHD

MONTENEGRO SPEC

 1
88650-78140

AYZ1#..LHD..L

RUSSIA SPEC

 1
88650-78140

AYZ1#..LHD..L

SERBIA,MACEDONIA,BOSNIA SPEC

 1
88650-78140

AYZ1#..LHD..L

CHILE SPEC

 1
88650-78140

AYZ1#..LHD..L

TAIWAN SPEC

 1
88650-78140

AYZ15..LHD

AZERBAIJAN,ARMENIA,GEORGIA SPEC

 1
88650-78160

AYZ1#

 1
88899L - PARTS, COOLING UNIT
88899-78020

AGZ1#,AYZ1#,ZGZ1#

 1
Common parts
90099-00968
90099-14120
90099-14121
90119-06952
90159-60303
90159-60383
90159-60431
90179-06282
