AYZ15L-AWXLBW (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )2ARFXE

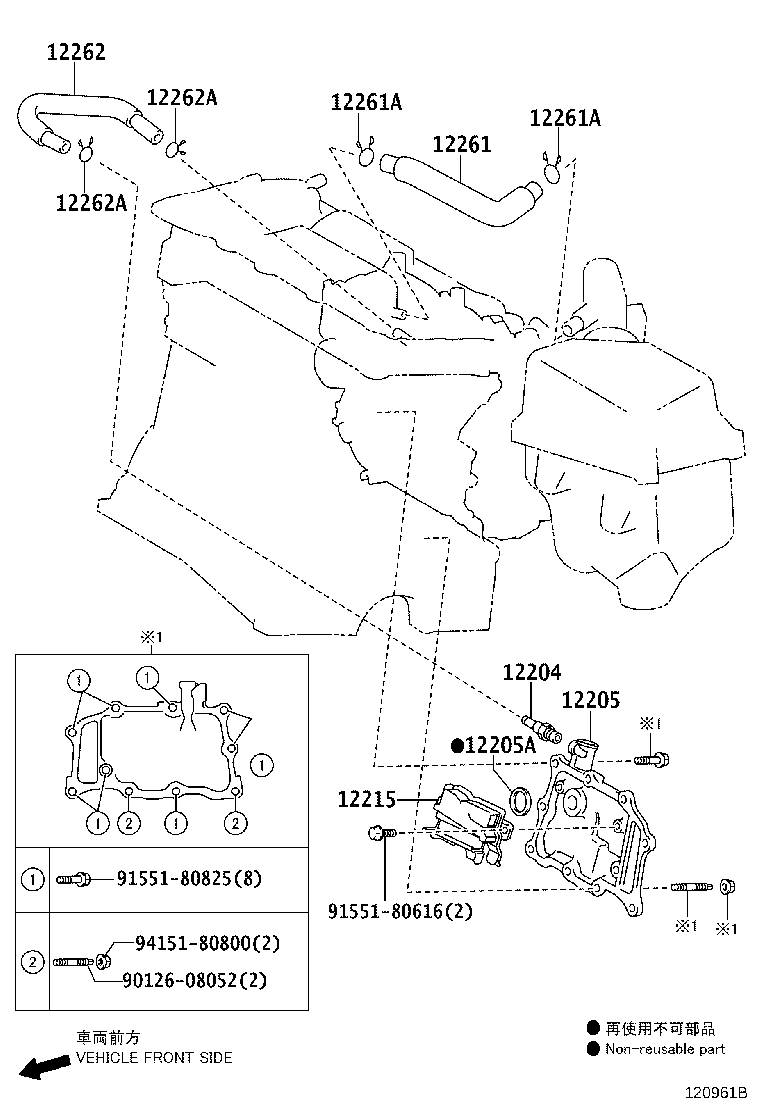

Click highlighted areas on diagram

diagram 12204 12205 12205A 12215 12261 12261A 12261A 12262 12262A 12262A 9012608052 9155180616 9155180825 9415180800
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-36030

2ARFXE..AYZ15..LHD

BELARUS SPEC

 1
12204-36030

2ARFXE..AYZ15..LHD

AZERBAIJAN,ARMENIA,GEORGIA SPEC

 1
12204-36030

2ARFXE..AYZ15..LHD

MONTENEGRO SPEC

 1
12204-36030

2ARFXE..AYZ15..LHD

KAZAKHSTAN SPEC

 1
12204-36030

2ARFXE..AYZ1#..LHD..L

SERBIA,MACEDONIA,BOSNIA SPEC

 1
12204-36030

2ARFXE..AYZ1#..LHD..L

CHILE SPEC

 1
12204-36030

2ARFXE..AYZ1#..LHD..L

TAIWAN SPEC

 1
12204-36030

2ARFXE..AYZ1#..LHD..L

RUSSIA SPEC

 1
12204-36020

2ARFXE..AYZ1#

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-36010

2ARFXE..AYZ1#

 1
12205A - RING, O(FOR VENTILATION CASE)
12273-36010

2ARFXE..AYZ1#

 1
12215 - SEPARATOR, CASE
12215-36010

2ARFXE..AYZ1#

 1
12261 - HOSE, VENTILATION
12261-36060

2ARFXE..AYZ1#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

2ARFXE..AYZ1#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21004

2ARFXE..AYZ1#

 2
12262 - HOSE, VENTILATION, NO.2
12262-36080

2ARFXE..AYZ1#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYZ1#

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYZ1#

 2
Common parts
90126-08052
91551-80616
91551-80825
94151-80800
