AYZ10R-AWXEBW (2014)
Toyota Lexus Nx Series
(1407- )RHD

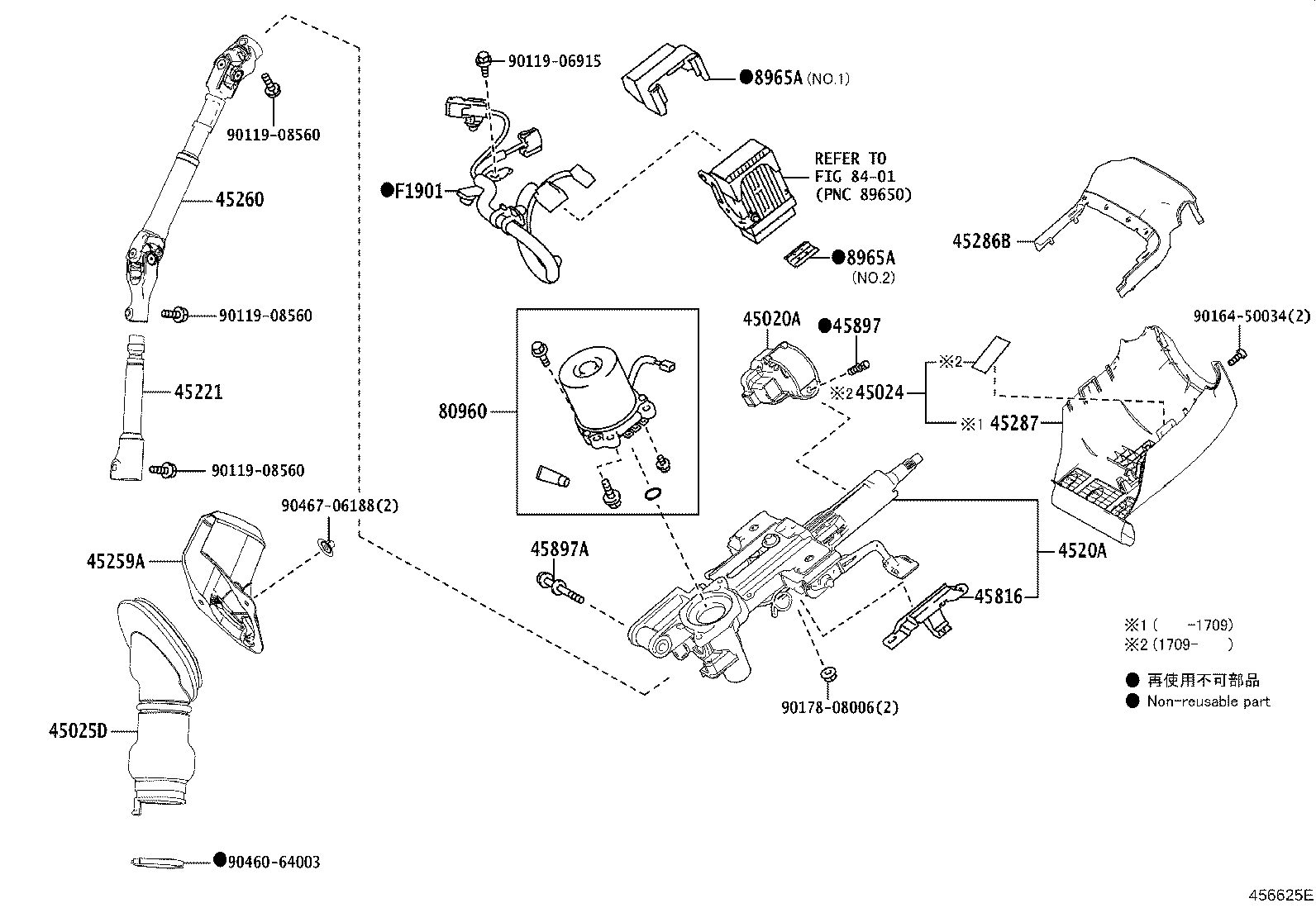

MANUAL TILT & TELESCOPIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-53050 |
AYZ10..RHD..E ENGLAND SPEC |
1 | ||
| 45020-30B20 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-42070 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-48030 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-42090 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-42010 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-42100 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-78010C0 |
AYZ10..E BLACK,TRIM1#,2#,3# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-78010C0 |
AYZ10..E BLACK,TRIM1#,2#,3# |
1 | ||
| 45816 - BRACKET, WIRE HARNESS | ||||
| 45816-48010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-42060 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-33040 |
AGZ1#,AYZ1#,ZGZ1# NO.2:REFER ILLUST. |
1 | ||
| 8965A-33030 |
AGZ1#,AYZ1#,ZGZ1# NO.1:REFER ILLUST. |
1 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-33040 |
AGZ1#,AYZ1#,ZGZ1# NO.2:REFER ILLUST. |
1 | ||
| 8965A-33030 |
AGZ1#,AYZ1#,ZGZ1# NO.1:REFER ILLUST. |
1 | ||
| F1901 - WIRE SUB-ASSY, COMPUTER | ||||
| F1901-78040 |
AGZ1#,AYZ1#..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90178-08006 | ||||
| 90460-64003 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 8401 | ||||

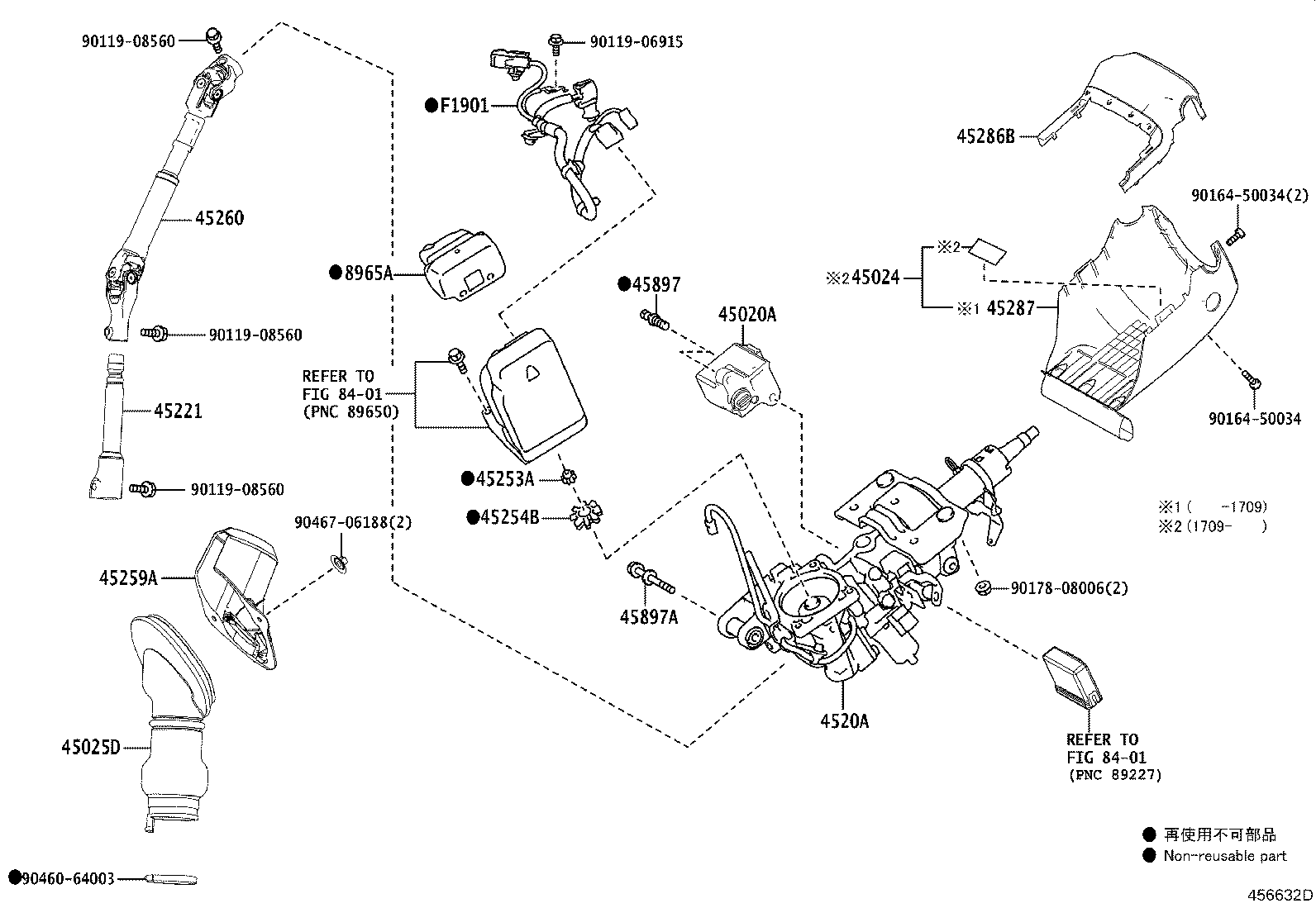

(1407- )RHD
POWER TILT & TELESCOPIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-53050 |
AYZ10..RHD..E ENGLAND SPEC |
1 | ||
| 45020-30B20 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-42070 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-48030 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-42090 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-42010 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-42100 |
AGZ1#,AYZ1#..RHD |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-78010C0 |
AYZ10..E BLACK,TRIM1#,2#,3# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-78010C0 |
AYZ10..E BLACK,TRIM1#,2#,3# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 8965A - PROTECTOR, POWER STEERING COMPUTER | ||||
| 8965A-33040 |
AGZ1#,AYZ1#,ZGZ1# NO.2:REFER ILLUST. |
1 | ||
| 8965A-33030 |
AGZ1#,AYZ1#,ZGZ1# NO.1:REFER ILLUST. |
1 | ||
| F1901 - WIRE SUB-ASSY, COMPUTER | ||||
| F1901-78040 |
AGZ1#,AYZ1#..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08560 | ||||
| 90164-50034 | ||||
| 90178-08006 | ||||
| 90460-64003 | ||||
| 90467-06188 | ||||
| Linked diagrams | ||||
| 8401 | ||||
