AGZ10L-AWTLTW (2017)
Toyota Lexus Nx Series

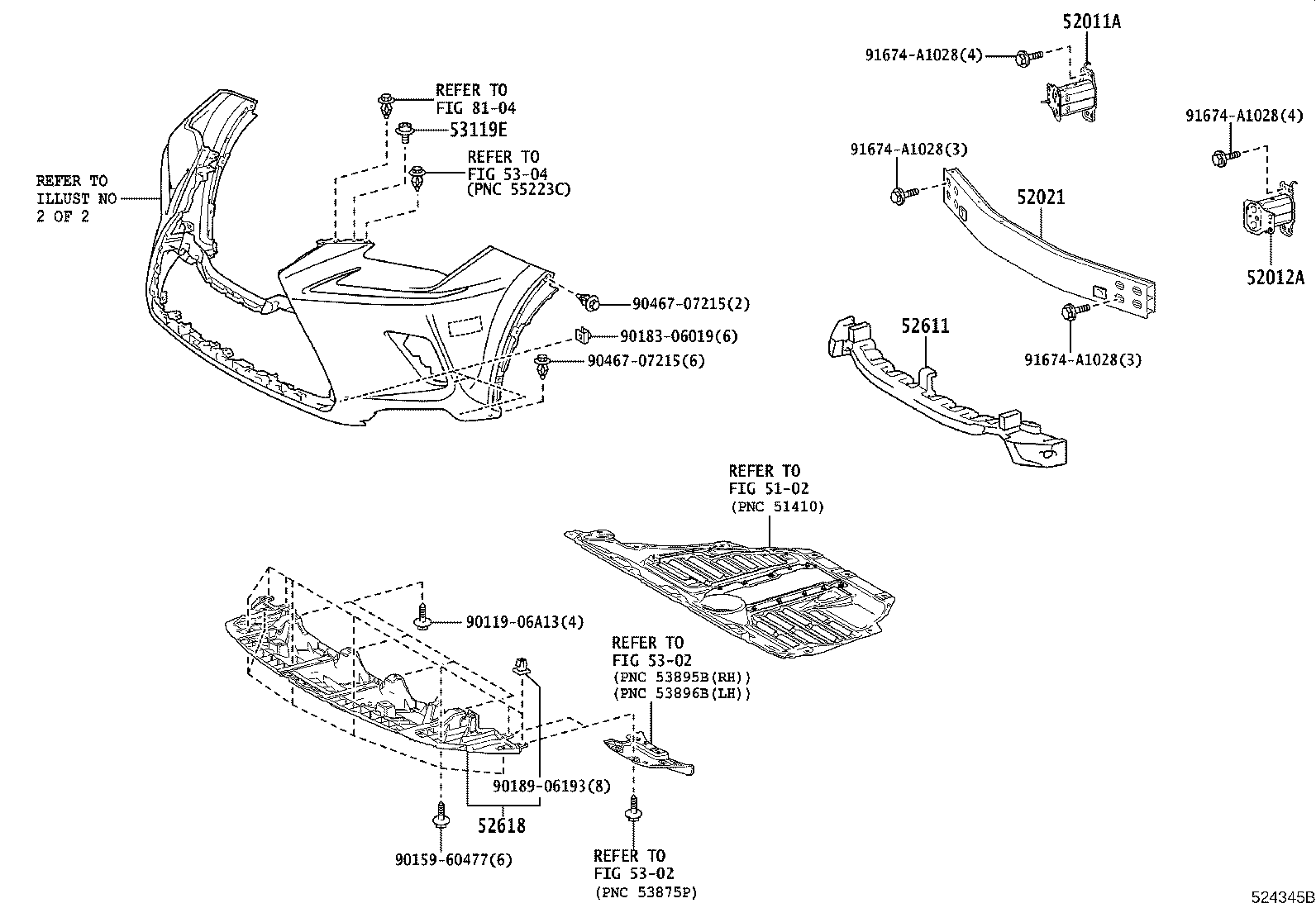

ILLUST NO. 1 OF 2(1709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90183-06019 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8104 | ||||

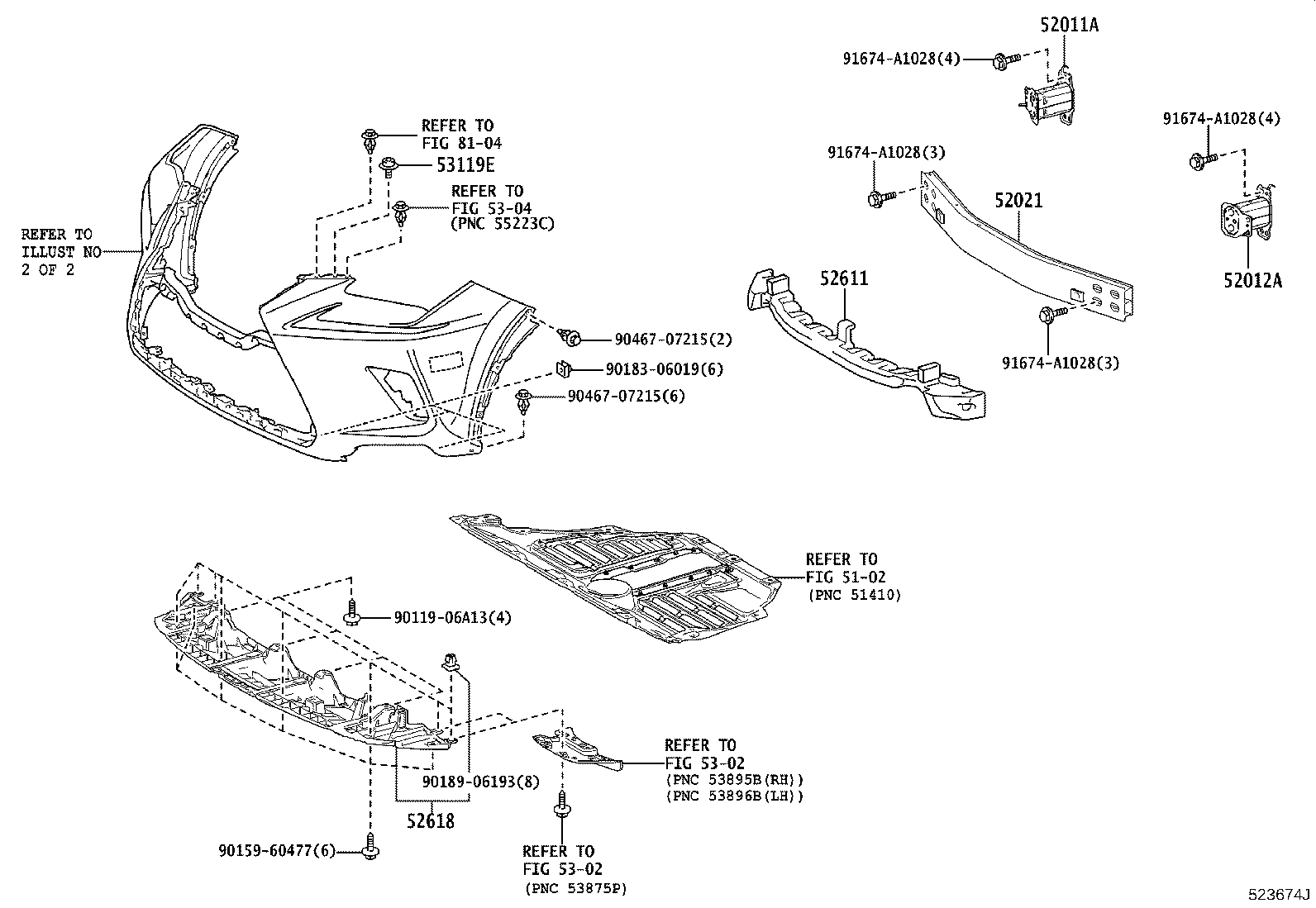

ILLUST NO. 1 OF 2(1709- )
F SPORT OR SE PACKAGE1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90183-06019 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8104 | ||||
ILLUST NO. 1 OF 2(2001-2007)L
EUROPE 21MY SPACIAL EDITION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52614-78040 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52618-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90183-06019 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8104 | ||||

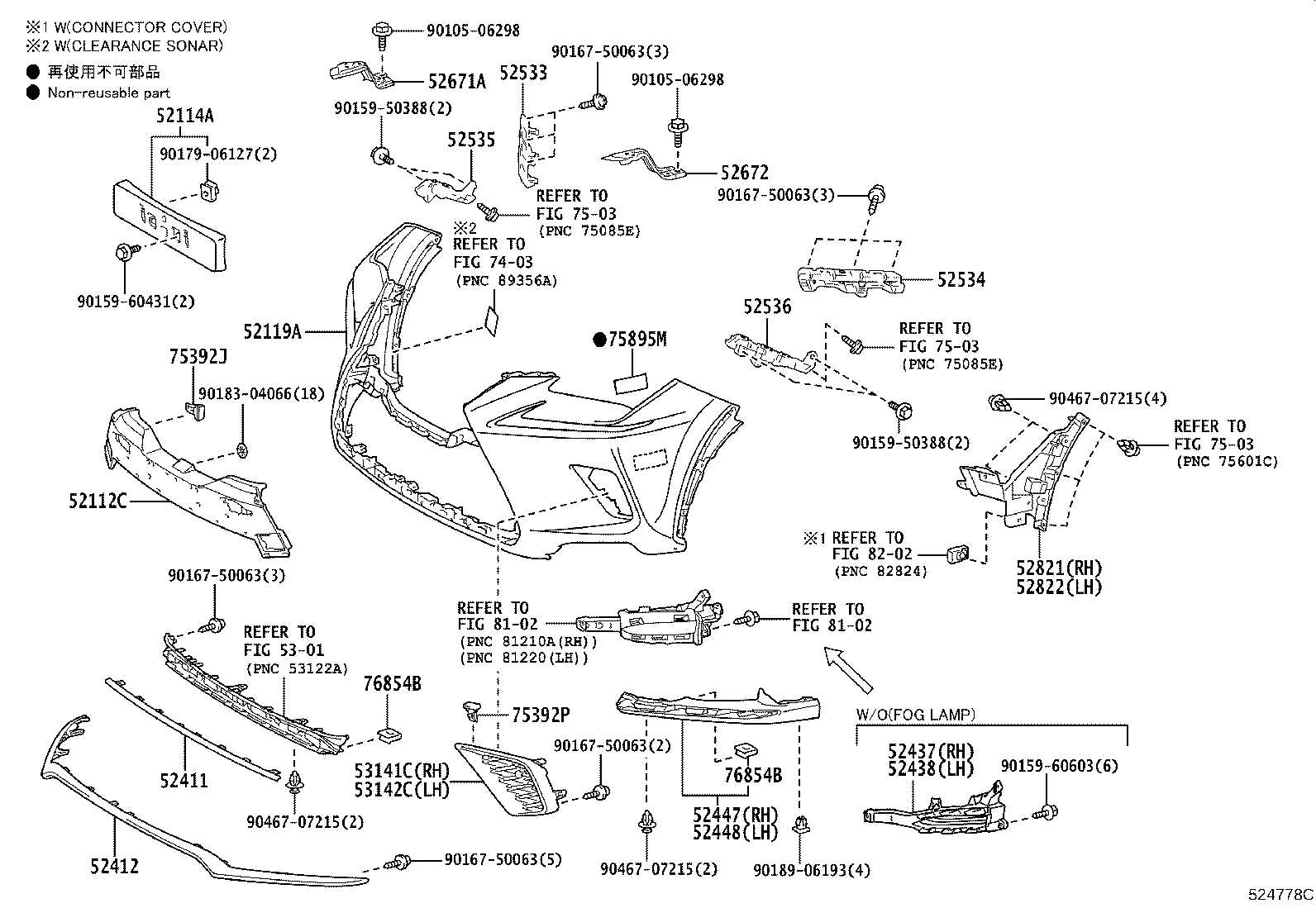

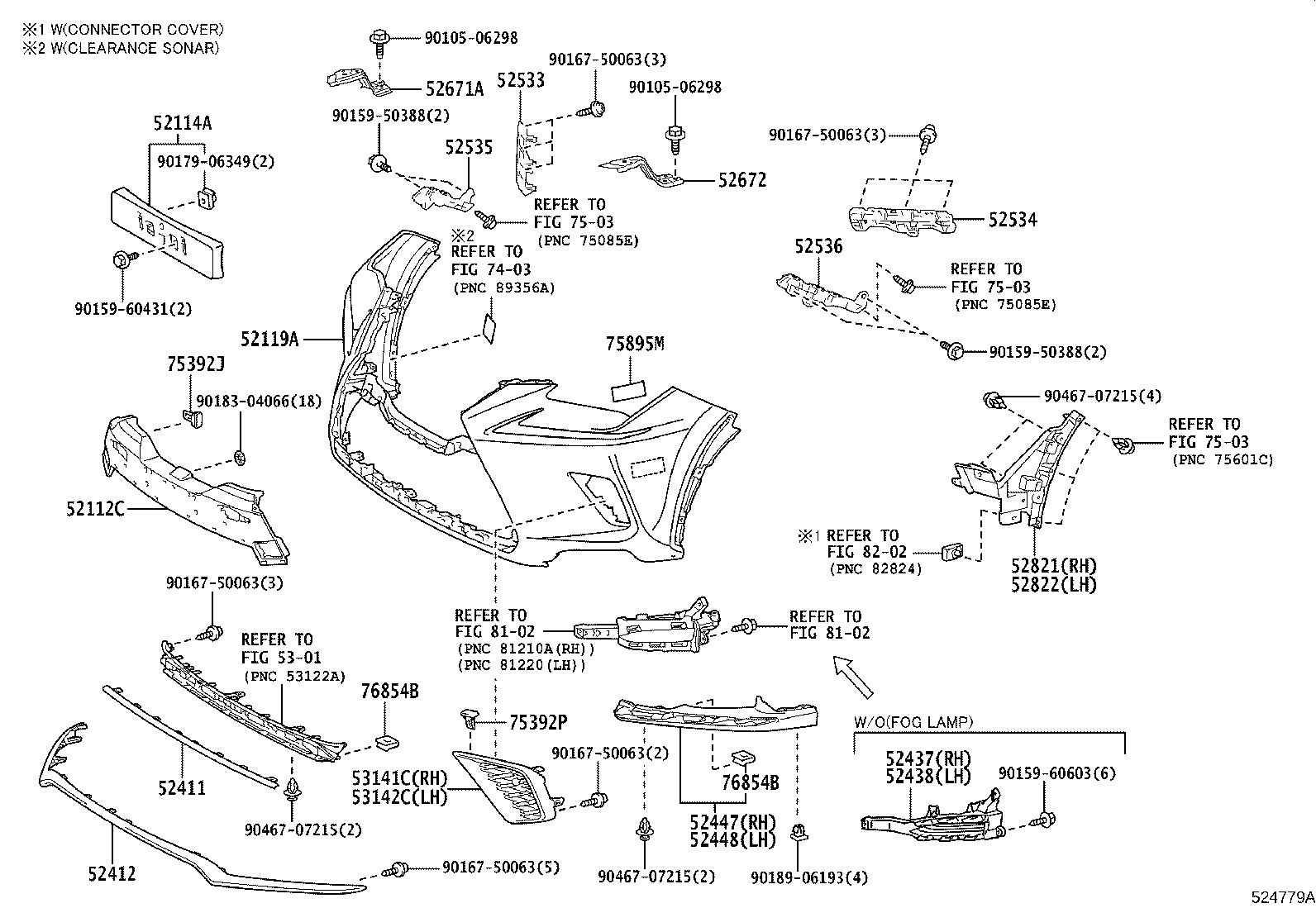

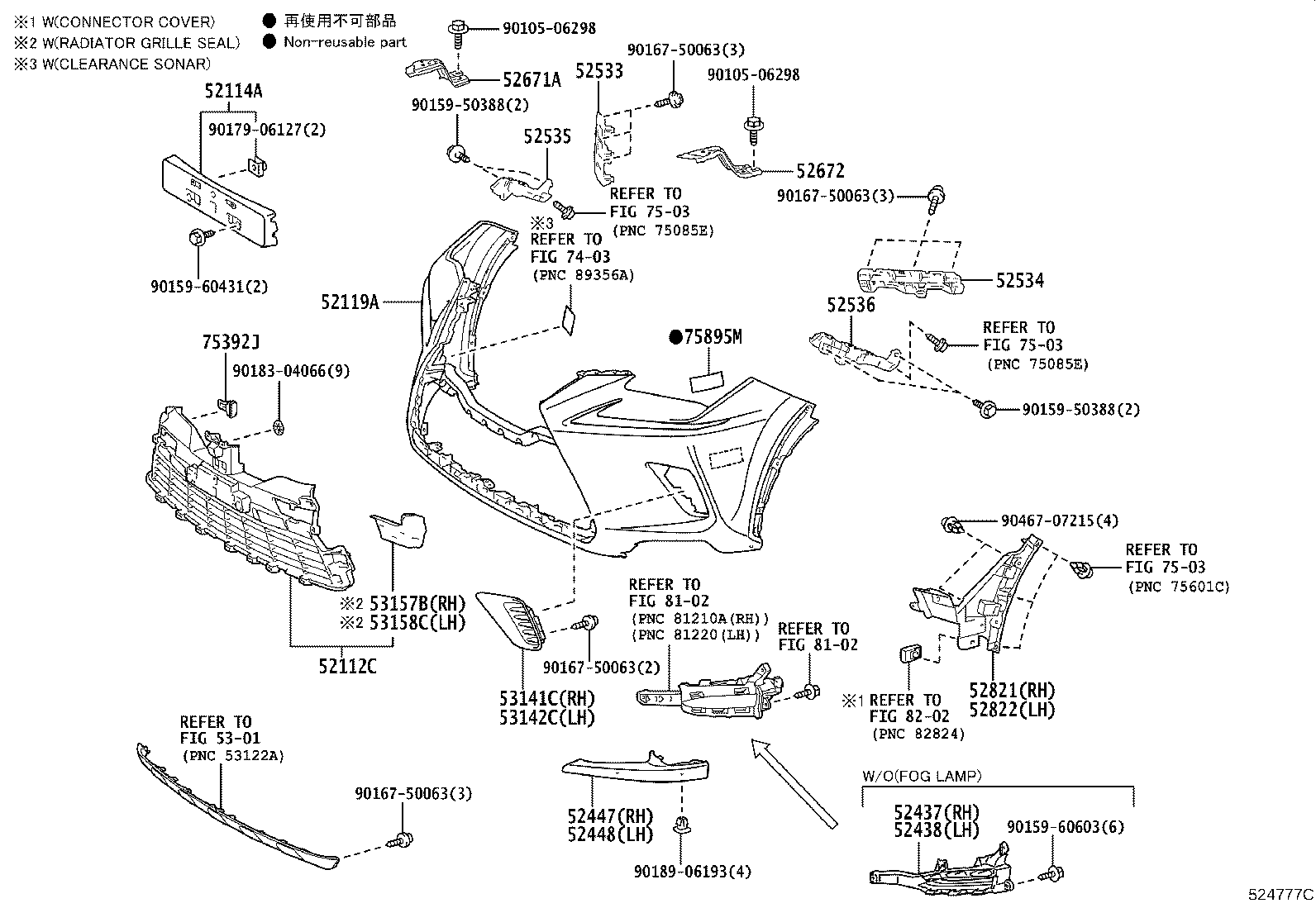

ILLUST NO. 2 OF 2(1709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-78310 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52112-78210 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52112-78230 |
AGZ1# ICELAND SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# RUSSIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# FRANCE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEWMONITOR) |
1 | ||
| 52112-78230 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# PORTUGAL, GREECE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# BULGARIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ISRAEL SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ROMANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ICELAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# RUSSIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# FRANCE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# SLOVENIA, CROATIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# TURKEY SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# UKRAINE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ROMANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# SLOVENIA, CROATIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# UKRAINE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# PORTUGAL, GREECE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BULGARIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TURKEY SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CHILE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CHILE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ISRAEL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITHOUT |
1 | ||
| 52112-78310 |
AGZ1#,AYZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52112-78230 |
AGZ1# F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-78150 |
AGZ1# TAIWAN SPEC |
1 | ||
| 52114-78180 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52114-78200 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212 |
1 | ||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78923 |
AGZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2 |
1 | ||
| 52119-78925 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# PAINT REQ. |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ.,HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78945 |
AGZ1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52447-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52534 - BRACKET, FRONT BUMPER RETAINER, NO.2 | ||||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-78040 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78100 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90183-04066 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 7503 | ||||
| 8102 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(1709- )
F SPORT OR SE PACKAGE1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-78310 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52112-78210 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52112-78230 |
AGZ1# ICELAND SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# RUSSIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# FRANCE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEWMONITOR) |
1 | ||
| 52112-78230 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# PORTUGAL, GREECE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# BULGARIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ISRAEL SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ROMANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ICELAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# RUSSIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# FRANCE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# SLOVENIA, CROATIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# TURKEY SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# UKRAINE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ROMANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# SLOVENIA, CROATIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# UKRAINE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# PORTUGAL, GREECE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BULGARIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TURKEY SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CHILE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CHILE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ISRAEL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITHOUT |
1 | ||
| 52112-78310 |
AGZ1#,AYZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52112-78230 |
AGZ1# F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-78150 |
AGZ1# TAIWAN SPEC |
1 | ||
| 52114-78180 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52114-78200 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212 |
1 | ||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78923 |
AGZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2 |
1 | ||
| 52119-78925 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# PAINT REQ. |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ.,HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78945 |
AGZ1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52412 - GUARD, FRONT BUMPER, NO.2 | ||||
| 52412-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52447-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52534 - BRACKET, FRONT BUMPER RETAINER, NO.2 | ||||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-78040 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78100 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75392P - RETAINER, OUTSIDE MOULDING, NO.3 | ||||
| 75392-35220 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
8 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
6 | ||
| 76854-44010 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
6 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
6 | ||
| 76854-44010 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
6 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90183-04066 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 7503 | ||||
| 8102 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(2001-2007)L
EUROPE 21MY SPACIAL EDITION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-78310 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..LHD..L ESTONIA, LATVIA, LITHUANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52112-78210 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52112-78230 |
AGZ1# ICELAND SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# RUSSIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# FRANCE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEWMONITOR) |
1 | ||
| 52112-78230 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78220 |
AGZ1# TAIWAN SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# PORTUGAL, GREECE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# BULGARIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# DENMARK,ITALY,SPAIN,AUSTRIA,BENELUX,*SWZ&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ISRAEL SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# ROMANIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ICELAND SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# RUSSIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# FRANCE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# NORWAY, SWEDEN, FINLAND, DENMARK SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CZECH, HUNGARY, POLAND, SLOVAKIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# SLOVENIA, CROATIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# TURKEY SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# UKRAINE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ROMANIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# SLOVENIA, CROATIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# UKRAINE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# PORTUGAL, GREECE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BULGARIA SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# TURKEY SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AGZ1# CHILE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# CHILE SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# ISRAEL SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITHOUT |
1 | ||
| 52112-78310 |
AGZ1#,AYZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2&BACK MONITOR-WITH(DISPLAY AUDIO & GUIDE & CAN CAMERA) |
1 | ||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1#..L |
1 | ||
| 52112-78230 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52112-78230 |
AGZ1# F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1# BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ1#;AYZ1#..RHD..L SE PACKAGE2&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-78150 |
AGZ1# TAIWAN SPEC |
1 | ||
| 52114-78180 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52114-78200 |
AGZ1# TAIWAN SPEC&F SPORT |
1 | ||
| 52114-78130 |
AGZ1#,ZGZ1#;AYZ1#..RHD..L SE PACKAGE2 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212 |
1 | ||
| 52119-78130B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9 |
1 | ||
| 52119-78130A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2 |
1 | ||
| 52119-78130C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212 |
1 | ||
| 52119-78130C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223 |
1 | ||
| 52119-78130B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9 |
1 | ||
| 52119-78130D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1 |
1 | ||
| 52119-78130E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2 |
1 | ||
| 52119-78130B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,PLATINUM SILVER ME.,1J4 |
1 | ||
| 52119-78923 |
AGZ1#,ZGZ1# HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2 |
1 | ||
| 52119-78925 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78131B2 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78922 |
AGZ1#,ZGZ1# PAINT REQ. |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131E1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,AMBER CS.,4X2,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131A1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC QUARTZ,085,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78131B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131E2 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLAZING CARNELIAN CONTRAS,4Y1,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78131J1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SPARKLING METEOR ME.,8X9,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78230B0 |
AGZ1#,ZGZ1# SE PACKAGE2,MERCURY GRAY MC.,1H9,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230A0 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,SONIC QUARTZ,085,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52119-78230C0 |
AGZ1#,ZGZ1# SE PACKAGE2,BLACK,212,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230D0 |
AGZ1#,ZGZ1# SE PACKAGE2,RED MC.CS.,3R1,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ.,HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52119-78230B1 |
AGZ1#,ZGZ1# SE PACKAGE2,SONIC TITANIUM,1J7,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78230C1 |
AGZ1#,ZGZ1# SE PACKAGE2&HEADLAMP CLEANER-WITH,GRAPHITE BLACK GF.,223,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ.,FRAME NO.=5,6XXXXXX |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE2 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ., SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78932 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1 |
1 | ||
| 52119-78943 |
AGZ1#,AYZ1#,ZGZ1#..L PAINT REQ.,EUROPE 21MY SPECIAL EDITION-2&HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78945 |
AGZ1# PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH,FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78943 |
AGZ1#,ZGZ1# PAINT REQ., SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52411-78040 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52412 - GUARD, FRONT BUMPER, NO.2 | ||||
| 52412-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52412-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52447-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52447-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78020 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52448-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
1 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52534 - BRACKET, FRONT BUMPER RETAINER, NO.2 | ||||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
1 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-78040 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78090 |
AGZ1#,AYZ1#..L F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#,ZGZ1# CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78100 |
AGZ1#,AYZ1#..L F SPORT |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#..L CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75392P - RETAINER, OUTSIDE MOULDING, NO.3 | ||||
| 75392-35220 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
8 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
2 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
6 | ||
| 76854-44010 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
6 | ||
| 76854B - RETAINER, FRONT SPOILER,NO.2 | ||||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-2 |
6 | ||
| 76854-44010 |
AGZ1# F SPORT&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE1&HEADLAMP CLEANER-WITH |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L EUROPE 21MY SPECIAL EDITION-1 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2 |
6 | ||
| 76854-44010 |
AGZ1#,AYZ1#,ZGZ1#..L SE PACKAGE2&HEADLAMP CLEANER-WITH |
6 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-04066 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 7503 | ||||
| 8102 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
