UZJ100L-GNAGKW (2002)
Toyota Lexus Lx470

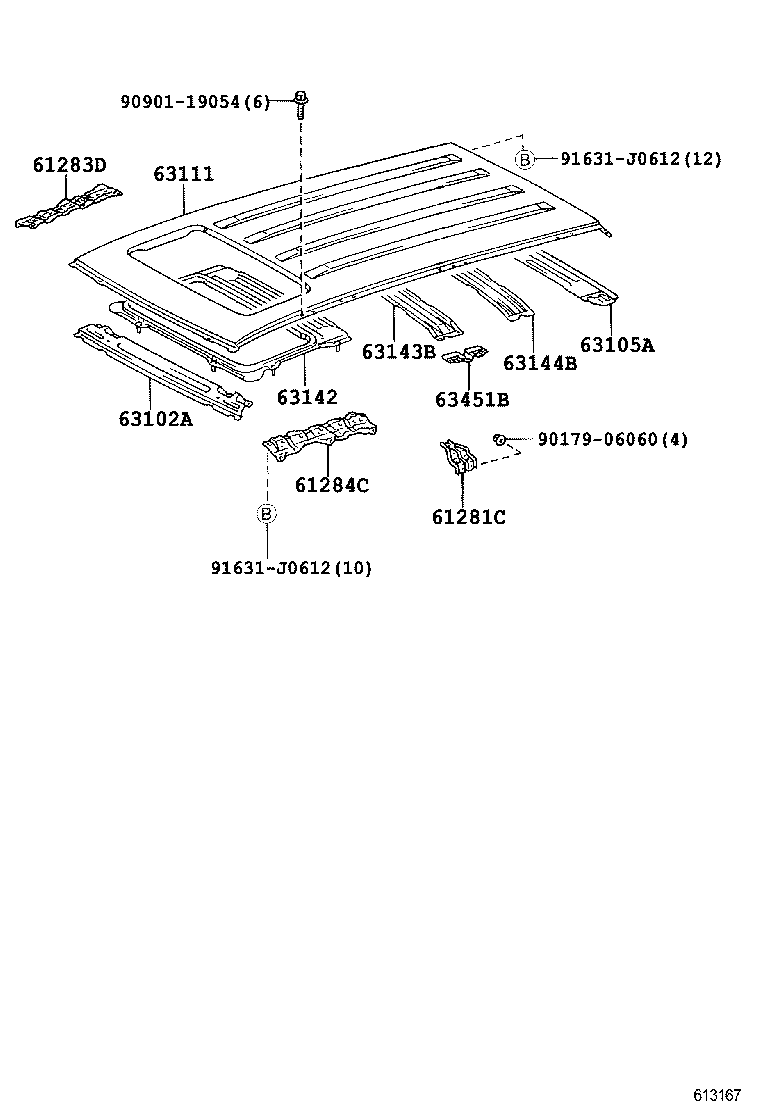

ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61281C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-60040 |
UZJ100 |
2 | ||
| 61281-60040 |
UZJ100 |
2 | ||
| 61283D - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH | ||||
| 61283-60021 |
UZJ100 |
1 | ||
| 61283-60021 |
UZJ100 |
1 | ||
| 61284C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH | ||||
| 61284-60021 |
UZJ100 |
1 | ||
| 61284-60021 |
UZJ100 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60070 |
UZJ100 |
1 | ||
| 63102-60070 |
UZJ100 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60181 |
UZJ100 |
1 | ||
| 63105-60181 |
UZJ100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60461 |
UZJ100 |
1 | ||
| 63111-60461 |
UZJ100 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-60020 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63143-60030 |
UZJ100 |
1 | ||
| 63104-60040 |
UZJ100 W(MOON ROOF & ROOF CARRIER) |
1 | ||
| 63143-60030 |
UZJ100 |
1 | ||
| 63104-60040 |
UZJ100 W(MOON ROOF & ROOF CARRIER) |
1 | ||
| 63104-60020 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-60050 |
UZJ100 |
1 | ||
| 63144-60050 |
UZJ100 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63127-60020 |
UZJ100 |
1 | ||
| 63127-60020 |
UZJ100 |
1 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60040 |
UZJ100 |
2 | ||
| 63451-60040 |
UZJ100 |
2 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90901-19054 | ||||
| 91631-J0612 | ||||

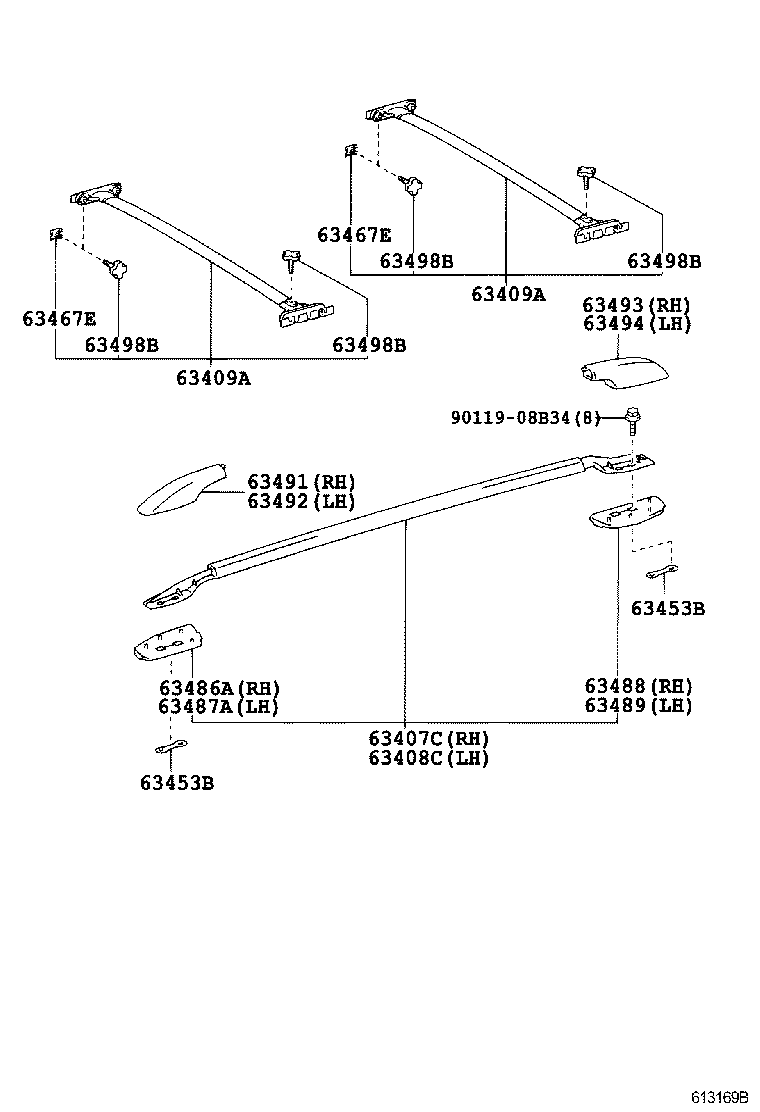

(0208- )
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60090C0 |
UZJ100 BLACK,202 |
1 | ||
| 63407-60090A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63407-60090A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63407-60090E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63407-60090G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63407-60090B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63407-60090C0 |
UZJ100 BLACK,202 |
1 | ||
| 63407-60090E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60080C0 |
UZJ100 BLACK,202 |
1 | ||
| 63408-60080C0 |
UZJ100 BLACK,202 |
1 | ||
| 63408-60080A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63408-60080A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63408-60080B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63408-60080E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63408-60080G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63408-60080E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60060A0 |
UZJ100 WHITE PEARL CS.,070 |
2 | ||
| 63409-60060E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
2 | ||
| 63409-60060A1 |
UZJ100 WHITE PEARL CS.,062 |
2 | ||
| 63409-60060G1 |
UZJ100 OLIVE M.M.,6T7 |
2 | ||
| 63409-60060B1 |
UZJ100 SILVER ME.,1F7 |
2 | ||
| 63409-60060E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
2 | ||
| 63409-60060C0 |
UZJ100 BLACK,202 |
2 | ||
| 63409-60060C0 |
UZJ100 BLACK,202 |
2 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60060A0 |
UZJ100 WHITE PEARL CS.,070 |
2 | ||
| 63409-60060E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
2 | ||
| 63409-60060A1 |
UZJ100 WHITE PEARL CS.,062 |
2 | ||
| 63409-60060G1 |
UZJ100 OLIVE M.M.,6T7 |
2 | ||
| 63409-60060B1 |
UZJ100 SILVER ME.,1F7 |
2 | ||
| 63409-60060E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
2 | ||
| 63409-60060C0 |
UZJ100 BLACK,202 |
2 | ||
| 63409-60060C0 |
UZJ100 BLACK,202 |
2 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63451-60031 |
UZJ100 |
4 | ||
| 63451-60031 |
UZJ100 |
4 | ||
| 63453B - REINFORCEMENT, ROOF RACK, NO.3 | ||||
| 63451-60031 |
UZJ100 |
4 | ||
| 63451-60031 |
UZJ100 |
4 | ||
| 63467E - PLATE, ROOF RACK, REAR | ||||
| 63467-42010 |
UZJ100 |
8 | ||
| 63467-42011 |
UZJ100 |
8 | ||
| 63467-42011 |
UZJ100 |
8 | ||
| 63467E - PLATE, ROOF RACK, REAR | ||||
| 63467-42010 |
UZJ100 |
8 | ||
| 63467-42011 |
UZJ100 |
8 | ||
| 63467-42011 |
UZJ100 |
8 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60100 |
UZJ100 |
1 | ||
| 63486-60100 |
UZJ100 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60080 |
UZJ100 |
1 | ||
| 63487-60080 |
UZJ100 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60080 |
UZJ100 |
1 | ||
| 63488-60080 |
UZJ100 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60070 |
UZJ100 |
1 | ||
| 63489-60070 |
UZJ100 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60090C0 |
UZJ100 BLACK,202 |
1 | ||
| 63491-60090E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63491-60090A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63491-60090A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63491-60090E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63491-60090B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63491-60090C0 |
UZJ100 BLACK,202 |
1 | ||
| 63491-60090G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60070A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63492-60070E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63492-60070E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63492-60070C0 |
UZJ100 BLACK,202 |
1 | ||
| 63492-60070G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63492-60070C0 |
UZJ100 BLACK,202 |
1 | ||
| 63492-60070B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63492-60070A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60080E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63493-60080A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63493-60080E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63493-60080A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63493-60080C0 |
UZJ100 BLACK,202 |
1 | ||
| 63493-60080B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63493-60080C0 |
UZJ100 BLACK,202 |
1 | ||
| 63493-60080G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60070A1 |
UZJ100 WHITE PEARL CS.,062 |
1 | ||
| 63494-60070C0 |
UZJ100 BLACK,202 |
1 | ||
| 63494-60070E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63494-60070A0 |
UZJ100 WHITE PEARL CS.,070 |
1 | ||
| 63494-60070E0 |
UZJ100 BEIGE PEARL CS.,4R2 |
1 | ||
| 63494-60070C0 |
UZJ100 BLACK,202 |
1 | ||
| 63494-60070G1 |
UZJ100 OLIVE M.M.,6T7 |
1 | ||
| 63494-60070B1 |
UZJ100 SILVER ME.,1F7 |
1 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-42010 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-42010 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-42010 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-42010 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| 63498-42011 |
UZJ100 |
10 | ||
| Common parts | ||||
| 90119-08B34 | ||||

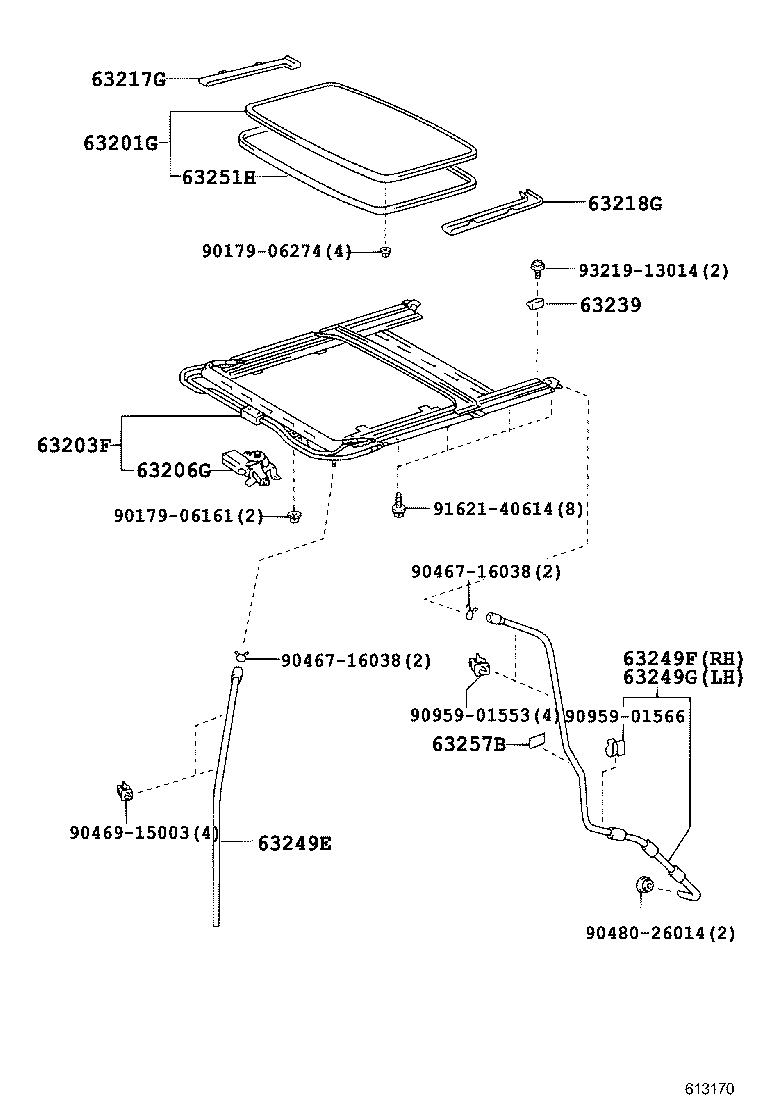

ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-60071 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60070 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60072 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63201-60073 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63200-60141 |
UZJ100 |
1 | ||
| 63200-60140 |
UZJ100 |
1 | ||
| 63200-60141 |
UZJ100 |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60100 |
UZJ100 |
1 | ||
| 63260-60100 |
UZJ100 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60040 |
UZJ100 |
1 | ||
| 63217-60040 |
UZJ100 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60040 |
UZJ100 |
1 | ||
| 63218-60040 |
UZJ100 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-60010 |
UZJ100 |
2 | ||
| 63239-60010 |
UZJ100 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60152 |
UZJ100 LH |
1 | ||
| 63249-60122 |
UZJ100 RH |
1 | ||
| 63249-60150 |
UZJ100 LH |
1 | ||
| 63249-60120 |
UZJ100 RH |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60172 |
UZJ100 |
1 | ||
| 63249-60170 |
UZJ100 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60182 |
UZJ100 |
1 | ||
| 63249-60180 |
UZJ100 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-60061 |
UZJ100 |
1 | ||
| 63251-60062 |
UZJ100 |
1 | ||
| 63251-60062 |
UZJ100 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-60020 |
UZJ100 |
2 | ||
| 63257-60020 |
UZJ100 |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06274 | ||||
| 90467-16038 | ||||
| 90469-15003 | ||||
| 90480-26014 | ||||
| 90959-01553 | ||||
| 90959-01566 | ||||
| 91621-40614 | ||||
| 93219-13014 | ||||
