VDJ201L-GMTGZW (2015)
Toyota Lexus Lx450d/570

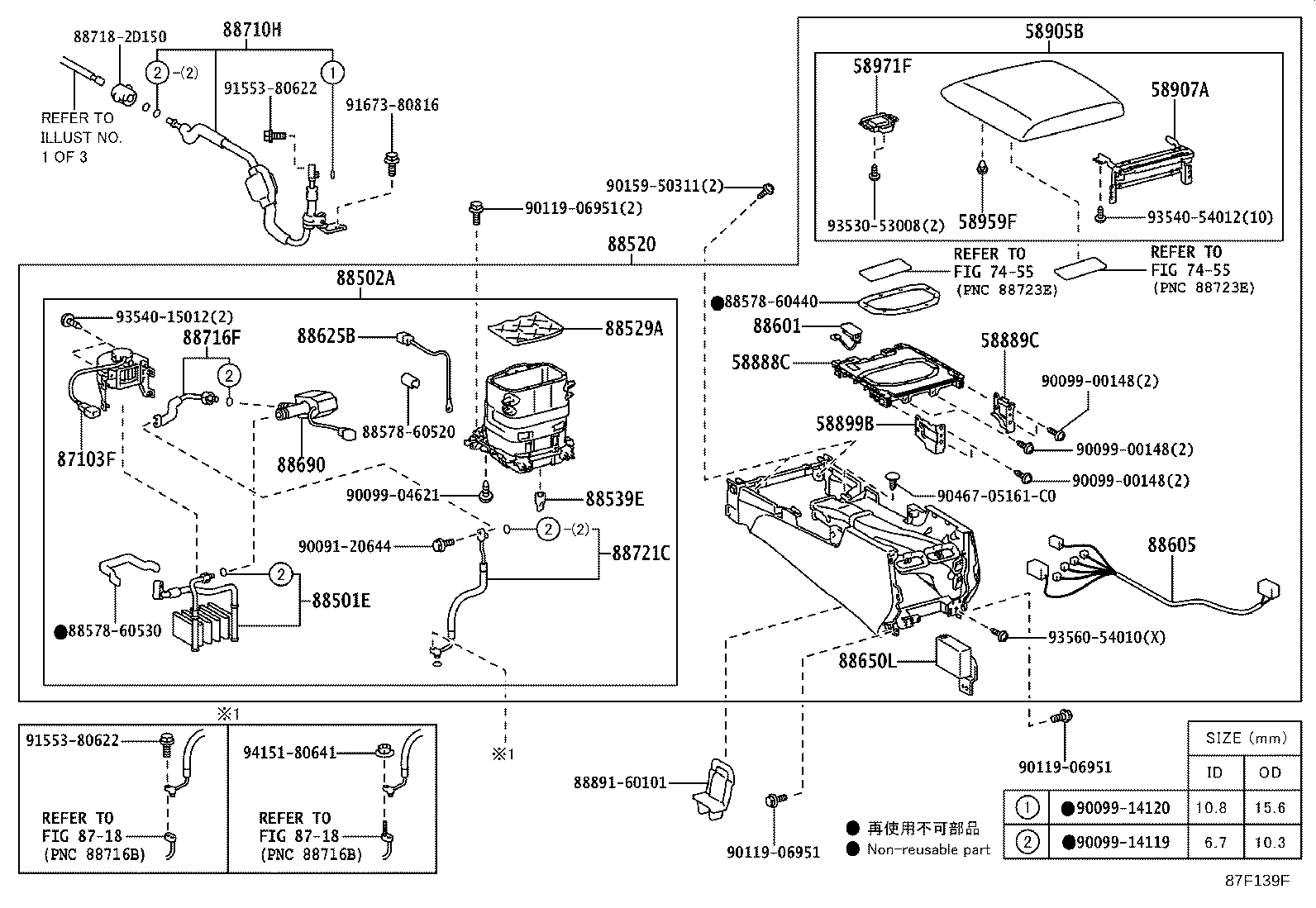

ILLUST NO. 3 OF 3(1509- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58888C - BASE, COOLING BOX | ||||
| 58888-60020 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 58888-60020 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 58888-60020 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 58888-60020 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 58889C - BRACKET, COOLING BOX | ||||
| 58889-60010 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 58889-60010 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 58889-60010 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 58889-60010 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 58899B - BRACKET, COOLING BOX, NO.2 | ||||
| 58899-60010 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 58899-60010 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 58899-60010 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 58899-60010 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60540A5 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM0# |
1 | ||
| 58905-60540C4 |
VDJ201 WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 58905-60540A5 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM0# |
1 | ||
| 58905-60540C4 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#,5# |
1 | ||
| 58905-60540A5 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM0# |
1 | ||
| 58905-60540C4 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#,5# |
1 | ||
| 58905-60540A5 |
VDJ201 WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 58905-60540C4 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM2#,3#,4#,5# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60150 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 58907-60150 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 58907-60150 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 58907-60150 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 58959-35010 |
VDJ201 WITH(COOL BOX) |
2 | ||
| 58959-35010 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
2 | ||
| 58959-35010 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
2 | ||
| 58959-35010 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
2 | ||
| 58971F - LOCK, COOLING BOX DOOR | ||||
| 58971-60070 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 58971-60070 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 58971-60070 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 58971-60070 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60451 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 87103-60451 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 87103-60451 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 87103-60451 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-60350 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88501-60610 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88501-60350 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88501-60350 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88501-60610 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88501-60350 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88501-60610 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-60350 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88502-60350 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88502-60350 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88530-60150 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88530-60150 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88502-60350 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88530-60150 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88502-60271 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60821A4 |
VDJ201 WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60822A4 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60822A4 |
VDJ201 WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60820A4 |
VDJ201 WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60822C3 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 88520-60822A4 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60820C3 |
VDJ201 WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4# |
1 | ||
| 88520-60822C3 |
VDJ201 WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 88520-60822A4 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),IVORY(SMOOTH LEATHER),TRIM02 |
1 | ||
| 88520-60822C3 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 88520-60C40A0 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),IVORY,TRIM0# |
1 | ||
| 88520-60C40C0 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX),BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 88520-60821C3 |
VDJ201 WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4# |
1 | ||
| 88520-60822C3 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5# |
1 | ||
| 88520-60C40A0 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),IVORY,TRIM0# |
1 | ||
| 88520-60C40C0 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 88520-60C40C0 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX),BLACK,TRIM2#,3#,4#,5# |
1 | ||
| 88520-60C40A0 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX),IVORY,TRIM0# |
1 | ||
| 88529A - TRAY, COOLING BOX | ||||
| 88529-60050 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88529-60050 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
2 | ||
| 88529-60050 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
2 | ||
| 88529-60050 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88529-60050 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88529-60050 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88529-60050 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
2 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60270 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88539-60270 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88539-60270 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88539-60270 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60060 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88470-60060 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-6A182 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88605-6A182 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88605-6A182 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88605-6A182 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-60070 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88625-60070 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88625-60070 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88625-60070 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88650L - AMPLIFIER ASSY, AIR CONDITIONER (FOR COOL BOX) | ||||
| 88950-60010 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88950-60010 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88950-60010 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88950-60010 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60280 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88690-60280 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88690-60280 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88690-60280 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88720-60250 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88720-60250 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88720-60250 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88720-60250 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6C280 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88716-6C280 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88716-6C280 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88716-6C280 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88721-60170 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88721-60170 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88721-60170 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88721-60170 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| Common parts | ||||
| 88578-60440 | ||||
| 88578-60520 | ||||
| 88578-60530 | ||||
| 88718-2D150 | ||||
| 88891-60101 | ||||
| 90091-20644 | ||||
| 90099-00148 | ||||
| 90099-04621 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90467-05161C0 | ||||
| 91553-80622 | ||||
| 91673-80816 | ||||
| 93530-53008 | ||||
| 93540-15012 | ||||
| 93540-54012 | ||||
| 93560-54010 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||

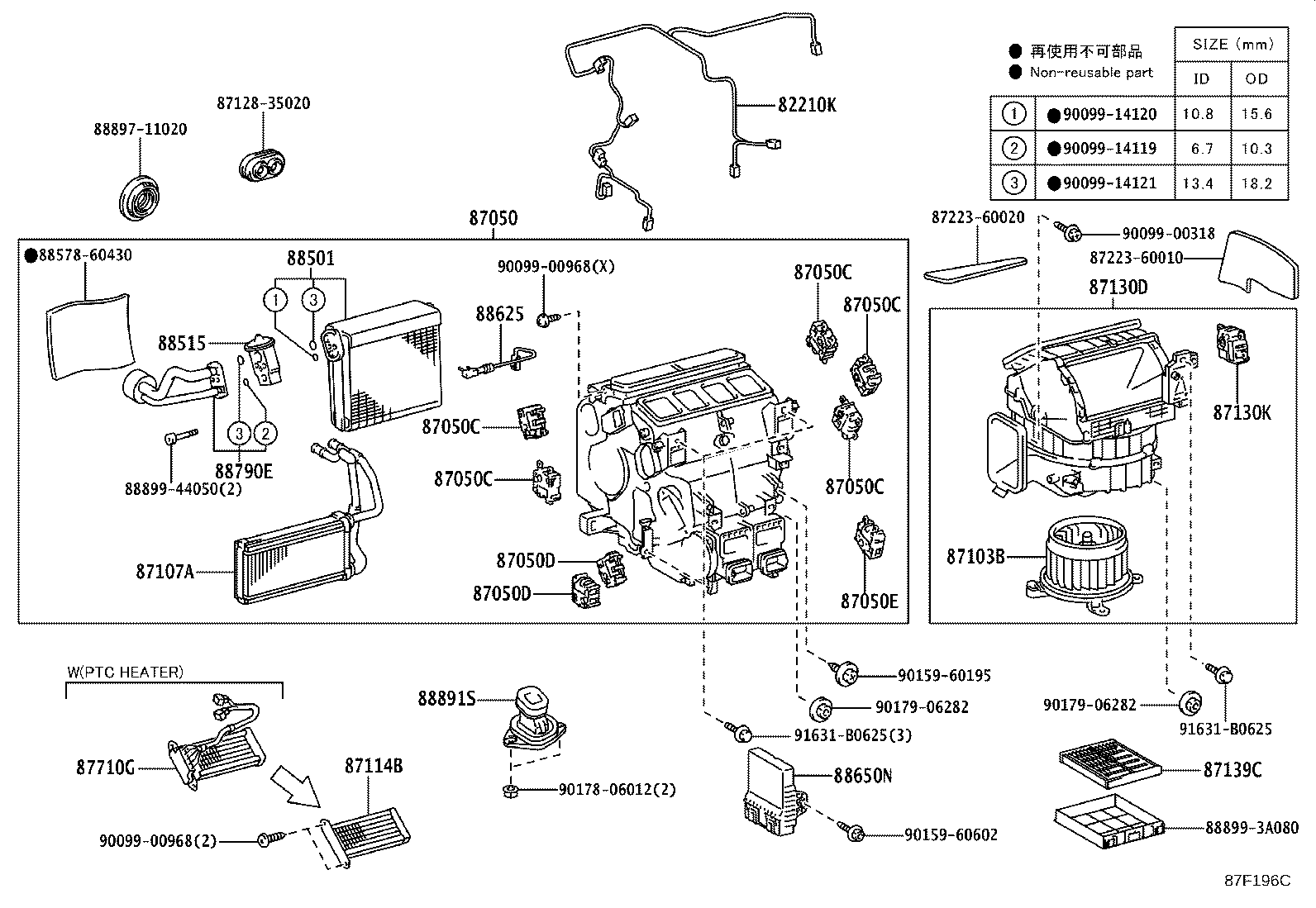

ILLUST NO. 1 OF 3(1509- )
FRONT,W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60200 |
URJ201,VDJ201 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60A80 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 87050-60A80 |
VDJ201 HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60A80 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87050-60A80 |
VDJ201 SOUTH AMERICA SPEC&HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX) |
1 | ||
| 87050-60N00 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60N00 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60A80 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60N00 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 87050-60A90 |
VDJ201 |
1 | ||
| 87050-60A80 |
VDJ201 MOROCCO SPEC&HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX) |
1 | ||
| 87050-60N10 |
VDJ201 |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201,VDJ201 |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201,VDJ201 |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201,VDJ201 |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201,VDJ201 |
6 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-50550 |
URJ201,VDJ201 |
6 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ201,VDJ201 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60270 |
URJ201,VDJ201 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-60340 |
URJ201,VDJ201 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60560 |
URJ201,VDJ201 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60411 |
URJ201,VDJ201 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-60070 |
VDJ201 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60670 |
URJ201,VDJ201 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-60350 |
URJ201,VDJ201 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-76010 |
URJ201,VDJ201 MICRO DUST FILTER,OE PART |
1 | ||
| 87139-52040 |
URJ201,VDJ201 POLLEN FILTER,OE PART |
1 | ||
| 87139-50100 |
URJ201,VDJ201 POLLEN DEODORANT |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-60060 |
VDJ201 HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 87710-60060 |
VDJ201 HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60600 |
URJ201,VDJ201 |
1 | ||
| 88501-60362 |
URJ201,VDJ201 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
VDJ201 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-60020 |
URJ201,VDJ201 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Q24 |
URJ201,VDJ201 |
1 | ||
| 88650-60S10 |
URJ201,VDJ201 MINUS ION GENERATOR-WITH |
1 | ||
| 88650-60Q22 |
URJ201,VDJ201 |
1 | ||
| 88650-60Q20 |
URJ201,VDJ201 |
1 | ||
| 88650-60Q23 |
URJ201,VDJ201 |
1 | ||
| 88650-60Q21 |
URJ201,VDJ201 |
1 | ||
| 88650-60Z70 |
URJ201,VDJ201 |
1 | ||
| 88650-60S11 |
URJ201,VDJ201 MINUS ION GENERATOR-WITH |
1 | ||
| 88790E - TUBE & ACCESSORY ASSY, AIRCONDITIONER | ||||
| 88710-60A11 |
VDJ201 HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 WITH(COOL BOX) |
1 | ||
| 88710-60A00 |
VDJ201 |
1 | ||
| 88710-60A11 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 SOUTH AMERICA SPEC&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 SOUTH AMERICA SPEC&HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 MOROCCO SPEC&HEATER-4SEAT INDEPENDENT CONTROL&WITH(COOL BOX) |
1 | ||
| 88710-60A11 |
VDJ201 MOROCCO SPEC&WITH(COOL BOX) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-60090 |
URJ201,VDJ201 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 87223-60010 | ||||
| 87223-60020 | ||||
| 88578-60430 | ||||
| 88897-11020 | ||||
| 88899-3A080 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60195 | ||||
| 90159-60602 | ||||
| 90178-06012 | ||||
| 90179-06282 | ||||
| 91631-B0625 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
