VDJ201L-GMTGZW (2015)
Toyota Lexus Lx450d/570

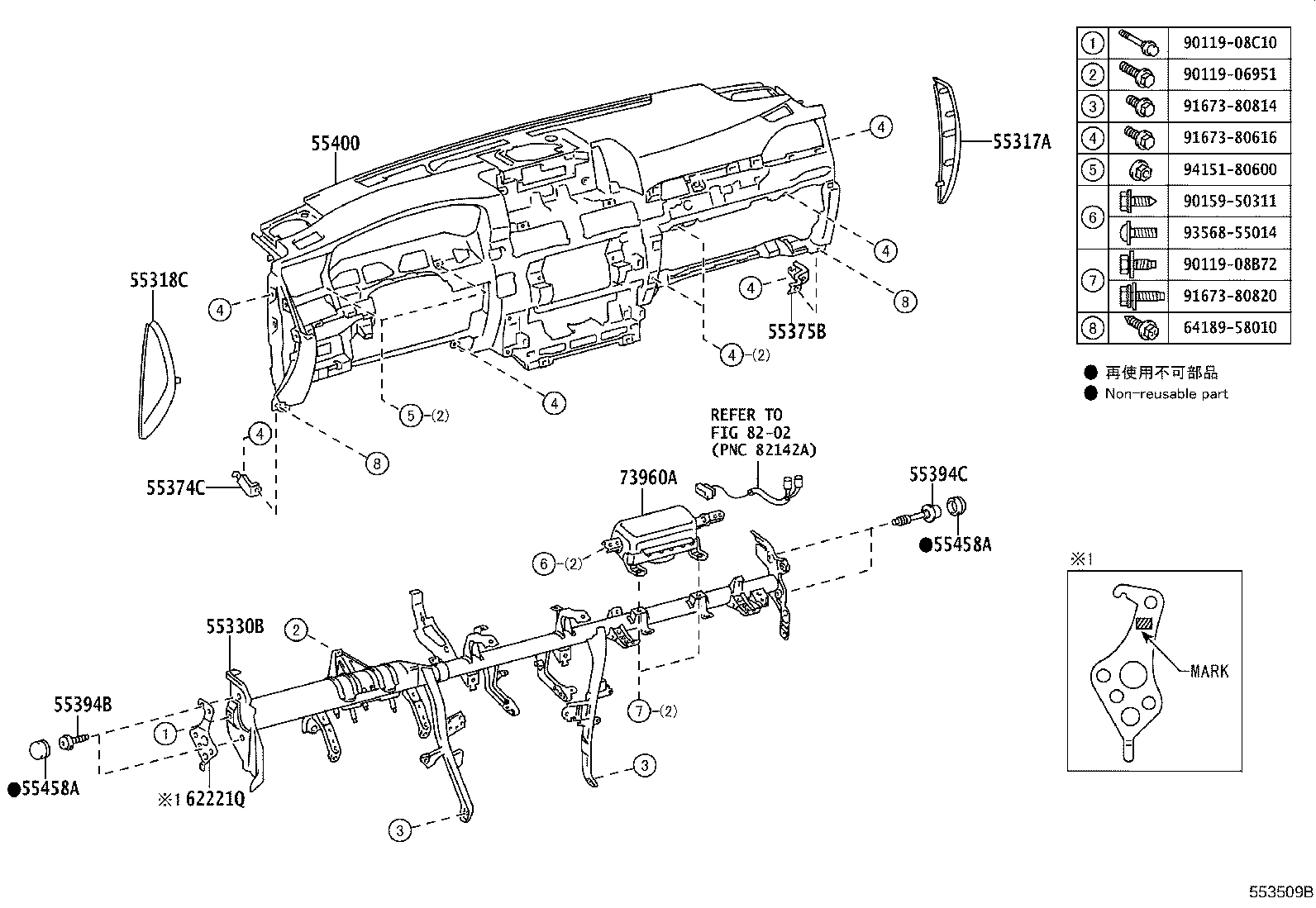

ILLUST NO. 1 OF 2(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60031C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55317-60031A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60051A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55318-60051C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60400 |
URJ201,VDJ201 |
1 | ||
| 55330-60460 |
URJ201,VDJ201 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60090 |
URJ201,VDJ201 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-60090 |
URJ201,VDJ201 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-50010 |
URJ201,VDJ201 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 55394-33041 |
URJ201,VDJ201 |
2 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-60071C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55400-60070E2 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55400-60070C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55400-60071E2 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
URJ201,VDJ201 |
4 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-50100 |
URJ201,VDJ201 |
4 | ||
| 62221Q - SPACER, FRONT PILLAR, NO.1 RH | ||||
| 62221-60080 |
URJ201,VDJ201 MARK 2L |
1 | ||
| 62221-60070 |
URJ201,VDJ201 MARK 1L |
1 | ||
| 62221-60100 |
URJ201,VDJ201 MARK 4L |
1 | ||
| 62221-60090 |
URJ201,VDJ201 MARK 3L |
1 | ||
| 62221-60110 |
URJ201,VDJ201 MARK 5L |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60170 |
URJ201,VDJ201 |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90119-06951 | ||||
| 90119-08B72 | ||||
| 90119-08C10 | ||||
| 90159-50311 | ||||
| 91673-80616 | ||||
| 91673-80814 | ||||
| 91673-80820 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

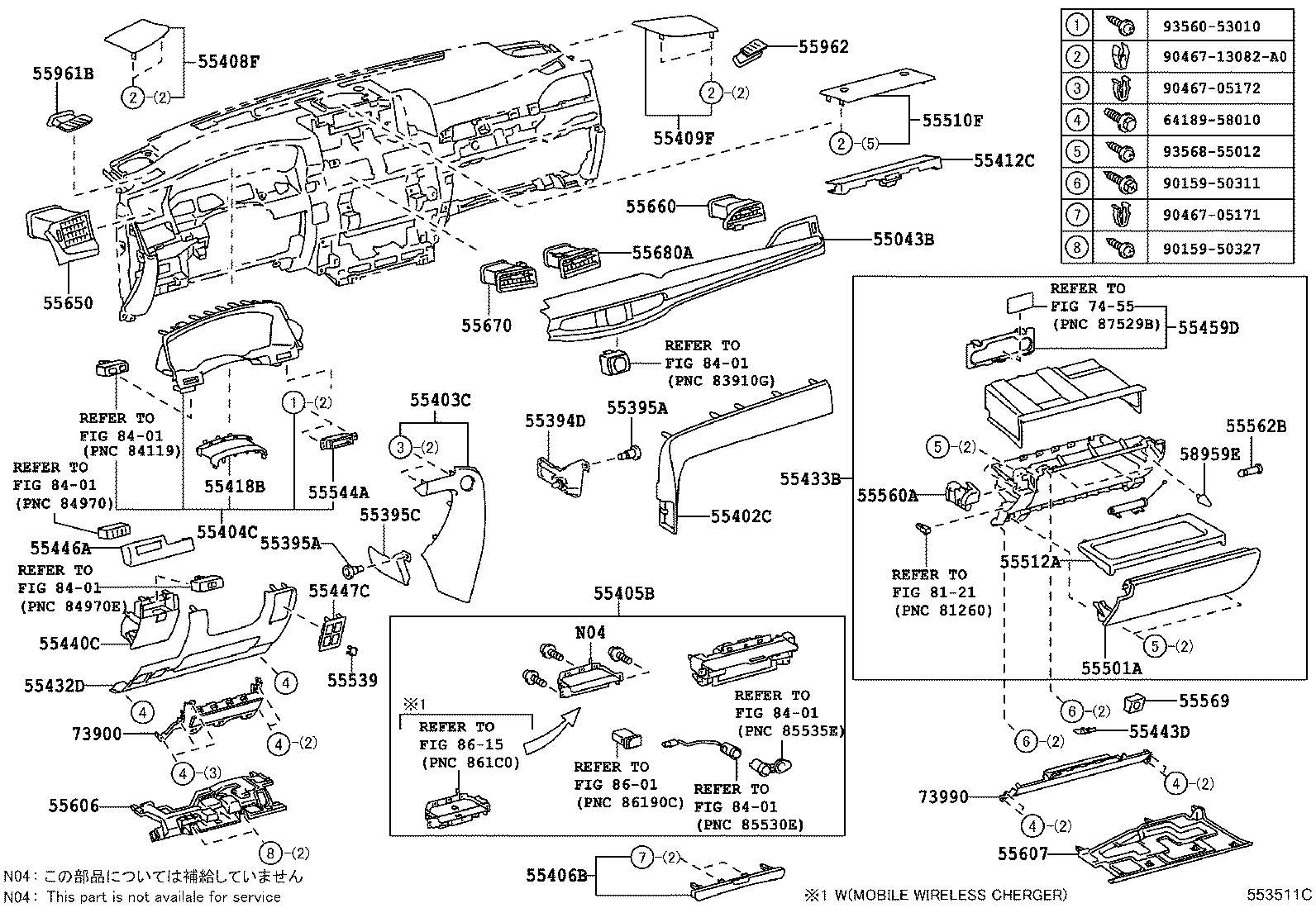

ILLUST NO. 2 OF 2(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55043B - MOULDING SUB-ASSY, INSTRUMENT PANEL | ||||
| 55043-60070C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS),BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55043-60070E0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS),ORCHID BROWN,TRIM02 |
1 | ||
| 55043-60090E0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH),ORCHID BROWN,TRIM02 |
1 | ||
| 55043-60110C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55043-60090C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH),BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55043-60100C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(SHIMAMOKU BLACK),BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55043-60110E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-60021A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55394-60021C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55394-60020A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55394-60020C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55395A - RETAINER, INSTRUMENT PANEL CLAMP | ||||
| 67771-36030C0 |
URJ201,VDJ201 BLACK |
2 | ||
| 55395A - RETAINER, INSTRUMENT PANEL CLAMP | ||||
| 67771-36030C0 |
URJ201,VDJ201 BLACK |
2 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-60041A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55395-60040C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55395-60040A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55395-60041C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-60150C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55402-60150A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH | ||||
| 55403-60150C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55403-60150A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60361E1 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55404-60360C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55404-60360E1 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55404-60361C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-60440 |
VDJ201 GENERAL COUNTRIES(EXCEPT RUSSIA)&WIRELESS CHARGER-WITH |
1 | ||
| 55405-60441 |
VDJ201 SOUTH AMERICA SPEC&WIRELESS CHARGER-WITH |
1 | ||
| 55405-60380 |
URJ201,VDJ201 |
1 | ||
| 55405-60570 |
VDJ201 MOROCCO SPEC&WIRELESS CHARGER-WITH |
1 | ||
| 55405-60442 |
VDJ201 SOUTH AMERICA SPEC&WIRELESS CHARGER-WITH |
1 | ||
| 55405-60450 |
URJ201,VDJ201 WIRELESS CHARGER-WITH |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60220 |
URJ201,VDJ201 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60220C0 |
URJ201,VDJ201 AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55408-60220E0 |
URJ201,VDJ201 AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,ORCHID BROWN,TRIM02 |
1 | ||
| 55408-60210C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55408-60210E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60080E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55409-60080C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55409-60090C0 |
URJ201,VDJ201 AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55409-60090E0 |
URJ201,VDJ201 AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & 9SPEAKER,ORCHID BROWN,TRIM02 |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-60420 |
URJ201,VDJ201 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60020E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55418-60020C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55418-60020C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60431A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55432-60432C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55432-60432A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55432-60431C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-60050C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55320-60051C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55320-60051A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55320-60050A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-60020C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55440-60020A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-60080 |
URJ201,VDJ201 |
2 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60190A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55446-60190C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-60080A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55447-60080C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-60010 |
URJ201,VDJ201 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60250C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55501-60250C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55501-60250A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-60080C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55510-60080E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-60030 |
URJ201,VDJ201 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55539-28170C0 |
URJ201,VDJ201 BLACK |
1 | ||
| 55539-52060C4 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55539-52060A2 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55544A - RETAINER, INSTRUMENT PANEL HOLE COVER | ||||
| 55544-60030 |
URJ201,VDJ201 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-60030C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55506-60030C1 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55506-60030A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
URJ201,VDJ201 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60070C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55569-60070A0 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60080 |
URJ201,VDJ201 |
1 | ||
| 55606-60180 |
URJ201,VDJ201 FRAME NO.=4XXXXXX |
1 | ||
| 55606-60081 |
URJ201,VDJ201 |
1 | ||
| 55606-60180 |
URJ201,VDJ201 |
1 | ||
| 55606-60081 |
URJ201,VDJ201 FRAME NO.=5XXXXXX |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60110 |
URJ201,VDJ201 |
1 | ||
| 55607-60111 |
URJ201,VDJ201 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60270E0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS),ORCHID BROWN,TRIM02 |
1 | ||
| 55650-60290C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH),BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55650-60270C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS),BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55650-60370E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55650-60310C0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(SHIMAMOKU BLACK),BLACK,TRIM0#,2#,3#,4#,5# |
1 | ||
| 55650-60370C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 55650-60290E0 |
URJ201,VDJ201 INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH),ORCHID BROWN,TRIM02 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60310 |
URJ201,VDJ201 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60330 |
URJ201,VDJ201 |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60200 |
URJ201,VDJ201 |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-60130C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 55961-60130E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-60120E0 |
URJ201,VDJ201 ORCHID BROWN,TRIM02 |
1 | ||
| 55962-60120C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-B1010 |
URJ201,VDJ201 |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60090A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 73900-60090C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-60030C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4# |
1 | ||
| 73990-60030A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| 73990-60031C0 |
URJ201,VDJ201 BLACK,TRIM05,06,2#,3#,4#,5# |
1 | ||
| 73990-60031A1 |
URJ201,VDJ201 IVORY,TRIM02 |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-13082A0 | ||||
| 93560-53010 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
