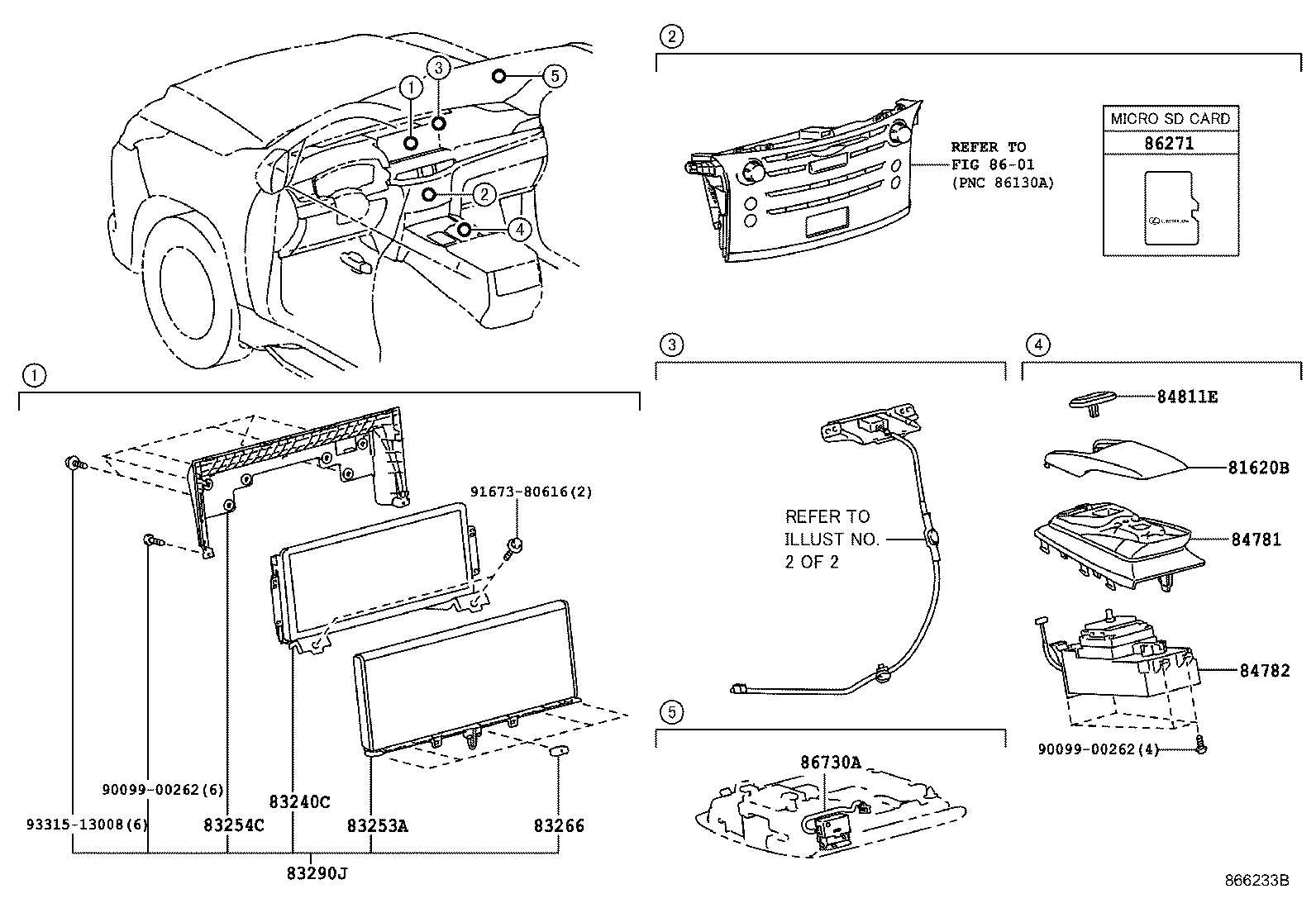

Toyota Lexus lx450d/570 URJ201 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
81620B - COVER ASSY LH
81620-60240	URJ201,VDJ201	09/2015 - 12/2999	1
83240C - CASE ASSY, ACCESSORY METER
83240-60420	URJ201 TAIWAN SPEC	09/2015 - 10/2017	1
83240-60390	URJ201,VDJ201	09/2015 - 10/2017	1
83240-60421	URJ201 TAIWAN SPEC	10/2017 - 08/2020	1
83240-60391	URJ201,VDJ201	10/2017 - 12/2999	1
83253A - GLASS, ACCESSORY METER
83253-60390	URJ201,VDJ201	09/2015 - 12/2999	1
83254C - PLATE, ACCESSORY METER
83254-60390	URJ201,VDJ201	09/2015 - 12/2999	1
83266 - COVER, ACCESSORY METER
83266-60390	URJ201,VDJ201	09/2015 - 12/2999	5
83290J - METER ASSY, ACCESSORY
83290-60421	URJ201 TAIWAN SPEC	10/2017 - 08/2020	1
83290-60410	URJ201,VDJ201	09/2015 - 10/2017	1
83290-60420	URJ201 TAIWAN SPEC	09/2015 - 10/2017	1
83290-60411	URJ201,VDJ201	10/2017 - 12/2999	1
84781 - SWITCH, REMOTE OPERATION
84781-60010	URJ201 CHILE SPEC	09/2015 - 12/2017	1
84781-60020	URJ201,VDJ201	09/2015 - 12/2017	1
84781-60021	URJ201,VDJ201	01/2018 - 12/2999	1
84781-60011	URJ201 CHILE SPEC	01/2018 - 12/2999	1
84781-60011	URJ201,VDJ201 SOUTH AMERICA SPEC	08/2019 - 12/2999	1
84782 - BOARD, REMOTE OPERATION
84782-60010	URJ201,VDJ201	09/2015 - 12/2999	1
84811E - KNOB, SWITCH
84811-60020	URJ201,VDJ201	09/2015 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-48341	URJ201,VDJ201	01/2016 - 07/2016	1
86271-48343	URJ201,VDJ201	02/2017 - 07/2017	1
86271-48361	URJ201 TAIWAN SPEC	08/2016 - 08/2017	1
86271-48344	URJ201,VDJ201	08/2017 - 01/2018	1
86271-53381	URJ201 TAIWAN SPEC	09/2015 - 07/2016	1
86271-48362	URJ201 TAIWAN SPEC	09/2017 - 08/2018	1
86271-48340	URJ201,VDJ201	09/2015 - 12/2015	1
86271-48346	URJ201,VDJ201	08/2018 - 01/2019	1
86271-48347	URJ201,VDJ201	02/2019 - 07/2019	1
86271-48342	URJ201,VDJ201	08/2016 - 01/2017	1
86271-48363	URJ201 TAIWAN SPEC	09/2018 - 08/2019	1
86271-48348	URJ201,VDJ201	08/2019 - 12/2019	1
86271-48374	URJ201 VIETNAM SPEC	08/2019 - 06/2020	1
86271-48349	URJ201,VDJ201	01/2020 - 06/2020	1
86271-60600	URJ201,VDJ201	07/2020 - 01/2021	1
86271-48364	URJ201 TAIWAN SPEC	09/2019 - 08/2020	1
86271-60601	URJ201,VDJ201	02/2021 - 12/2999	1
86271-48345	URJ201,VDJ201	02/2018 - 07/2018	1
86271-48375	URJ201 VIETNAM SPEC	07/2020 - 12/2999	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-60060	URJ201,VDJ201	09/2015 - 12/2999	1
Common parts
90099-00262
91673-80616
93315-13008
Linked diagrams
8601

URJ201L-GNZGKW (2015)

ILLUST NO. 1 OF 2(1509- )
