URJ201L-GNZGKW (2015)

Toyota Lexus Lx450d/570

Production Sep 2015 - Sep 9999
Engine 3URFE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

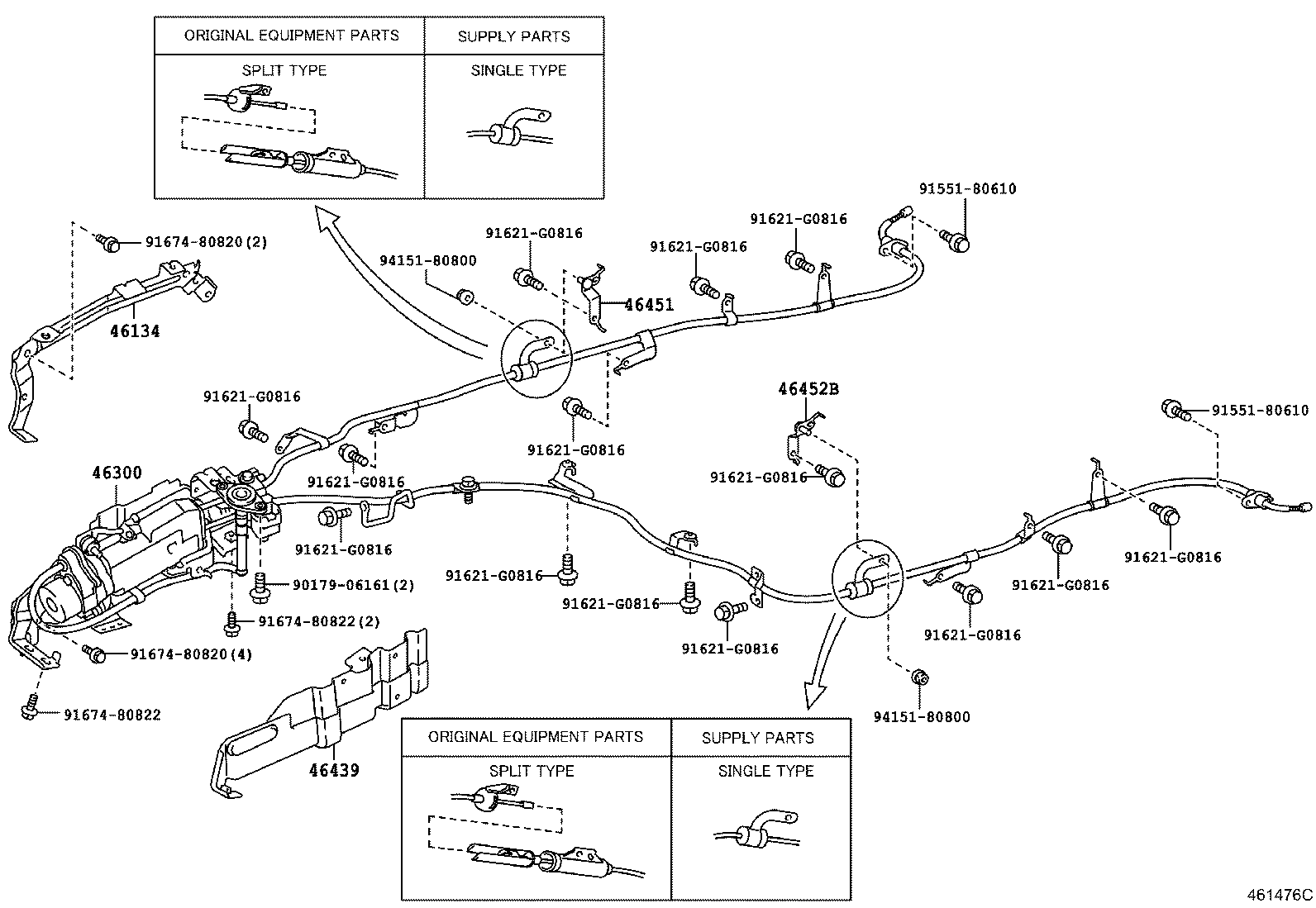

ILLUST NO. 1 OF 2(1509- )URJ201

Click highlighted areas on diagram

diagram 46134 46300 46439 46451 46452B 9017906161 9155180610 9155180610 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 91621G0816 9167480820 9167480820 9167480822 9167480822 9415180800 9415180800
Part # Description Qty Price
46134 - SUPPORT, PARKING BRAKE BRACKET, NO.2
46134-60010

URJ201

 1
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-60030

URJ201

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-60030

URJ201

 1
46451 - BRACKET, CABLE SUPPORT
46451-60210

URJ201,VDJ201

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-60120

URJ201,VDJ201

 1
Common parts
90179-06161
91551-80610
91621-G0816
91674-80820
91674-80822
94151-80800
