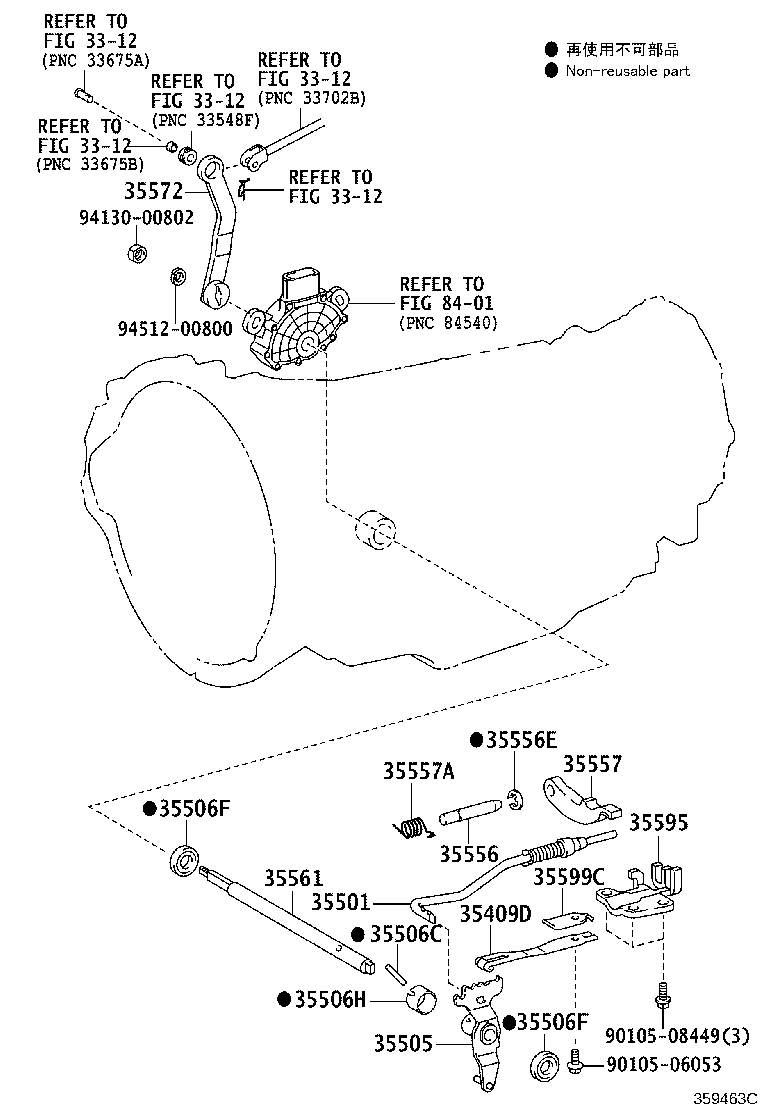

Toyota Lexus lx450d/570 URJ201 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-60050	URJ201	09/2015 - 12/2999	1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-60040	URJ201	09/2015 - 12/2999	1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60100	URJ201	08/2018 - 12/2999	1
35505-60080	URJ201	09/2015 - 07/2018	1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011	URJ201,VDJ201	09/2015 - 12/2999	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	URJ201,VDJ201	09/2015 - 12/2999	2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	URJ201,VDJ201	09/2015 - 12/2999	2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025	URJ201,VDJ201	09/2015 - 12/2999	1
35556 - SHAFT, PARKING LOCK PAWL
35556-60030	URJ201	09/2015 - 12/2999	1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021	URJ201,VDJ201	09/2015 - 12/2999	1
35557 - PAWL, PARKING LOCK
35557-60050	URJ201	09/2015 - 12/2999	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-24007	URJ201	09/2015 - 12/2999	1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60040	URJ201	09/2015 - 12/2999	1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-60150	URJ201	04/2018 - 12/2999	1
35572-60130	URJ201	09/2015 - 03/2018	1
35595 - BRACKET, PARKING LOCK PAWL
35595-60040	URJ201	09/2015 - 12/2999	1
35599C - COVER, MANUAL DETENT SPRING
35599-60030	URJ201	09/2015 - 12/2999	1
Common parts
90105-06053
90105-08449
94130-00802
94512-00800
Linked diagrams
3312
8401

URJ201L-GNZGKW (2015)
