Toyota Lexus lx450d/570 URJ201 OIL COOLER & TUBE (ATM)

Part #	Description	Period	Qty
32907A - TUBE, OIL COOLER
32907-60240	URJ201	01/2012 - 09/2015	1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-60260	URJ201	01/2012 - 09/2015	1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-60340	URJ201	01/2012 - 09/2015	1
32941A - HOSE, OIL COOLER INLET, NO.2
32943-60490	URJ201	01/2012 - 09/2015	1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	5
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	5
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	5
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	5
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	5
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-60500	URJ201	01/2012 - 09/2015	1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-17182	URJ201	01/2012 - 09/2015	1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	3
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	3
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	3
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60310	URJ201 NO.2	01/2012 - 09/2015	1
32943-60340	URJ201 NO.1	01/2012 - 09/2015	1
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60310	URJ201 NO.2	01/2012 - 09/2015	1
32943-60340	URJ201 NO.1	01/2012 - 09/2015	1
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
90466-16004	URJ201	01/2012 - 09/2015	4
32970 - COOLER ASSY, TRANSMISSION OIL W/THERMOSTAT
32970-34030	URJ201	01/2012 - 09/2015	1
32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT)
35147-34010	URJ201	01/2012 - 09/2015	2
32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT)
35147-34010	URJ201	01/2012 - 09/2015	2
33490F - COOLER ASSY, TRANSMISSION OIL
33490-34010	URJ201	01/2012 - 09/2015	1
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020	URJ201	01/2012 - 09/2015	2
33490G - RING, O (FOR TRANSMISSION OIL COOLER)
90301-19020	URJ201	01/2012 - 09/2015	2
Common parts
91551-80614
91551-80816
91551-80840

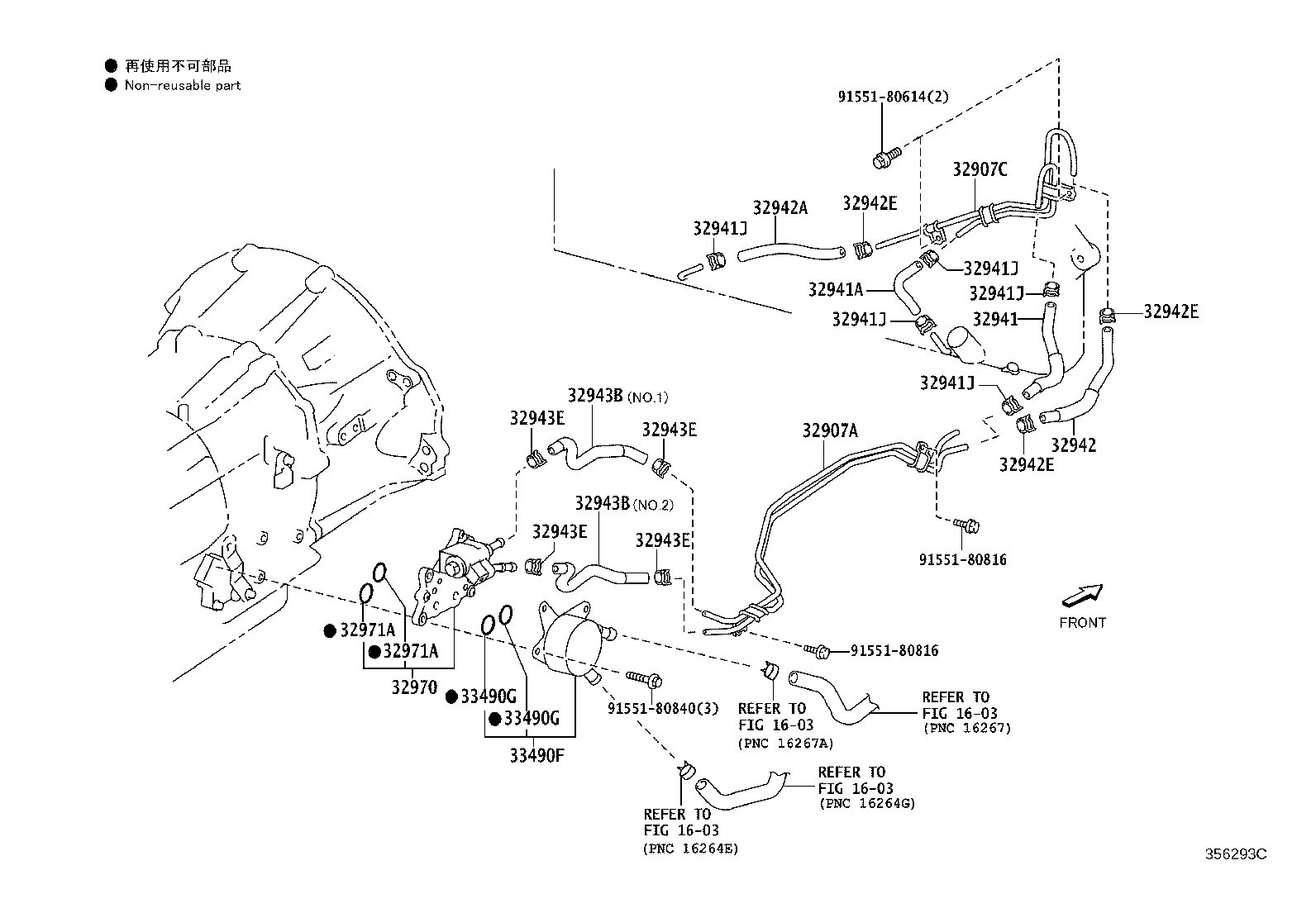

Linked diagrams
1603

URJ201L-GNTGKW (2012)

(0711-1509)
