URJ201L-GNTGKW (2007)
Toyota Lexus Lx450d/570
Production
Nov 2007
-
Jan 2012
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0711-1201)

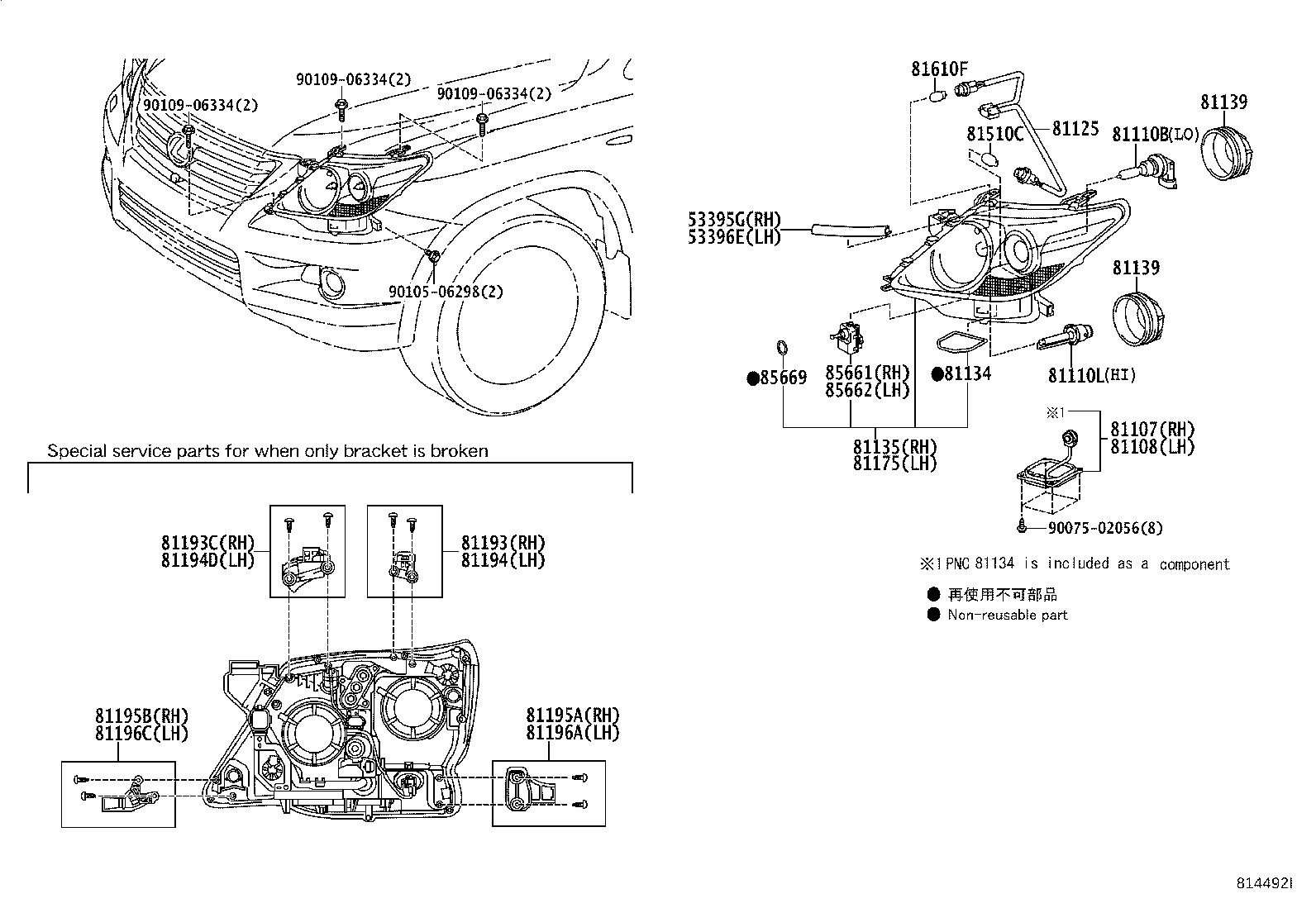

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53395G - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-60030 |
URJ201 |
1 | ||
| 53396E - SEAL, HOOD TO FRONT END PANEL, NO.2 | ||||
| 53396-60040 |
URJ201 |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-60D51 |
URJ201 |
1 | ||
| 81107-60D50 |
URJ201 |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-60D50 |
URJ201 |
1 | ||
| 81107-60D51 |
URJ201 |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13075 |
URJ201 12V 55W,HALOGEN |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
URJ201 42V 35W |
2 | ||
| 90981-20013 |
URJ201 45V 35W |
2 | ||
| 90981-20021 |
URJ201 45V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-60D50 |
URJ201 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
URJ201 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-60D50 |
URJ201 |
1 | ||
| 81145-60D51 |
URJ201 |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-24160 |
URJ201 |
4 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81135-24160 |
URJ201 |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-60D21 |
URJ201 |
1 | ||
| 81185-60D20 |
URJ201 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60070 |
URJ201 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-60080 |
URJ201 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60070 |
URJ201 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-60080 |
URJ201 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60070 |
URJ201 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-60080 |
URJ201 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60060 |
URJ201 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-60070 |
URJ201 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
URJ201 12V 21W,AMBER |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
URJ201 12V 5W |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
URJ201 |
1 | ||
| 85661-28011 |
URJ201 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28011 |
URJ201 |
1 | ||
| 85691-28010 |
URJ201 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
URJ201 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90105-06298 | ||||
| 90109-06334 | ||||
