URJ201L-GNTGKW (2007)

Toyota Lexus Lx450d/570

Production Nov 2007 - Jan 2012
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711-1509)

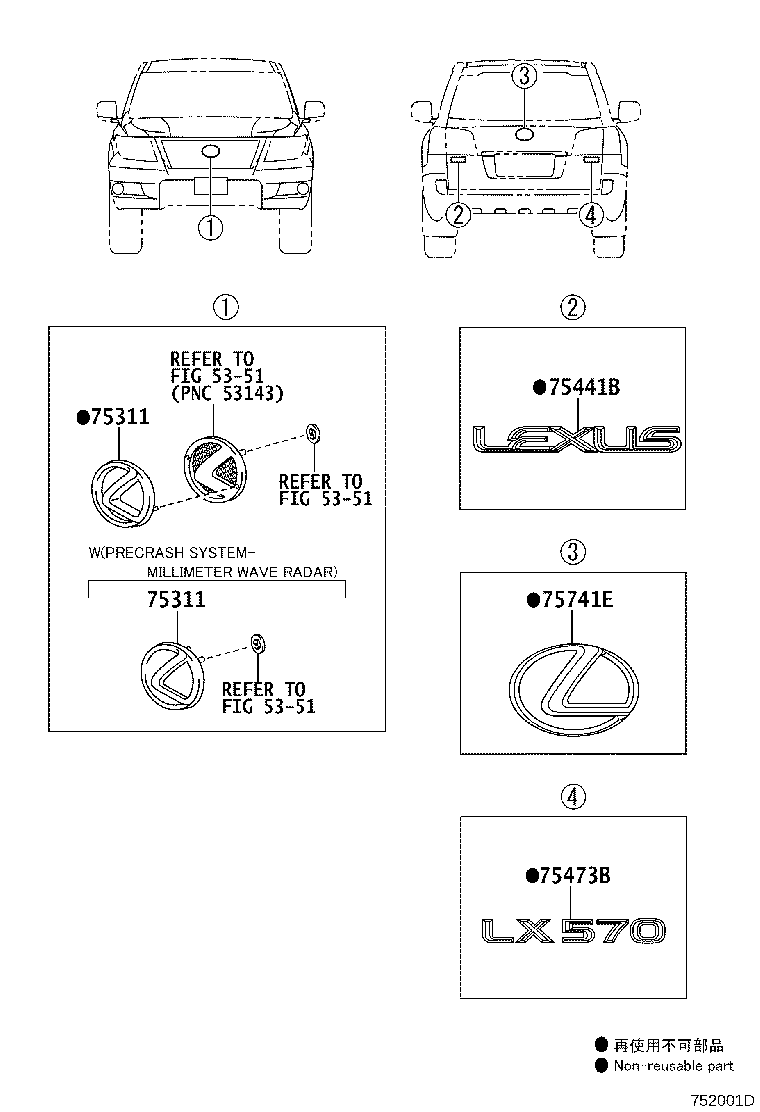

Click highlighted areas on diagram

diagram 5351 5351 5351 75311 75311 75441B 75473B 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02083

URJ201

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
90975-02083

URJ201

UKRAINE SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
90975-02083

URJ201

KAZAKHSTAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
90975-02083

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)

 1
90975-02083

URJ201

UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

 1
90975-02083

URJ201

KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

 1
90975-02083

URJ201

CHILE SPEC

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
90975-02083

URJ201

UKRAINE SPEC

 1
90975-02083

URJ201

KAZAKHSTAN SPEC

 1
90975-02147

URJ201

 1
90975-02083

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02083

URJ201

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
90975-02083

URJ201

UKRAINE SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
90975-02083

URJ201

KAZAKHSTAN SPEC&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
90975-02083

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)

 1
90975-02083

URJ201

UKRAINE SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

 1
90975-02083

URJ201

KAZAKHSTAN SPEC&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)

 1
90975-02083

URJ201

CHILE SPEC

 1
53141-48050

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&EMV & NAVIGATION SYSTEM-WITH(DVD VOICE BLUETOOTH)

 1
53141-30040

URJ201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
90975-02083

URJ201

UKRAINE SPEC

 1
90975-02083

URJ201

KAZAKHSTAN SPEC

 1
90975-02147

URJ201

 1
90975-02083

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)&BACK MONITOR-GUIDE & WIDE VIEW MONITOR(FRONT&SIDE)

 1
75441B - PLATE, BACK DOOR NAME
75441-60520

URJ201

LEXUS,GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)

 1
75441-60520

URJ201

LEXUS,UKRAINE SPEC

 1
75441-60530

URJ201

LEXUS

 1
75441-60520

URJ201

LEXUS,CHILE SPEC

 1
75441-60520

URJ201

LEXUS,TAIWAN SPEC

 1
75441-60520

URJ201

LEXUS,KAZAKHSTAN SPEC

 1
75441-60520

URJ201

LEXUS

 1
75473B - PLATE, REAR BODY NAME, NO.3
75473-60170

URJ201

 1
75473-60170

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)

 1
75473-60170

URJ201

KAZAKHSTAN SPEC

 1
75473-60170

URJ201

CHILE SPEC

 1
75473-60190

URJ201

 1
75473-60170

URJ201

TAIWAN SPEC

 1
75473-60170

URJ201

UKRAINE SPEC

 1
75741E - EMBLEM, SYMBOL
90975-02081

URJ201

GENERAL COUNTRIES(EXCEPT RUSSIA &TAIWAN)

 1
90975-02081

URJ201

CHILE SPEC

 1
90975-02081

URJ201

TAIWAN SPEC

 1
90975-02081

URJ201

 1
90975-02145

URJ201

 1
90975-02081

URJ201

KAZAKHSTAN SPEC

 1
90975-02081

URJ201

UKRAINE SPEC

 1
Linked diagrams
5351
