URJ201L-GNTGKW (2007)
Toyota Lexus Lx450d/570
Production
Nov 2007
-
Jan 2012
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(0711-1509)
Click highlighted areas on diagram

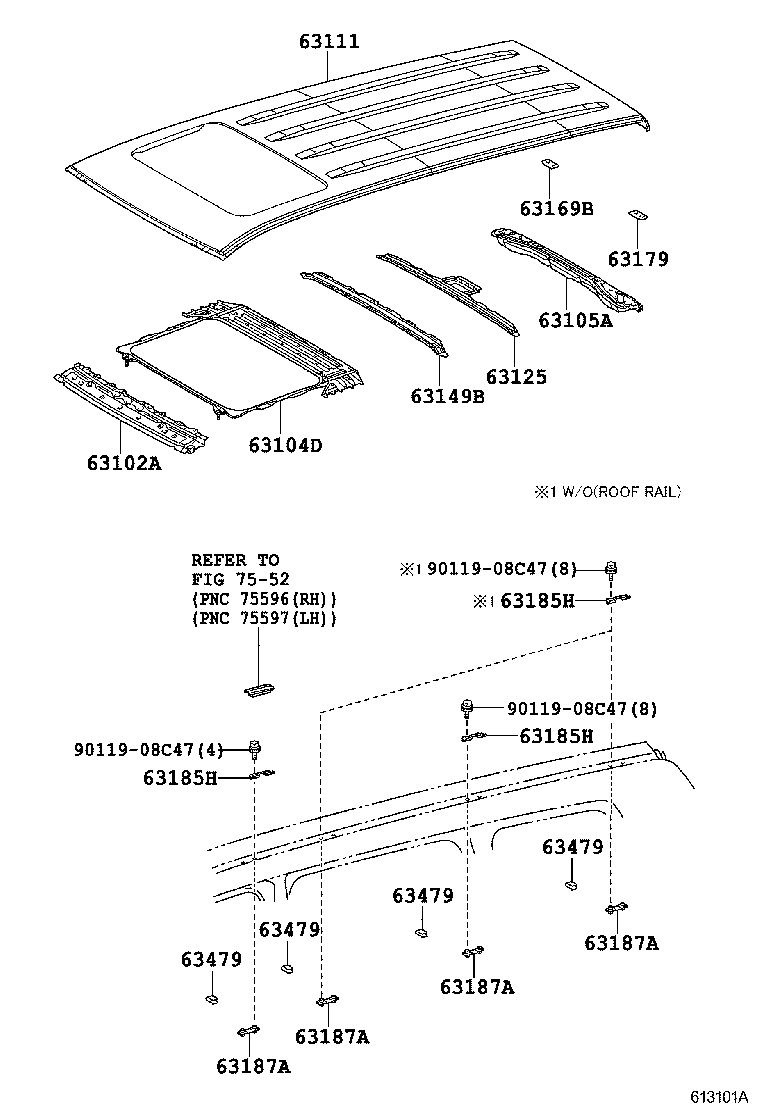

ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60110 |
URJ201 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-60060 |
URJ201 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60280 |
URJ201 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60580 |
URJ201 |
1 | ||
| 63125 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63107-60040 |
URJ201 |
1 | ||
| 63149B - REINFORCEMENT, ROOF PANEL, NO.1 REAR | ||||
| 63149-60010 |
URJ201 |
1 | ||
| 63169B - PLATE, ROOF PANEL REINFORCEMENT, RH | ||||
| 63169-60020 |
URJ201 |
1 | ||
| 63179 - PLATE, ROOF PANEL REINFORCEMENT, LH | ||||
| 63179-60010 |
URJ201 |
1 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
URJ201 |
4 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
URJ201 |
4 | ||
| 63185H - BRACKET, ROOF RACK | ||||
| 63185-42020 |
URJ201 |
4 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
URJ201 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
URJ201 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
URJ201 |
8 | ||
| 63187A - BRACKET, ROOF RACK, REAR | ||||
| 63187-60040 |
URJ201 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
URJ201 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
URJ201 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
URJ201 |
8 | ||
| 63479 - RETAINER, ROOF INNER RACK | ||||
| 63479-60020 |
URJ201 |
8 | ||
| Common parts | ||||
| 90119-08C47 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 3 OF 3(0711-1509)
Click highlighted areas on diagram

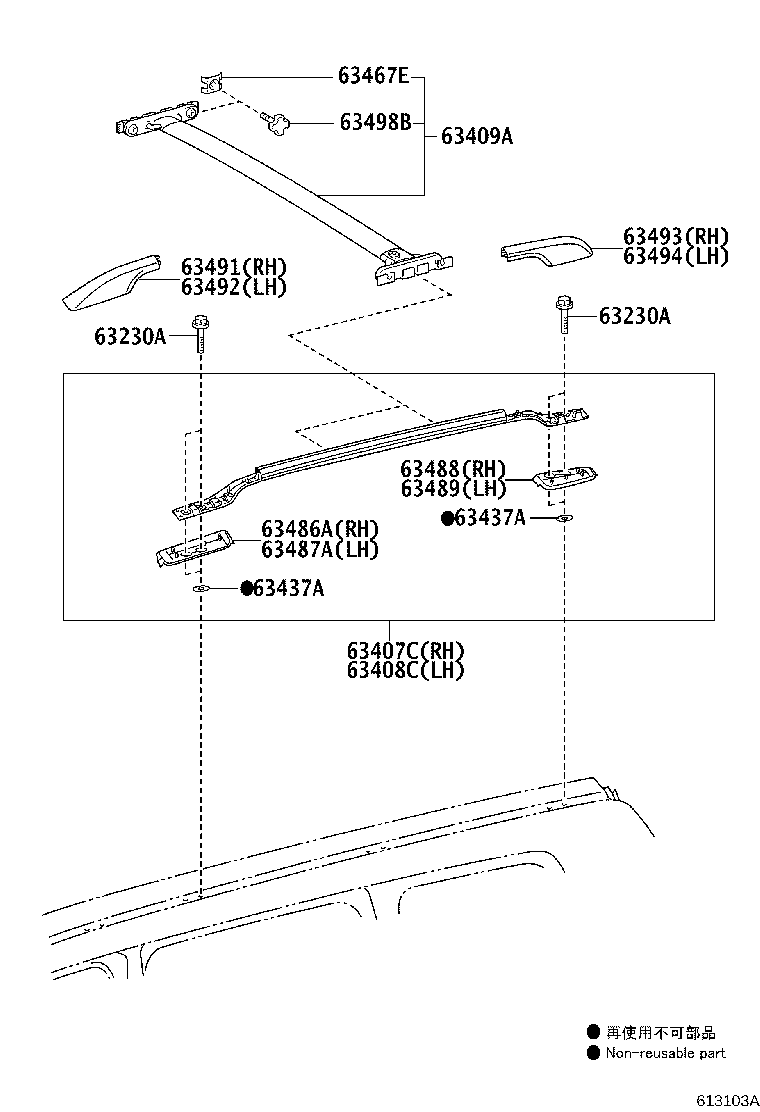

ROOF RAIL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-60010 |
URJ201 |
8 | ||
| 63230A - BOLT ASSY, REMOVABLE ROOF | ||||
| 63230-60010 |
URJ201 |
8 | ||
| 63407C - CARRIER SUB-ASSY, ROOF, RH | ||||
| 63407-60120 |
URJ201 |
1 | ||
| 63408C - CARRIER SUB-ASSY, ROOF, LH | ||||
| 63408-60110 |
URJ201 |
1 | ||
| 63409A - SUPPORT SUB-ASSY, ROOF RACK, CENTER | ||||
| 63409-60080 |
URJ201 |
2 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-60020 |
URJ201 |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-60020 |
URJ201 |
1 | ||
| 63467E - PLATE, ROOF RACK, REAR | ||||
| 63467-42011 |
URJ201 |
8 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-60120 |
URJ201 |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-60100 |
URJ201 |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-60100 |
URJ201 |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-60090 |
URJ201 |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-60120 |
URJ201 |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-60100 |
URJ201 |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-60110 |
URJ201 |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-60100 |
URJ201 |
1 | ||
| 63498B - CAP, ROOF CARRIER | ||||
| 63498-42011 |
URJ201 |
8 | ||
ILLUST NO. 2 OF 3(0711- )
Click highlighted areas on diagram

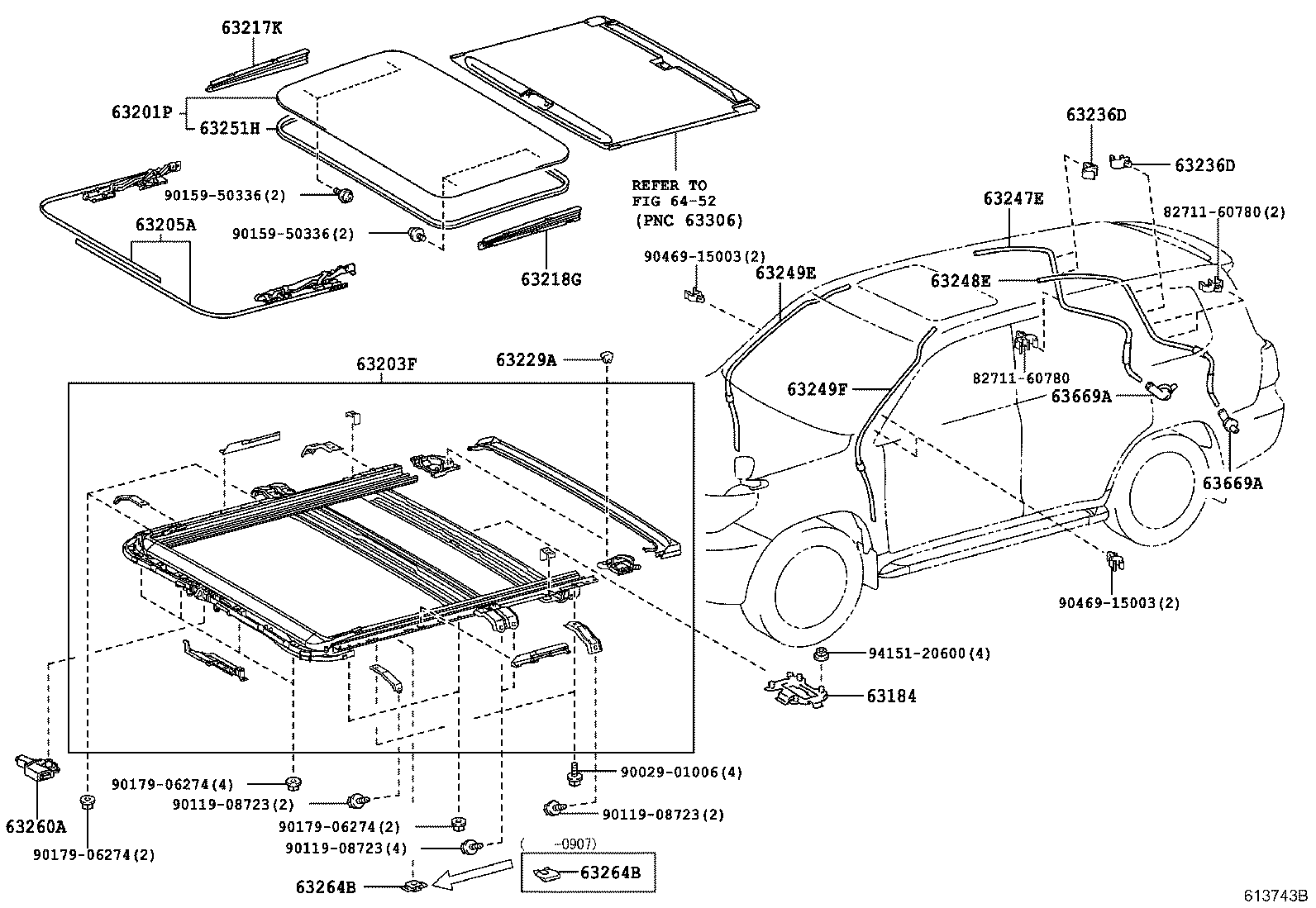

MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63184 - BRACKET, ROOF CONSOLE, REAR | ||||
| 63184-60040 |
URJ201 |
1 | ||
| 63201P - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-60101 |
URJ201 |
1 | ||
| 63201-60100 |
URJ201 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-60060 |
URJ201 |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-60010 |
URJ201 |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60050 |
URJ201 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60050 |
URJ201 |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-35010 |
URJ201 |
2 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-60030 |
URJ201 |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-60030 |
URJ201 |
4 | ||
| 63247E - HOSE, SLIDING ROOF DRAIN, REAR RH | ||||
| 63249-60210 |
URJ201 |
1 | ||
| 63248E - HOSE, SLIDING ROOF DRAIN, REAR LH | ||||
| 63249-60220 |
URJ201 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60190 |
URJ201 |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60200 |
URJ201 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-60050 |
URJ201 |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60120 |
URJ201 |
1 | ||
| 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH | ||||
| 63263-60020 |
URJ201 |
1 | ||
| 63263-60030 |
URJ201 |
1 | ||
| 63264B - PLATE, SLIDING ROOF LOCK CATCH, LH | ||||
| 63263-60020 |
URJ201 |
1 | ||
| 63263-60030 |
URJ201 |
1 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-35010 |
URJ201 |
2 | ||
| 63669A - GROMMET, SLIDING ROOF DRAIN | ||||
| 63669-35010 |
URJ201 |
2 | ||
| Common parts | ||||
| 82711-60780 | ||||
| 90029-01006 | ||||
| 90119-08723 | ||||
| 90159-50336 | ||||
| 90179-06274 | ||||
| 90469-15003 | ||||
| 94151-20600 | ||||
| Linked diagrams | ||||
| 6452 | ||||
