URJ201L-GNTGKW (2007)

Toyota Lexus Lx450d/570

Production Nov 2007 - Jan 2012
Engine 3URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0711- )3URFE

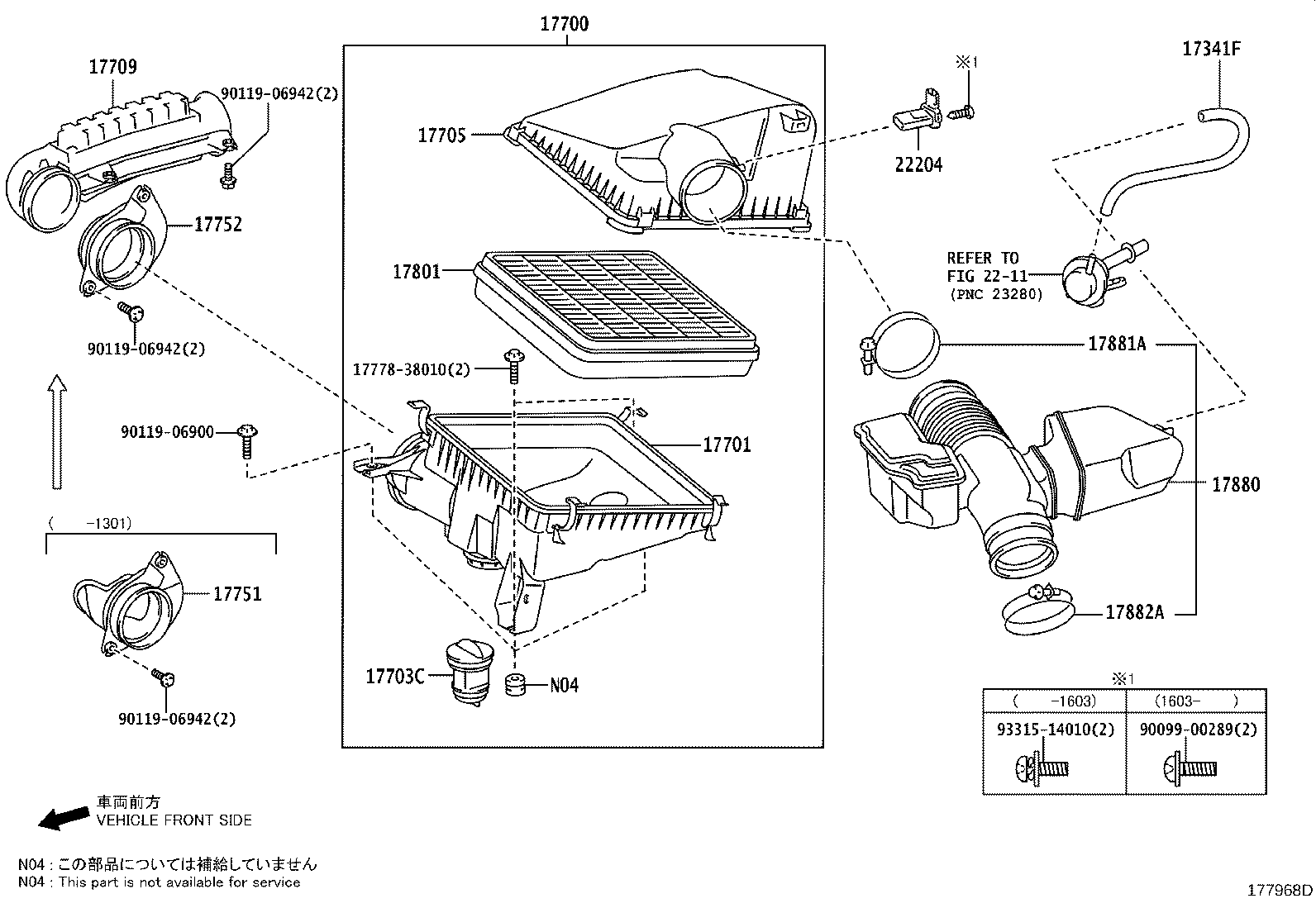

Click highlighted areas on diagram

diagram 17341F 17700 17701 17703C 17705 17709 17751 17752 1777838010 17801 17880 17881A 17882A 2211 22204 9009900289 9011906900 9011906942 9011906942 9011906942 9331514010
Part # Description Qty Price
17341F - HOSE, AIR, NO.1
17341-38090

3URFE..URJ201

 1
17341-38090

3URFE..URJ201

 1
17700 - CLEANER ASSY, AIR
17700-38170

3URFE..URJ201

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-51050

3URFE..URJ201

 1
17703C - CAP SUB-ASSY, DUST
17703-38010

3URFE..URJ201

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-38090

3URFE..URJ201

 1
17751 - INLET, AIR CLEANER, NO.1
17751-38050

3URFE..URJ201

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-38030

3URFE..URJ201

 1
17880 - HOSE ASSY, AIR CLEANER
17880-38050

3URFE..URJ201

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-11060

3URFE..URJ201

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10950

3URFE..URJ201

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

3URFE..URJ201

 1
Common parts
17778-38010
90099-00289
90119-06900
90119-06942
93315-14010
Linked diagrams
2211
