URJ201L-GNTGKW (2007)
Toyota Lexus Lx450d/570
Production
Nov 2007
-
Jan 2012
Engine
3URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0711- )3URFE

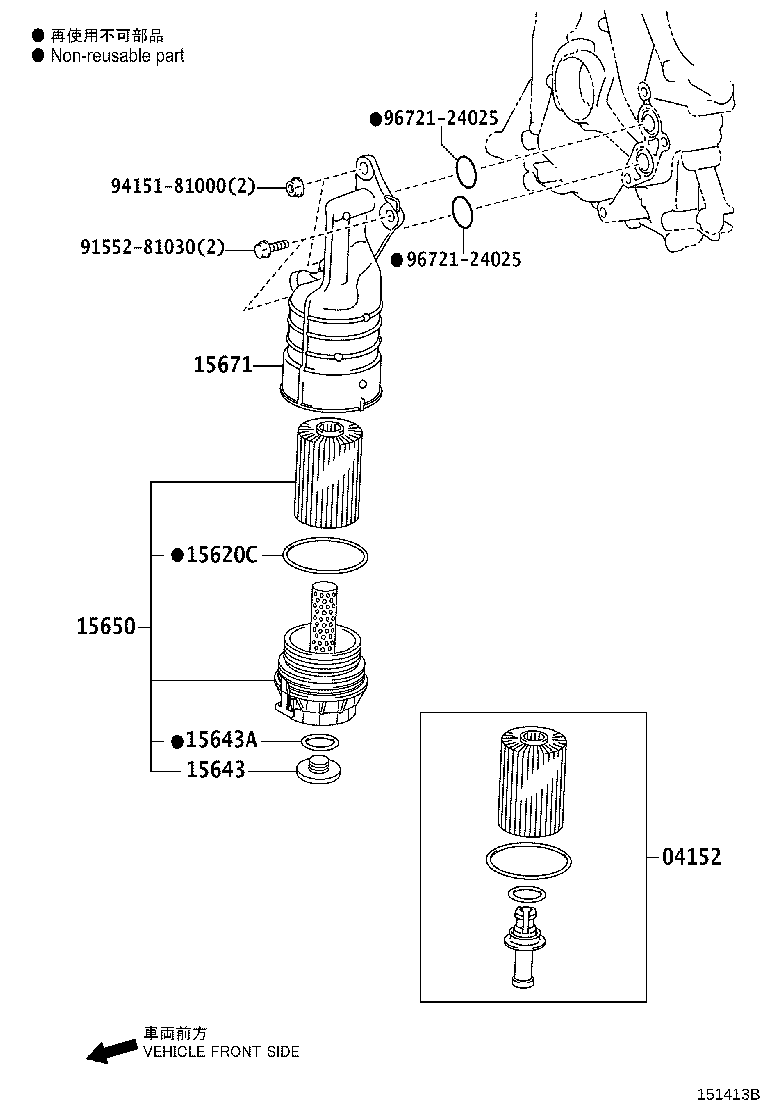

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-38020 |
3URFE..URJ201 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
3URFE..URJ201 |
1 | ||
| 15643 - PLUG, OIL FILTER DRAIN | ||||
| 15643-31050 |
3URFE..URJ201 |
1 | ||
| 15643A - RING, O(FOR OIL FILTER DRAIN PLUG) | ||||
| 96723-35028 |
3URFE..URJ201 |
1 | ||
| 15650 - CAP ASSY, OIL FILTER W/ELEMEMT | ||||
| 15650-38010 |
3URFE..URJ201 |
1 | ||
| 15671 - BRACKET, OIL FILTER | ||||
| 15671-38010 |
3URFE..URJ201 |
1 | ||
| Common parts | ||||
| 91552-81030 | ||||
| 94151-81000 | ||||
| 96721-24025 | ||||
