GVF55R-AEVGHW (2020)

Toyota Lexus Ls Series

Production Nov 2020 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

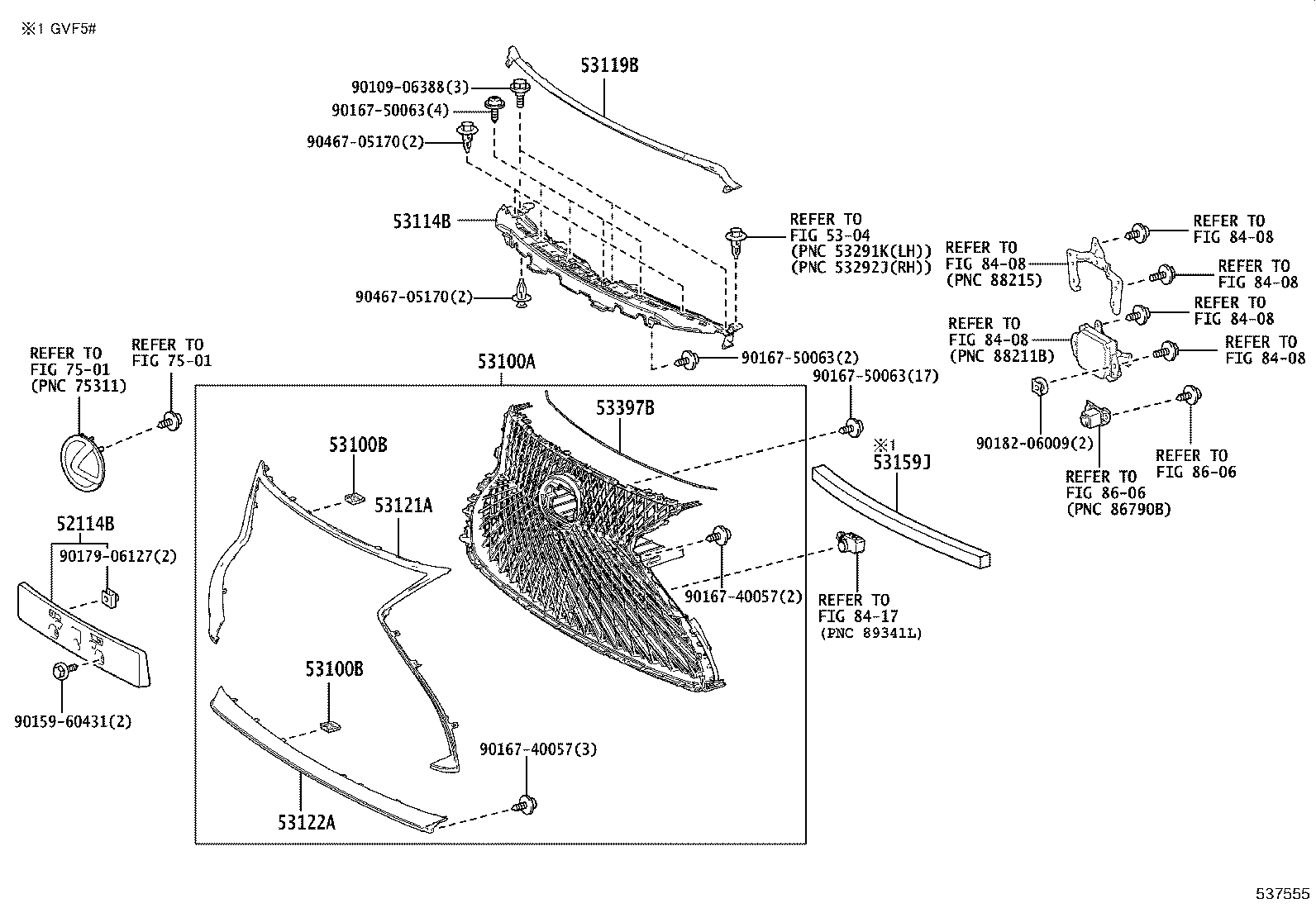

Click highlighted areas on diagram

diagram 52114B 5304 53100A 53100B 53100B 53114B 53119B 53121A 53122A 53159J 53397B 7501 7501 8408 8408 8408 8408 8408 8408 8417 8606 8606 9010906388 9015960431 9016740057 9016740057 9016750063 9016750063 9016750063 9017906127 9018206009 9046705170 9046705170
Part # Description Qty Price
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-50410

GSF50,GVF5#,VXFA55

 1
52114-50460

GVF5#,VXFA55

"F SPORT"*(F)

 1
53100A - GRILLE ASSY, RADIATOR
53100-50C80

GVF5#

 1
53100-50C20

GVF55..RHD

"VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&INTELLIGENT PARKING ASSIST-WITH

 1
53100-50C20

GVF55..RHD

"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&INTELLIGENT PARKING ASSIST-WITH

 1
53100-50D40

GVF5#,VXFA55

"F SPORT"*(F)

 1
53100B - CLIP, RADIATOR GRILLE
90467-08229

GSF50,GVF5#,VXFA55

 27
53100B - CLIP, RADIATOR GRILLE
90467-08229

GSF50,GVF5#,VXFA55

 27
53114B - GRILLE, RADIATOR, UPPER
53114-50060

GSF50,GVF5#,VXFA55

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-50090

GSF50,GVF5#,VXFA55

 1
53121A - MOULDING, RADIATOR GRILLE
53121-50080

GSF50,GVF5#,VXFA55

 1
53121-50100

GVF5#,VXFA55

"F SPORT"*(F)

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-50090

GSF50,GVF5#,VXFA55

 1
53122-50070

GVF5#,VXFA55

"F SPORT"*(F)

 1
53159J - SEAL, RADIATOR GRILLE
53159-50010

GVF5#

 1
53397B - SEAL, RADIATOR, UPPER
53397-50010

GSF50,GVF5#,VXFA55

 1
Common parts
90109-06388
90159-60431
90167-40057
90167-50063
90179-06127
90182-06009
90467-05170
Linked diagrams
5304
7501
8408
8417
8606

(2011- )

Click highlighted areas on diagram

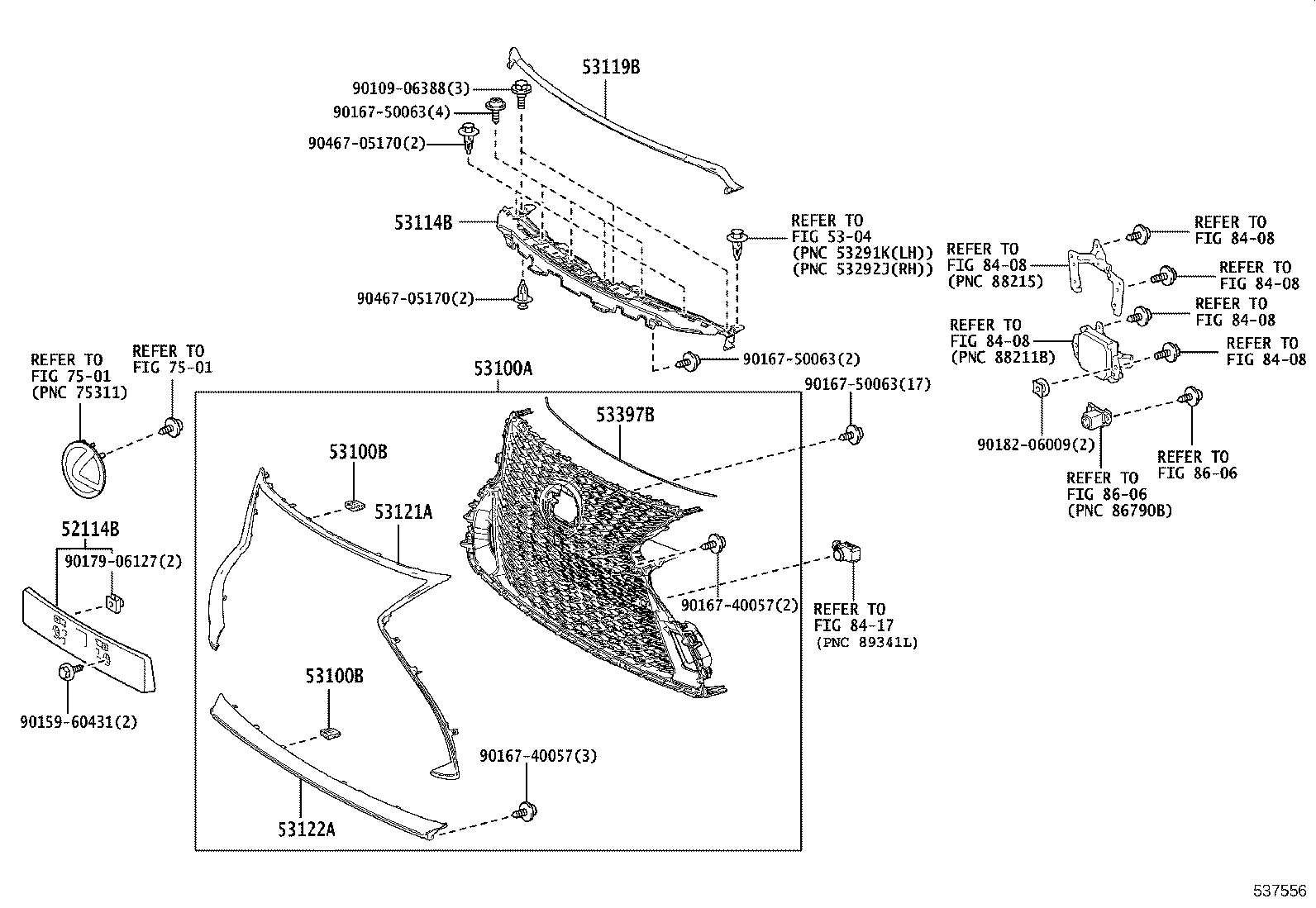

F SPORT

diagram 52114B 5304 53100A 53100B 53100B 53114B 53119B 53121A 53122A 53397B 7501 7501 8408 8408 8408 8408 8408 8408 8417 8606 8606 9010906388 9015960431 9016740057 9016740057 9016750063 9016750063 9016750063 9017906127 9018206009 9046705170 9046705170
Part # Description Qty Price
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-50410

GSF50,GVF5#,VXFA55

 1
52114-50460

GVF5#,VXFA55

"F SPORT"*(F)

 1
53100A - GRILLE ASSY, RADIATOR
53100-50C80

GVF5#

 1
53100-50C20

GVF55..RHD

"VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&INTELLIGENT PARKING ASSIST-WITH

 1
53100-50C20

GVF55..RHD

"EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A&INTELLIGENT PARKING ASSIST-WITH

 1
53100-50D40

GVF5#,VXFA55

"F SPORT"*(F)

 1
53100B - CLIP, RADIATOR GRILLE
90467-08229

GSF50,GVF5#,VXFA55

 27
53100B - CLIP, RADIATOR GRILLE
90467-08229

GSF50,GVF5#,VXFA55

 27
53114B - GRILLE, RADIATOR, UPPER
53114-50060

GSF50,GVF5#,VXFA55

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-50090

GSF50,GVF5#,VXFA55

 1
53121A - MOULDING, RADIATOR GRILLE
53121-50080

GSF50,GVF5#,VXFA55

 1
53121-50100

GVF5#,VXFA55

"F SPORT"*(F)

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-50090

GSF50,GVF5#,VXFA55

 1
53122-50070

GVF5#,VXFA55

"F SPORT"*(F)

 1
53397B - SEAL, RADIATOR, UPPER
53397-50010

GSF50,GVF5#,VXFA55

 1
Common parts
90109-06388
90159-60431
90167-40057
90167-50063
90179-06127
90182-06009
90467-05170
Linked diagrams
5304
7501
8408
8417
8606
