GVF55R-AEVGHW (2020)

Toyota Lexus Ls Series

Production Nov 2020 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )8GRFXS

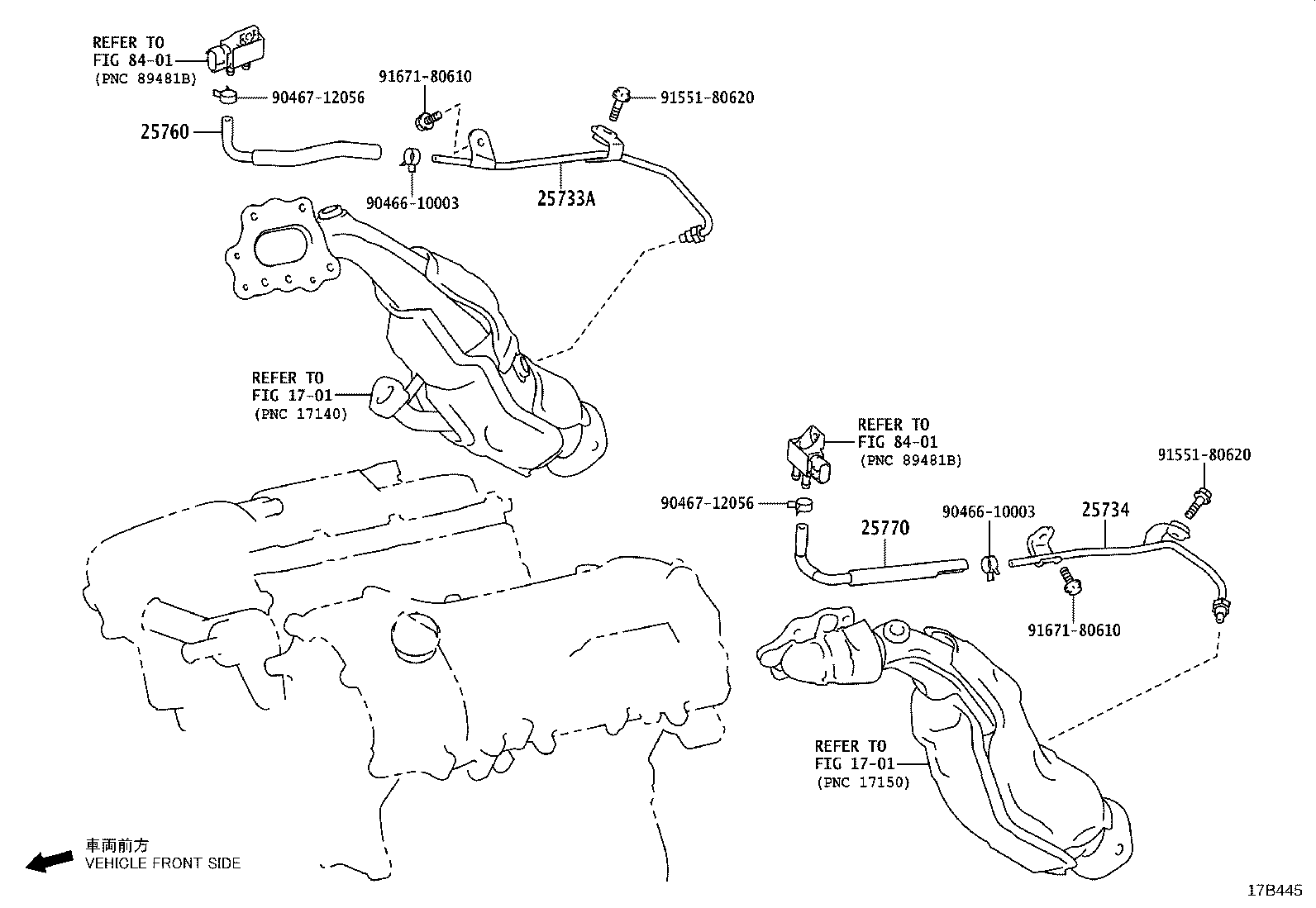

Click highlighted areas on diagram

diagram 1701 1701 25733A 25734 25760 25770 8401 8401 9046610003 9046610003 9046712056 9046712056 9155180620 9155180620 9167180610 9167180610
Part # Description Qty Price
25733A - PIPE, VACUUM, NO.1
25733-31030

8GRFXS..GVF5#

 1
25734 - PIPE, VACUUM, NO.2
25734-31040

8GRFXS..GVF55

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-31040

8GRFXS..GVF5#

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-31040

8GRFXS..GVF5#

 1
Common parts
90466-10003
90467-12056
91551-80620
91671-80610
Linked diagrams
1701
8401
