GVF50R-AEVGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )RHD

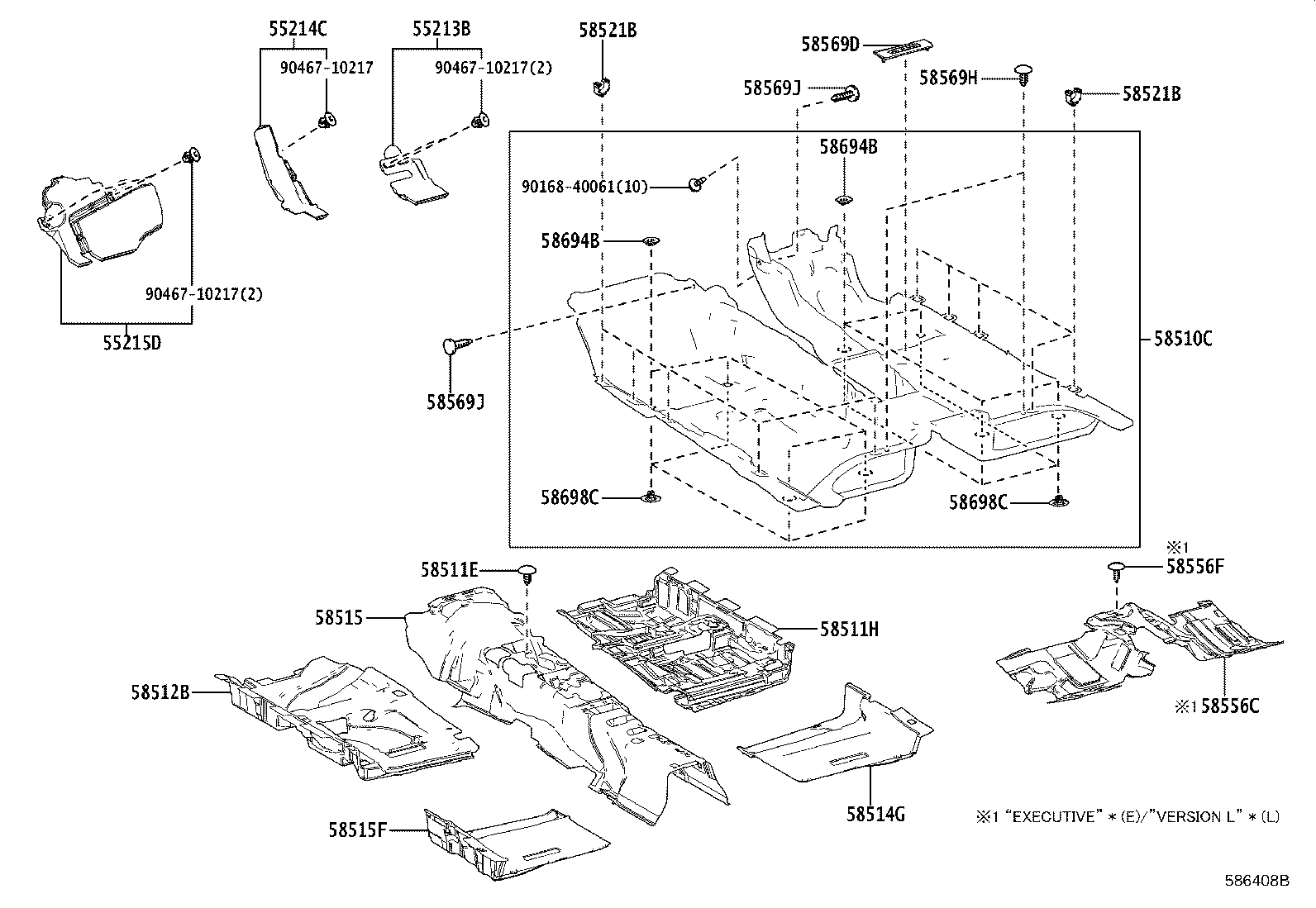

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58510C 58511E 58511H 58512B 58514G 58515 58515F 58521B 58521B 58556C 58556F 58569D 58569H 58569J 58569J 58694B 58694B 58698C 58698C 9016840061 9046710217 9046710217 9046710217
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-50130

GVF5#..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-50120

GVF5#..RHD

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-50110

GVF50..RHD

 1
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-50D00C2

GVF50..RHD

"VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK,TRIM2#

 1
58510-50A60C0

GVF50..RHD

"F SPORT"*(F),BLACK,TRIM0#,2#,3#

 1
58510-50A50C2

GVF50..RHD

BLACK,TRIM2#

 1
58510-50D10D2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 1
58510-50D00E2

GVF50..RHD

"VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN,TRIM0#,1#,4#,5#,9#

 1
58510-50D10C2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK,TRIM2#,5#

 1
58510-50D10E2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN,TRIM0#,1#,4#

 1
58510-50A51C2

GVF50..RHD

BLACK,TRIM2#

 1
58510-50D01C2

GVF50..RHD

"VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK,TRIM2#

 1
58510-50D01E2

GVF50..RHD

"VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN,TRIM0#,1#,4#,5#,9#

 1
58510-50D11C2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK,TRIM2#,5#

 1
58510-50A61C0

GVF50..RHD

"F SPORT"*(F),BLACK,TRIM0#,2#,3#

 1
58510-50D11E2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN,TRIM0#,1#,4#

 1
58510-50D11D2

GVF50..RHD

"EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON,TRIM3#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042B9

GSF50,GVF5#,VXFA55

LT.GRAY

 1
58511H - MAT, FLOOR, FRONT RH
58511-50020

GVF5#..RHD

 1
58511-50021

GVF5#..RHD

 1
58512B - MAT, FLOOR, FRONT LH
58512-50021

GVF50..RHD

 1
58512-50051

GVF50..RHD

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
58512-50050

GVF50..RHD

REAR SEAT ADJUSTER-POWER & OTTOMAN

 1
58512-50020

GVF50..RHD

 1
58514G - MAT, FLOOR, REAR RH
58514-50010

GSF50,GVF5#,VXFA55

 1
58514-50011

GSF50,GVF5#,VXFA55

 1
58515 - MAT, FLOOR, CENTER
58513-50030

GVF50..RHD

 1
58515F - MAT, FLOOR, REAR LH
58515-50011

GSF50,GVF5#,VXFA55

 1
58515-50010

GSF50,GVF5#,VXFA55

 1
58521B - HOOK, FLOOR CARPET
58521-50050

GSF50,GVF5#,VXFA55

 10
58521B - HOOK, FLOOR CARPET
58521-50050

GSF50,GVF5#,VXFA55

 10
58556C - SILENCER, REAR FLOOR
58556-50010

GSF50,GVF5#,VXFA55

"EXECUTIVE"*(E)

 1
58556-50010

GSF50,GVF5#,VXFA55

"VERSION L"*(L)

 1
58556F - CLIP, REAR FLOOR SILENCER
90467-08186C3

GSF50,GVF5#,VXFA55

"VERSION L"*(L),BLACK

 1
90467-08186C3

GSF50,GVF5#,VXFA55

"EXECUTIVE"*(E),BLACK

 1
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-50010D2

GSF50,GVF5#,VXFA55

CRIMSON,TRIM30,33

 1
58569-50010C2

GSF50,GVF5#,VXFA55

BLACK,TRIM06,2#,36,52,53

 1
58569-50010E2

GSF50,GVF5#,VXFA55

NOBLE BROWN,TRIM04,05,1#,4#,59,9#

 1
58569H - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
90467-05164B8

GSF50,GVF5#,VXFA55

LT.GRAY

 2
58569J - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.2
90467-0704923

GSF50,GVF5#,VXFA55

BLACK,TRIM0#,2#,3#,5#

 2
58569J - CLIP, FRONT FLOOR CAUTION PLATE COVER, NO.2
90467-0704923

GSF50,GVF5#,VXFA55

BLACK,TRIM0#,2#,3#,5#

 2
58694B - PLATE, MAT SET, UPPER
58694-33010

GSF50,GVF5#,VXFA55

 8
58694B - PLATE, MAT SET, UPPER
58694-33010

GSF50,GVF5#,VXFA55

 8
58698C - PLATE, MAT SET, LOWER
58698-33010

GSF50,GVF5#,VXFA55

 8
58698C - PLATE, MAT SET, LOWER
58698-33010

GSF50,GVF5#,VXFA55

 8
Common parts
90168-40061
90467-10217
