GVF50R-AEVGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710-2010)GVF5#

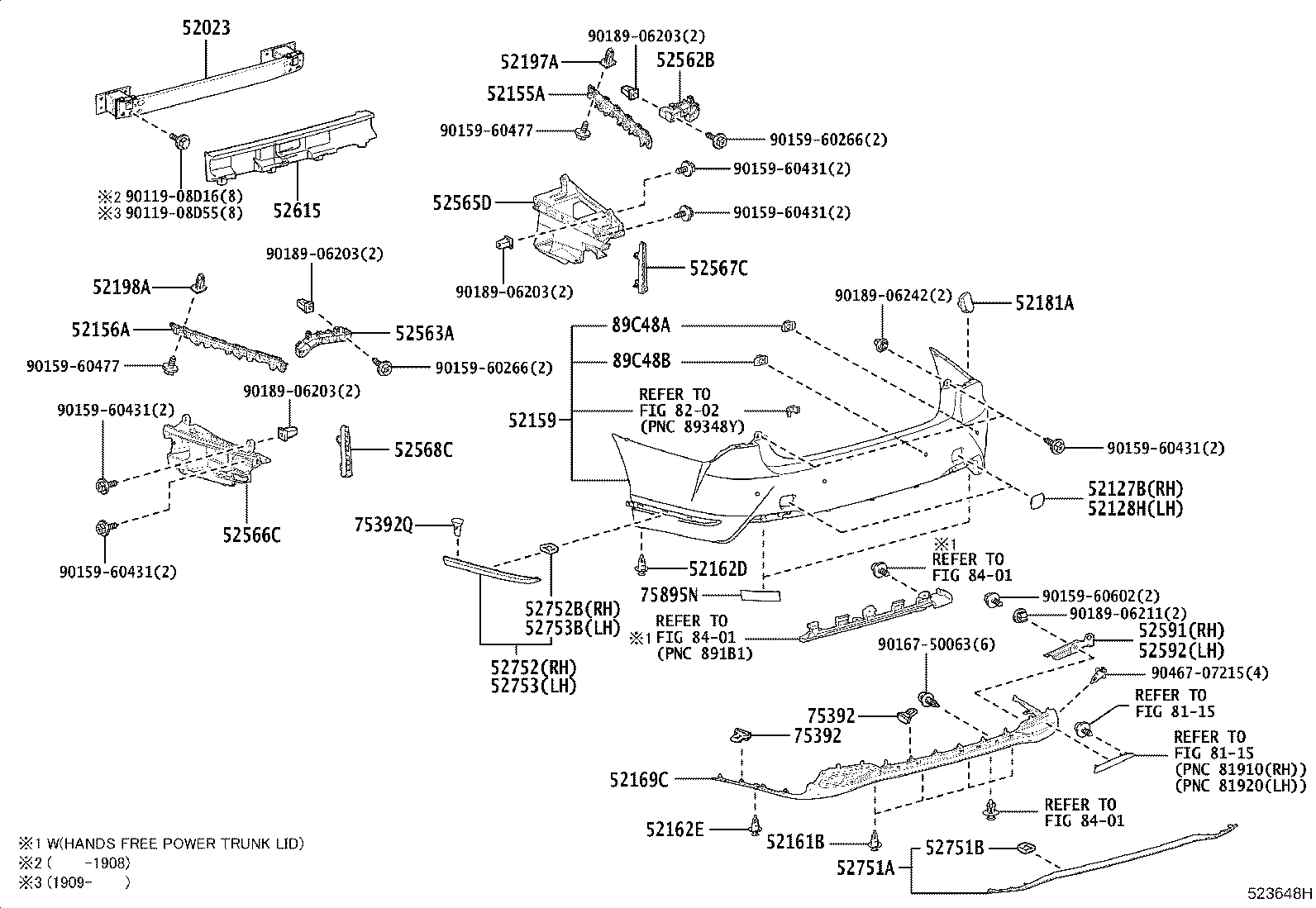

Click highlighted areas on diagram

diagram 52023 52127B 52128H 52155A 52156A 52159 52161B 52162D 52162E 52169C 52181A 52197A 52198A 52562B 52563A 52565D 52566C 52567C 52568C 52591 52592 52615 52751A 52751B 52752 52752B 52753 52753B 75392 75392 75392Q 75895N 8115 8115 8202 8401 8401 8401 89C48A 89C48B 9011908D16 9011908D55 9015960266 9015960266 9015960431 9015960431 9015960431 9015960431 9015960431 9015960477 9015960477 9015960602 9016750063 9018906203 9018906203 9018906203 9018906203 9018906211 9018906242 9046707215
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-50130

GSF50,GVF5#,VXFA55

 1
52127B - COVER, REAR BUMPER HOLE, RH
52161-50907

GSF50,GVF5#,VXFA55

 1
52128H - COVER, REAR BUMPER HOLE, LH
52162-50907

GSF50,GVF5#,VXFA55

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-50080

GSF50,GVF5#,VXFA55

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-50080

GSF50,GVF5#,VXFA55

 1
52159 - COVER, REAR BUMPER
52159-50938

GSF50,GVF5#,VXFA55

 1
52161B - PIECE, REAR BUMPER
52161-16010

GSF50,GVF5#,VXFA55

 4
52162D - PIECE, REAR BUMPER
52161-16010

GSF50,GVF5#,VXFA55

 2
52162E - PIECE, REAR BUMPER
52161-16010

GSF50,GVF5#,VXFA55

 2
52169C - COVER, REAR BUMPER, LOWER
52169-50090

GVF5#

 1
52181A - ARM, REAR BUMPER
52181-50030

GSF50,GVF5#,VXFA55

 4
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040

GSF50,GVF5#,VXFA55

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-53020

GSF50,GVF5#,VXFA55

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-50060

GSF50,GVF5#,VXFA55

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-50060

GSF50,GVF5#,VXFA55

 1
52565D - RETAINER, REAR BUMPER, LOWER RH
52565-50080

GSF50,GVF5#,VXFA55

 1
52566C - RETAINER, REAR BUMPER, LOWER LH
52566-50080

GSF50,GVF5#,VXFA55

 1
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-50060

GSF50,GVF5#,VXFA55

 1
52568C - RETAINER, REAR BUMPER LOWER SIDE, LH
52568-50060

GSF50,GVF5#,VXFA55

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-50030

GVF5#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-50030

GVF5#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50110

GSF50,GVF5#,VXFA55

 1
52751A - MOULDING, REAR BUMPER, CENTER
52751-50110

GVF5#

 1
52751-50130

GVF5#

"F SPORT"*(F)

 1
52751B - CLIP, REAR BUMPER MOULDING
90467-08229

GVF5#

 6
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-50010

GSF50,GVF5#,VXFA55

 1
52752-50030

GVF5#

"F SPORT"*(F)

 1
52752B - CLIP, REAR BUMPER SIDE MOULDING
90467-08229

GSF50,GVF5#,VXFA55

 2
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-50010

GSF50,GVF5#,VXFA55

 1
52753-50030

GVF5#

"F SPORT"*(F)

 1
52753B - CLIP, REAR BUMPER SIDE MOULDING
90467-08229

GSF50,GVF5#,VXFA55

 2
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

GSF50,GVF5#,VXFA55

 14
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

GSF50,GVF5#,VXFA55

 14
75392Q - RETAINER, OUTSIDE MOULDING, NO.2
75392-35220

GSF50,GVF5#,VXFA55

 4
75895N - TAPE, MOULDING, NO.1
75895-53010

GSF50,GVF5#,VXFA55

 2
75895-28010

GSF50,GVF5#,VXFA55

 2
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-50130

GSF50,GVF5#,VXFA55

 2
89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-50130

GSF50,GVF5#,VXFA55

 2
Common parts
90119-08D16
90119-08D55
90159-60266
90159-60431
90159-60477
90159-60602
90167-50063
90189-06203
90189-06211
90189-06242
90467-07215
Linked diagrams
8115
8202
8401
