GSF50L-AEUGHW (2020)

Toyota Lexus Ls Series

Production Nov 2020 - Sep 9999
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2011- )

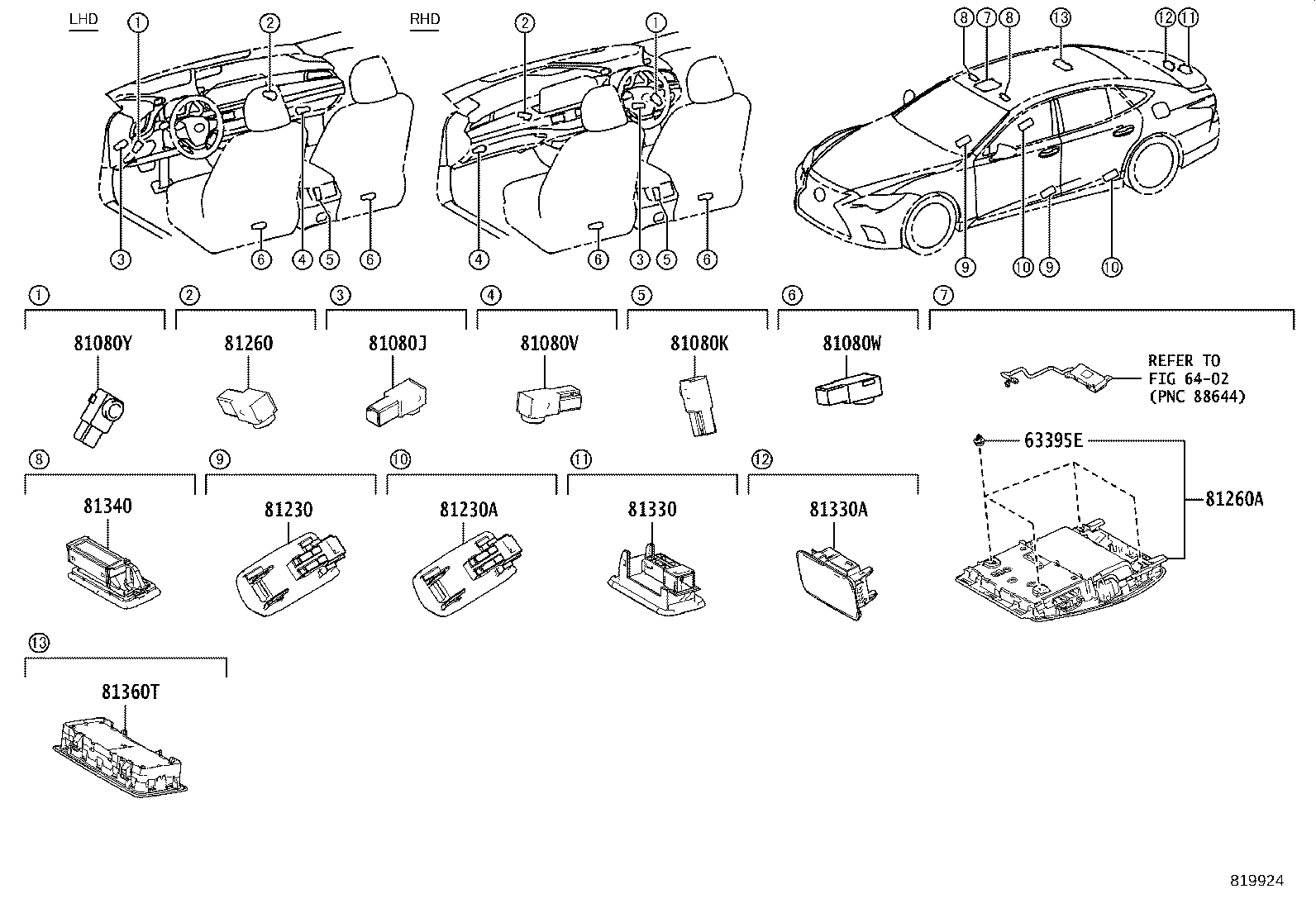

Click highlighted areas on diagram

diagram 63395E 6402 81080J 81080K 81080V 81080W 81080Y 81230 81230A 81260 81260A 81330 81330A 81340 81360T
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

GSF50,GVF5#,VXFA55

 4
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-50110

GSF50,GVF5#,VXFA55

 1
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-50110

GSF50,GVF5#,VXFA55

 1
81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81080-50110

GSF50,GVF5#,VXFA55

 1
81080W - LAMP ASSY, INTERIOR ILLUMINATION, NO.3
81080-50110

GSF50,GVF5#,VXFA55

 2
81080Y - LAMP ASSY, COIN BOX
81080-50210

GSF50,GVF5#,VXFA55

 1
81230 - LAMP ASSY, COURTESY
81230-11030

GSF50,GVF5#,VXFA55

 2
81230A - LAMP ASSY, COURTESY, NO.2
81230-11030

GSF50,GVF5#,VXFA55

 2
81260 - LAMP ASSY, GLOVE BOX
81080-50110

GSF50,GVF5#,VXFA55

 1
81260A - LAMP ASSY, MAP
81208-50170A0

GSF50,VXFA55

KAZAKHSTAN SPEC&"VERSION L"*(L),WHITE,TRIM0#

 1
81208-50160C0

GSF50

KAZAKHSTAN SPEC,BLACK,TRIM2#

 1
81208-50160C0

GSF50

RUSSIA SPEC,BLACK,TRIM2#

 1
81208-50170A0

GSF50,VXFA55

RUSSIA SPEC&"EXECUTIVE"*(E),WHITE,TRIM0#

 1
81208-50170C0

GSF50,VXFA55

RUSSIA SPEC&"VERSION L"*(L),BLACK,TRIM1#,2#,3#,4#,5#

 1
81208-50170C0

GSF50,VXFA55

RUSSIA SPEC&"EXECUTIVE"*(E),BLACK,TRIM1#,2#,3#,4#,5#

 1
81208-50170A0

GSF50,VXFA55

RUSSIA SPEC&"VERSION L"*(L),WHITE,TRIM0#

 1
81208-50170C0

GSF50,VXFA55

KAZAKHSTAN SPEC&"EXECUTIVE"*(E),BLACK,TRIM1#,2#,3#,4#,5#

 1
81208-50330A0

GSF50,VXFA55

"VERSION L"*(L),WHITE,TRIM0#

 1
81208-50170C0

GSF50,VXFA55

KAZAKHSTAN SPEC&"VERSION L"*(L),BLACK,TRIM1#,2#,3#,4#,5#

 1
81208-50170A0

GSF50,VXFA55

KAZAKHSTAN SPEC&"EXECUTIVE"*(E),WHITE,TRIM0#

 1
81208-50330A0

GSF50,VXFA55

"EXECUTIVE"*(E),WHITE,TRIM0#

 1
81208-50320C0

GSF50

BLACK,TRIM2#

 1
81208-50330C0

GSF50,VXFA55

"EXECUTIVE"*(E),BLACK,TRIM1#,2#,3#,4#,5#

 1
81208-50330C0

GSF50,VXFA55

"VERSION L"*(L),BLACK,TRIM1#,2#,3#,4#,5#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-11010

GSF50,GVF5#,VXFA55

 1
81330A - LAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81330-11010

GSF50,GVF5#,VXFA55

 1
81340 - LAMP ASSY, VANITY
81340-50260

GSF50,GVF5#,VXFA55

 2
81360T - LAMP ASSY, SPOT
81360-50191A1

GSF50

WHITE,TRIM0#

 1
81360-50191C0

GSF50

BLACK,TRIM1#,2#,3#,4#,5#

 1
Linked diagrams
6402
