GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series
Production
Oct 2017
-
Oct 2020
Engine
8GRFKS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1710-2010)GSF50 ; (2011- )GSF50

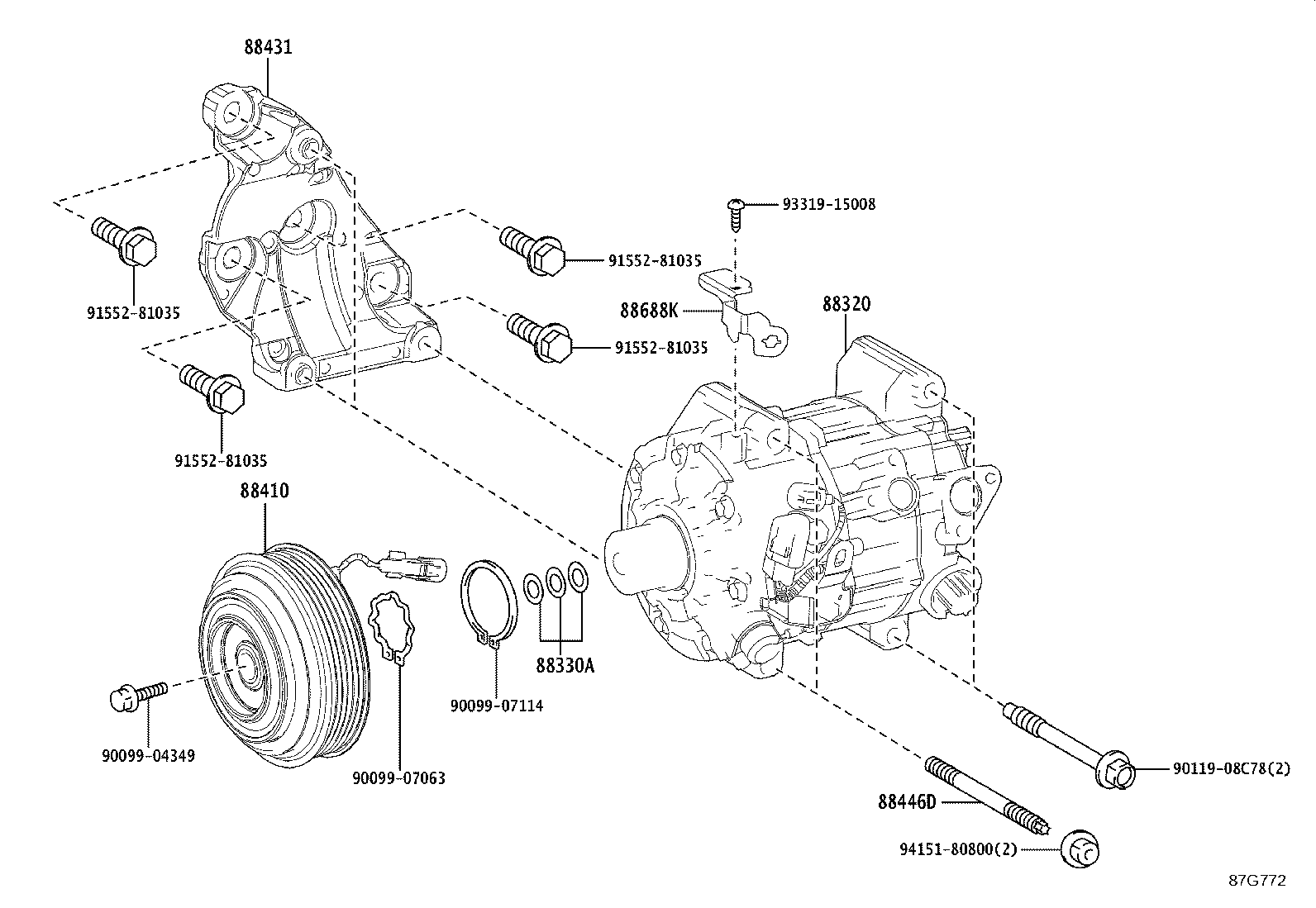

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-50130 |
GSF50 |
1 | ||
| 88320-50120 |
GSF50 ARMENIA SPEC |
1 | ||
| 88320-50120 |
GSF50 GEORGIA SPEC |
1 | ||
| 88320-50120 |
GSF50 RUSSIA SPEC |
1 | ||
| 88320-50120 |
GSF50 KAZAKHSTAN SPEC |
1 | ||
| 88320-50120 |
GSF50 AZERBAIJAN SPEC |
1 | ||
| 88320-50120 |
GSF50 UKRAINE SPEC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GSF50 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-0N010 |
GSF50 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-11010 |
GSF50,GVF50 |
1 | ||
| 88446D - BOLT, COOLER | ||||
| 88446-60050 |
GSF50 |
2 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33570 |
GSF50 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C78 | ||||
| 91552-81035 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
