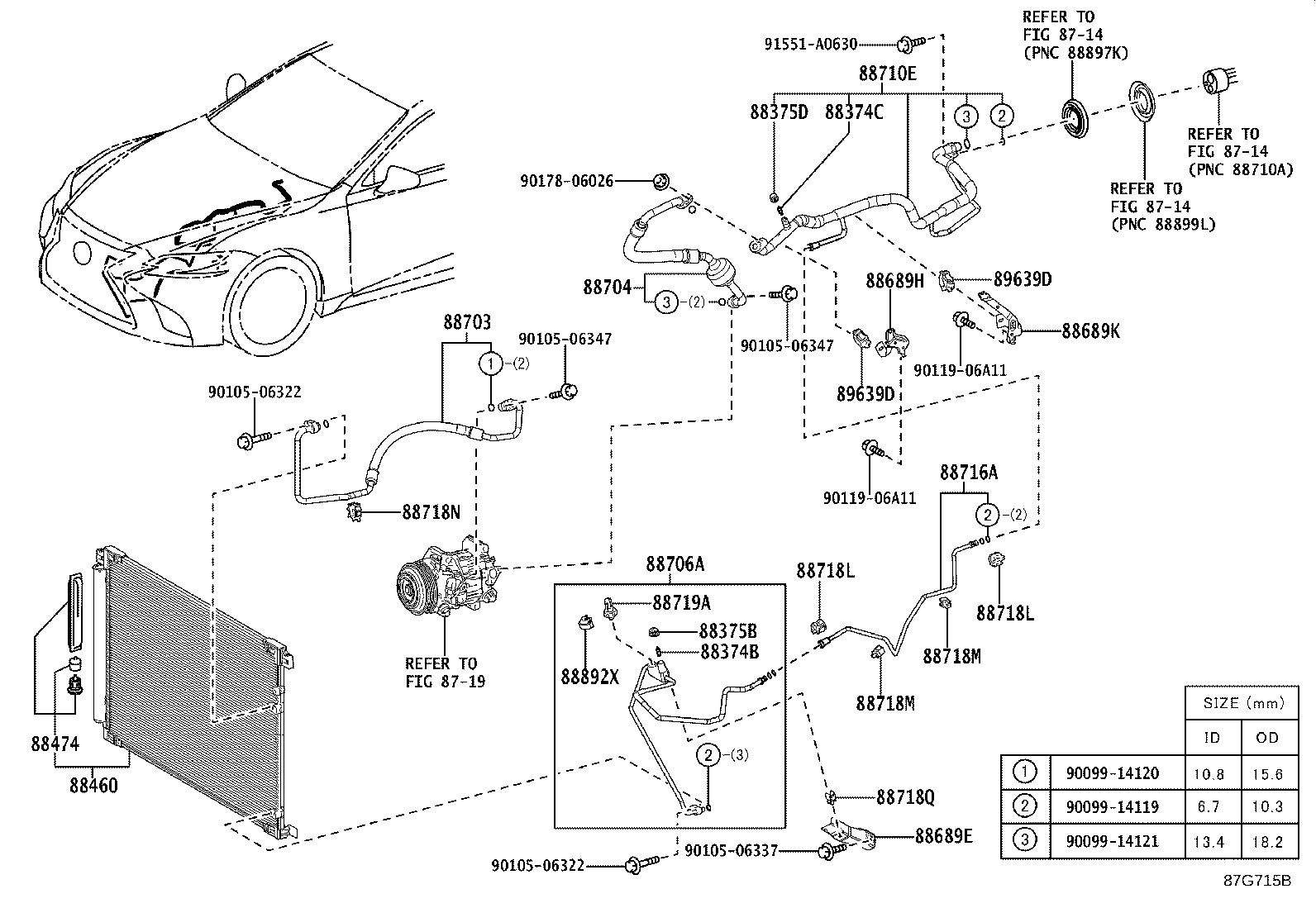

GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series
(1710-2010)GSF50 ; (2011- )GSF50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC |
1 | ||
| 88375-30280 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88375-30280 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC |
1 | ||
| 88375-30280 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC |
1 | ||
| 88375-30320 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88375-30280 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC |
1 | ||
| 88375-30280 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC |
1 | ||
| 88375-30290 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC |
1 | ||
| 88375-30290 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88375-30290 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88375-30310 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88375-30290 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC |
1 | ||
| 88375-30290 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-50020 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 884A0-50020 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 884A0-50020 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 884A0-50040 |
GSF50,VXFA55 |
1 | ||
| 884A0-50020 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 884A0-50020 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 884A0-50020 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12010 |
GSF50,VXFA55 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-50380 |
GSF50 |
1 | ||
| 88689H - BRACKET, COOLER, NO.4 | ||||
| 82715-50L00 |
GSF50 |
1 | ||
| 88689K - BRACKET, COOLER, NO.6 | ||||
| 82715-50L40 |
GSF50 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-50100 |
GSF50 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-50080 |
GSF50 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-50080 |
GSF50 RUSSIA SPEC |
1 | ||
| 88706-50080 |
GSF50 ARMENIA SPEC |
1 | ||
| 88706-50080 |
GSF50 UKRAINE SPEC |
1 | ||
| 88706-50080 |
GSF50 AZERBAIJAN SPEC |
1 | ||
| 88706-50080 |
GSF50 KAZAKHSTAN SPEC |
1 | ||
| 88706-50090 |
GSF50 |
1 | ||
| 88706-50080 |
GSF50 GEORGIA SPEC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50C20 |
GSF50 RUSSIA SPEC |
1 | ||
| 88710-50C20 |
GSF50 ARMENIA SPEC |
1 | ||
| 88710-50C20 |
GSF50 KAZAKHSTAN SPEC |
1 | ||
| 88710-50C20 |
GSF50 GEORGIA SPEC |
1 | ||
| 88710-50C20 |
GSF50 AZERBAIJAN SPEC |
1 | ||
| 88710-50C20 |
GSF50 UKRAINE SPEC |
1 | ||
| 88710-50C10 |
GSF50 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50670 |
GSF50 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-2D150 |
GSF50,VXFA55 |
2 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-2D150 |
GSF50,VXFA55 |
2 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-50390 |
GSF50,VXFA55 |
2 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-50390 |
GSF50,VXFA55 |
2 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-47090 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88718Q - CLAMP, PIPING | ||||
| 88718-32220 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88892X - COVER, COOLER, NO.2 | ||||
| 88892-50120 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89639D - CLAMP, AIRCONDITIONER TUBE | ||||
| 89639-58020 |
GSF50,GVF5# |
2 | ||
| 89639D - CLAMP, AIRCONDITIONER TUBE | ||||
| 89639-58020 |
GSF50,GVF5# |
2 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06322 | ||||
| 90105-06337 | ||||
| 90105-06347 | ||||
| 90119-06A11 | ||||
| 90178-06026 | ||||
| 91551-A0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
