GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series

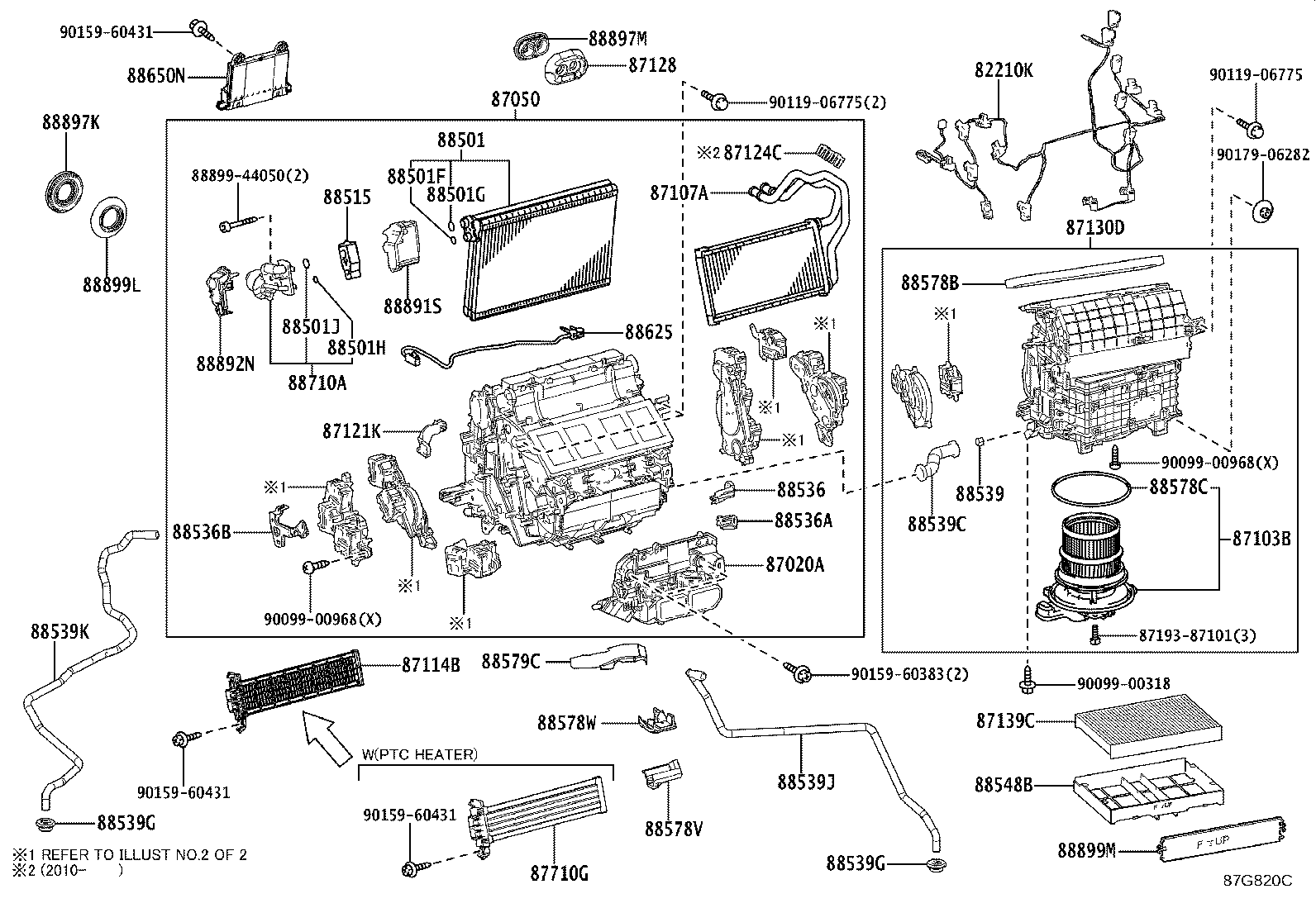

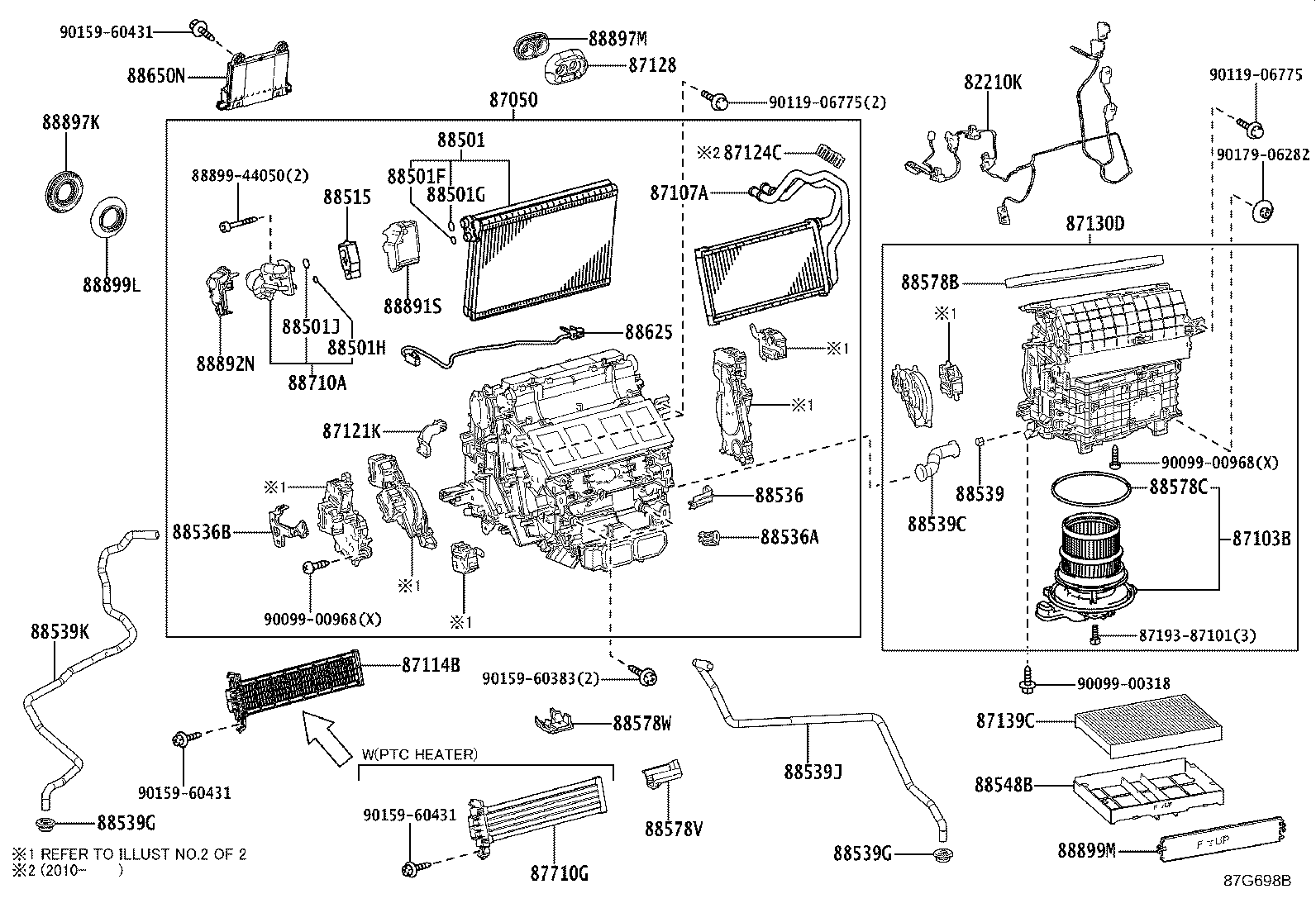

ILLUST NO. 1 OF 2(1710-2010)GSF50,VXFA55 ; (2011- )GSF50,VXFA55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50220 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50 "F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50210 |
GSF50,VXFA55 |
1 | ||
| 82212-50220 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50450 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50450 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50600 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 87050-50400 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50580 |
GSF50,VXFA55 |
1 | ||
| 87050-50450 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50600 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87050-50600 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11030 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50150 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50110 |
GSF50,GVF5#,VXFA55 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GSF50,GVF5#,VXFA55 COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50340 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 88501-50340 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 88501-50410 |
GSF50,VXFA55 |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GSF50,GVF5#,VXFA55 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF5#,VXFA55 ID=13.4,OD=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
GSF50,GVF5#,VXFA55 ID=6.7,OD=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF5#,VXFA55 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50250 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 88515-50250 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88515-50260 |
GSF50,VXFA55 |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11030 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11050 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11020 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50210 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-74010 |
GSF50,VXFA55 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50S30 |
GSF50,VXFA55 |
1 | ||
| 88650-50S90 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S80 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 88650-50S40 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88650-50S31 |
GSF50,VXFA55 |
1 | ||
| 88650-50S81 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 88650-50S90 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50T40 |
GSF50,VXFA55 |
1 | ||
| 88650-50S91 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S91 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S32 |
GSF50,VXFA55 |
1 | ||
| 88650-50S42 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88650-50S92 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S92 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S41 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50D20 |
GSF50,VXFA55 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50120 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GSF50,GVF5#,VXFA55 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06775 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

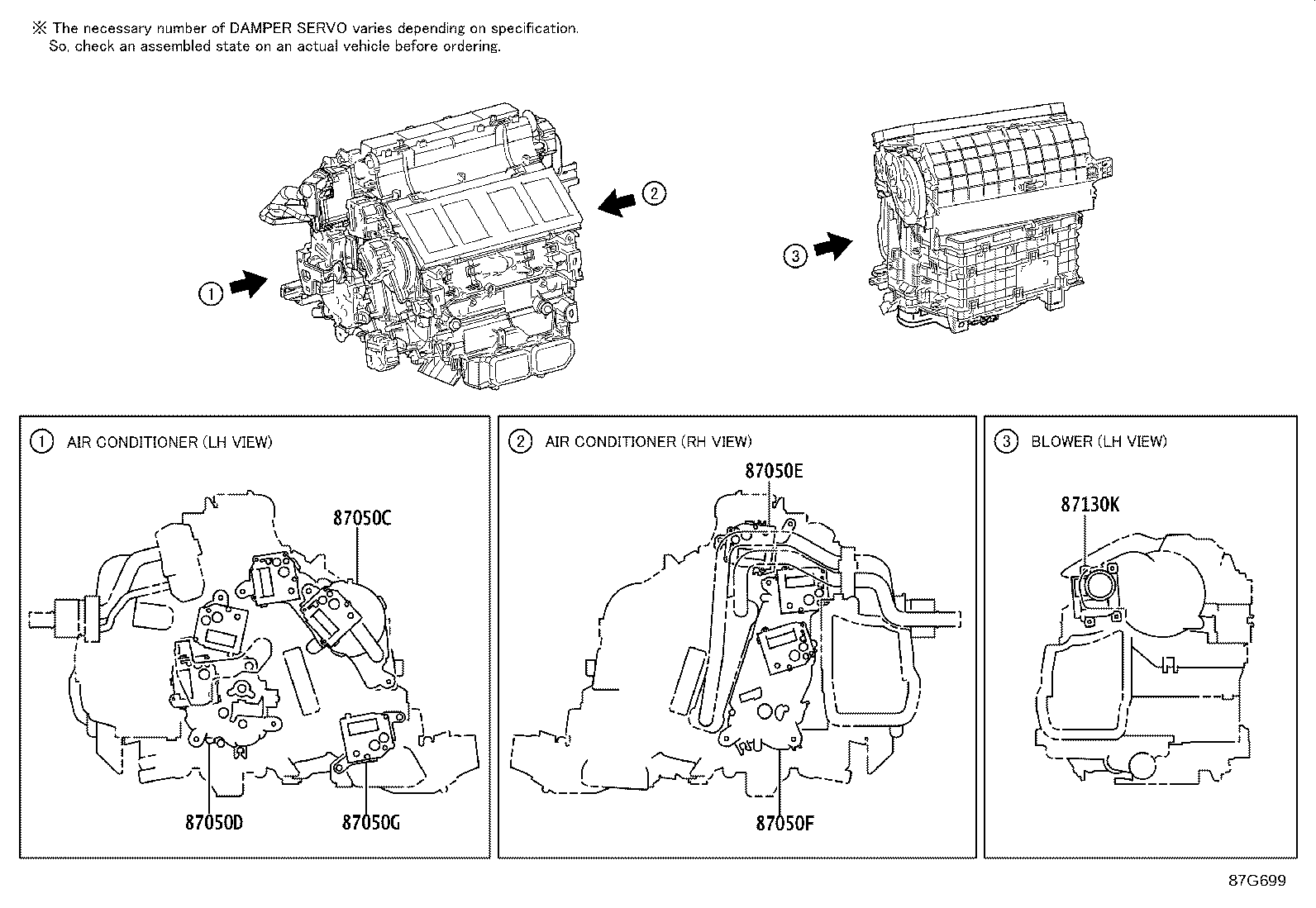

ILLUST NO. 2 OF 2(1710-2010)GSF50,VXFA55 ; (2011- )GSF50,VXFA55
SERVO MOTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-11010 |
GSF50,VXFA55 |
1 | ||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50720 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50700 |
GSF50,VXFA55 |
1 | ||
| 87106-50720 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-50670 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50610 |
GSF50,VXFA55 |
1 | ||
| 87106-50670 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50760 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
ILLUST NO. 1 OF 2(1710-2010)GSF50,VXFA55 ; (2011- )GSF50,VXFA55
W(REAR SEAT HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50220 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50 "F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50210 |
GSF50,VXFA55 |
1 | ||
| 82212-50220 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 82212-50220 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87020A - DAMPER ASSY, HEATER AIR | ||||
| 87020-50040 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87020-50040 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50450 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50450 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50600 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 87050-50400 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50400 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 87050-50450 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50580 |
GSF50,VXFA55 |
1 | ||
| 87050-50450 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050-50450 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87050-50600 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87050-50600 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11030 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50150 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50110 |
GSF50,GVF5#,VXFA55 DEODORANT FILTER |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GSF50,GVF5#,VXFA55 COLD AREA SPEC |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-50340 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 88501-50340 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 88501-50410 |
GSF50,VXFA55 |
1 | ||
| 88501-50340 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 88501-50340 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
GSF50,GVF5#,VXFA55 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF5#,VXFA55 ID=13.4,OD=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
GSF50,GVF5#,VXFA55 ID=6.7,OD=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
GSF50,GVF5#,VXFA55 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50250 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 88515-50250 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88515-50260 |
GSF50,VXFA55 |
1 | ||
| 88515-50250 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||
| 88515-50250 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11030 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11050 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11020 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50210 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88579C - PACKING, COOLING UNIT, NO.5 | ||||
| 88578-50360 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50 "F SPORT"*(F) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 88578-50360 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-74010 |
GSF50,VXFA55 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-50S30 |
GSF50,VXFA55 |
1 | ||
| 88650-50S90 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S80 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 88650-50S40 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88650-50S31 |
GSF50,VXFA55 |
1 | ||
| 88650-50S81 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 88650-50S90 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50T40 |
GSF50,VXFA55 |
1 | ||
| 88650-50S91 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S91 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S32 |
GSF50,VXFA55 |
1 | ||
| 88650-50S42 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88650-50S92 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 88650-50S92 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L) |
1 | ||
| 88650-50S41 |
GSF50,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50D20 |
GSF50,VXFA55 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50120 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
GSF50,GVF5#,VXFA55 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06775 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
ILLUST NO. 2 OF 2(1710-2010)GSF50,VXFA55 ; (2011- )GSF50,VXFA55
SERVO MOTOR:W(REAR SEAT HEATER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11060 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-11010 |
GSF50,VXFA55 |
1 | ||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50710 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-11090 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50720 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50700 |
GSF50,VXFA55 |
1 | ||
| 87106-50720 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87106-50720 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-50670 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50610 |
GSF50,VXFA55 |
1 | ||
| 87106-50670 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50670 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87050H - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.6 | ||||
| 87106-50730 |
GSF50 GEORGIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 ARMENIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 UKRAINE SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50 "F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 ARMENIA SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50 AZERBAIJAN SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 AZERBAIJAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 AZERBAIJAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 ARMENIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 UKRAINE SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50 UKRAINE SPEC&"F SPORT"*(F) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 "EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 GEORGIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 GEORGIA SPEC&"VERSION L"*(L) |
1 | ||
| 87106-50730 |
GSF50,VXFA55 "VERSION L"*(L) |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50760 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
