GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710-2010)LHD

Click highlighted areas on diagram

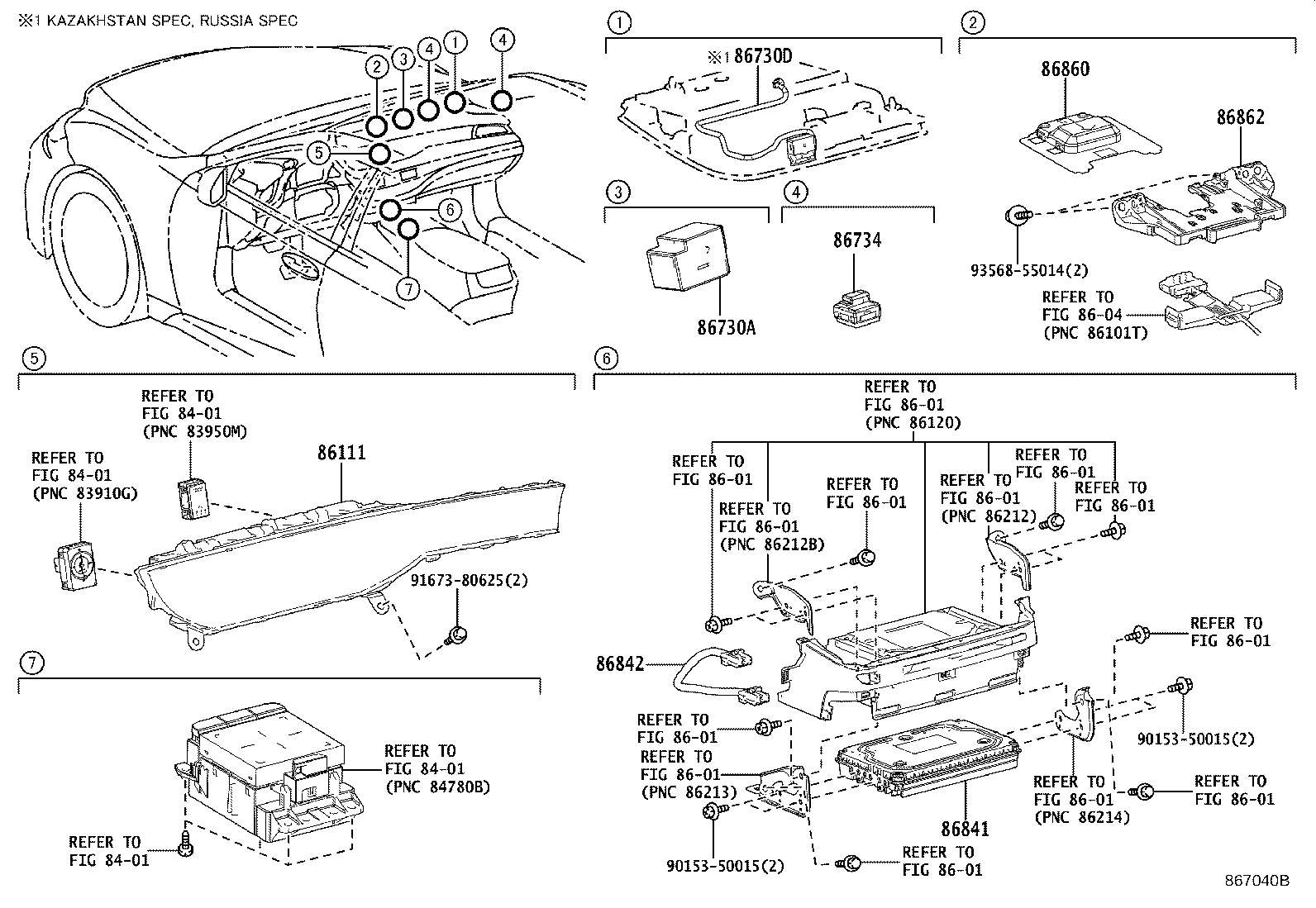

diagram 8401 8401 8401 8401 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8601 8604 86111 86730A 86730D 86734 86841 86842 86860 86862 9015350015 9015350015 9167380625 9356855014
Part # Description Qty Price
86111 - MULTI-DISPLAY
86111-50300

GSF50,GVF5#,VXFA55..LHD

DENSO

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-11010

GSF50,GVF5#,VXFA55

 1
86730D - MICROPHONE ASSY, TELEPHONE, NO.2
86730-50110

GSF50,VXFA55

RUSSIA SPEC

 1
86730-50110

GSF50,VXFA55

KAZAKHSTAN SPEC

 1
86734 - MICROPHONE, ACTIVE NOISE CONTROL
86734-11010

GSF50,GVF5#,VXFA55

 2
86841 - COMPUTER, NAVIGATION
86840-0W031

GSF50,GVF5#

 1
86840-0W032

GSF50,GVF5#,VXFA55

 1
86842 - WIRE, NAVIGATION, NO.1
86842-50J00

GSF50,GVF5#,VXFA55

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010

GSF50,GVF5#,VXFA55

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-50070

GSF50,GVF5#,VXFA55

 1
Common parts
90153-50015
91673-80625
93568-55014
Linked diagrams
8401
8601
8604
