GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

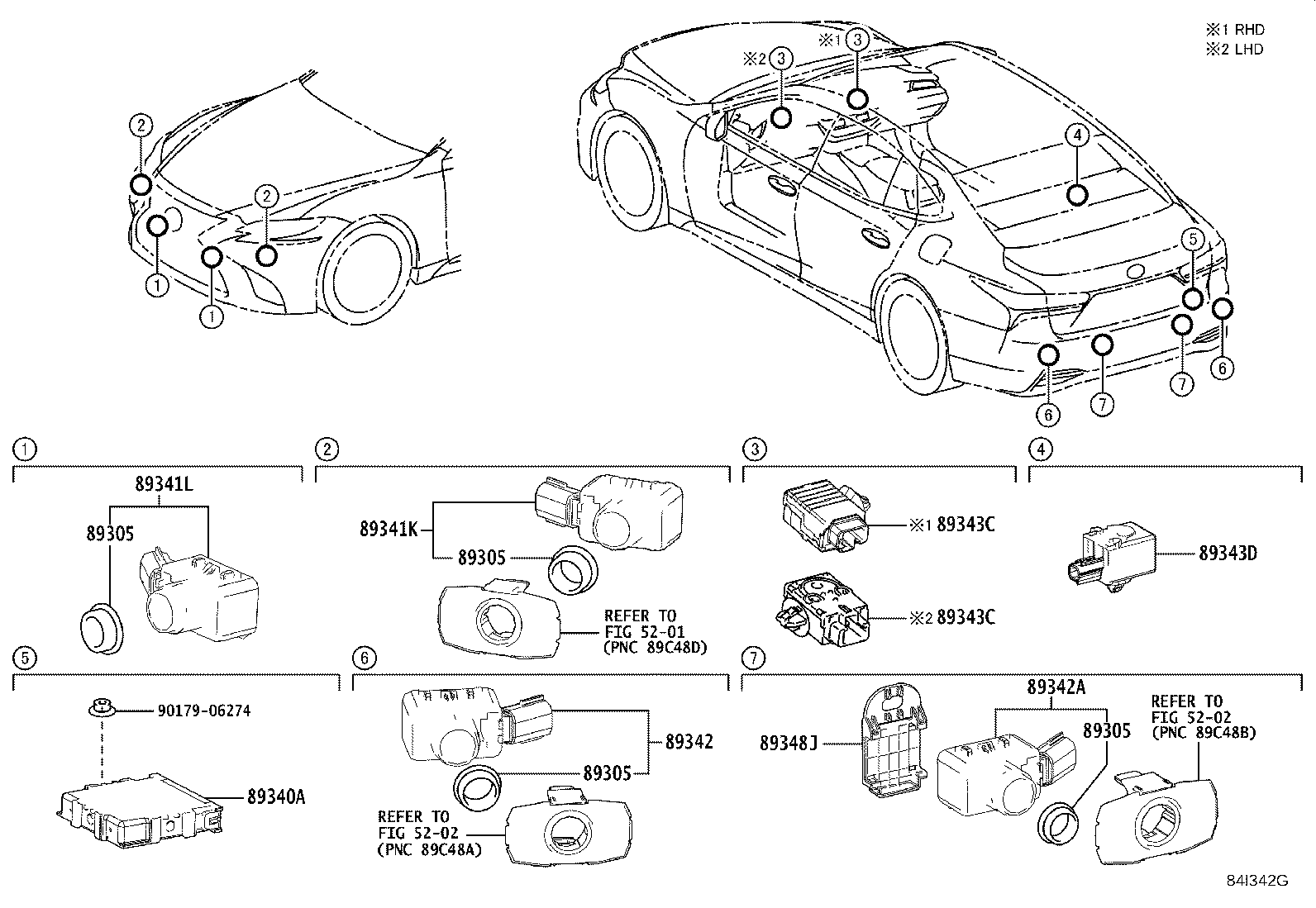

Click highlighted areas on diagram

W/O(ADVANCED PARK)

diagram 5201 5202 5202 89305 89305 89305 89305 89340A 89341K 89341L 89342 89342A 89343C 89343C 89343D 89348J 9017906274
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GSF50,GVF5#,VXFA55

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GSF50,GVF5#,VXFA55

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GSF50,GVF5#,VXFA55

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

GSF50,GVF5#,VXFA55

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-50110

GSF50,GVF5#,VXFA55

 1
89340-50111

GSF50,GVF5#,VXFA55

 1
89340-50090

GSF50,GVF5#,VXFA55

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-33220A2

GSF50,GVF5#,VXFA55

WHITE NOVA GF.,083

 2
89341-33220E3

GSF50,GVF5#,VXFA55

AMBER CS.,4X2

 2
89341-33220A3

GSF50,GVF5#,VXFA55

SONIC QUARTZ,085

 2
89341-33220J1

GSF50,GVF5#,VXFA55

HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220D1

GSF50,GVF5#,VXFA55

RED MC.CS.,3R1

 2
89341-33220C2

GSF50,GVF5#,VXFA55

BLACK,212

 2
89341-33220B4

GSF50,GVF5#,VXFA55

SONIC TITANIUM,1J7

 2
89341-33220D3

GSF50,GVF5#,VXFA55

SONIC AGATE,3U3

 2
89341-33220J2

GSF50,GVF5#,VXFA55

DEEP BLUE MC.,8X5

 2
89341-33220B5

GSF50,GVF5#,VXFA55

MANGANESE LUSTER,1K2

 2
89341-33220C3

GSF50,GVF5#,VXFA55

GRAPHITE BLACK GF.,223

 2
89341-33220B3

GSF50,GVF5#,VXFA55

SONIC SILVER,1J2

 2
89341-33220E2

GSF50,GVF5#,VXFA55

SLEEK ECRU ME.,4U7

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-33220C4

GSF50,GVF5#,VXFA55

MAT BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-33220E3

GSF50,GVF5#,VXFA55

AMBER CS.,4X2

 2
89341-33220B3

GSF50,GVF5#,VXFA55

SONIC SILVER,1J2

 2
89341-33220A2

GSF50,GVF5#,VXFA55

WHITE NOVA GF.,083

 2
89341-33220B5

GSF50,GVF5#,VXFA55

MANGANESE LUSTER,1K2

 2
89341-33220A3

GSF50,GVF5#,VXFA55

SONIC QUARTZ,085

 2
89341-33220J1

GSF50,GVF5#,VXFA55

HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220C3

GSF50,GVF5#,VXFA55

GRAPHITE BLACK GF.,223

 2
89341-33220C2

GSF50,GVF5#,VXFA55

BLACK,212

 2
89341-33220B4

GSF50,GVF5#,VXFA55

SONIC TITANIUM,1J7

 2
89341-33220D1

GSF50,GVF5#,VXFA55

RED MC.CS.,3R1

 2
89341-33220J2

GSF50,GVF5#,VXFA55

DEEP BLUE MC.,8X5

 2
89341-33220E2

GSF50,GVF5#,VXFA55

SLEEK ECRU ME.,4U7

 2
89341-33220D3

GSF50,GVF5#,VXFA55

SONIC AGATE,3U3

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-33220A2

GSF50,GVF5#,VXFA55

WHITE NOVA GF.,083

 2
89341-33220E3

GSF50,GVF5#,VXFA55

AMBER CS.,4X2

 2
89341-33220J1

GSF50,GVF5#,VXFA55

HEAT BLUE CONTRAST LAYERI,8X1

 2
89341-33220A3

GSF50,GVF5#,VXFA55

SONIC QUARTZ,085

 2
89341-33220D1

GSF50,GVF5#,VXFA55

RED MC.CS.,3R1

 2
89341-33220B3

GSF50,GVF5#,VXFA55

SONIC SILVER,1J2

 2
89341-33220J2

GSF50,GVF5#,VXFA55

DEEP BLUE MC.,8X5

 2
89341-33220D3

GSF50,GVF5#,VXFA55

SONIC AGATE,3U3

 2
89341-33220C2

GSF50,GVF5#,VXFA55

BLACK,212

 2
89341-33220C3

GSF50,GVF5#,VXFA55

GRAPHITE BLACK GF.,223

 2
89341-33220B4

GSF50,GVF5#,VXFA55

SONIC TITANIUM,1J7

 2
89341-33220E2

GSF50,GVF5#,VXFA55

SLEEK ECRU ME.,4U7

 2
89341-33220B5

GSF50,GVF5#,VXFA55

MANGANESE LUSTER,1K2

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

GSF50,GVF5#,VXFA55

 1
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

GSF50,GVF5#,VXFA55

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89747-30040

GSF50,GVF5#,VXFA55

 1
89348J - CLIP, ULTRASONIC SENSOR
89348-58130

GSF50,GVF5#,VXFA55

 2
Common parts
90179-06274
Linked diagrams
5201
5202
