GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

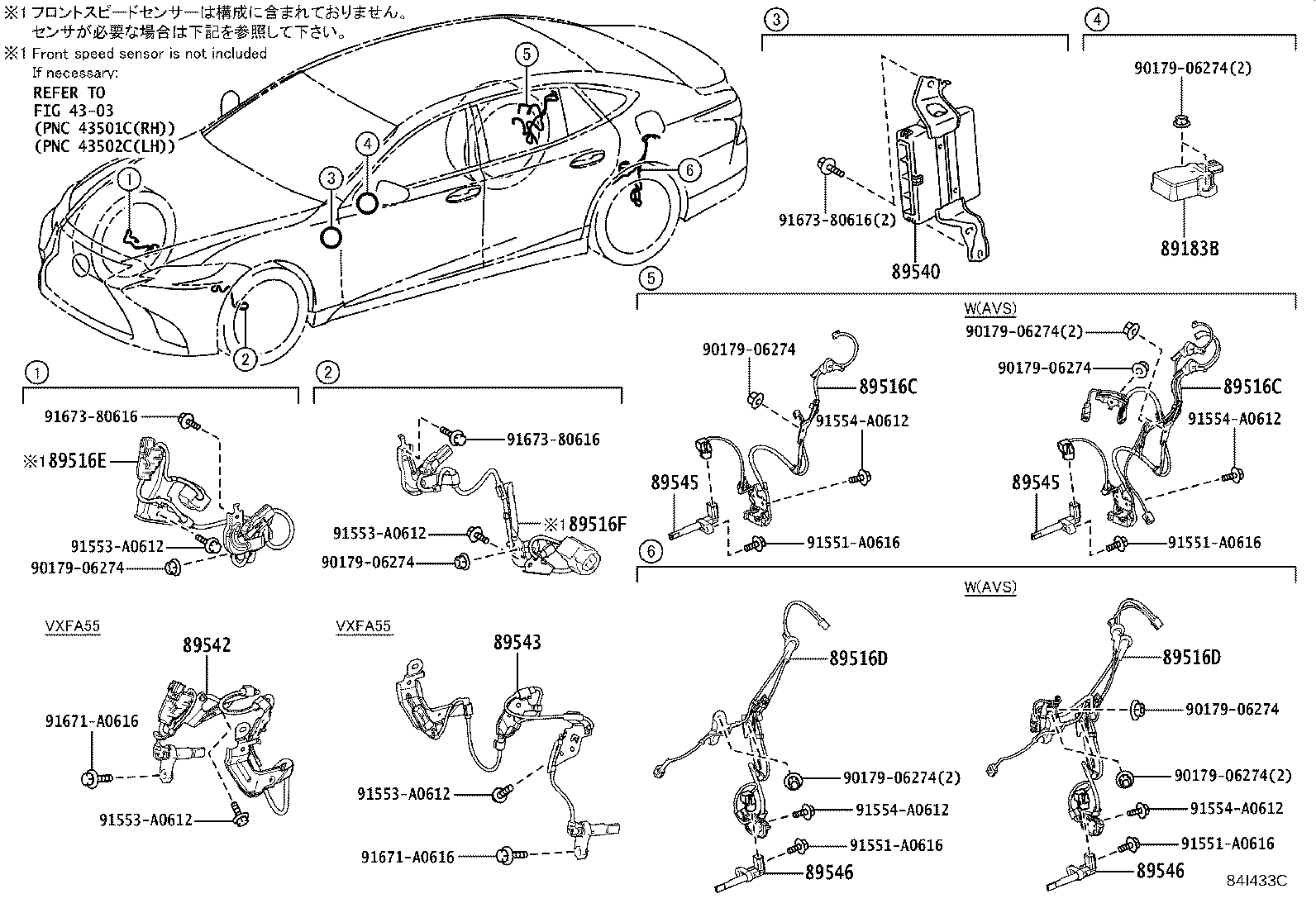

ILLUST NO. 1 OF 2(1710-2011)GSF50,VXFA55

Click highlighted areas on diagram

diagram 4303 89183B 89516C 89516C 89516D 89516D 89516E 89516F 89540 89542 89543 89545 89545 89546 89546 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 9017906274 91551A0616 91551A0616 91551A0616 91551A0616 91553A0612 91553A0612 91553A0612 91553A0612 91554A0612 91554A0612 91554A0612 91554A0612 91671A0616 91671A0616 9167380616 9167380616 9167380616
Part # Description Qty Price
89183B - SENSOR, YAWRATE
89183-50040

GSF50,GVF5#,VXFA55

 1
89183-50050

GSF50,GVF5#,VXFA55

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-50200

GSF50

 1
89516-50220

GSF50

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

 1
89516-50220

GSF50

"VERSION L"*(L)

 1
89516-50220

GSF50

"EXECUTIVE"*(E)

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-50200

GSF50

 1
89516-50220

GSF50

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

 1
89516-50220

GSF50

"VERSION L"*(L)

 1
89516-50220

GSF50

"EXECUTIVE"*(E)

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-50230

GSF50

"EXECUTIVE"*(E)

 1
89516-50230

GSF50

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

 1
89516-50210

GSF50

 1
89516-50230

GSF50

"VERSION L"*(L)

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-50230

GSF50

"EXECUTIVE"*(E)

 1
89516-50230

GSF50

"F SPORT"*(F)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT

 1
89516-50210

GSF50

 1
89516-50230

GSF50

"VERSION L"*(L)

 1
89516E - WIRE, SKID CONTROL SENSOR, FRONT RH
89516-11010

GSF50,GVF50

 1
89516F - WIRE, SKID CONTROL SENSOR, FRONT LH
89516-11020

GSF50,GVF50

 1
89545 - SENSOR, SPEED, REAR RH
89545-30090

GSF50,GVF5#,VXFA55

 1
89545 - SENSOR, SPEED, REAR RH
89545-30090

GSF50,GVF5#,VXFA55

 1
89546 - SENSOR, SPEED, REAR LH
89546-30090

GSF50,GVF5#,VXFA55

 1
89546 - SENSOR, SPEED, REAR LH
89546-30090

GSF50,GVF5#,VXFA55

 1
Common parts
90179-06274
91551-A0616
91553-A0612
91554-A0612
91671-A0616
91673-80616
Linked diagrams
4303
