GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )GSF50

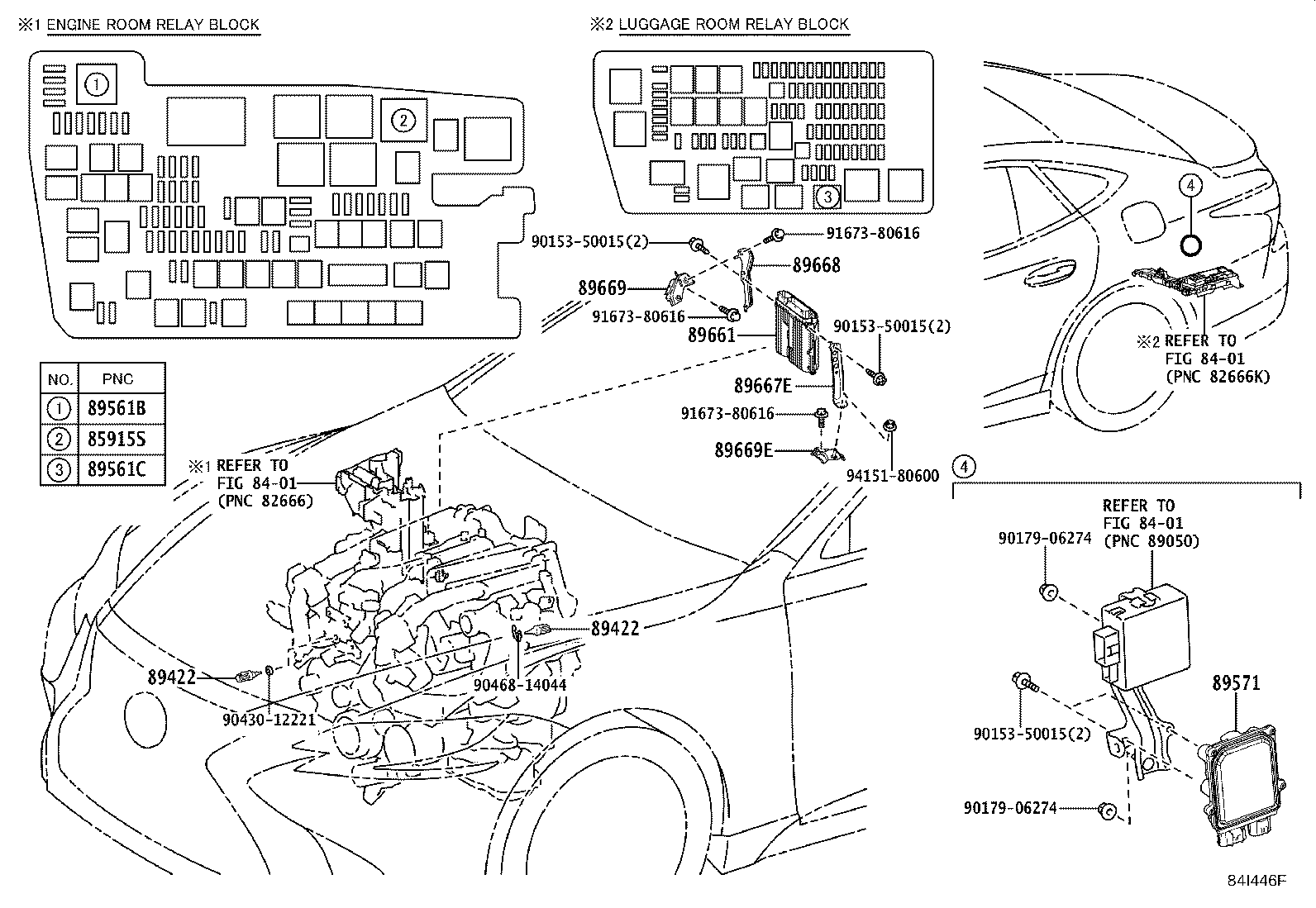

Click highlighted areas on diagram

diagram 8401 8401 8401 85915S 89422 89422 89561B 89561C 89571 89661 89667E 89668 89669 89669E 9015350015 9015350015 9015350015 9017906274 9017906274 9043012221 9046814044 9167380616 9167380616 9167380616 9415180600
Part # Description Qty Price
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02025

GSF50,VXFA55

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-47010

GSF50,GVF5#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-47010

GSF50,GVF5#

 1
89561B - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
90987-02027

GSF50,GVF5#

 1
89561C - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
90987-02027

GSF50,GVF5#,VXFA55

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58010

GSF50,GVF5#,VXFA55

 1
89571-58020

GSF50,GVF5#,VXFA55

 1
89661 - COMPUTER, ENGINE CONTROL
89661-50Q80

GSF50

DENSO

 1
89661-50U60

GSF50

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-11010

GSF50

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-11010

GSF50

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-11010

GSF50,VXFA55

 1
89669E - BRACKET, ENGINE CONTROL COMPUTER, NO.4
89669-11040

GSF50,VXFA55

 1
Common parts
90153-50015
90179-06274
90430-12221
90468-14044
91673-80616
94151-80600
Linked diagrams
8401
