GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series

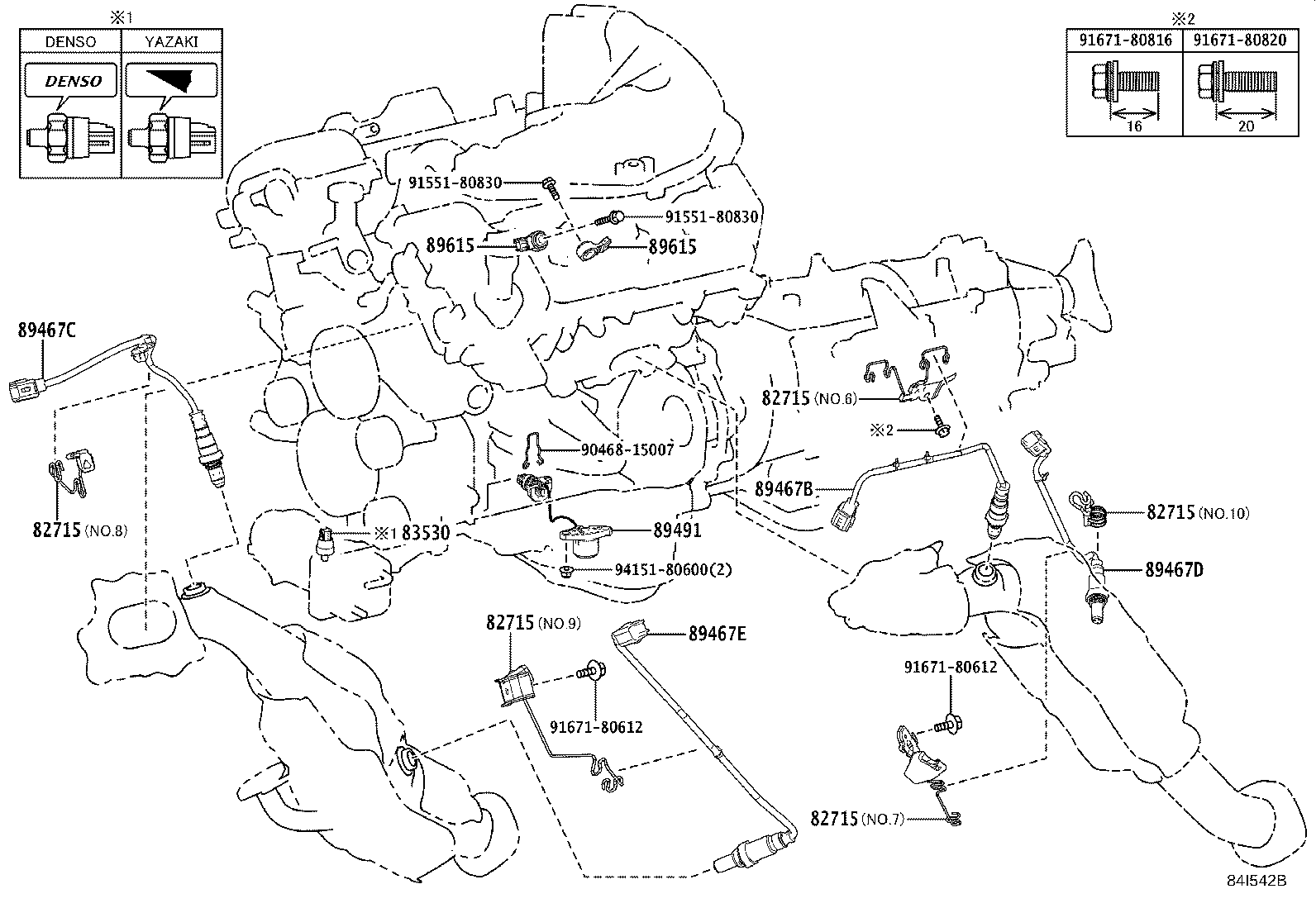

ILLUST NO. 1 OF11(1710- )GSF50
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GSF50,GVF5#,VXFA55 DENSO |
1 | ||
| 83530-60020 |
GSF50,GVF5#,VXFA55 YAZAKI |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-11010 |
GSF50,GVF5# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-11020 |
GSF50,GVF5# |
1 | ||
| 89467D - SENSOR, AIR FUEL RATIO, NO.3 | ||||
| 89467-11030 |
GSF50,GVF50 |
1 | ||
| 89467E - SENSOR, AIR FUEL RATIO, NO.4 | ||||
| 89467-50090 |
GSF50 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-30100 |
GSF50,GVF5# |
1 | ||
| 89491-30101 |
GSF50,GVF5# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSF50,GVF5#,VXFA55 |
2 | ||
| Common parts | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||

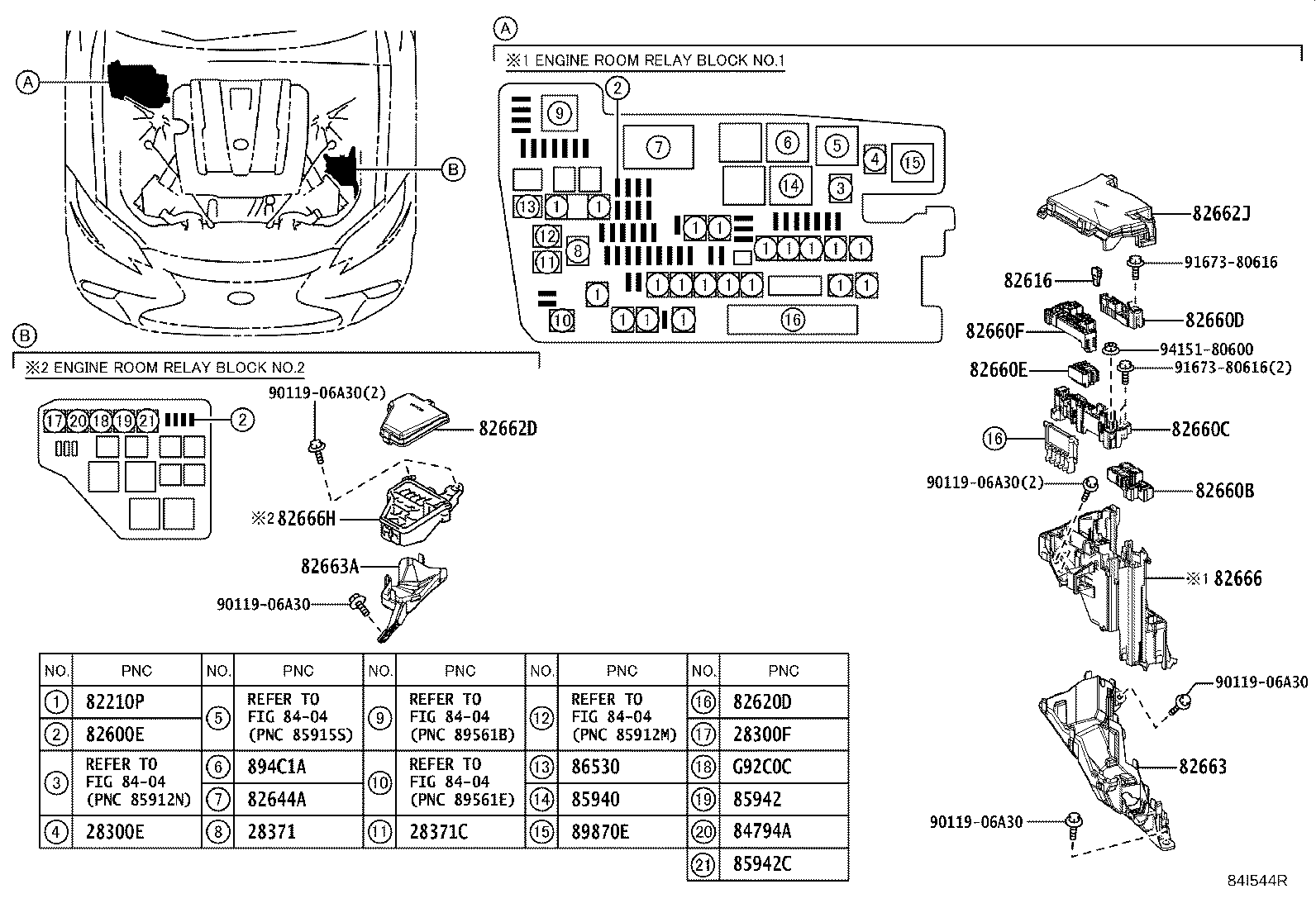

ILLUST NO. 3 OF11(1710- )GSF50,VXFA55
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
V35AFTS,8GRFKS..GSF50,VXFA55 |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
V35AFTS,8GRFKS..GSF50,VXFA55 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 82620-08050 |
GSF50,VXFA55 180A,TERMINAL:MALE |
1 | ||
| 90982-08300 |
GSF50,GVF5#,VXFA55 50A-30A-30A,FEMALE |
1 | ||
| 90982-08303 |
GSF50,GVF5#,VXFA55 50A-50A-50A,FEMALE |
1 | ||
| 90982-08299 |
GSF50,GVF5#,VXFA55 40A-40A-40A,FEMALE |
1 | ||
| 90982-08307 |
GSF50,GVF5#,VXFA55 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
GSF50,GVF5#,VXFA55 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
GSF50,GVF5#,VXFA55 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08305 |
GSF50,GVF5#,VXFA55 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08301 |
GSF50,GVF5#,VXFA55 50A-30A-40A,FEMALE |
1 | ||
| 90982-08302 |
GSF50,GVF5#,VXFA55 50A-30A-50A,FEMALE |
1 | ||
| 90982-08304 |
GSF50,GVF5#,VXFA55 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08308 |
GSF50,GVF5#,VXFA55 40A-30A-30A,FEMALE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GSF50,GVF5#,VXFA55 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50170 |
GSF50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 82620-50170 |
GSF50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 82620-50170 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 82620-50170 |
GSF50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 82620-50170 |
GSF50 "EXECUTIVE"*(E)&COLD AREA SPEC |
1 | ||
| 82620-50170 |
GSF50 |
1 | ||
| 82620-50170 |
GSF50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 82620-50170 |
GSF50 "VERSION L"*(L)&COLD AREA SPEC |
1 | ||
| 82620-50170 |
GSF50 "VERSION L"*(L) |
1 | ||
| 82620-50170 |
GSF50 "EXECUTIVE"*(E) |
1 | ||
| 82620-50170 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
2 | ||
| 82620-50170 |
GSF50 |
2 | ||
| 82620-50170 |
GSF50 |
2 | ||
| 82644A - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.1 | ||||
| 82644-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-50050 |
GSF50,VXFA55 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-50060 |
GSF50,VXFA55 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-50070 |
GSF50,VXFA55 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-50080 |
GSF50,VXFA55 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-50090 |
GSF50,VXFA55 |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-50450 |
GSF50,VXFA55 |
1 | ||
| 82662J - COVER, RELAY BLOCK, UPPER, NO.5 | ||||
| 82662-50430 |
GSF50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-50200 |
GSF50,VXFA55 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-50220 |
GSF50,VXFA55 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-50770 |
GSF50,VXFA55 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-50870 |
GSF50,VXFA55 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 COLD AREA SPEC |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02025 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 894C1A - RELAY, PARKING CONTROL MOTOR, NO.1 | ||||
| 90987-02025 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89870E - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
GSF50,GVF5# |
1 | ||
| G92C0C - RELAY, BACK-UP BOOST CONVERTER | ||||
| 90987-02027 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 90119-06A30 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||

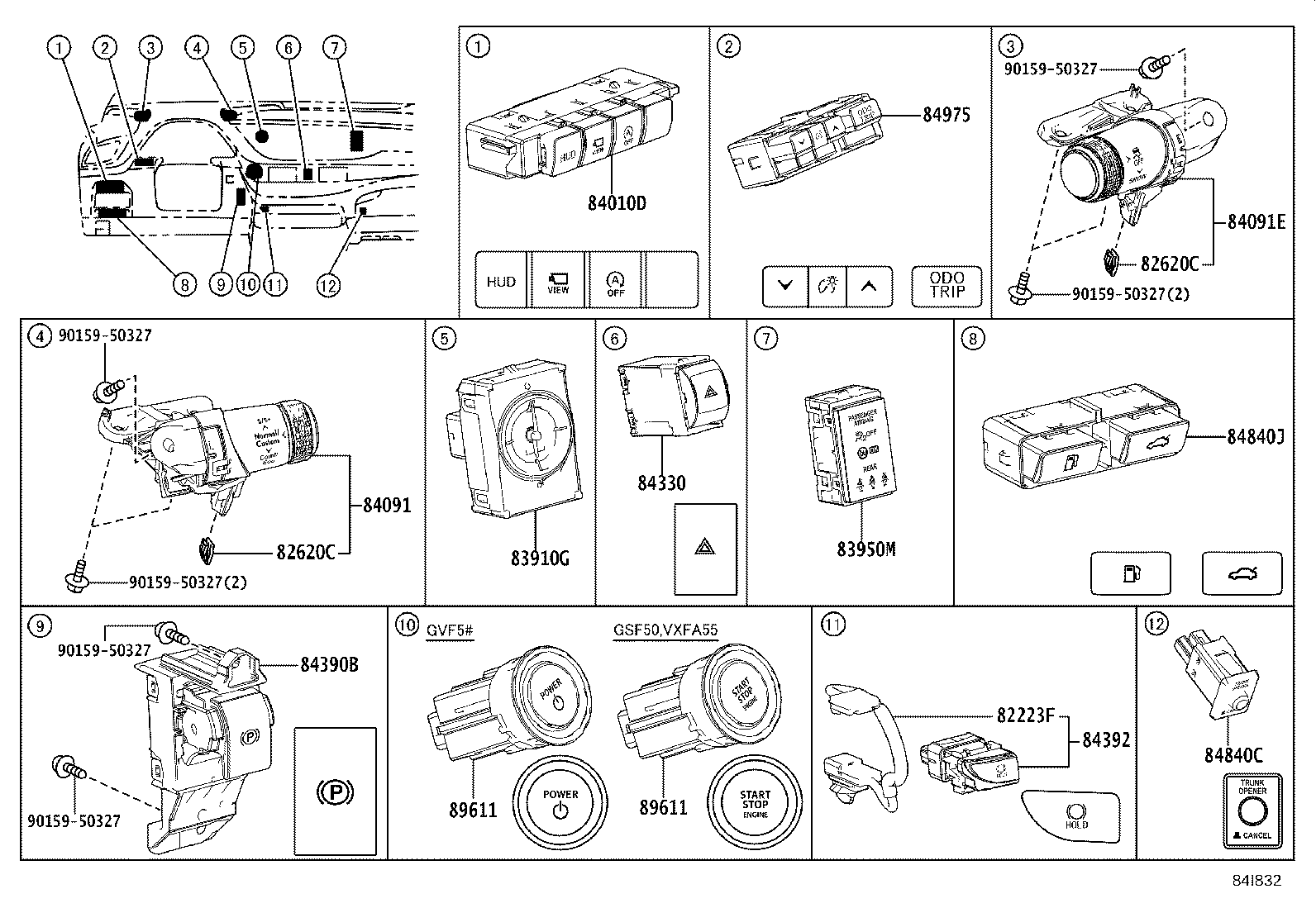

ILLUST NO. 6 OF11(1710- )
FRONT & REAR CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010H - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50520 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84010-50520 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84010-50520 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84010-50540 |
GSF50 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84010-50550 |
GSF50 |
1 | ||
| 84010-50520 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84010-50520 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84780B - CONTROLLER ASSY, REMOTE OPERATION | ||||
| 84780-50141 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84780-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-50160 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85530F - SOCKET ASSY, POWER OUTLET, REAR NO.2 | ||||
| 85530-42010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-50150 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-44050C1 |
GSF50,GVF5#,VXFA55 BLACK |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-50180 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85535-50130C1 |
GSF50,GVF5#,VXFA55 BLACK |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 7 OF11(1710- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-50100 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84250-50110 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50110 |
GSF50,VXFA55 RUSSIA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50110 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50110 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50110 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50110 |
GSF50,VXFA55 KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50170 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84250-50180 |
GSF50,VXFA55 RUSSIA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50180 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50180 |
GSF50,VXFA55 KAZAKHSTAN SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50180 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84250-50180 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&COLD AREA SPEC&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50 "F SPORT"*(F)&COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&DOOR TRIM DECORATIVE PANEL-ALMINUM |
1 | ||
| 84308-11020 |
GSF50 "F SPORT"*(F)&COLD AREA SPEC&SUSPENSION-AIR SUSPENSION & *AVS&DOOR TRIM DECORATIVE PANEL-ALMINUM |
1 | ||
| 84308-11020 |
GSF50 "F SPORT"*(F)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&DOOR TRIM DECORATIVE PANEL-ALMINUM |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&COLD AREA SPEC&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50,GVF5#,VXFA55..LHD COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&SUSPENSION-AIR SUSPENSION & *AVS&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS&DOOR TRIM DECORATIVE PANEL-ALMINUM |
1 | ||
| 84308-11020 |
GSF50,GVF5#,VXFA55..LHD PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE)) |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&COLD AREA SPEC&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&COLD AREA SPEC&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50 "EXECUTIVE"*(E)&COLD AREA SPEC&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84308-11020 |
GSF50,GVF5#,VXFA55..LHD COLD AREA SPEC |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+&CRUISE CONTROL-WITH(*ACC(ALL SPEED RANGE))&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84308-11020 |
GSF50 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11080 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84329-11030 |
GSF50,VXFA55 KAZAKHSTAN SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 KAZAKHSTAN SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11080 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84329-11030 |
GSF50,VXFA55 KAZAKHSTAN SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84329-11030 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 84329-11030 |
GSF50,VXFA55 KAZAKHSTAN SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84610G - SWITCH ASSY, TRANSMISSION SHIFT, NO.1 | ||||
| 84610-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84610H - SWITCH ASSY, TRANSMISSION SHIFT, NO.2 | ||||
| 84610-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89227-48070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 8924B-50030 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 8924B-50070 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 8924B-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||

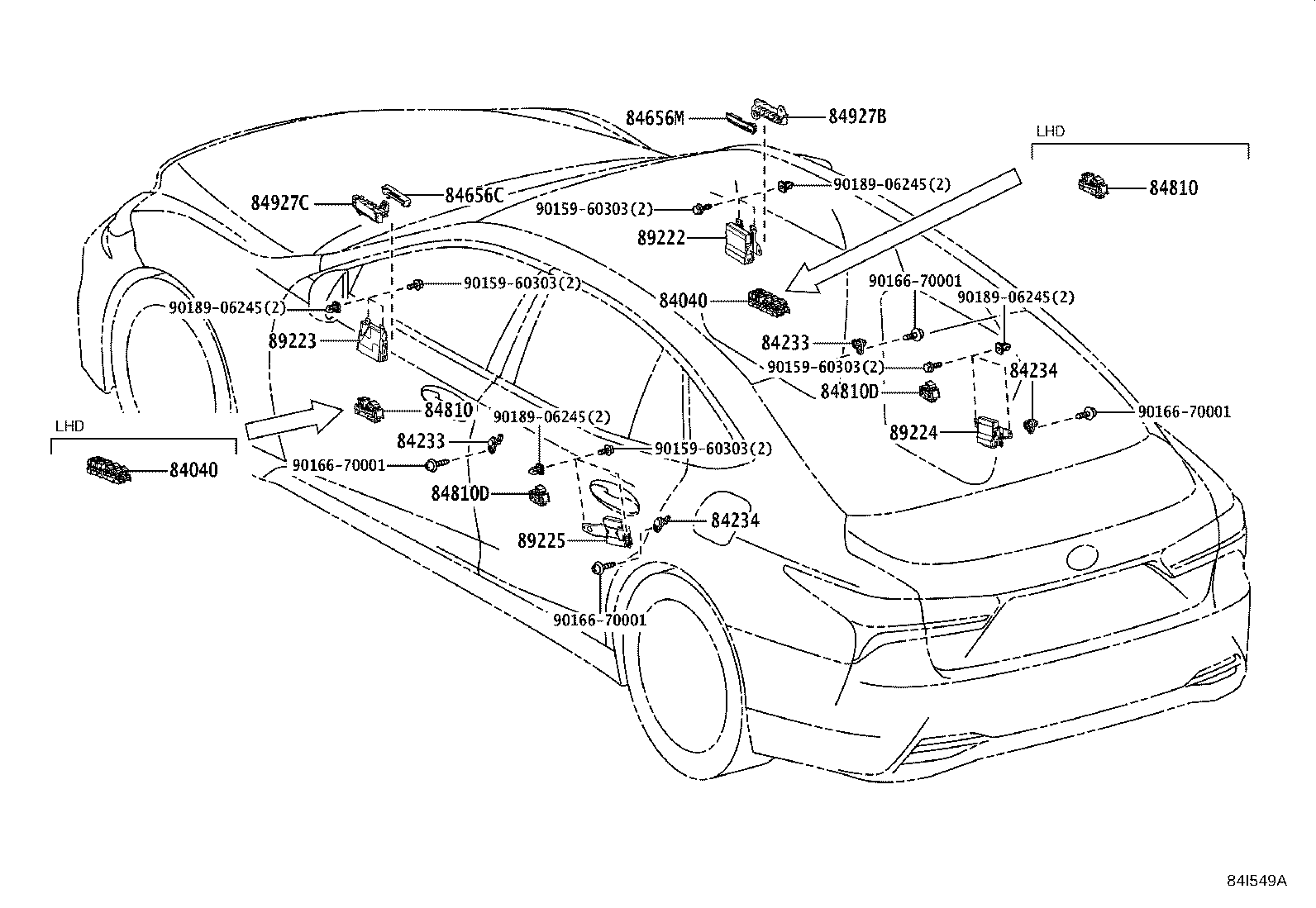

ILLUST NO. 9 OF11(1710- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-50230 |
GSF50,GVF5#,VXFA55..LHD SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84040-50230 |
GSF50,GVF5#,VXFA55..LHD SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84040-50210 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-50230 |
GSF50,GVF5#,VXFA55..LHD SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84040-50230 |
GSF50,GVF5#,VXFA55..LHD SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84040-50210 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-50190 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84656C - BEZEL, SWITCH NO.2 | ||||
| 84656-50070 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84656M - BEZEL, SWITCH | ||||
| 84656-50090 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50060 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50060 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 84927B - SWITCH, SEAT MEMORY, RH | ||||
| 84927-50220 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84927C - SWITCH, SEAT MEMORY, LH | ||||
| 84927-50200 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-50480 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89222-50500 |
GSF50,GVF5#,VXFA55 DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89223-50460 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89223-50480 |
GSF50,GVF5#,VXFA55 DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-50220 |
GSF50,GVF5#,VXFA55 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| 89224-50220 |
GSF50,GVF5#,VXFA55 SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| 89224-50200 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89225-50120 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89225-50140 |
GSF50,GVF5#,VXFA55 SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| 89225-50140 |
GSF50,GVF5#,VXFA55 SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW)&DOOR TRIM ORNAMENT-LEATHER |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90166-70001 | ||||
| 90189-06245 | ||||

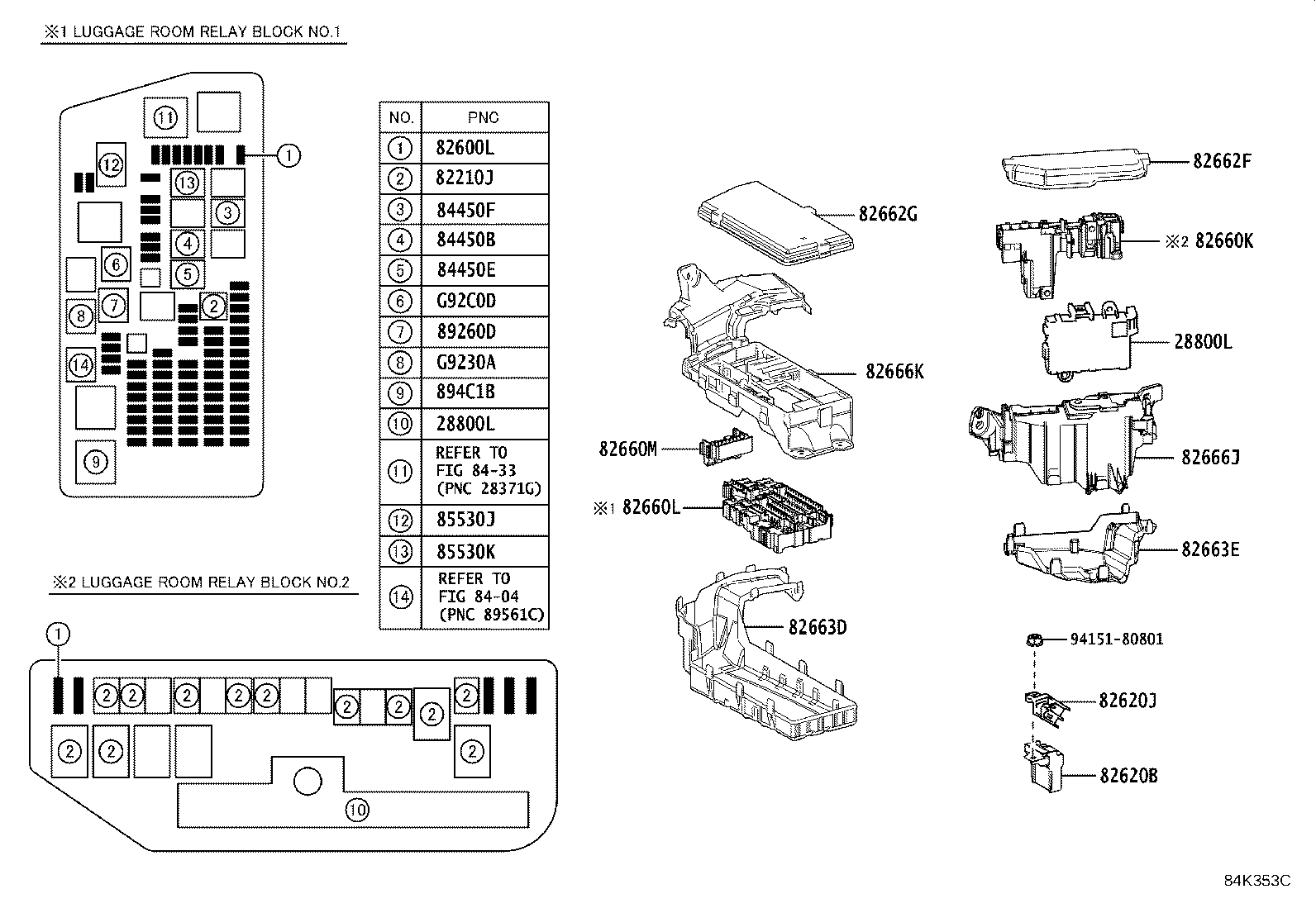

ILLUST NO.11 OF11(1710-1909)
LUGGAGE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800L - RELAY, SUB BATTERY | ||||
| 28861-38010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 28861-38010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08305 |
GSF50,GVF5#,VXFA55 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08246 |
GSF50,GVF5#,VXFA55 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08294 |
GSF50,GVF5#,VXFA55 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08299 |
GSF50,GVF5#,VXFA55 40A-40A-40A,FEMALE |
1 | ||
| 90982-08295 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08301 |
GSF50,GVF5#,VXFA55 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
GSF50,GVF5#,VXFA55 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GSF50,GVF5#,VXFA55 50A-50A-50A,FEMALE |
1 | ||
| 90982-08308 |
GSF50,GVF5#,VXFA55 40A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
GSF50,GVF5#,VXFA55 50A-30A-50A,FEMALE |
1 | ||
| 90982-08304 |
GSF50,GVF5#,VXFA55 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08274 |
GSF50,GVF5#,VXFA55 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
GSF50,GVF5#,VXFA55 50A-30A-30A,FEMALE |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GSF50,GVF5#,VXFA55 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50230 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82620J - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50260 |
GSF50,VXFA55 |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-11030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-11080 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-11090 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82662-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662G - COVER, RELAY BLOCK, UPPER, NO.9 | ||||
| 82662-50580 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662-50581 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-50270 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-50260 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-50B20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-50B30 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450B - RELAY, LUGGAGE ACCESSORY | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450E - RELAY, LUGGAGE IGNITION 1, NO.1 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450F - RELAY, LUGGAGE IGNITION 1, NO.2 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89260D - RELAY, ENGINE STOP & START SYSTEM DOME CUT | ||||
| 90987-02027 |
GSF50,VXFA55 |
1 | ||
| 894C1B - RELAY, PARKING CONTROL MOTOR, NO.2 | ||||
| 90987-02030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 90987-02031 |
GSF50,GVF5#,VXFA55 |
1 | ||
| G92C0D - RELAY, BACK-UP BOOST CONVERTER IGNITION, NO.1 | ||||
| 90987-02027 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8433 | ||||

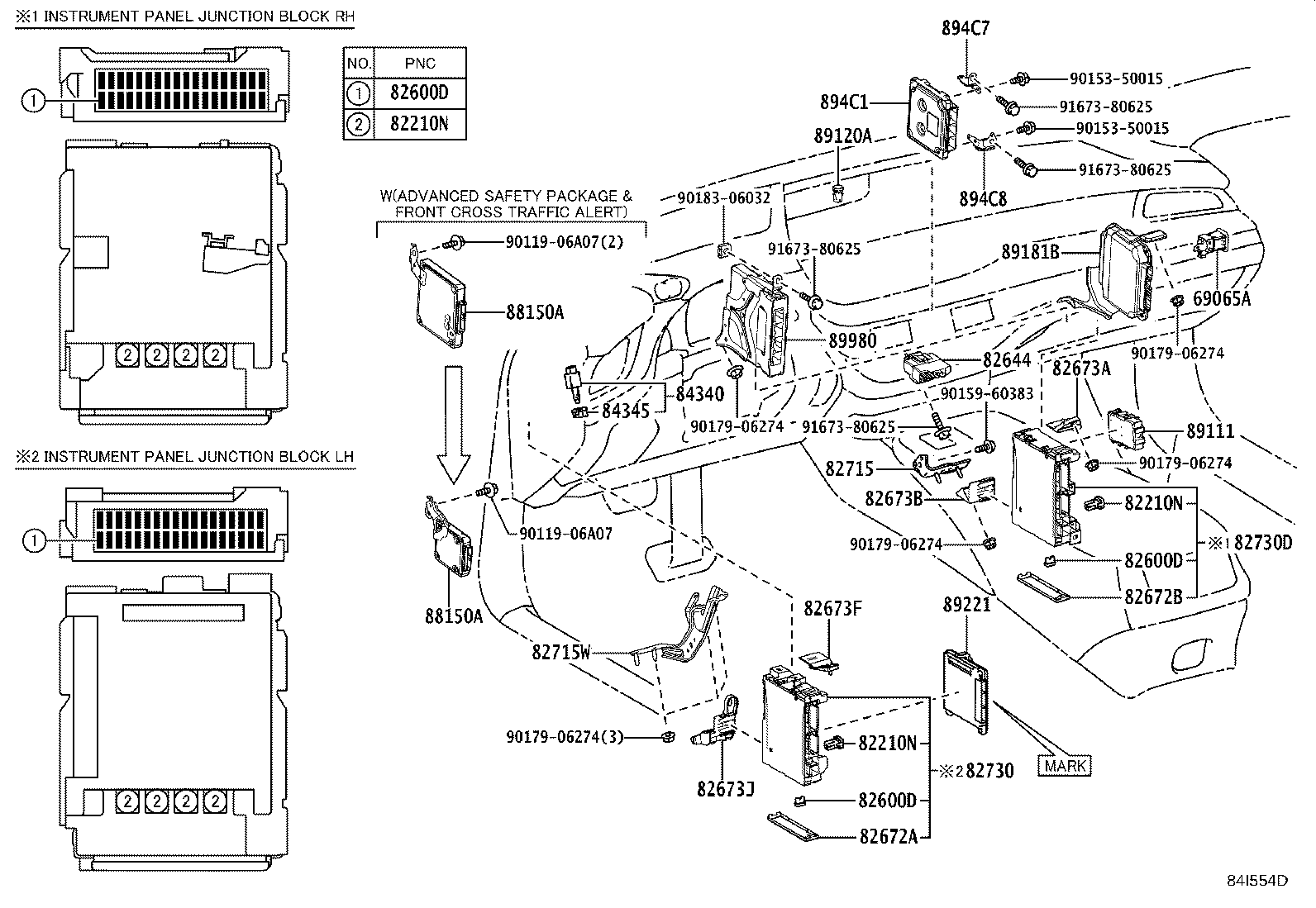

ILLUST NO. 4 OF11(1710- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-50030 |
GSF50,GVF5#,VXFA55 COLD AREA SPEC |
1 | ||
| 82644-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50350 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-50370 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-48130 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82673J - BRACKET, JUNCTION BLOCK | ||||
| 82673-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-11070 |
GSF50,GVF50 NO.7 |
1 | ||
| 82715-44510 |
GSF50,GVF5# NO.10 |
1 | ||
| 82715-50F20 |
GSF50 NO.9 |
1 | ||
| 82715-50G10 |
GSF50,GVF5# NO.6 |
1 | ||
| 82715-50M20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82715-11060 |
GSF50,GVF5# NO.8 |
1 | ||
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-50M00 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-5A570 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82730-5A571 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82730D - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-5A591 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 82730-5A590 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19075 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-50180 |
GSF50,VXFA55 PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+ |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-50180 |
GSF50,VXFA55 PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+ |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-50110 |
GSF50,VXFA55 |
1 | ||
| 89111-50111 |
GSF50,VXFA55 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89181B - COMPUTER, STEERING CONTROL, FR | ||||
| 89181-50151 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 89181-50150 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-50C40 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC |
1 | ||
| 89220-50670 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC,MARK 89221-50220 |
1 | ||
| 89220-50640 |
GSF50,VXFA55 KAZAKHSTAN SPEC,MARK 89221-50220 |
1 | ||
| 89220-50660 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC,MARK 89221-50220 |
1 | ||
| 89220-50710 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS),MARK 89221-50220 |
1 | ||
| 89220-50700 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB),MARK 89221-50220 |
1 | ||
| 89220-50680 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC,MARK 89221-50220 |
1 | ||
| 89220-50730 |
GSF50,GVF5#,VXFA55..LHD MARK 89221-50220 |
1 | ||
| 89220-50710 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB),MARK 89221-50220 |
1 | ||
| 89220-50700 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS),MARK 89221-50220 |
1 | ||
| 89220-50701 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB),MARK 89221-50221 |
1 | ||
| 89220-50661 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC,MARK 89221-50221 |
1 | ||
| 89220-50701 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS),MARK 89221-50221 |
1 | ||
| 89220-50731 |
GSF50,GVF5#,VXFA55..LHD MARK 89221-50221 |
1 | ||
| 89220-50711 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS),MARK 89221-50221 |
1 | ||
| 89220-50671 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC,MARK 89221-50221 |
1 | ||
| 89220-50681 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC,MARK 89221-50221 |
1 | ||
| 89220-50711 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB),MARK 89221-50221 |
1 | ||
| 89220-50641 |
GSF50,VXFA55 KAZAKHSTAN SPEC,MARK 89221-50221 |
1 | ||
| 89220-50C30 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC |
1 | ||
| 89220-50C50 |
GSF50,GVF55,VXFA55..LHD ARMENIA SPEC |
1 | ||
| 89220-50C70 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 89220-50D00 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 89220-50C80 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 89220-50C70 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 89220-50C80 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 89220-50C10 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 89220-50J30 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 89220-50J40 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 89220-50G80 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 89220-50J60 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 89220-50J40 |
GSF50,GVF55,VXFA55..LHD UKRAINE SPEC&HEADLAMP-LED, WITH(*AHS) |
1 | ||
| 89220-50J00 |
GSF50,GVF55,VXFA55..LHD GEORGIA SPEC |
1 | ||
| 89220-50J30 |
GSF50,VXFA55 RUSSIA SPEC&HEADLAMP-LED, WITH(*AHB) |
1 | ||
| 89220-50J10 |
GSF50,GVF55,VXFA55..LHD AZERBAIJAN SPEC |
1 | ||
| 894C1 - COMPUTER, SHIFT CONTROL | ||||
| 894C1-50010 |
GSF50,VXFA55 |
1 | ||
| 894C7 - BRACKET, SHIFT CONTROL COMPUTER, NO.1 | ||||
| 894C7-50020 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 894C8 - BRACKET, SHIFT CONTROL COMPUTER, NO.2 | ||||
| 894C8-11020 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| Common parts | ||||
| 90119-06A07 | ||||
| 90153-50015 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80625 | ||||

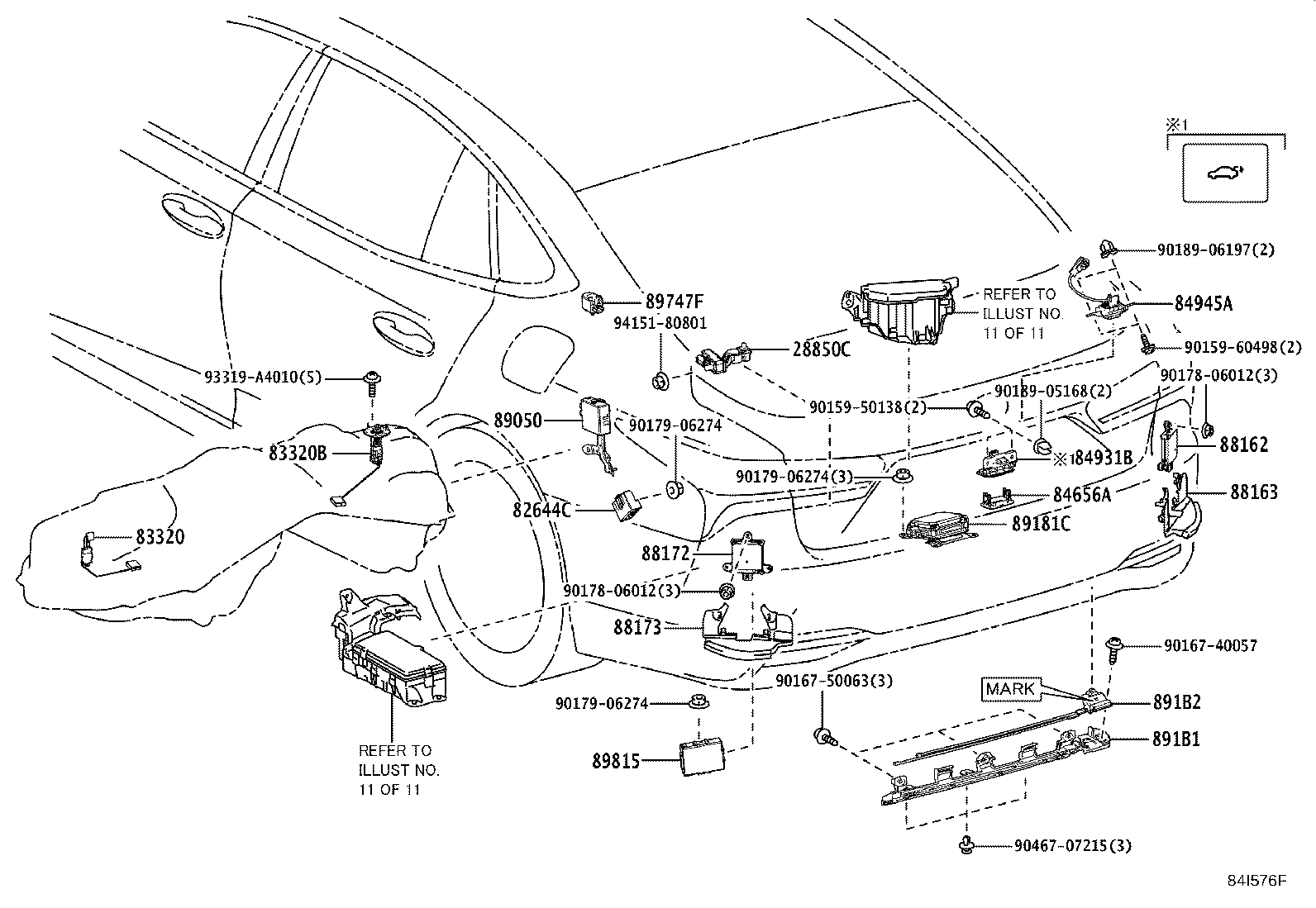

ILLUST NO.10 OF11(1710- )
FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-70010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 82644C - COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.3 | ||||
| 82644-50020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-11080 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80526 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-50020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-50021 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84931-50020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-50080 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-50040 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50040 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50041 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50041 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50040 |
GSF50 ADRIA SPEC |
1 | ||
| 88162-50041 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50 ADRIA SPEC |
1 | ||
| 88162-50051 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50051 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50051 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50051 |
GSF50 ADRIA SPEC |
1 | ||
| 88162-50051 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50051 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-50010 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88163-50010 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88163-50010 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88163-50010 |
GSF50 ADRIA SPEC |
1 | ||
| 88163-50010 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88163-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50040 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50040 |
GSF50 ADRIA SPEC |
1 | ||
| 88162-50040 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50041 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50041 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50 ADRIA SPEC |
1 | ||
| 88162-50051 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88162-50041 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50041 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50051 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88162-50051 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50051 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50051 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88162-50051 |
GSF50 ADRIA SPEC |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-50010 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88173-50010 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88173-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 88173-50010 |
GSF50 CAUCASUS SPEC |
1 | ||
| 88173-50010 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 88173-50010 |
GSF50 ADRIA SPEC |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-50031 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89050-50030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89181C - COMPUTER, STEERING CONTROL, RR | ||||
| 89182-50010 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 89182-50011 |
GSF50 "F SPORT"*(F)&SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 891B1 - BRACKET, KICK DOOR CONTROL | ||||
| 891B1-50010 |
GSF50,VXFA55 LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID) |
1 | ||
| 891B2 - SENSOR, KICK DOOR CONTROL | ||||
| 891B2-0W180 |
GSF50,VXFA55 LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID) |
1 | ||
| 891B2-0W190 |
GSF50,VXFA55 LUGGAGE DOOR OPENER SWITCH-WITH(HANDS FREE POWER TRUNK LID),MARK=891B2-0W190 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89747-52010 |
GSF50 CAUCASUS SPEC |
1 | ||
| 89747-52010 |
GSF50,VXFA55 CAUCASUS SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 89747-52010 |
GSF50,VXFA55 ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 89747-52010 |
GSF50,VXFA55 AZERBAIJAN SPEC&CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
1 | ||
| 89747-52010 |
GSF50 ADRIA SPEC |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90159-60498 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90178-06012 | ||||
| 90179-06274 | ||||
| 90189-05168 | ||||
| 90189-06197 | ||||
| 90467-07215 | ||||
| 93319-A4010 | ||||
| 94151-80801 | ||||
ILLUST NO. 5 OF11(1710-2010)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82223F - WIRE, SWITCH | ||||
| 82223-50230 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82620C - CLIP | ||||
| 90467-05172 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 82620C - CLIP | ||||
| 90467-05172 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 83910G - CLOCK ASSY | ||||
| 83910-33301 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 83910-33300 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 83910-50101 |
GSF50 "F SPORT"*(F) |
1 | ||
| 83910-50090 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 83910-50100 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-50350 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50400 |
GSF50,VXFA55 HEAD UP DISPLAY-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50400 |
GSF50,VXFA55 HEAD UP DISPLAY-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50440 |
GSF50,VXFA55 |
1 | ||
| 84010-50430 |
GSF50,VXFA55 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50420 |
GSF50,VXFA55 HEAD UP DISPLAY-WITH |
1 | ||
| 84010-50430 |
GSF50,VXFA55 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50401 |
GSF50 HEAD UP DISPLAY-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50431 |
GSF50 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50431 |
GSF50 BACK MONITOR-WITH(*PVM) |
1 | ||
| 84010-50421 |
GSF50 HEAD UP DISPLAY-WITH |
1 | ||
| 84010-50441 |
GSF50 |
1 | ||
| 84010-50401 |
GSF50 HEAD UP DISPLAY-WITH&BACK MONITOR-WITH(*PVM) |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-50020 |
GSF50 |
1 | ||
| 84091-50010 |
GSF50 SUSPENSION-AIR SUSPENSION & *AVS |
1 | ||
| 84091E - SWITCH SET, SATELLITE NO.2 | ||||
| 84091-50050 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-50070 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84390-50100 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84392 - SWITCH, BRAKE HOLD | ||||
| 84392-50010 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84840J - SWITCH ASSY, TRUNK & FUEL | ||||
| 84840-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-50100 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-11010 |
GSF50,VXFA55 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-11010 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 8 OF11(1710- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84656D - COVER, BEZEL SWITCH HOLE | ||||
| 84656-50030 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84656-50030 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84656-50130 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84656-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84656-50150 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84656-50130 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84656-50030 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84656G - COVER, BEZEL SWITCH HOLE | ||||
| 84656-50040 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84656-50040 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84656-50040 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84656-50040 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84656-50140 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84656-50140 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84656-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84656-50140 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84656-50160 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-50330 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84920-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84920-50330 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84920-50350 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84920-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84920-50330 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84920-50390 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84920D - SWITCH ASSY, POWER SEAT FRONT, LH | ||||
| 84920-50340 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84920-50340 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84920-50420 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84920-50420 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84920-50340 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84920-50420 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84920-50400 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84920-50340 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84920-50360 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-11040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-11030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-11010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-50110 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84922-50190 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84922-50130 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84922-50110 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84922-50190 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84922-50110 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84922-50170 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-50120 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84922-50120 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 84922-50180 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84922-50140 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84922-50120 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84922-50120 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84922-50200 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 84922-50200 |
GSF50,GVF5#,VXFA55..LHD "I PACKAGE"*(I) |
1 | ||
| 84922-50200 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50400 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50390 |
GSF50,GVF55 |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50420 |
GSF50,GVF55 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50400 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50390 |
GSF50,GVF55 |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50420 |
GSF50,GVF55 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50400 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50390 |
GSF50,GVF55 |
1 | ||
| 84923-50410 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50420 |
GSF50,GVF55 SUN SHADE-WITH(BACK WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 84923-50411 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW) |
1 | ||
| 84923-50412 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-50030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85532-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85532-50020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50330 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50331 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50F00 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50J90 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50330 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50280 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50331 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50281 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50282 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50F00 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50J80 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50E70 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50J90 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710C - COMPUTER ASSY, POSITION CONTROL, RH | ||||
| 89710-50K60 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50312 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K80 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50F60 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50360 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50310 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50362 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50311 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50G30 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50361 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710D - COMPUTER ASSY, POSITION CONTROL, LH | ||||
| 89710-50351 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50350 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50352 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50350 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50G00 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50352 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K50 |
GSF50,GVF5#,VXFA55..LHD "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50351 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50G00 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K50 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710E - COMPUTER ASSY, POSITION CONTROL, NO.2 | ||||
| 89710-50390 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50300 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50340 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50291 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50290 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50F20 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50302 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50291 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50F50 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50391 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50292 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50F40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 89710-50K20 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 89710-50F10 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50301 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50341 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50K10 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50292 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K30 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50290 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K00 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50G40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50F20 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710E - COMPUTER ASSY, POSITION CONTROL, NO.2 | ||||
| 89710-50390 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50300 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50340 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50291 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50290 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50F20 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50302 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50291 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50F50 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50391 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50292 |
GSF50,GVF5#,VXFA55 "F SPORT"*(F) |
1 | ||
| 89710-50F40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 89710-50K20 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN&TELEVISION & DVD PLAYER-WITH(REAR DISPLAY) |
1 | ||
| 89710-50F10 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50301 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50341 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50K10 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50292 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K30 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89710-50290 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K00 |
GSF50,GVF5#,VXFA55 "I PACKAGE"*(I) |
1 | ||
| 89710-50G40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 89710-50F20 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER |
1 | ||
| 89710-50K40 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| Common parts | ||||
| 93315-13010 | ||||
| 93540-54012 | ||||
| 93560-54010 | ||||
ILLUST NO.11 OF11(1909-2010)
LUGGAGE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800L - RELAY, SUB BATTERY | ||||
| 28861-38010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 28800L - RELAY, SUB BATTERY | ||||
| 28861-38010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08305 |
GSF50,GVF5#,VXFA55 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08246 |
GSF50,GVF5#,VXFA55 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08294 |
GSF50,GVF5#,VXFA55 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08299 |
GSF50,GVF5#,VXFA55 40A-40A-40A,FEMALE |
1 | ||
| 90982-08295 |
GSF50,GVF5#,VXFA55 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08301 |
GSF50,GVF5#,VXFA55 50A-30A-40A,FEMALE |
1 | ||
| 90982-08296 |
GSF50,GVF5#,VXFA55 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GSF50,GVF5#,VXFA55 50A-50A-50A,FEMALE |
1 | ||
| 90982-08308 |
GSF50,GVF5#,VXFA55 40A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
GSF50,GVF5#,VXFA55 50A-30A-50A,FEMALE |
1 | ||
| 90982-08304 |
GSF50,GVF5#,VXFA55 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08274 |
GSF50,GVF5#,VXFA55 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08300 |
GSF50,GVF5#,VXFA55 50A-30A-30A,FEMALE |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09020 |
GSF50,GVF5#,VXFA55 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GSF50,GVF5#,VXFA55 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
GSF50,GVF5#,VXFA55 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GSF50,GVF5#,VXFA55 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
GSF50,GVF5#,VXFA55 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
GSF50,GVF5#,VXFA55 25A,MINI FUSE |
1 | ||
| 90982-09022 |
GSF50,GVF5#,VXFA55 15A,MINI FUSE,BLUE |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50230 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82620J - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50260 |
GSF50,VXFA55 |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-11030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-11080 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-11090 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82662-11020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662G - COVER, RELAY BLOCK, UPPER, NO.9 | ||||
| 82662-50580 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82662-50581 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-50270 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-50260 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-50B20 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-50B30 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450B - RELAY, LUGGAGE ACCESSORY | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450E - RELAY, LUGGAGE IGNITION 1, NO.1 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 84450F - RELAY, LUGGAGE IGNITION 1, NO.2 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85530J - RELAY, POWER OUTLET SOCKET, NO.3 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 85530K - RELAY, POWER OUTLET SOCKET, NO.4 | ||||
| 90987-02027 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 89260D - RELAY, ENGINE STOP & START SYSTEM DOME CUT | ||||
| 90987-02027 |
GSF50,VXFA55 |
1 | ||
| 894C1B - RELAY, PARKING CONTROL MOTOR, NO.2 | ||||
| 90987-02030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 90987-02031 |
GSF50,GVF5#,VXFA55 |
1 | ||
| G92C0D - RELAY, BACK-UP BOOST CONVERTER IGNITION, NO.1 | ||||
| 90987-02027 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8433 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
