GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

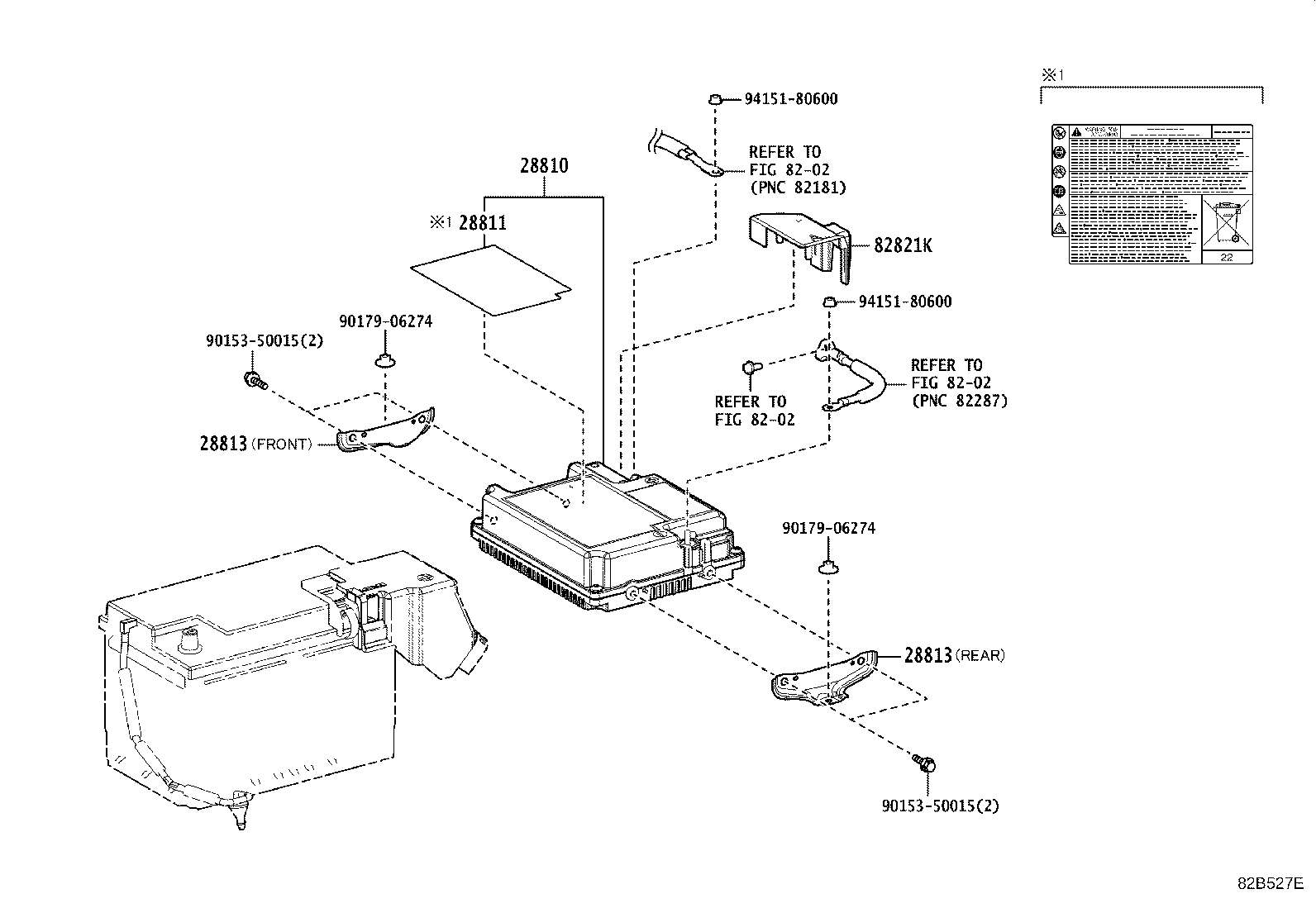

ILLUST NO. 2 OF 4(1710- )

Click highlighted areas on diagram

SUB-BATTERY

diagram 28810 28811 28813 28813 8202 8202 8202 82821K 9015350015 9015350015 9017906274 9017906274 9415180600 9415180600
Part # Description Qty Price
28810 - SUB-BATTERY ASSY, W/CONTROL
28810-70020

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

 1
28811 - LABEL, SUB-BATTERY CAUTION
28811-38020

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

 1
28813 - BRACKET, SUB-BATTERY
28813-70010

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

NO.1

 1
28813-70020

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

#,NO.2

 1
28813 - BRACKET, SUB-BATTERY
28813-70010

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

NO.1

 1
28813-70020

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

#,NO.2

 1
82821K - COVER, CONNECTOR
82821-50720

GSF50,GVF5#,VXFA55

 1
Common parts
90153-50015
90179-06274
94151-80600
Linked diagrams
8202

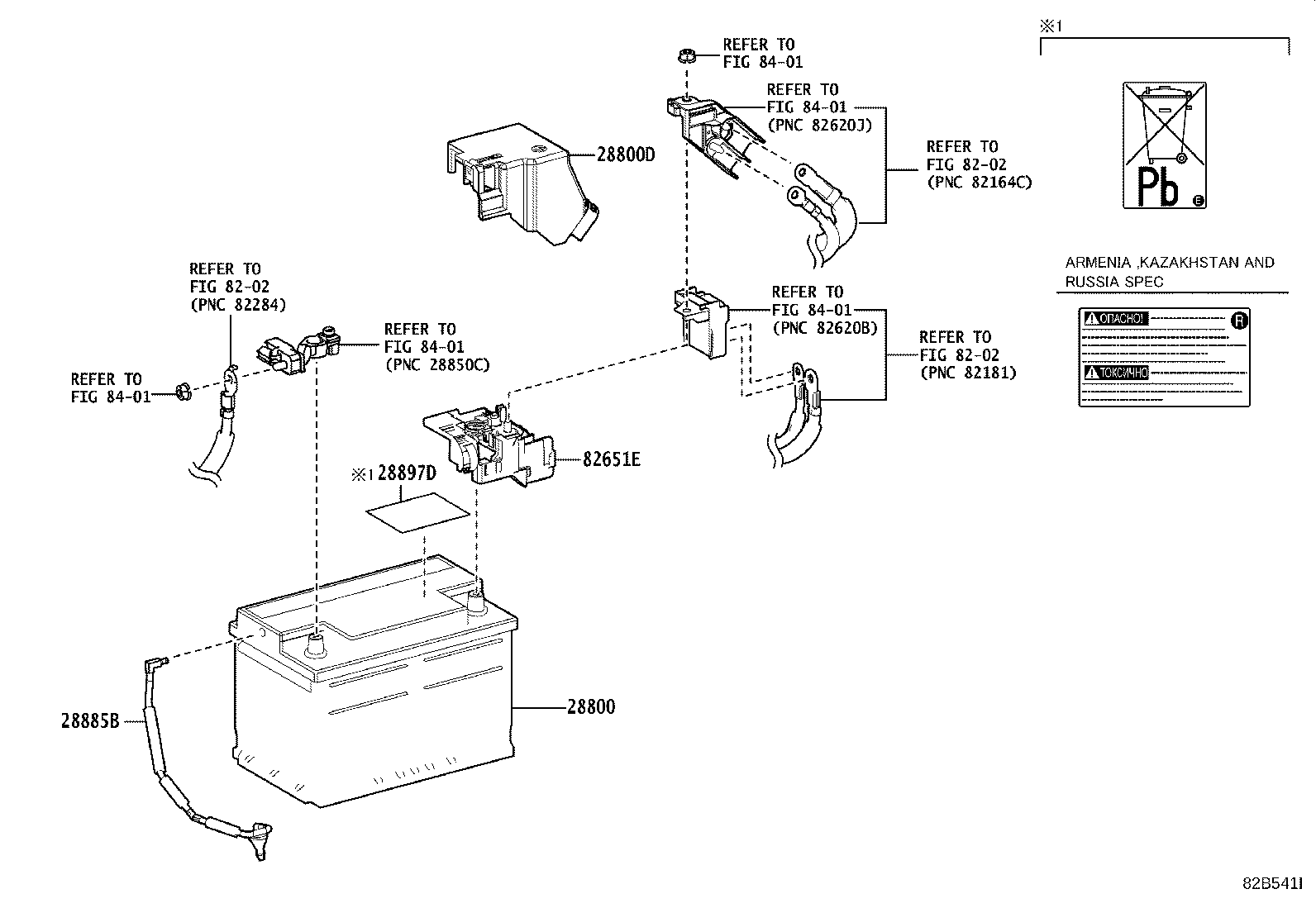

ILLUST NO. 1 OF 4(1710- )GSF50,VXFA55

Click highlighted areas on diagram

diagram 28800 28800D 28885B 28897D 8202 8202 8202 82651E 8401 8401 8401 8401 8401
Part # Description Qty Price
28800 - BATTERY
28800-31460

8GRFKS..GSF50

LN4

 1
28800-31480

8GRFKS..GSF50

LN5,"EXECUTIVE"*(E)

 1
28800-31480

8GRFKS..GSF50

LN5,"F SPORT"*(F)

 1
28800-31480

8GRFKS..GSF50

LN5,"VERSION L"*(L)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50730

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

 1
28885B - HOSE, BATTERY
28885-70040

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

 1
28897D - LABEL, BATTERY CAUTION
28897-38070

V35AFTS,8GRFKS..GSF50,VXFA55

KAZAKHSTAN SPEC

 1
28897-38040

V35AFTS,8GR#..GSF50,GVF5#,VXFA55

 1
28897-38070

V35AFTS,8GRFKS..GSF50,VXFA55

RUSSIA SPEC

 1
82651E - BLOCK, TERMINAL
82651-50010

GSF50,GVF5#,VXFA55

 1
