GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

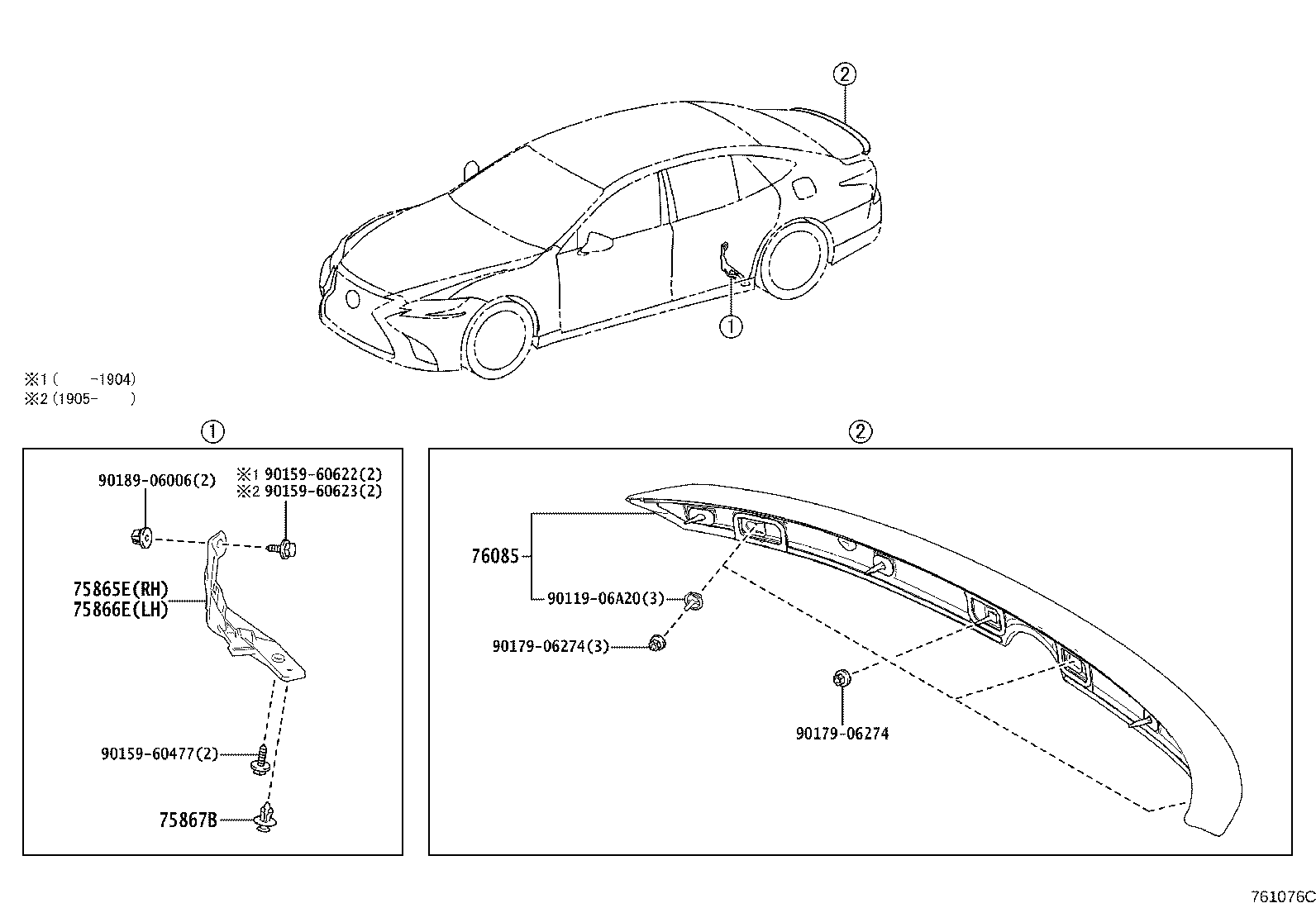

Click highlighted areas on diagram

diagram 75865E 75866E 75867B 76085 9011906A20 9015960477 9015960622 9015960623 9017906274 9017906274 9018906006
Part # Description Qty Price
75865E - PROTECTOR, ROCKER PANEL MOULDING, RH
75865-50140

GSF50,GVF50

 1
75866E - PROTECTOR, ROCKER PANEL MOULDING, LH
75866-50160

GSF50,GVF50

 1
75867B - CLIP, ROCKER PANEL MOULDING
75867-33050

GSF50,GVF5#,VXFA55

 2
76085 - SPOILER SUB-ASSY, REAR
76085-50010E1

GSF50,VXFA55

REAR SPOILER-WITH,AMBER CS.,4X2

 1
76085-50010B1

GSF50,VXFA55

REAR SPOILER-WITH,SONIC SILVER,1J2

 1
76085-50010A0

GSF50,VXFA55

REAR SPOILER-WITH,WHITE NOVA GF.,083

 1
76085-50010A1

GSF50,VXFA55

REAR SPOILER-WITH,SONIC QUARTZ,085

 1
76085-50010C0

GSF50,VXFA55

REAR SPOILER-WITH,BLACK,212

 1
76085-50010B2

GSF50,VXFA55

REAR SPOILER-WITH,SONIC TITANIUM,1J7

 1
76085-50010D0

GSF50,VXFA55

REAR SPOILER-WITH,RED MC.CS.,3R1

 1
76085-50010C1

GSF50,VXFA55

REAR SPOILER-WITH,GRAPHITE BLACK GF.,223

 1
76085-50010D2

GSF50,VXFA55

REAR SPOILER-WITH,SONIC AGATE,3U3

 1
76085-50010J0

GSF50,VXFA55

REAR SPOILER-WITH,HEAT BLUE CONTRAST LAYERI,8X1

 1
76085-50010B3

GSF50,VXFA55

REAR SPOILER-WITH,MANGANESE LUSTER,1K2

 1
76085-50010E0

GSF50,VXFA55

REAR SPOILER-WITH,SLEEK ECRU ME.,4U7

 1
76085-50010J1

GSF50,VXFA55

REAR SPOILER-WITH,DEEP BLUE MC.,8X5

 1
Common parts
90119-06A20
90159-60477
90159-60622
90159-60623
90179-06274
90189-06006
