GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series

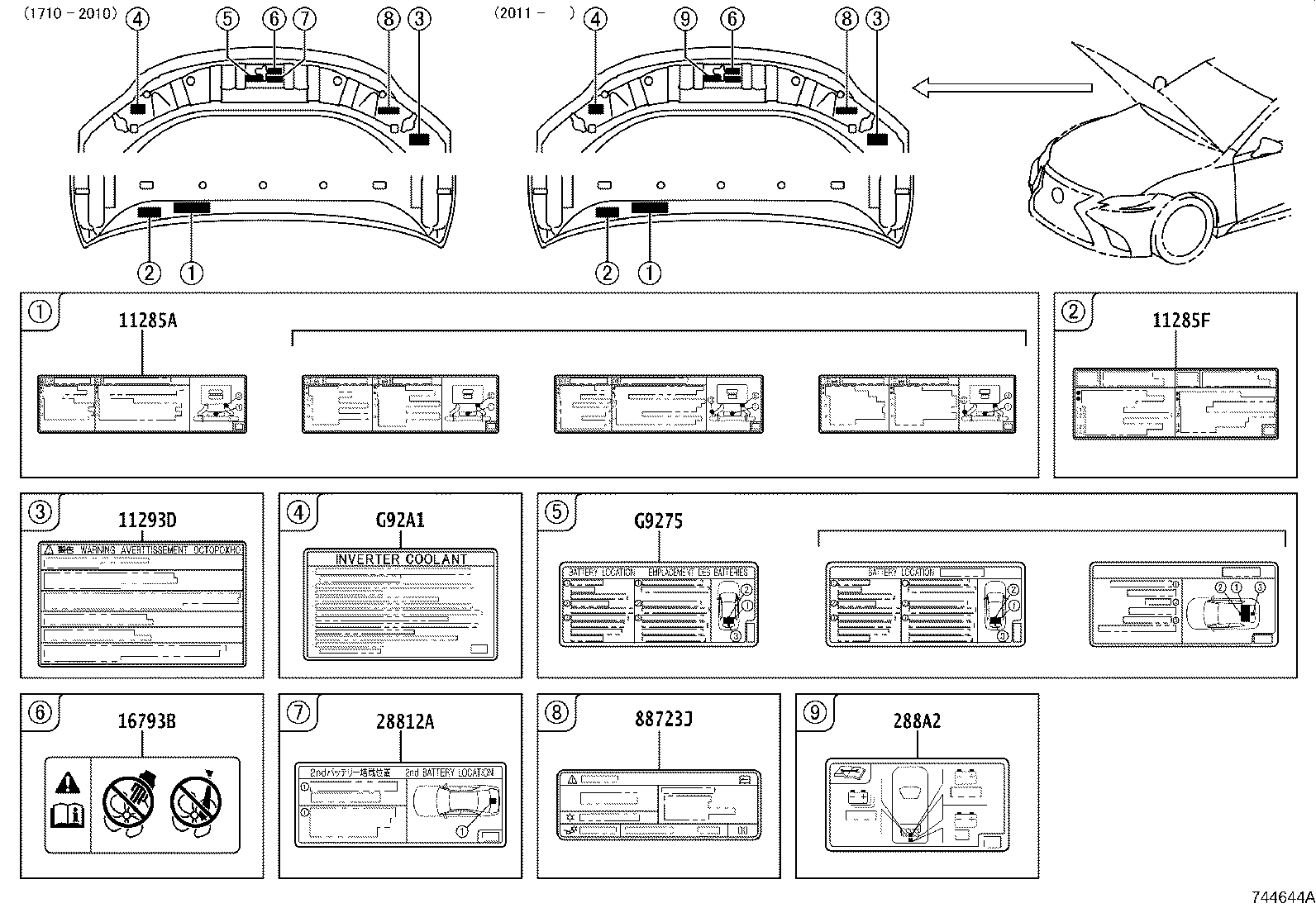

ILLUST NO. 1 OF 3(1710- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11285A - LABEL, COOLANT SYSTEM NOTICE | ||||
| 11285-31080 |
8GR#..GSF50,GVF5# |
1 | ||
| 11285-31070 |
8GRFKS..GSF50 RUSSIA SPEC |
1 | ||
| 11285-31070 |
8GRFKS..GSF50 KAZAKHSTAN SPEC |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-36030 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 28812A - LABEL, SUB-BATTERY INFORMATION | ||||
| 28812-38010 |
V35AFTS,8GR#..GSF50,GVF5#,VXFA55 |
1 | ||
| 88723J - LABEL, COOLER SERVICE CAUTION, NO.2 | ||||
| 88723-50380 |
GSF50,VXFA55 ARMENIA SPEC |
1 | ||
| 88723-50380 |
GSF50,VXFA55 RUSSIA SPEC |
1 | ||
| 88723-50380 |
GSF50,VXFA55 UKRAINE SPEC |
1 | ||
| 88723-50380 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
1 | ||
| 88723-50330 |
GSF50,VXFA55 |
1 | ||
| 88723-50380 |
GSF50,VXFA55 GEORGIA SPEC |
1 | ||
| 88723-50380 |
GSF50,VXFA55 AZERBAIJAN SPEC |
1 | ||

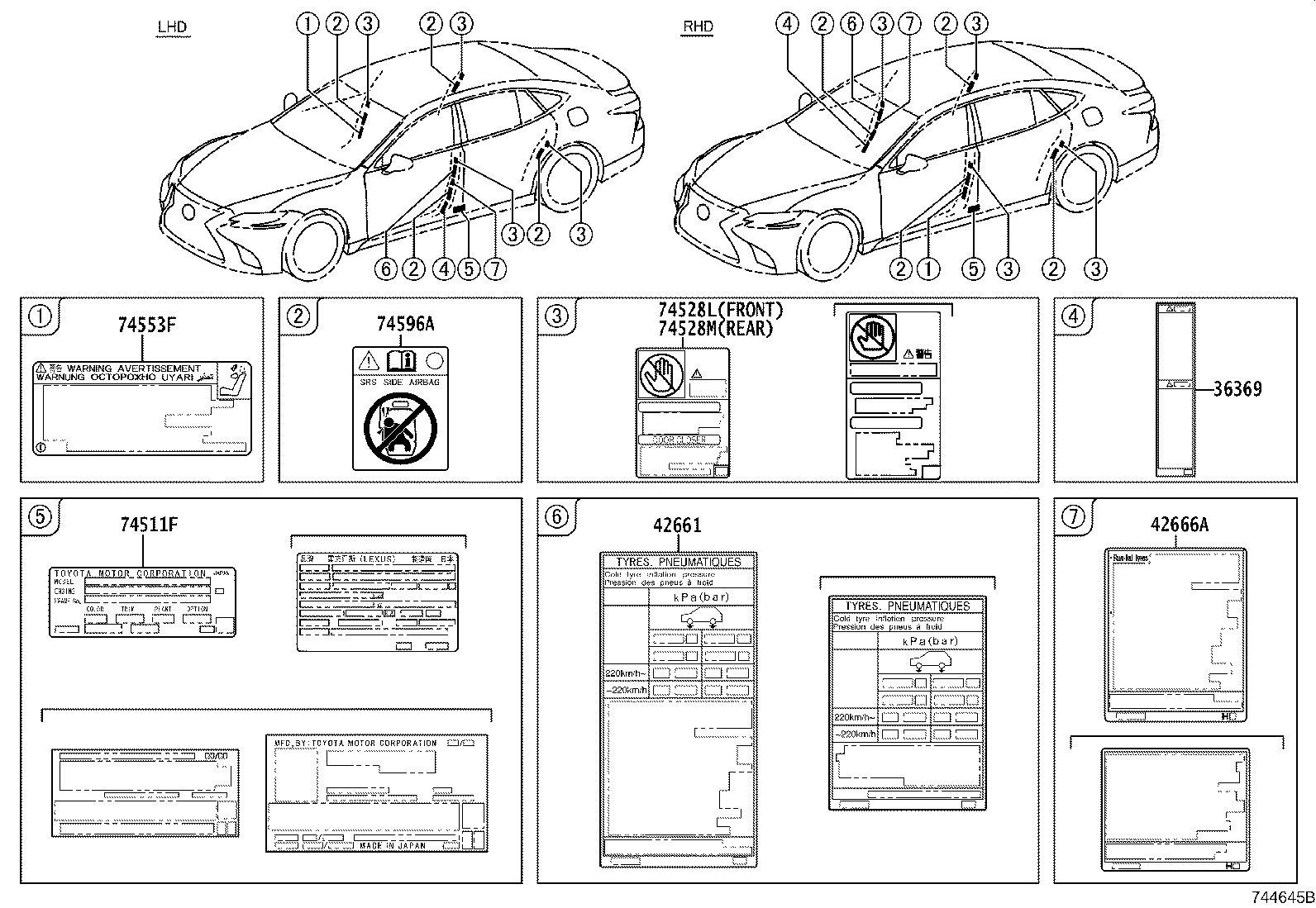

ILLUST NO. 2 OF 3(1710- )
EXTERIOR & INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42661 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-50E90 |
GSF50,GVF55 TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE |
1 | ||
| 42661-50E30 |
GSF50 KAZAKHSTAN SPEC |
1 | ||
| 42661-50F20 |
GSF50 KAZAKHSTAN SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE |
1 | ||
| 42661-50E90 |
GSF50,GVF50 TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE |
1 | ||
| 42661-50F20 |
GSF50 RUSSIA SPEC&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE |
1 | ||
| 42661-50E20 |
GSF50,GVF50 |
1 | ||
| 42661-50F20 |
GSF50 RUSSIA SPEC&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE |
1 | ||
| 42661-50E30 |
GSF50 RUSSIA SPEC |
1 | ||
| 42661-50F20 |
GSF50 KAZAKHSTAN SPEC&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE |
1 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-30A20 |
GSF50 *111,KAZAKHSTAN SPEC |
1 | ||
| 74511-48020 |
GSF50 *111 |
1 | ||
| 74511-30A20 |
GSF50 *111,RUSSIA SPEC |
1 | ||
| 74528L - LABEL, DOOR CLOSER CAUTION, FRONT | ||||
| 74528-50041 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
2 | ||
| 74528-50041 |
GSF50,VXFA55 RUSSIA SPEC |
2 | ||
| 74528-50031 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 74528M - LABEL, DOOR CLOSER CAUTION, REAR | ||||
| 74528-50041 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
2 | ||
| 74528-50041 |
GSF50,VXFA55 RUSSIA SPEC |
2 | ||
| 74528-50031 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 74553F - LABEL, FRONT SEAT CAUTION | ||||
| 74553-50052 |
GSF50,GVF5#,VXFA55 REAR SEAT ADJUSTER-POWER & OTTOMAN |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-53012 |
GSF50,GVF5#,VXFA55 |
4 | ||

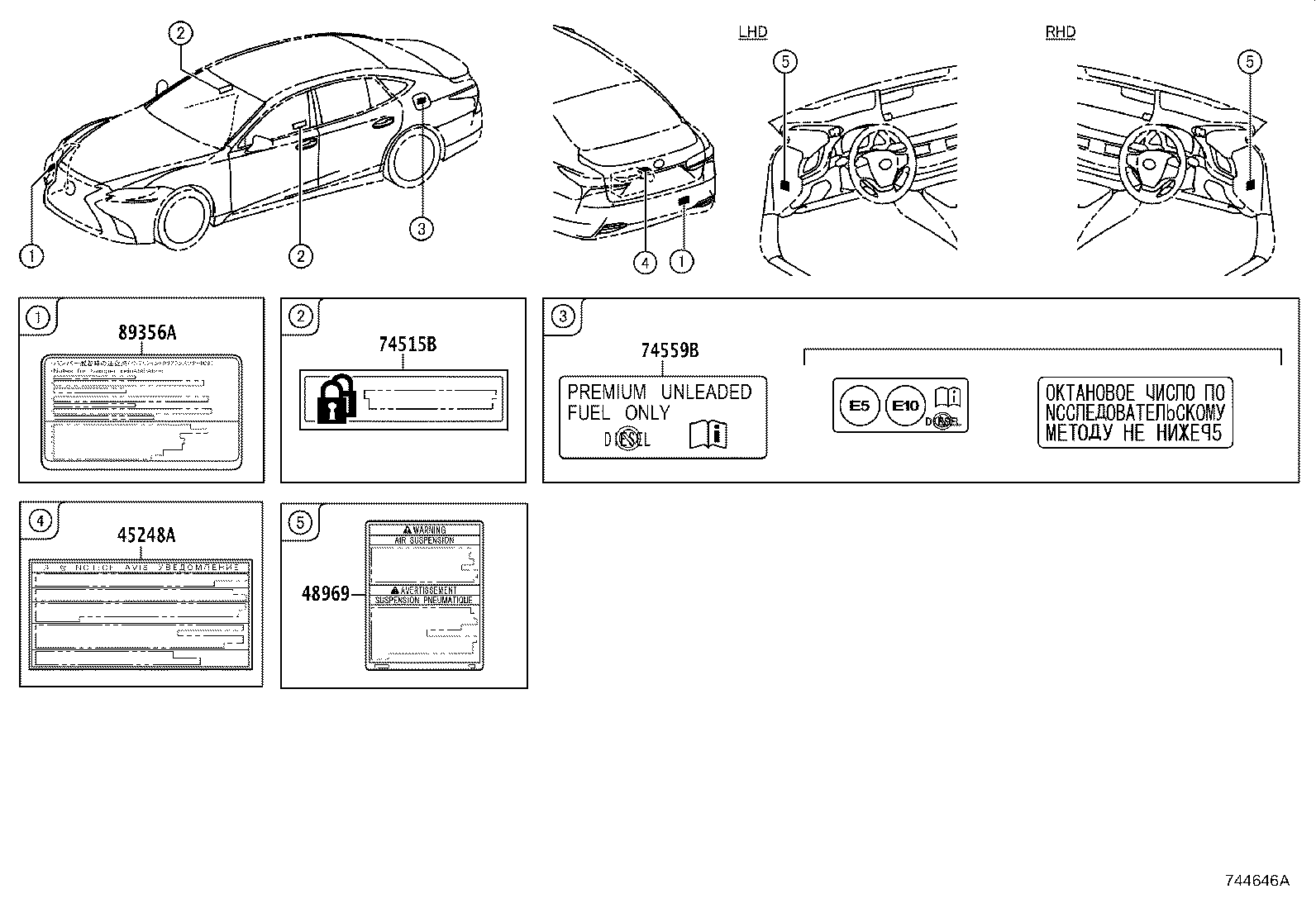

ILLUST NO. 3 OF 3(1710- )
INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45248A - LABEL, STEERING ACTUATOR CAUTION | ||||
| 45248-30020 |
GSF50 "F SPORT"*(F) |
1 | ||
| 48969 - LABEL, JACK UP CAUTION | ||||
| 48969-50070 |
GSF50,VXFA55 RUSSIA SPEC&"F SPORT"*(F) |
1 | ||
| 48969-50060 |
GSF50 "EXECUTIVE"*(E) |
1 | ||
| 48969-50060 |
GSF50,GVF55,VXFA55 "F SPORT"*(F) |
1 | ||
| 48969-50070 |
GSF50,VXFA55 KAZAKHSTAN SPEC&"F SPORT"*(F) |
1 | ||
| 48969-50060 |
GSF50 "VERSION L"*(L) |
1 | ||
| 48969-50070 |
GSF50 RUSSIA SPEC&"EXECUTIVE"*(E) |
1 | ||
| 48969-50070 |
GSF50 RUSSIA SPEC&"VERSION L"*(L) |
1 | ||
| 48969-50070 |
GSF50 KAZAKHSTAN SPEC&"EXECUTIVE"*(E) |
1 | ||
| 48969-50070 |
GSF50 KAZAKHSTAN SPEC&"VERSION L"*(L) |
1 | ||
| 74515B - PLATE, THEFT WARNING | ||||
| 74515-50060 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 74515-50070 |
GSF50,VXFA55 RUSSIA SPEC |
2 | ||
| 74515-50070 |
GSF50,VXFA55 KAZAKHSTAN SPEC |
2 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-60030 |
GSF50,GVF55..LHD ARMENIA SPEC |
1 | ||
| 74559-33020 |
GSF50 RUSSIA SPEC |
1 | ||
| 74559-11030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 74559-33020 |
GSF50 KAZAKHSTAN SPEC |
1 | ||
| 74559-60030 |
GSF50,GVF55..LHD GEORGIA SPEC |
1 | ||
| 74559-60030 |
GSF50,GVF55..LHD UKRAINE SPEC |
1 | ||
| 74559-60030 |
GSF50,GVF55..LHD AZERBAIJAN SPEC |
1 | ||
| 89356A - LABEL, CLEARANCE WARNING INFORMATION | ||||
| 89356-47020 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 89356-47020 |
GSF50,GVF5#,VXFA55..LHD CLEARANCE & BACK SONAR-WITH(CLEARANCE SONAR) |
2 | ||
