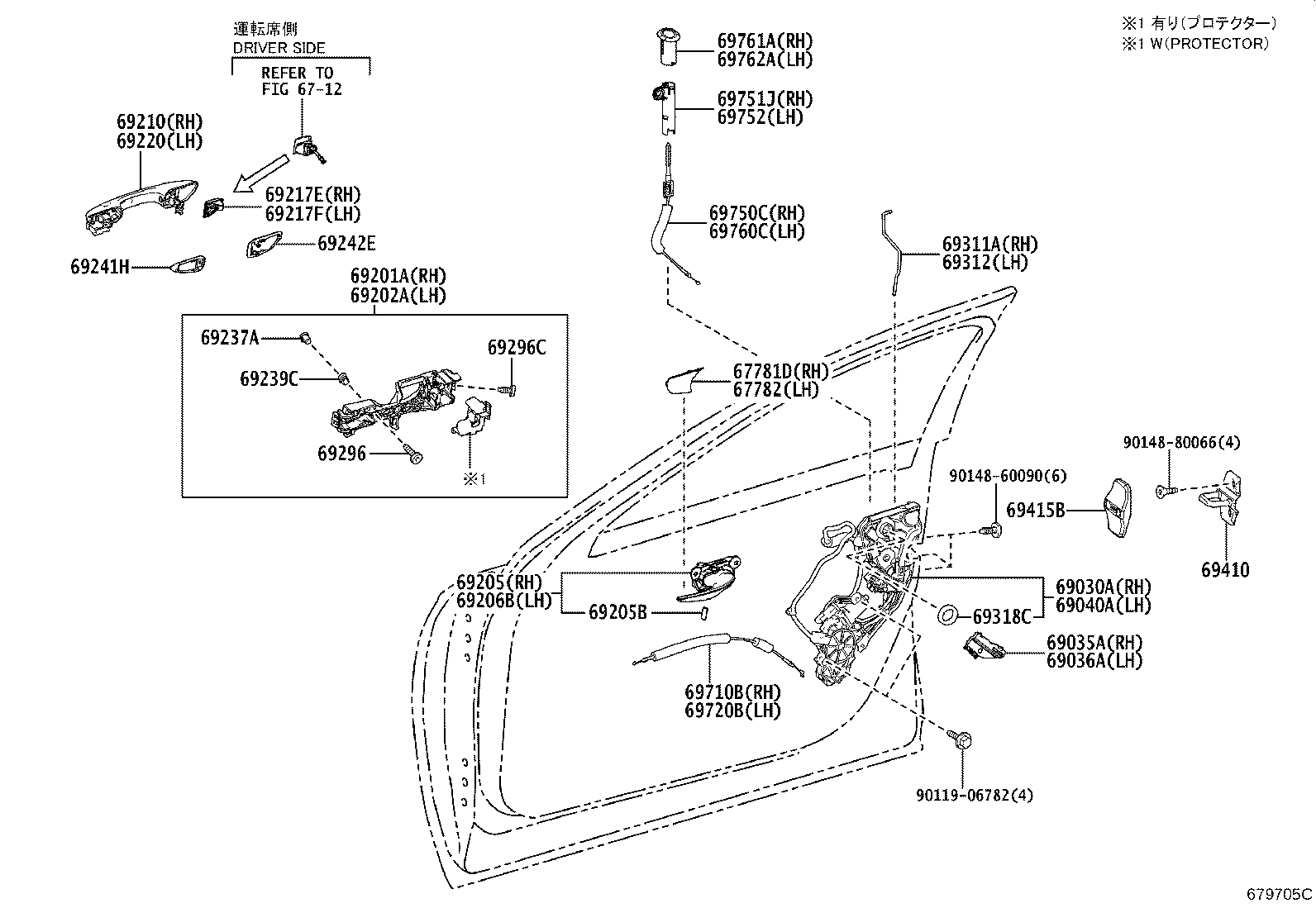

GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series
(1710- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67781D - COVER, FRONT DOOR TRIM, UPPER RH | ||||
| 67781-50370 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 67782 - COVER, FRONT DOOR TRIM, UPPER LH | ||||
| 67782-50380 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-50410 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-50390 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-50090 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69201-76040 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-50080 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69202-50081 |
GSF50,GVF5#,VXFA55..LHD |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-50030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 69275-30070 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 90541-07050 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69280-50030 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-50090B0 |
GSF50,GVF5#,VXFA55 SONIC SILVER,1J2 |
1 | ||
| 69210-50090C0 |
GSF50,GVF5#,VXFA55 BLACK,212 |
1 | ||
| 69210-50090A1 |
GSF50,GVF5#,VXFA55 SONIC QUARTZ,085 |
1 | ||
| 69210-50090C1 |
GSF50,GVF5#,VXFA55 GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-50090D1 |
GSF50,GVF5#,VXFA55 SONIC AGATE,3U3 |
1 | ||
| 69210-50090E1 |
GSF50,GVF5#,VXFA55 AMBER CS.,4X2 |
1 | ||
| 69210-50090J0 |
GSF50,GVF5#,VXFA55 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69210-50110A1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC QUARTZ,085 |
1 | ||
| 69210-50090A0 |
GSF50,GVF5#,VXFA55 WHITE NOVA GF.,083 |
1 | ||
| 69210-50110C0 |
GSF50,VXFA55 RUSSIA SPEC,BLACK,212 |
1 | ||
| 69210-50090J1 |
GSF50,GVF5#,VXFA55 DEEP BLUE MC.,8X5 |
1 | ||
| 69210-50110A0 |
GSF50,VXFA55 RUSSIA SPEC,WHITE NOVA GF.,083 |
1 | ||
| 69210-50090B1 |
GSF50,GVF5#,VXFA55 SONIC TITANIUM,1J7 |
1 | ||
| 69210-50090B2 |
GSF50,GVF5#,VXFA55 MANGANESE LUSTER,1K2 |
1 | ||
| 69210-50110B0 |
GSF50,VXFA55 RUSSIA SPEC,SONIC SILVER,1J2 |
1 | ||
| 69210-50110D1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC AGATE,3U3 |
1 | ||
| 69210-50110B2 |
GSF50,VXFA55 RUSSIA SPEC,MANGANESE LUSTER,1K2 |
1 | ||
| 69210-50090E0 |
GSF50,GVF5#,VXFA55 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-50110C1 |
GSF50,VXFA55 RUSSIA SPEC,GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-50110D0 |
GSF50,VXFA55 RUSSIA SPEC,RED MC.CS.,3R1 |
1 | ||
| 69210-50110E1 |
GSF50,VXFA55 RUSSIA SPEC,AMBER CS.,4X2 |
1 | ||
| 69210-50110B1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC TITANIUM,1J7 |
1 | ||
| 69210-50110E0 |
GSF50,VXFA55 RUSSIA SPEC,SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-50091D0 |
GSF50,GVF5#,VXFA55 RED MC.CS.,3R1 |
1 | ||
| 69210-50091A0 |
GSF50,GVF5#,VXFA55 WHITE NOVA GF.,083 |
1 | ||
| 69210-50091B2 |
GSF50,GVF5#,VXFA55 MANGANESE LUSTER,1K2 |
1 | ||
| 69210-50091C1 |
GSF50,GVF5#,VXFA55 GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-50111E1 |
GSF50,VXFA55 RUSSIA SPEC,AMBER CS.,4X2 |
1 | ||
| 69210-50110J0 |
GSF50,VXFA55 RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69210-50091E1 |
GSF50,GVF5#,VXFA55 AMBER CS.,4X2 |
1 | ||
| 69210-50091B0 |
GSF50,GVF5#,VXFA55 SONIC SILVER,1J2 |
1 | ||
| 69210-50090D0 |
GSF50,GVF5#,VXFA55 RED MC.CS.,3R1 |
1 | ||
| 69210-50091A1 |
GSF50,GVF5#,VXFA55 SONIC QUARTZ,085 |
1 | ||
| 69210-50110J1 |
GSF50,VXFA55 RUSSIA SPEC,DEEP BLUE MC.,8X5 |
1 | ||
| 69210-50091D1 |
GSF50,GVF5#,VXFA55 SONIC AGATE,3U3 |
1 | ||
| 69210-50091J1 |
GSF50,GVF5#,VXFA55 DEEP BLUE MC.,8X5 |
1 | ||
| 69210-50111A1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC QUARTZ,085 |
1 | ||
| 69210-50111A0 |
GSF50,VXFA55 RUSSIA SPEC,WHITE NOVA GF.,083 |
1 | ||
| 69210-50111B0 |
GSF50,VXFA55 RUSSIA SPEC,SONIC SILVER,1J2 |
1 | ||
| 69210-50091E0 |
GSF50,GVF5#,VXFA55 SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-50111C1 |
GSF50,VXFA55 RUSSIA SPEC,GRAPHITE BLACK GF.,223 |
1 | ||
| 69210-50091B1 |
GSF50,GVF5#,VXFA55 SONIC TITANIUM,1J7 |
1 | ||
| 69210-50111E0 |
GSF50,VXFA55 RUSSIA SPEC,SLEEK ECRU ME.,4U7 |
1 | ||
| 69210-50091J0 |
GSF50,GVF5#,VXFA55 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69210-50111B2 |
GSF50,VXFA55 RUSSIA SPEC,MANGANESE LUSTER,1K2 |
1 | ||
| 69210-50111J0 |
GSF50,VXFA55 RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69210-50111B1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC TITANIUM,1J7 |
1 | ||
| 69210-50111C0 |
GSF50,VXFA55 RUSSIA SPEC,BLACK,212 |
1 | ||
| 69210-50111D1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC AGATE,3U3 |
1 | ||
| 69210-50111J1 |
GSF50,VXFA55 RUSSIA SPEC,DEEP BLUE MC.,8X5 |
1 | ||
| 69210-50111D0 |
GSF50,VXFA55 RUSSIA SPEC,RED MC.CS.,3R1 |
1 | ||
| 69210-50091C0 |
GSF50,GVF5#,VXFA55 BLACK,212 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-50060 |
GSF50,GVF5#,VXFA55..LHD BLACK |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-50060B1 |
GSF50,GVF5#,VXFA55 SONIC TITANIUM,1J7 |
1 | ||
| 69220-50060A1 |
GSF50,GVF5#,VXFA55 SONIC QUARTZ,085 |
1 | ||
| 69220-50060C0 |
GSF50,GVF5#,VXFA55 BLACK,212 |
1 | ||
| 69220-50060C1 |
GSF50,GVF5#,VXFA55 GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-50060D0 |
GSF50,GVF5#,VXFA55 RED MC.CS.,3R1 |
1 | ||
| 69220-50060B0 |
GSF50,GVF5#,VXFA55 SONIC SILVER,1J2 |
1 | ||
| 69220-50060E1 |
GSF50,GVF5#,VXFA55 AMBER CS.,4X2 |
1 | ||
| 69220-50080B2 |
GSF50,VXFA55 RUSSIA SPEC,MANGANESE LUSTER,1K2 |
1 | ||
| 69220-50060D1 |
GSF50,GVF5#,VXFA55 SONIC AGATE,3U3 |
1 | ||
| 69220-50060B2 |
GSF50,GVF5#,VXFA55 MANGANESE LUSTER,1K2 |
1 | ||
| 69220-50060J1 |
GSF50,GVF5#,VXFA55 DEEP BLUE MC.,8X5 |
1 | ||
| 69220-50080A1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC QUARTZ,085 |
1 | ||
| 69220-50060E0 |
GSF50,GVF5#,VXFA55 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-50080E0 |
GSF50,VXFA55 RUSSIA SPEC,SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-50080B1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC TITANIUM,1J7 |
1 | ||
| 69220-50080A0 |
GSF50,VXFA55 RUSSIA SPEC,WHITE NOVA GF.,083 |
1 | ||
| 69220-50080D1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC AGATE,3U3 |
1 | ||
| 69220-50080C0 |
GSF50,VXFA55 RUSSIA SPEC,BLACK,212 |
1 | ||
| 69220-50080D0 |
GSF50,VXFA55 RUSSIA SPEC,RED MC.CS.,3R1 |
1 | ||
| 69220-50061E1 |
GSF50,GVF5#,VXFA55 AMBER CS.,4X2 |
1 | ||
| 69220-50080B0 |
GSF50,VXFA55 RUSSIA SPEC,SONIC SILVER,1J2 |
1 | ||
| 69220-50080J1 |
GSF50,VXFA55 RUSSIA SPEC,DEEP BLUE MC.,8X5 |
1 | ||
| 69220-50060J0 |
GSF50,GVF5#,VXFA55 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69220-50081E1 |
GSF50,VXFA55 RUSSIA SPEC,AMBER CS.,4X2 |
1 | ||
| 69220-50061C1 |
GSF50,GVF5#,VXFA55 GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-50080J0 |
GSF50,VXFA55 RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69220-50060A0 |
GSF50,GVF5#,VXFA55 WHITE NOVA GF.,083 |
1 | ||
| 69220-50061J0 |
GSF50,GVF5#,VXFA55 HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69220-50061A0 |
GSF50,GVF5#,VXFA55 WHITE NOVA GF.,083 |
1 | ||
| 69220-50061B2 |
GSF50,GVF5#,VXFA55 MANGANESE LUSTER,1K2 |
1 | ||
| 69220-50080E1 |
GSF50,VXFA55 RUSSIA SPEC,AMBER CS.,4X2 |
1 | ||
| 69220-50061A1 |
GSF50,GVF5#,VXFA55 SONIC QUARTZ,085 |
1 | ||
| 69220-50061B1 |
GSF50,GVF5#,VXFA55 SONIC TITANIUM,1J7 |
1 | ||
| 69220-50061D0 |
GSF50,GVF5#,VXFA55 RED MC.CS.,3R1 |
1 | ||
| 69220-50080C1 |
GSF50,VXFA55 RUSSIA SPEC,GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-50081B2 |
GSF50,VXFA55 RUSSIA SPEC,MANGANESE LUSTER,1K2 |
1 | ||
| 69220-50081A0 |
GSF50,VXFA55 RUSSIA SPEC,WHITE NOVA GF.,083 |
1 | ||
| 69220-50061E0 |
GSF50,GVF5#,VXFA55 SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-50061B0 |
GSF50,GVF5#,VXFA55 SONIC SILVER,1J2 |
1 | ||
| 69220-50081C0 |
GSF50,VXFA55 RUSSIA SPEC,BLACK,212 |
1 | ||
| 69220-50061J1 |
GSF50,GVF5#,VXFA55 DEEP BLUE MC.,8X5 |
1 | ||
| 69220-50061D1 |
GSF50,GVF5#,VXFA55 SONIC AGATE,3U3 |
1 | ||
| 69220-50061C0 |
GSF50,GVF5#,VXFA55 BLACK,212 |
1 | ||
| 69220-50081B1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC TITANIUM,1J7 |
1 | ||
| 69220-50081A1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC QUARTZ,085 |
1 | ||
| 69220-50081E0 |
GSF50,VXFA55 RUSSIA SPEC,SLEEK ECRU ME.,4U7 |
1 | ||
| 69220-50081D0 |
GSF50,VXFA55 RUSSIA SPEC,RED MC.CS.,3R1 |
1 | ||
| 69220-50081C1 |
GSF50,VXFA55 RUSSIA SPEC,GRAPHITE BLACK GF.,223 |
1 | ||
| 69220-50081J0 |
GSF50,VXFA55 RUSSIA SPEC,HEAT BLUE CONTRAST LAYERI,8X1 |
1 | ||
| 69220-50081J1 |
GSF50,VXFA55 RUSSIA SPEC,DEEP BLUE MC.,8X5 |
1 | ||
| 69220-50081D1 |
GSF50,VXFA55 RUSSIA SPEC,SONIC AGATE,3U3 |
1 | ||
| 69220-50081B0 |
GSF50,VXFA55 RUSSIA SPEC,SONIC SILVER,1J2 |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-62010 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-47010 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-50040 |
GSF50,GVF5#,VXFA55 LH |
1 | ||
| 69241-50040 |
GSF50,GVF5#,VXFA55 RH |
1 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-50050 |
GSF50,GVF5#,VXFA55 RH |
1 | ||
| 69242-50050 |
GSF50,GVF5#,VXFA55 LH |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69296C - SCREW, DOOR INSIDE HANDLE | ||||
| 90148-50008 |
GSF50,GVF5#,VXFA55..LHD LH |
1 | ||
| 90148-50003 |
GSF50,GVF5#,VXFA55..LHD RH |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-50030 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-50020 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-50040 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69751J - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69752 - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-50010 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-50050C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 69761-50050D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| 69761-50050E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69761-50050C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 69761-50050E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 69761-50050D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90148-60090 | ||||
| 90148-80066 | ||||
| Linked diagrams | ||||
| 6712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
