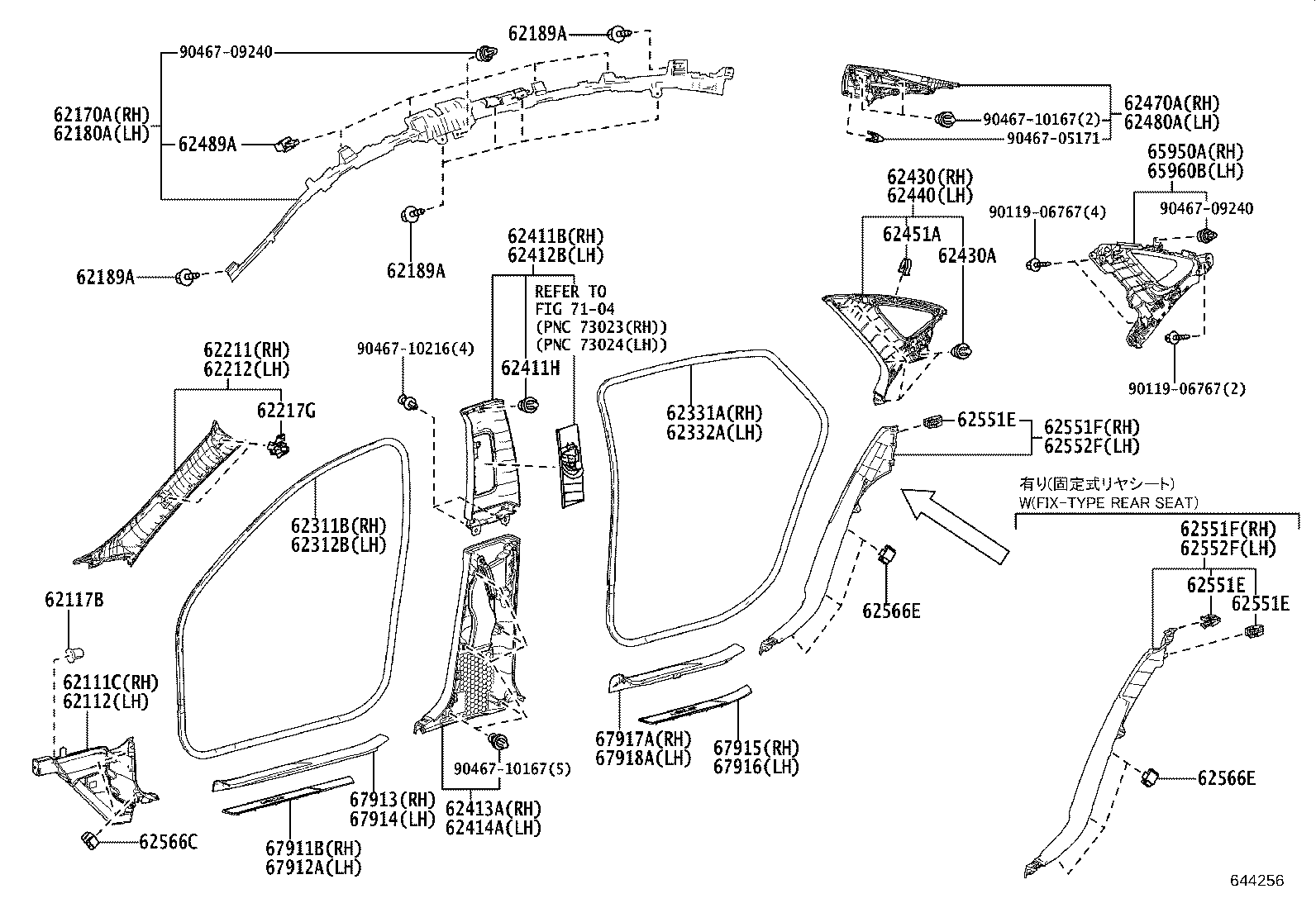

GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series
(1710- )GSF50,VXFA55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-50090C0 |
GSF50,GVF50..LHD BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 62111-50090E1 |
GSF50,GVF50..LHD NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 62111-50090D1 |
GSF50,GVF50..LHD CRIMSON,TRIM30,33 |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-50080D1 |
GSF50,GVF50..LHD CRIMSON,TRIM30,33 |
1 | ||
| 62112-50080C0 |
GSF50,GVF50..LHD BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 62112-50080E1 |
GSF50,GVF50..LHD NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06158C0 |
GSF50,GVF5#,VXFA55 BLACK |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-50070 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 90119-06869 |
GSF50,GVF5#,VXFA55 |
12 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 90119-06869 |
GSF50,GVF5#,VXFA55 |
12 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 90119-06869 |
GSF50,GVF5#,VXFA55 |
12 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-50100A0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62210-50100C1 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62210-50100E0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62210-50100A0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62210-50100E0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62210-50100C1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62210-50100A0 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62210-50090C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62210-50100E0 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62210-50100C1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-50100A0 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62220-50100C1 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62220-50100E0 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62220-50100C1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62220-50100A0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62220-50100E0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62220-50100A0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62220-50100E0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62220-50100C1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62220-50090C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-11010 |
GSF50,GVF5#,VXFA55 |
4 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-50050 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-50060 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62410-50210A0 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62410-50210A0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62410-50210C0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62410-50210A0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62410-50210C0 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62410-50210C0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62410-50210E0 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62410-50210E0 |
GSF50 "VERSION L"*(L),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62410-50200C1 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62410-50210E0 |
GSF50 "EXECUTIVE"*(E),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62411H - CLIP | ||||
| 90467-10188 |
GSF50,GVF5#,VXFA55 |
2 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62420-50210C0 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62420-50210A0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62420-50210E0 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62420-50210A0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62420-50210A0 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62420-50200C1 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62420-50210E0 |
GSF50 "EXECUTIVE"*(E),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62420-50210E0 |
GSF50 "VERSION L"*(L),NOBLE BROWN,TRIM04,05,45,48,49,59,9# |
1 | ||
| 62420-50210C0 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62420-50210C0 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62401-50010E1 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 62401-50010C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 62401-50010D3 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62402-50010C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 62402-50010D3 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 62402-50010E1 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62430-50020A1 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62430-50020A1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62430-50020E1 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62430-50020A1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62430-50010C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62430-50020E1 |
GSF50 "EXECUTIVE"*(E),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62430-50020C1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62430-50020C1 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62430-50020C1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62430-50020E1 |
GSF50 "VERSION L"*(L),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-09232 |
GSF50,GVF5#,VXFA55 COLOR : RED |
8 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62440-50020C1 |
GSF50 "F SPORT"*(F),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62440-50020A1 |
GSF50 "F SPORT"*(F),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62440-50010C2 |
GSF50,GVF5#,VXFA55 BLACK,TRIM2# |
1 | ||
| 62440-50020C1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62440-50020A1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62440-50020E1 |
GSF50 "F SPORT"*(F),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62440-50020A1 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62440-50020E1 |
GSF50 "VERSION L"*(L),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62440-50020C1 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L),BLACK,TRIM06,2#,3#,52,53 |
1 | ||
| 62440-50020E1 |
GSF50 "EXECUTIVE"*(E),NOBLE BROWN,TRIM48,49,9# |
1 | ||
| 62451A - CLIP, SIDE GARNISH | ||||
| 90467-05171 |
GSF50,GVF5#,VXFA55 COLOR : ORANGE |
2 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-50080C2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62470-50080E2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62470-50050C2 |
GSF50,GVF55 BLACK,TRIM2# |
1 | ||
| 62470-50080A2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62470-50080A2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62470-50080A2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62470-50070C3 |
GSF50,GVF55 SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM2# |
1 | ||
| 62470-50080A2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62470-50080C2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62470-50080C2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62470-50080C2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62470-50080C2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62470-50080E2 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62470-50080A2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62470-50080E2 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62470-50080E2 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62470-50080E2 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-50080A2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62480-50080C2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62480-50050C2 |
GSF50,GVF55 BLACK,TRIM2# |
1 | ||
| 62480-50080A2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62480-50080E2 |
GSF50 "F SPORT"*(F)&SUN SHADE-WITH(BACK WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62480-50080A2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62480-50080C2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62480-50080A2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62480-50080E2 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62480-50080A2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),L WHITE,TRIM04,05,1#,45,59 |
1 | ||
| 62480-50070C3 |
GSF50,GVF55 SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM2# |
1 | ||
| 62480-50080E2 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62480-50080E2 |
GSF50 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62480-50080C2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62480-50080C2 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62480-50080C2 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM06,2#,3# |
1 | ||
| 62480-50080E2 |
GSF50 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW),NOBLE BROWN,TRIM48,49,52,53,9# |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 90467-18017 |
GSF50,GVF5#,VXFA55 |
8 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-05172 |
GSF50,GVF5#,VXFA55 COLOR : RED |
4 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,COLOR : RED |
2 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,COLOR : RED |
2 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-05172 |
GSF50,GVF5#,VXFA55 COLOR : RED |
4 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,COLOR : RED |
2 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,COLOR : RED |
2 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-05172 |
GSF50,GVF5#,VXFA55 COLOR : RED |
4 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,COLOR : RED |
2 | ||
| 90467-05172 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,COLOR : RED |
2 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-50170C4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62551-50150C0 |
GSF50,VXFA55 BLACK,TRIM0#,2#,3# |
1 | ||
| 62551-50170C4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62551-50170C5 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/BLACK,TRIM2# |
1 | ||
| 62551-50170C5 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/BLACK,TRIM2# |
1 | ||
| 62551-50170E7 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62551-50170L0 |
GSF50 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62551-50170E9 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62551-50170D4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62551-50170E8 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62551-50170E9 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62551-50170L1 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62551-50170D4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62551-50170L1 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62551-50170E8 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62551-50170E7 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62551-50170L2 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62551-50170L2 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62551-50170L0 |
GSF50 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62551F - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-50170C4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62551-50150C0 |
GSF50,VXFA55 BLACK,TRIM0#,2#,3# |
1 | ||
| 62551-50170C4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62551-50170C5 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/BLACK,TRIM2# |
1 | ||
| 62551-50170C5 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/BLACK,TRIM2# |
1 | ||
| 62551-50170E7 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62551-50170L0 |
GSF50 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62551-50170E9 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62551-50170D4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62551-50170E8 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62551-50170E9 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62551-50170L1 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62551-50170D4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62551-50170L1 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62551-50170E8 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62551-50170E7 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62551-50170L2 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62551-50170L2 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62551-50170L0 |
GSF50 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-50130C0 |
GSF50,VXFA55 BLACK,TRIM0#,2#,3# |
1 | ||
| 62552-50150D4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62552-50150E7 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62552-50150E8 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62552-50150C5 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/BLACK,TRIM2# |
1 | ||
| 62552-50150C5 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/BLACK,TRIM2# |
1 | ||
| 62552-50150E7 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62552-50150D4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62552-50150E8 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62552-50150L0 |
GSF50 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62552-50150E9 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62552-50150C4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62552-50150C4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62552-50150L0 |
GSF50 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62552-50150L1 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62552-50150E9 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62552-50150L1 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62552-50150L2 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62552-50150L2 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62552F - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-50130C0 |
GSF50,VXFA55 BLACK,TRIM0#,2#,3# |
1 | ||
| 62552-50150D4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62552-50150E7 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62552-50150E8 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62552-50150C5 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/BLACK,TRIM2# |
1 | ||
| 62552-50150C5 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/BLACK,TRIM2# |
1 | ||
| 62552-50150E7 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/WHITE,TRIM0# |
1 | ||
| 62552-50150D4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,CRIMSON/BLACK,TRIM3# |
1 | ||
| 62552-50150E8 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/IVORY,TRIM45 |
1 | ||
| 62552-50150L0 |
GSF50 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62552-50150E9 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62552-50150C4 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62552-50150C4 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,BLACK/DK.SADDLE TAN,TRIM52,53 |
1 | ||
| 62552-50150L0 |
GSF50 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/TOPAZ BROWN,TRIM59 |
1 | ||
| 62552-50150L1 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62552-50150E9 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/NOBLE BROWN,TRIM9# |
1 | ||
| 62552-50150L1 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/OCHRE,TRIM48,49 |
1 | ||
| 62552-50150L2 |
GSF50,VXFA55 "VERSION L"*(L)&REAR SEAT ADJUSTER-POWER,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62552-50150L2 |
GSF50,VXFA55 "EXECUTIVE"*(E)&REAR SEAT ADJUSTER-POWER & OTTOMAN,NOBLE BROWN/CHATEAU,TRIM1# |
1 | ||
| 62566C - CLAMP, COWL SIDE TRIM | ||||
| 62566-30010 |
GSF50,GVF5#,VXFA55 |
4 | ||
| 62566E - CLAMP, REAR SEAT SIDE GARNISH | ||||
| 62566-30010 |
GSF50,GVF5#,VXFA55 |
6 | ||
| 62566E - CLAMP, REAR SEAT SIDE GARNISH | ||||
| 62566-30010 |
GSF50,GVF5#,VXFA55 |
6 | ||
| 65950A - CURTAIN ASSY, SIDE WINDOW, REAR RH | ||||
| 65950-50010 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 65950-50010 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 65950-50020 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 65960B - CURTAIN ASSY, SIDE WINDOW, REAR LH | ||||
| 65960-50090 |
GSF50,GVF5#,VXFA55 |
1 | ||
| 65960-50080 |
GSF50,GVF5#,VXFA55 "VERSION L"*(L)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 65960-50080 |
GSF50,GVF5#,VXFA55 "EXECUTIVE"*(E)&SUN SHADE-WITH(BACK & REAR DOOR & QUARTER WINDOW) |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-50010C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67911-50010D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 67911-50010E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-50010E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67912-50010D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 67912-50010C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-50160D1 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| 67913-50160C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67913-50160E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-50160E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67914-50160D1 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| 67914-50160C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-50010C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67915-50010D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 67915-50010E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-50010D0 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,33 |
1 | ||
| 67916-50010E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67916-50010C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-50190E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67917-50190D1 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| 67917-50190C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-50190E0 |
GSF50,GVF5#,VXFA55 NOBLE BROWN,TRIM04,05,1#,4#,59,9# |
1 | ||
| 67918-50190C0 |
GSF50,GVF5#,VXFA55 BLACK,TRIM06,2#,36,52,53 |
1 | ||
| 67918-50190D1 |
GSF50,GVF5#,VXFA55 CRIMSON,TRIM30,32,33 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-05171 | ||||
| 90467-09240 | ||||
| 90467-10167 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
