GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )GSF50

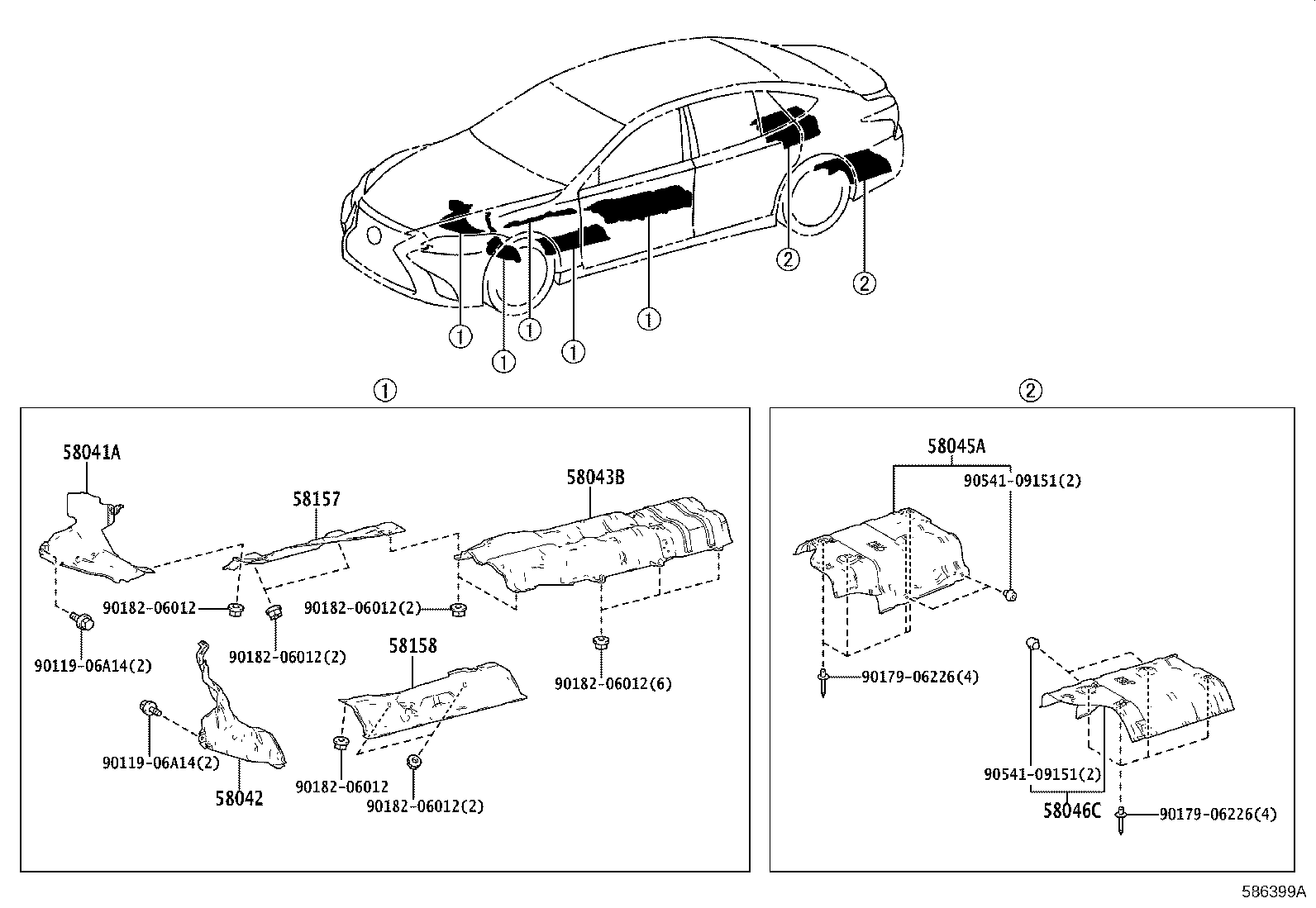

Click highlighted areas on diagram

diagram 58041A 58042 58043B 58045A 58046C 58157 58158 9011906A14 9011906A14 9017906226 9017906226 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9054109151 9054109151
Part # Description Qty Price
58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-50040

GSF50

 1
58041-50041

GSF50

 1
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-50040

GSF50

 1
58043B - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.1
58043-50020

GSF50,GVF50

 1
58045A - INSULATOR SUB-ASSY, REAR FLOOR HEAT
58045-50010

GSF50,GVF5#,VXFA55

 1
58046C - INSULATOR SUB-ASSY, REAR FLOOR HEAT, NO.2
58046-50010

GSF50,GVF5#,VXFA55

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58157-11010

GSF50,GVF5#,VXFA55

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-11010

GSF50,GVF50

 1
Common parts
90119-06A14
90179-06226
90182-06012
90541-09151
