GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )GSF50

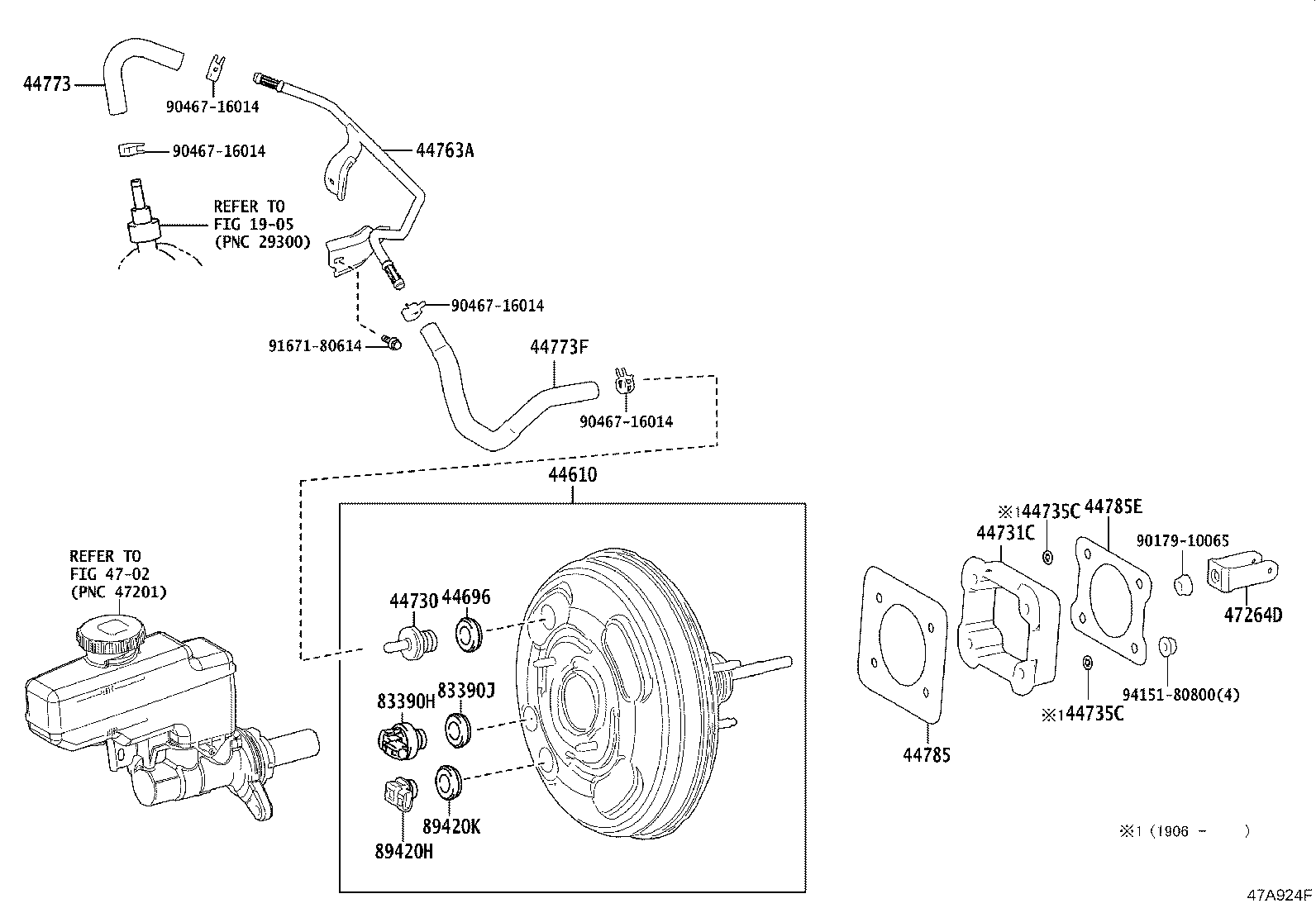

Click highlighted areas on diagram

diagram 1905 44610 44696 44730 44731C 44735C 44735C 44763A 44773 44773F 44785 44785E 4702 47264D 83390H 83390J 89420H 89420K 9017910065 9046716014 9046716014 9046716014 9046716014 9167180614 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-50500

GSF50

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

 1
44610-50490

GSF50

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GSF50,VXFA55

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60070

GSF50,VXFA55

 1
44731C - BRACKET, BRAKE BOOSTER
44731-50030

GSF50,VXFA55

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30020

GSF50

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

 2
44735-30020

GSF50,VXFA55

 2
44735C - RING, BOOSTER BRACKET STOPPER
44735-30020

GSF50

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

 2
44735-30020

GSF50,VXFA55

 2
44763A - TUBE, HOSE TO HOSE, NO.1
44763-50060

GSF50

 1
44773 - HOSE, VACUUM, NO.2
44773-50120

GSF50

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-50110

GSF50

 1
44785 - GASKET, BRAKE BOOSTER
44785-47010

GSF50,VXFA55

 1
44785E - GASKET, BRAKE BOOSTER, NO.2
44785-12040

GSF50,VXFA55

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GSF50,VXFA55

 1
83390H - SWITCH ASSY, VACUUM WARNING
83390-28120

GSF50

 1
83390J - GROMMET, VACUUM WARNING SWITCH
90480-24439

GSF50

 1
89420H - SENSOR ASSY, VACUUM
89421-52020

GSF50,VXFA55

 1
89420K - GROMMET, VACUUM SENSOR
90480-24439

GSF50,VXFA55

 1
Common parts
90179-10065
90467-16014
91671-80614
94151-80800
Linked diagrams
1905
4702
