GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

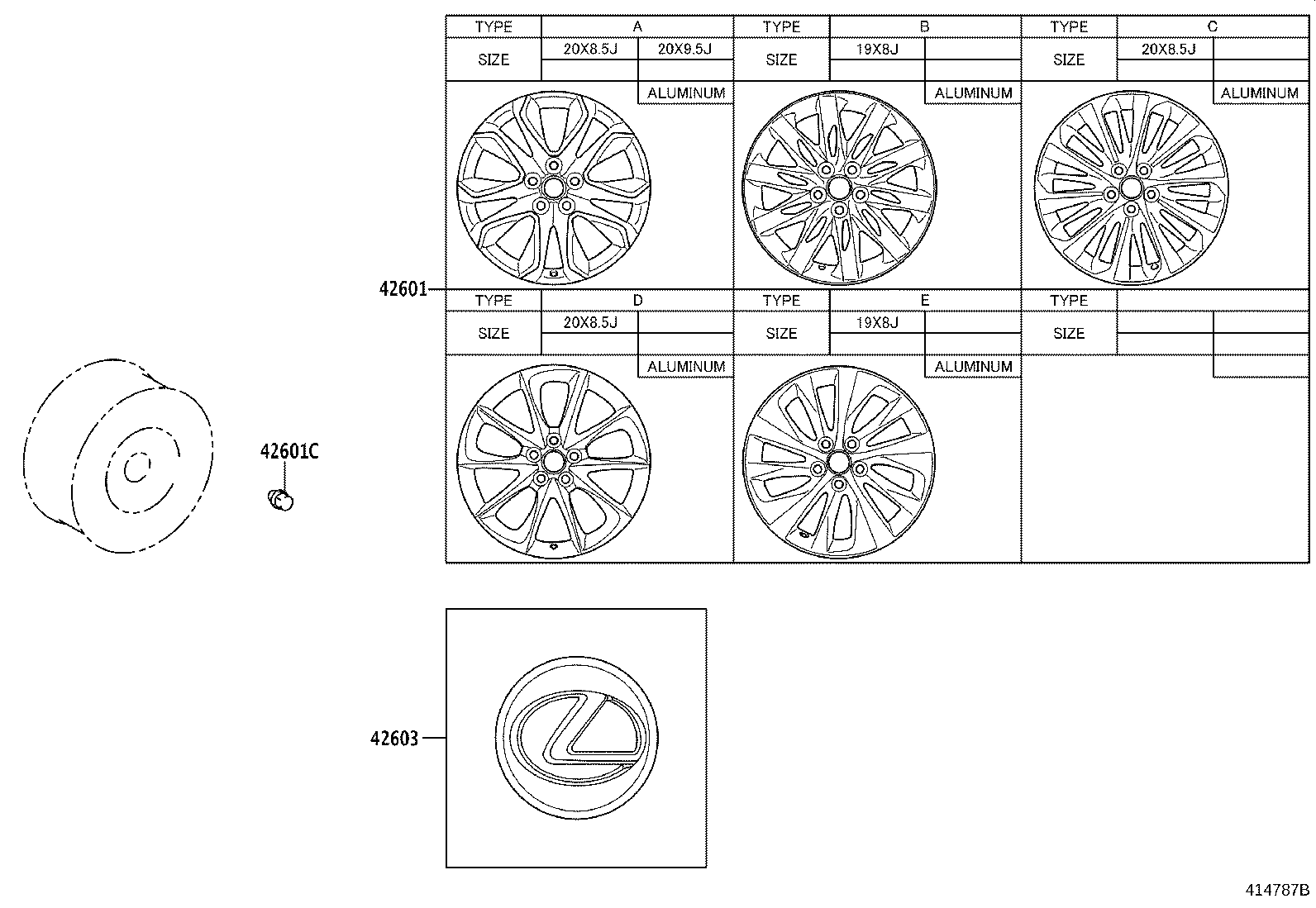

ILLUST NO. 1 OF 2(1710- )

Click highlighted areas on diagram

diagram 42601 42601C 42603
Part # Description Qty Price
42601 - WHEEL, DISC
42611-50670

GSF50,GVF50

19X8J,#,TYPE E:REFER ILLUST.

 4
42611-50790

GSF50,GVF50

20X8.5J,#,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE,TYPE C:REFER ILLUST.

 4
4261A-50280

GSF50

20X8.5J,#,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.

 2
4261A-50240

GSF50,GVF50

19X8J,#,TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE,TYPE B:REFER ILLUST.

 4
4261A-50300

GSF50

20X9.5J,#,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE,TYPE A:REFER ILLUST.

 2
42601C - NUT, HUB (FOR AXLE)
90942-01122

GSF50

TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

 20
90942-01121

GSF50,GVF5#,VXFA55

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-53110

GSF50

*ALU,TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

 4
42603-50380

GSF50,GVF5#,VXFA55

*ALU

 4
42603-50381

GSF50,GVF5#,VXFA55

*ALU

 4

ILLUST NO. 2 OF 2(1710- )

Click highlighted areas on diagram

diagram 04423 04423 42607 42607 42607D 42611U 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-48020

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-48020

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
42611U - CAP, TIRE VALVE
90942-05042

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
42611U - CAP, TIRE VALVE
90942-05042

GSF50,GVF5#,VXFA55

TYPE A:REFER ILLUST.

 4
