GSF50L-AEUGHW (2017)
Toyota Lexus Ls Series
Production
Oct 2017
-
Oct 2020
Engine
8GRFKS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

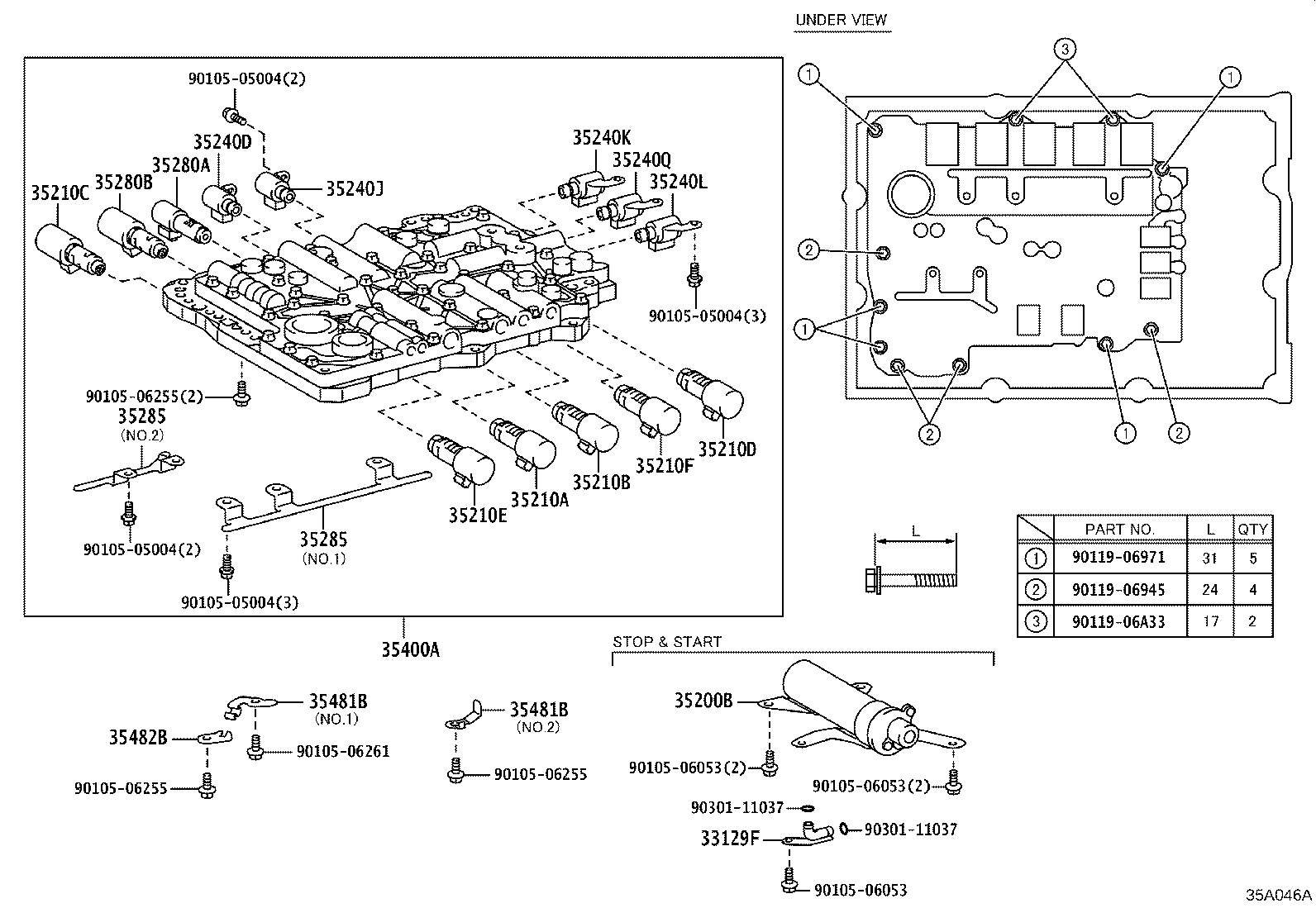

ILLUST NO. 1 OF 2(1710- )GSF50,VXFA55
Click highlighted areas on diagram
AGA0E,AGA0F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33129F - PIPE, TRANSMISSION OIL | ||||
| 33129-50010 |
GSF50,VXFA55 |
1 | ||
| 35200B - ACCUMULATOR ASSY, TRANSMISSION ACTUATOR, W/SOLENOID | ||||
| 35200-50010 |
GSF50,VXFA55 |
1 | ||
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35210F - VALVE, SOLENOID(SL6) | ||||
| 35210-11010 |
GSF50,VXFA55 |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 35240-11030 |
GSF50,VXFA55 |
1 | ||
| 35240J - VALVE, SOLENOID(SR) | ||||
| 35240-11030 |
GSF50,VXFA55 |
1 | ||
| 35240K - SOLENOID ASSY, TRANSMISSION 3WAY(SC1) | ||||
| 35240-11020 |
GSF50,VXFA55 |
1 | ||
| 35240L - SOLENOID ASSY, TRANSMISSION 3WAY(SC2) | ||||
| 35240-11020 |
GSF50,VXFA55 |
1 | ||
| 35240Q - SOLENOID ASSY, TRANSMISSION 3WAY(SC3) | ||||
| 35240-11020 |
GSF50,VXFA55 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-71010 |
GSF50,VXFA55 |
1 | ||
| 35280B - VALVE, SOLENOID(SLT) | ||||
| 35280-11010 |
GSF50,VXFA55 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-11030 |
GSF50,VXFA55 NO.2 |
1 | ||
| 35285-11020 |
GSF50,VXFA55 NO.1 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-11030 |
GSF50,VXFA55 NO.2 |
1 | ||
| 35285-11020 |
GSF50,VXFA55 NO.1 |
1 | ||
| 35400A - BODY ASSY, TRANSMISSION VALVE W/SOLENOID | ||||
| 35410-50150 |
GSF50 |
1 | ||
| 35400-50150 |
GSF50,VXFA55 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50060 |
GSF50,VXFA55 NO.2 |
3 | ||
| 35481-11010 |
GSF50,VXFA55 NO.1 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-50060 |
GSF50,VXFA55 NO.2 |
3 | ||
| 35481-11010 |
GSF50,VXFA55 NO.1 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-50020 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06053 | ||||
| 90105-06255 | ||||
| 90105-06261 | ||||
| 90119-06945 | ||||
| 90119-06971 | ||||
| 90119-06A33 | ||||
| 90301-11037 | ||||

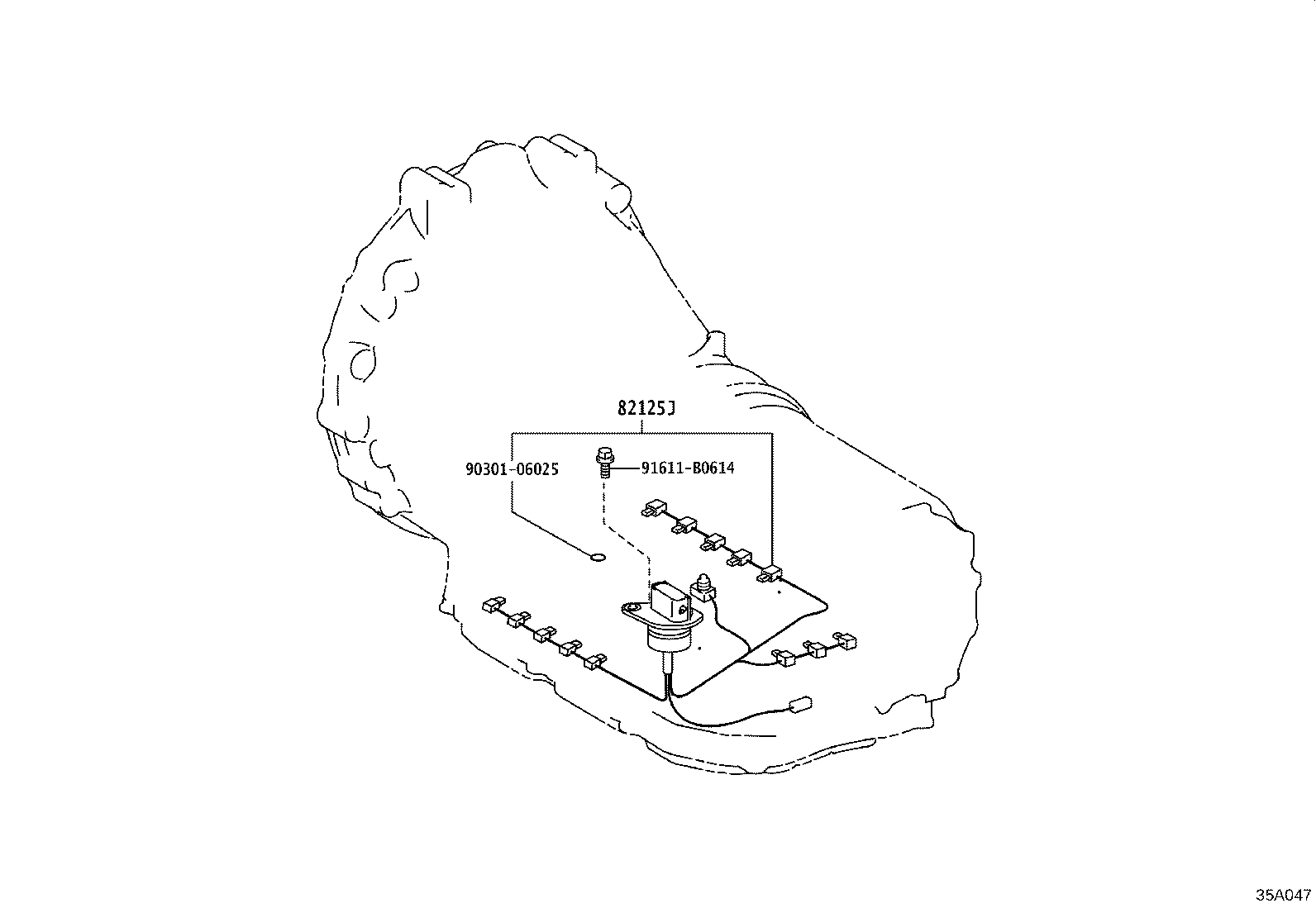

ILLUST NO. 2 OF 2(1710- )GSF50,VXFA55
Click highlighted areas on diagram
AGA0E,AGA0F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-11051 |
GSF50,VXFA55 |
1 | ||
| 82125-11050 |
GSF50,VXFA55 |
1 | ||
| Common parts | ||||
| 90301-06025 | ||||
| 91611-B0614 | ||||
