GSF50L-AEUGHW (2017)

Toyota Lexus Ls Series

Production Oct 2017 - Oct 2020
Engine 8GRFKS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )GSF50,VXFA55

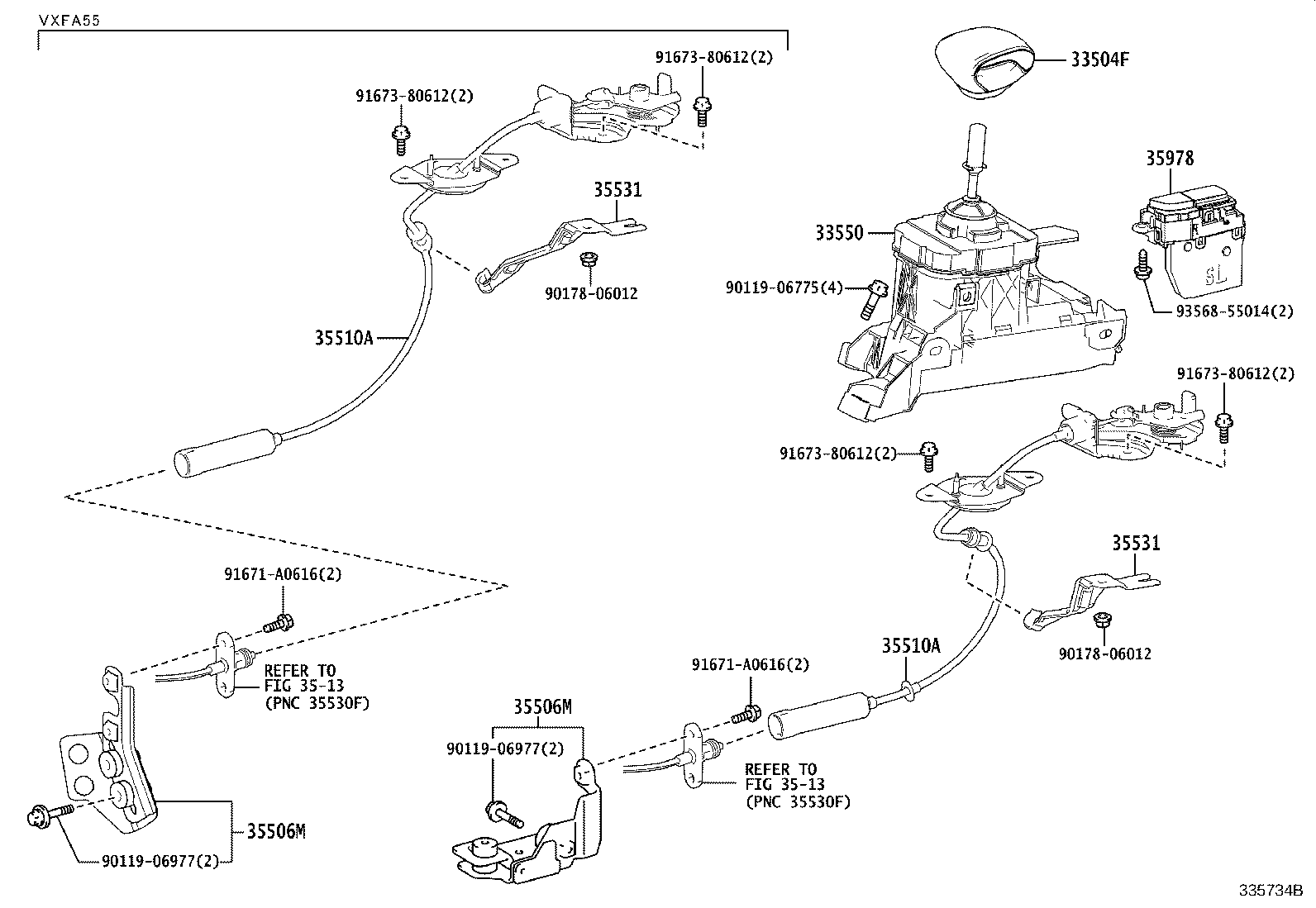

Click highlighted areas on diagram

diagram 33504F 33550 3513 3513 35506M 35506M 35510A 35510A 35531 35531 35978 9011906775 9011906977 9011906977 9017806012 9017806012 91671A0616 91671A0616 9167380612 9167380612 9167380612 9167380612 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-50400C1

GSF50

"F SPORT"*(F),BLACK,TRIM0#,2#,3#

 1
33504-50390C4

GSF50,GVF5#,VXFA55

BLACK,TRIM2#,3#,52,53

 1
33504-50390E4

GSF50,GVF5#,VXFA55

NOBLE BROWN,TRIM0#,1#,4#,59,9#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-50630

GSF50,GVF5#,VXFA55..LHD

 1
35506M - BRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2
35506-50050

GSF50

 1
35506M - BRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2
35506-50050

GSF50

 1
35510A - LEVER ASSY, PARKING LOCK RELEASE
35510-50100

GSF50

 1
35510A - LEVER ASSY, PARKING LOCK RELEASE
35510-50100

GSF50

 1
35531 - BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1
35531-11030

GSF50,GVF50

 1
35531 - BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1
35531-11030

GSF50,GVF50

 1
35978 - INDICATOR, SHIFT POSITION
35978-50180

GSF50,GVF5#,VXFA55..LHD

 1
Common parts
90119-06775
90119-06977
90178-06012
91671-A0616
91673-80612
93568-55014
Linked diagrams
3513
