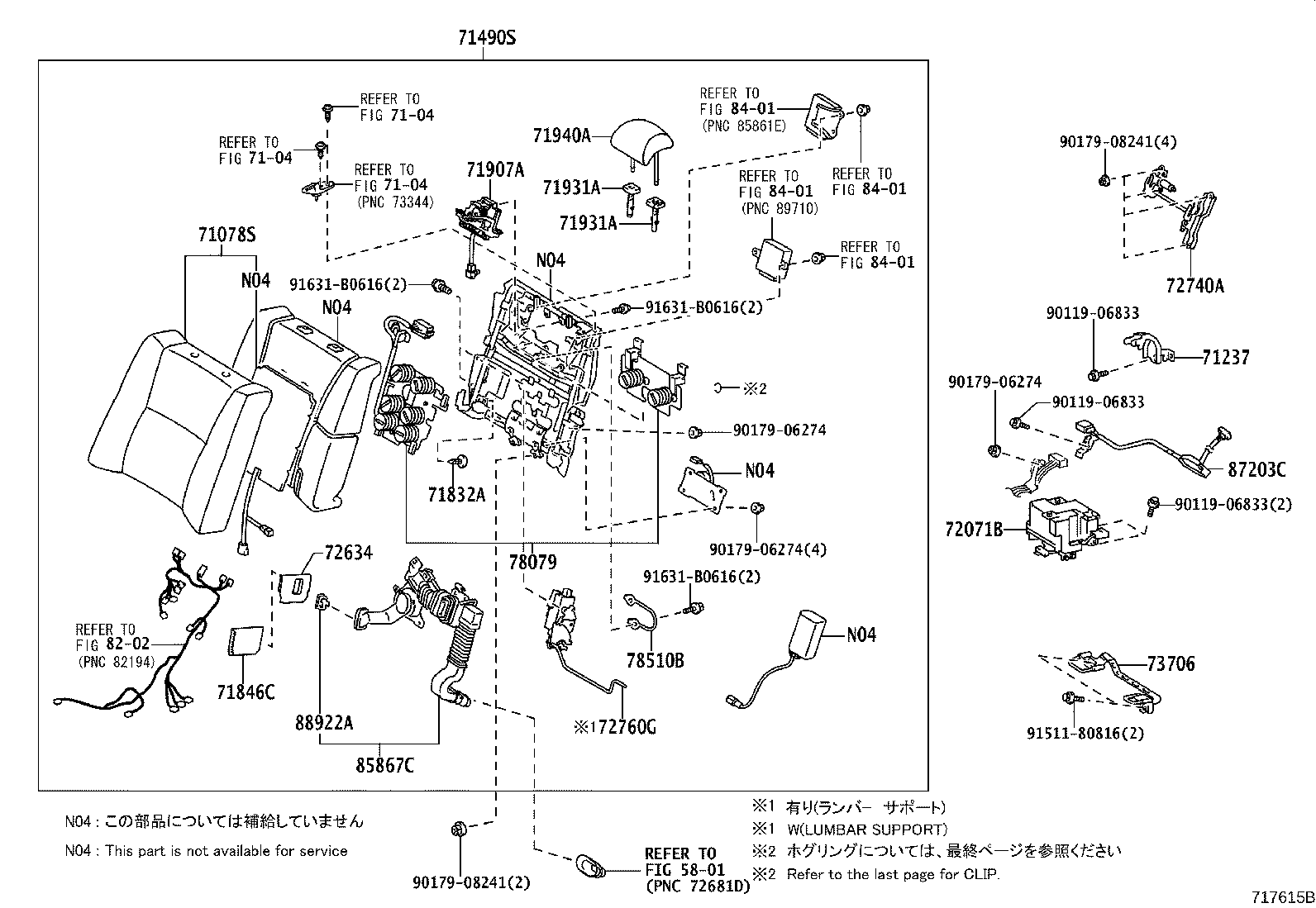

UVF46R-AEXGHW (2009)
Toyota Lexus Ls600h/600hl
(0911- )
POWER SEAT(CENTER):W/O(OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-50010A0 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71097-50010B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71097-50010A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50010C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71097-50200A0 |
UVF4#..RHD MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71097-50200A1 |
UVF4#..RHD IVORY,TRIM00,02,06 |
1 | ||
| 71097-50200A2 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 71097-50200C0 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-50010 |
UVF46 |
1 | ||
| 71031-50010 |
UVF46;UVF45..RHD |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-50010 |
UVF46 |
1 | ||
| 71305-50010 |
UVF46;UVF45..RHD |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-50020 |
UVF46 |
1 | ||
| 71614-50020 |
UVF46;UVF45..RHD |
1 | ||
| 71877D - COVER, REAR SEAT ARMREST HOLE | ||||
| 71877-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71877-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71877-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71877-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71877-50040A1 |
UVF45..RHD;UVF46..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50040A2 |
UVF46;UVF45..RHD IVORY,TRIM02 |
1 | ||
| 71877-50040A3 |
UVF46;UVF45..RHD WATER WHITE,TRIM1# |
1 | ||
| 71877-50040C0 |
UVF46;UVF45..RHD BLACK,TRIM2# |
1 | ||
| 71877-50060A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71877-50060A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50060A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71877-50060A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71877-50060A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50060C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71877-50060C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71877-50060A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71892 - BRACKET, REAR SEAT BACK SET, NO.2 | ||||
| 71892-50010 |
UVF4# |
1 | ||
| 71892-50010 |
UVF4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-50220A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 71960-50220A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50220C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71960-50220B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71960-50230A1 |
UVF4#..RHD MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71960-50230A3 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 71960-50230A4 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 71960-50230C0 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
UVF46 |
1 | ||
| 72693-12080 |
UVF46;UVF45..RHD |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30110C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 72806-30110B2 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 72806-30110A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 72806-30110A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 72806-30110A4 |
UVF4# WATER WHITE,TRIM1# |
1 | ||
| 72806-30110A3 |
UVF4#..EUR IVORY,TRIM00,02,06 |
1 | ||
| 72806-30110A1 |
UVF4#..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 72806-30110A1 |
UVF4#..EUR MELLOW WHITE,TRIM05,07,08 |
1 | ||
| 72806-30110A3 |
UVF4#..EUR IVORY,TRIM02 |
1 | ||
| 72806-30110C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50C50A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72830-50C50C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72830-50C50B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 72830-50C50A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 72830-50D30A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 72830-50D80A2 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D30B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A2 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D80A3 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A3 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80C1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80C1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P1001 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P10A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P10C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P10A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1004 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1005 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P1101 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P1103 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1104 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1105 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P11A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P11A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P11C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50C50A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72830-50C50C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72830-50C50B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 72830-50C50A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 72830-50D30A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 72830-50D80A2 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D30B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A2 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D80A3 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A3 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80C1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80C1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P1001 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P10A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P10C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P10A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1004 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1005 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P1101 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P1103 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1104 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1105 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P11A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P11A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P11C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72833C - PANEL, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72833-50240B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 72833-50240E0 |
UVF46 DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50240E1 |
UVF46 BROWN,TRIM00,2# |
1 | ||
| 72833-50260B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260B0 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260B0 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260E0 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260E0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E0 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,2# |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,10,15,21 |
1 | ||
| 72833-50350B1 |
UVF45..RHD;UVF46..EUR SILVER,TRIM05,1# |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,06,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,06,14 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,10,15,21 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,20 |
1 | ||
| 72833-50280E1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),DK.BROWN,TRIM07 |
1 | ||
| 72833-50280E1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),DK.BROWN,TRIM07 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,20 |
1 | ||
| 72833-50350E1 |
UVF46;UVF45..RHD BROWN,TRIM07 |
1 | ||
| 72833-50350E0 |
UVF46;UVF45..RHD BROWN,TRIM02,2# |
1 | ||
| 72833-50350B0 |
UVF45..RHD;UVF46..EUR GRAY,TRIM08,15 |
1 | ||
| 72833-50350B1 |
UVF45..RHD;UVF46..EUR SILVER,TRIM05,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,14 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,15 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,15 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM02,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM02,2# |
1 | ||
| Common parts | ||||
| 90119-08C20 | ||||
| 90179-08241 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
(0911- )
POWER SEAT(CENTER):W(OTTOMAN:5 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71097-50010A0 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71097-50010B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71097-50010A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50010C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71097-50020A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71097-50020C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71097-50200A0 |
UVF4#..RHD MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71097-50200A1 |
UVF4#..RHD IVORY,TRIM00,02,06 |
1 | ||
| 71097-50200A2 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 71097-50200C0 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 71301S - FRAME SUB-ASSY, CENTER SEAT CUSHION | ||||
| 71031-50010 |
UVF46 |
1 | ||
| 71031-50010 |
UVF46;UVF45..RHD |
1 | ||
| 71305S - FRAME SUB-ASSY, CENTER SEAT BACK | ||||
| 71305-50010 |
UVF46 |
1 | ||
| 71305-50010 |
UVF46;UVF45..RHD |
1 | ||
| 71614 - PAD, REAR SEAT CUSHION, CENTER | ||||
| 71614-50020 |
UVF46 |
1 | ||
| 71614-50020 |
UVF46;UVF45..RHD |
1 | ||
| 71877D - COVER, REAR SEAT ARMREST HOLE | ||||
| 71877-50040A0 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71877-50040B0 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71877-50040A1 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71877-50040C0 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71877-50040A1 |
UVF45..RHD;UVF46..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50040A2 |
UVF46;UVF45..RHD IVORY,TRIM02 |
1 | ||
| 71877-50040A3 |
UVF46;UVF45..RHD WATER WHITE,TRIM1# |
1 | ||
| 71877-50040C0 |
UVF46;UVF45..RHD BLACK,TRIM2# |
1 | ||
| 71877-50060A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71877-50060A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50060A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71877-50060A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71877-50060A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71877-50060C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71877-50060C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71877-50060A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71892 - BRACKET, REAR SEAT BACK SET, NO.2 | ||||
| 71892-50010 |
UVF4# |
1 | ||
| 71892-50010 |
UVF4# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-50220A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 71960-50220A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50220C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71960-50220B0 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71960-50230A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71960-50230B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71960-50230C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71960-50230A1 |
UVF4#..RHD MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71960-50230A3 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 71960-50230A4 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 71960-50230C0 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
UVF46 |
1 | ||
| 72693-12080 |
UVF46;UVF45..RHD |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30110C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 72806-30110B2 |
UVF4# LT.GRAY,TRIM1# |
1 | ||
| 72806-30110A0 |
UVF4# IVORY,TRIM00 |
1 | ||
| 72806-30110A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
1 | ||
| 72806-30110A4 |
UVF4# WATER WHITE,TRIM1# |
1 | ||
| 72806-30110A3 |
UVF4#..EUR IVORY,TRIM00,02,06 |
1 | ||
| 72806-30110A1 |
UVF4#..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 72806-30110A1 |
UVF4#..EUR MELLOW WHITE,TRIM05,07,08 |
1 | ||
| 72806-30110A3 |
UVF4#..EUR IVORY,TRIM02 |
1 | ||
| 72806-30110C0 |
UVF4# BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50C50A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72830-50C50C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72830-50C50B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 72830-50C50A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 72830-50D30A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 72830-50D80A2 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D30B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A2 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D80A3 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A3 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80C1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80C1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P1001 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P10A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P10C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P10A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1004 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1005 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P1101 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P1103 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1104 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1105 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P11A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P11A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P11C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50C50A4 |
UVF46 IVORY,TRIM00 |
1 | ||
| 72830-50C50C2 |
UVF46 BLACK,TRIM2# |
1 | ||
| 72830-50C50B2 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 72830-50C50A5 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 72830-50D30A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D30C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 72830-50D80A2 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D30B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A2 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D80A3 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80A3 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80C1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D90A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 72830-50D80B1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D80C1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 72830-50D90B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50D90C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM1# |
1 | ||
| 72830-50P1001 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P10A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P10C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P10A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P50A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P50A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P1003 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1004 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1005 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5004 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5005 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P1101 |
UVF4#..RHD IVORY,TRIM02 |
1 | ||
| 72830-50P1103 |
UVF4#..RHD WATER WHITE,TRIM14 |
1 | ||
| 72830-50P1104 |
UVF4#..RHD MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P1105 |
UVF4#..RHD WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P11A9 |
UVF4#..RHD MELLOW WHITE,TRIM07 |
1 | ||
| 72830-50P11A8 |
UVF4#..RHD MELLOW WHITE,TRIM05 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P11C2 |
UVF4#..RHD BLACK,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P5101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/BROWN,TRIM02 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P5104 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/GRAY,TRIM08 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/SILVER,TRIM05 |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P5103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/SILVER,TRIM14 |
1 | ||
| 72830-50P51C2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/BROWN,TRIM2# |
1 | ||
| 72830-50P51A9 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/BROWN,TRIM07 |
1 | ||
| 72830-50P5105 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/GRAY,TRIM15 |
1 | ||
| 72833C - PANEL, REAR SEAT CENTER ARMREST, NO.1 | ||||
| 72833-50240B0 |
UVF46 GRAY,TRIM1# |
1 | ||
| 72833-50240E0 |
UVF46 DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50240E1 |
UVF46 BROWN,TRIM00,2# |
1 | ||
| 72833-50260B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260B0 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260B0 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260E0 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),GRAY,TRIM1# |
1 | ||
| 72833-50260E0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E0 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E1 |
UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50260E0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),DK.BROWN,TRIM01,05 |
1 | ||
| 72833-50260E1 |
UVF46 MOON ROOF-WITH&WITH(REAR COOLER),BROWN,TRIM00,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,2# |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,10,15,21 |
1 | ||
| 72833-50350B1 |
UVF45..RHD;UVF46..EUR SILVER,TRIM05,1# |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,06,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,06,14 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,10,15,21 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,20 |
1 | ||
| 72833-50280E1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),DK.BROWN,TRIM07 |
1 | ||
| 72833-50280E1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),DK.BROWN,TRIM07 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM00,01,02,11,20 |
1 | ||
| 72833-50350E1 |
UVF46;UVF45..RHD BROWN,TRIM07 |
1 | ||
| 72833-50350E0 |
UVF46;UVF45..RHD BROWN,TRIM02,2# |
1 | ||
| 72833-50350B0 |
UVF45..RHD;UVF46..EUR GRAY,TRIM08,15 |
1 | ||
| 72833-50350B1 |
UVF45..RHD;UVF46..EUR SILVER,TRIM05,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,14 |
1 | ||
| 72833-50280B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),SILVER,TRIM05,14 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,15 |
1 | ||
| 72833-50280B0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),GRAY,TRIM08,15 |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM02,2# |
1 | ||
| 72833-50280E0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BROWN,TRIM02,2# |
1 | ||
| Common parts | ||||
| 90119-08C20 | ||||
| 90179-08241 | ||||
| 90468-16019 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8606 | ||||
(0911- )
POWER SEAT(SEAT BACK)RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-50A00A8 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71077-50A00A9 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50A10A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71077-50A10A5 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50A10A4 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71077-50A10A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50A00C4 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71077-50A10A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71077-50A00B4 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71077-50A10A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50A10B2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71077-50A10B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71077-50A10C2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71077-50A10C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71077-50A10C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71077-50A10B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-50B00A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71077-50B00A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50B00A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71077-50B00A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71077-50B00C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71077-50B00B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-50B00C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71077-50B00B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71077-50D5001 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50D5002 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50D5003 |
UVF4#..RHD WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50D50C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E0003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E00C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50D5101 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50D5102 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50D5103 |
UVF4#..RHD WATER /STONE,TRIM1# |
1 | ||
| 71077-50D51C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71077-50E0101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71077-50E01C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71077-50E0102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71077-50E0103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-50F60A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F60A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71480-50F60C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71480-50F70A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71480-50F70A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71480-50F70A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F70A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71480-50F60B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71480-50F70A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F70B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71480-50F70A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F70C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71480-50F70B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71480-50F70C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71480-50F70B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71480-50F70C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71480-50F80A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71480-50F80A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F80B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71480-50F80B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71480-50F80C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71480-50F80A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71480-50F80A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71480-50F80C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71480-50P4006 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P4007 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P40C7 |
UVF4#..RHD BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P40P0 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P5007 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P5006 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P50P0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50P50C7 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T70A0 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T70A1 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T70C0 |
UVF4#..RHD BLACK(UMD.BROWN),TRIM2# |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T70B1 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71480-50T80B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71480-50T80C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 BLACK |
2 | ||
| 90467-05161C0 |
UVF46;UVF45..RHD BLACK |
2 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 71845C - CAP, REAR SEAT COVER | ||||
| 71845-50020A1 |
UVF46;UVF45..RHD IVORY,TRIM02 |
1 | ||
| 71845-50020A0 |
UVF45..RHD;UVF46..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71845-50020C0 |
UVF46;UVF45..RHD BLACK,TRIM2# |
1 | ||
| 71845-50020A2 |
UVF46;UVF45..RHD WATER WHITE,TRIM1# |
1 | ||
| 71907A - ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1 | ||||
| 71907-50050 |
UVF46;UVF45..RHD |
2 | ||
| 71907-50050 |
UVF46 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-50490B0 |
UVF4# LT.GRAY,TRIM1# |
2 | ||
| 71940-50490A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50490A0 |
UVF4# NEW IVORY,TRIM00 |
2 | ||
| 71940-50490C0 |
UVF4# BLACK,TRIM2# |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50690A7 |
UVF4#..RHD MELLOW WHITE,TRIM05,07,08 |
2 | ||
| 71940-50690A8 |
UVF4#..RHD IVORY,TRIM02 |
2 | ||
| 71940-50690A9 |
UVF4#..RHD WATER WHITE,TRIM1# |
2 | ||
| 71940-50690C2 |
UVF4#..RHD BLACK,TRIM2# |
2 | ||
| 72633 - BASE, REAR SEAT LOCK, RH | ||||
| 72633-50020 |
UVF46;UVF45..RHD |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-50020 |
UVF46;UVF45..RHD |
1 | ||
| 72730-50020 |
UVF46 |
1 | ||
| 72750G - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-50080 |
UVF46;UVF45..RHD |
1 | ||
| 72750-50130 |
UVF46;UVF45..RHD |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-50021 |
UVF4# |
1 | ||
| 73705-50021 |
UVF4# |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73707-50020 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 73707-50020 |
UVF46 WITH(OTTOMAN:4 SEAT) |
1 | ||
| 73707-50020 |
UVF4# |
2 | ||
| 73707-50020 |
UVF46 WITH(OTTOMAN:5 SEAT) |
1 | ||
| 73707-50020 |
UVF4# |
2 | ||
| 78510B - CABLE ASSY, STOP | ||||
| 78510-50010 |
UVF46 |
2 | ||
| 78510-50010 |
UVF46;UVF45..RHD |
2 | ||
| 85867B - BLOWER, REAR SEAT BACK CLIMATE CONTROL, RH | ||||
| 85803-50020 |
UVF46 |
1 | ||
| 85803-50040 |
UVF46;UVF45..RHD |
1 | ||
| 88922A - FILTER, AIR | ||||
| 88922-50030 |
UVF46;UVF45..RHD |
2 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91511-80816 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(0911- )
POWER SEAT(SEAT BACK)LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-50680A9 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50680A8 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71078-50680B4 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71078-50680C4 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71078-50770A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71078-50770B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71078-50770C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71078-50770C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71078-50770A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50770B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50770A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50770A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71078-50B4001 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4003 |
UVF4#..RHD WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4002 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B40C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B4101 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4102 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B41C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B4103 |
UVF4#..RHD WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-50770B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71490-50770C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71490-50770A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50770A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71490-50800A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50800A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50800A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71490-50800A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71490-50800C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71490-50800B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71490-50800B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71490-50800C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71490-50D3006 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D30P0 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D3007 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D30C7 |
UVF4#..RHD BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G40A0 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G40A1 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G40B1 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G40C0 |
UVF4#..RHD BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 BLACK |
2 | ||
| 90467-05161C0 |
UVF46;UVF45..RHD BLACK |
2 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 71846C - CAP, REAR SEAT BACK BOARD, NO.2 | ||||
| 71846-50020A0 |
UVF45..RHD;UVF46..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50020A1 |
UVF46;UVF45..RHD IVORY,TRIM02 |
1 | ||
| 71846-50020A2 |
UVF46;UVF45..RHD WATER WHITE,TRIM1# |
1 | ||
| 71846-50020C0 |
UVF46;UVF45..RHD BLACK,TRIM2# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 71907A - ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1 | ||||
| 71907-50050 |
UVF46;UVF45..RHD |
2 | ||
| 71907-50050 |
UVF46 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-50490B0 |
UVF4# LT.GRAY,TRIM1# |
2 | ||
| 71940-50490A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50490A0 |
UVF4# NEW IVORY,TRIM00 |
2 | ||
| 71940-50490C0 |
UVF4# BLACK,TRIM2# |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50690A7 |
UVF4#..RHD MELLOW WHITE,TRIM05,07,08 |
2 | ||
| 71940-50690A8 |
UVF4#..RHD IVORY,TRIM02 |
2 | ||
| 71940-50690A9 |
UVF4#..RHD WATER WHITE,TRIM1# |
2 | ||
| 71940-50690C2 |
UVF4#..RHD BLACK,TRIM2# |
2 | ||
| 72634 - BASE, REAR SEAT LOCK, LH | ||||
| 72634-50010 |
UVF46;UVF45..RHD |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-50020 |
UVF46 |
1 | ||
| 72740-50020 |
UVF46;UVF45..RHD |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72740-50030 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72760G - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50070 |
UVF46;UVF45..RHD |
1 | ||
| 72760-50100 |
UVF46;UVF45..RHD |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-50021 |
UVF4# |
1 | ||
| 73706-50040 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 73706-50040 |
UVF46..RHD WITH(OTTOMAN:4 SEAT) |
1 | ||
| 73706-50040 |
UVF46..RHD WITH(OTTOMAN:5 SEAT) |
1 | ||
| 73706-50021 |
UVF4# |
1 | ||
| 73707 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER | ||||
| 73707-50020 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 73707-50020 |
UVF46 WITH(OTTOMAN:4 SEAT) |
1 | ||
| 73707-50020 |
UVF4# |
2 | ||
| 73707-50020 |
UVF46 WITH(OTTOMAN:5 SEAT) |
1 | ||
| 73707-50020 |
UVF4# |
2 | ||
| 78510B - CABLE ASSY, STOP | ||||
| 78510-50010 |
UVF46 |
2 | ||
| 78510-50010 |
UVF46;UVF45..RHD |
2 | ||
| 85867C - BLOWER, REAR SEAT BACK CLIMATE CONTROL, LH | ||||
| 85804-50020 |
UVF46 |
1 | ||
| 85804-50040 |
UVF46;UVF45..RHD |
1 | ||
| 88922A - FILTER, AIR | ||||
| 88922-50030 |
UVF46;UVF45..RHD |
2 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91511-80816 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(0911- )RHD
POWER SEAT(SEAT BACK)LH:W(OTTOMAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-50680A9 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50680A8 |
UVF46 NEW IVORY,TRIM00 |
1 | ||
| 71078-50680B4 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71078-50680C4 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690A5 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50690A4 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690B2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71078-50770A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71078-50770B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50690C2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71078-50770C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71078-50770C2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71078-50770A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50770B2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
1 | ||
| 71078-50770A5 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71078-50770A4 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71078-50B4001 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4003 |
UVF4#..RHD WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4002 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B40C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8001 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8003 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8002 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B80C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B4101 |
UVF4#..RHD MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B4102 |
UVF4#..RHD IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B41C4 |
UVF4#..RHD BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B4103 |
UVF4#..RHD WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8101 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE/ECRU,TRIM05,07,08 |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8102 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY/MD.NEUTRAL BONE,TRIM02 |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B8103 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE/STONE,TRIM1# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71078-50B81C4 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK/MD.GRAY,TRIM2# |
1 | ||
| 71237 - BRACKET, REAR SEAT | ||||
| 87214-50080 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 87214-50110 |
UVF46 WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 87214-50110 |
UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 87214-50110 |
UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-50770B1 |
UVF46 LT.GRAY,TRIM1# |
1 | ||
| 71490-50770C1 |
UVF46 BLACK,TRIM2# |
1 | ||
| 71490-50770A3 |
UVF46 MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50770A2 |
UVF46 IVORY,TRIM00 |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LT.GRAY,TRIM1# |
1 | ||
| 71490-50780A2 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
1 | ||
| 71490-50780A3 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50780B1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LT.GRAY,TRIM1# |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 71490-50800A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50800A3 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
1 | ||
| 71490-50800A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71490-50800A2 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71490-50780C1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
1 | ||
| 71490-50800C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71490-50800B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71490-50800B1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1# |
1 | ||
| 71490-50800C1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
1 | ||
| 71490-50D3006 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D30P0 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D3007 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D30C7 |
UVF4#..RHD BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D7009 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D7010 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70C8 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50D70P2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G40A0 |
UVF4#..RHD IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G40A1 |
UVF4#..RHD MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G40B1 |
UVF4#..RHD WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G40C0 |
UVF4#..RHD BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY(MD.BROWN),TRIM02 |
1 | ||
| 71490-50G50A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE(BROWN),TRIM05,07,08 |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50B1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE(SILVER),TRIM1# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71490-50G50C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK(MD.BROWN),TRIM2# |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK |
3 | ||
| 90467-05161C0 |
UVF46 BLACK |
2 | ||
| 90467-05161C0 |
UVF46;UVF45..RHD BLACK |
2 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK |
3 | ||
| 90467-05161C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK |
3 | ||
| 71846C - CAP, REAR SEAT BACK BOARD, NO.2 | ||||
| 71846-50020A0 |
UVF45..RHD;UVF46..EUR MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50020A1 |
UVF46;UVF45..RHD IVORY,TRIM02 |
1 | ||
| 71846-50020A2 |
UVF46;UVF45..RHD WATER WHITE,TRIM1# |
1 | ||
| 71846-50020C0 |
UVF46;UVF45..RHD BLACK,TRIM2# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM02 |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),IVORY,TRIM02 |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 71846-50030A1 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM02 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030A0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,05,07,08 |
1 | ||
| 71846-50030A2 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),WATER WHITE,TRIM1# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2# |
1 | ||
| 71846-50030C0 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2# |
1 | ||
| 71907A - ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1 | ||||
| 71907-50050 |
UVF46;UVF45..RHD |
2 | ||
| 71907-50050 |
UVF46 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-30040A0 |
UVF46 W/O(LOCK),IVORY,TRIM00 |
4 | ||
| 71931-30040A1 |
UVF46 W/O(LOCK),MELLOW WHITE,TRIM01,05 |
4 | ||
| 71931-30040C0 |
UVF46 W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71931-30040B1 |
UVF46 W/O(LOCK),LT.GRAY,TRIM1# |
4 | ||
| 71931-30040A1 |
UVF45..RHD;UVF46..EUR W/O(LOCK),MELLOW WHITE,TRIM01,05,07,08 |
4 | ||
| 71931-30040A3 |
UVF46;UVF45..RHD W/O(LOCK),WATER WHITE,TRIM1# |
4 | ||
| 71931-30040A2 |
UVF46;UVF45..RHD W/O(LOCK),IVORY,TRIM02 |
4 | ||
| 71931-30040C0 |
UVF46;UVF45..RHD W/O(LOCK),BLACK,TRIM2# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-50490B0 |
UVF4# LT.GRAY,TRIM1# |
2 | ||
| 71940-50490A1 |
UVF4# MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50490A0 |
UVF4# NEW IVORY,TRIM00 |
2 | ||
| 71940-50490C0 |
UVF4# BLACK,TRIM2# |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500A0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,IVORY,TRIM00 |
2 | ||
| 71940-50500A1 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500A1 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05 |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH,BLACK,TRIM2# |
2 | ||
| 71940-50500B0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LIGHT GRAY,TRIM1# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2# |
2 | ||
| 71940-50500C0 |
UVF46 INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 71940-50690A7 |
UVF4#..RHD MELLOW WHITE,TRIM05,07,08 |
2 | ||
| 71940-50690A8 |
UVF4#..RHD IVORY,TRIM02 |
2 | ||
| 71940-50690A9 |
UVF4#..RHD WATER WHITE,TRIM1# |
2 | ||
| 71940-50690C2 |
UVF4#..RHD BLACK,TRIM2# |
2 | ||
| 72071B - PUMP SUB-ASSY, LUMBER SUPPORT | ||||
| 72071-50020 |
UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 72071-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72071-50020 |
UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72071-50020 |
UVF46 WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72634 - BASE, REAR SEAT LOCK, LH | ||||
| 72634-50010 |
UVF46;UVF45..RHD |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72634-50020 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-50020 |
UVF46 |
1 | ||
| 72740-50020 |
UVF46;UVF45..RHD |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 72740-50030 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 72740-50080 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 72760G - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-50070 |
UVF46;UVF45..RHD |
1 | ||
| 72760-50100 |
UVF46;UVF45..RHD |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-50021 |
UVF4# |
1 | ||
| 73706-50040 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 73706-50040 |
UVF46..RHD WITH(OTTOMAN:4 SEAT) |
1 | ||
| 73706-50040 |
UVF46..RHD WITH(OTTOMAN:5 SEAT) |
1 | ||
| 73706-50021 |
UVF4# |
1 | ||
| 78079 - PLATE SUB-ASSY, SUB SEAT BACK | ||||
| 78079-50010C0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE,BLACK,TRIM2# |
1 | ||
| 78079-50010A0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE,IVORY,TRIM00 |
1 | ||
| 78079-50010A1 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE,MELLOW WHITE,TRIM01,05 |
1 | ||
| 78079-50060 |
UVF46..RHD WITH(OTTOMAN:4 SEAT) |
1 | ||
| 78079-50010B0 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE,LT.GRAY,TRIM1# |
1 | ||
| 78079-50060 |
UVF46..RHD WITH(OTTOMAN:5 SEAT) |
1 | ||
| 78510B - CABLE ASSY, STOP | ||||
| 78510-50010 |
UVF46 |
2 | ||
| 78510-50010 |
UVF46;UVF45..RHD |
2 | ||
| 85867C - BLOWER, REAR SEAT BACK CLIMATE CONTROL, LH | ||||
| 85804-50020 |
UVF46 |
1 | ||
| 85804-50040 |
UVF46;UVF45..RHD |
1 | ||
| 87203C - DUCT, SUB-ASSY AIR, REAR, LH | ||||
| 87203-50030 |
UVF46..RHD WITH (OTTOMAN)&INTERIOR PACKAGE |
1 | ||
| 87203-50050 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
1 | ||
| 87203-50050 |
UVF46..RHD WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V) |
1 | ||
| 87203-50050 |
UVF46..RHD WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
1 | ||
| 88922A - FILTER, AIR | ||||
| 88922-50030 |
UVF46;UVF45..RHD |
2 | ||
| Common parts | ||||
| 90119-06833 | ||||
| 90179-06274 | ||||
| 90179-08241 | ||||
| 91511-80816 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
