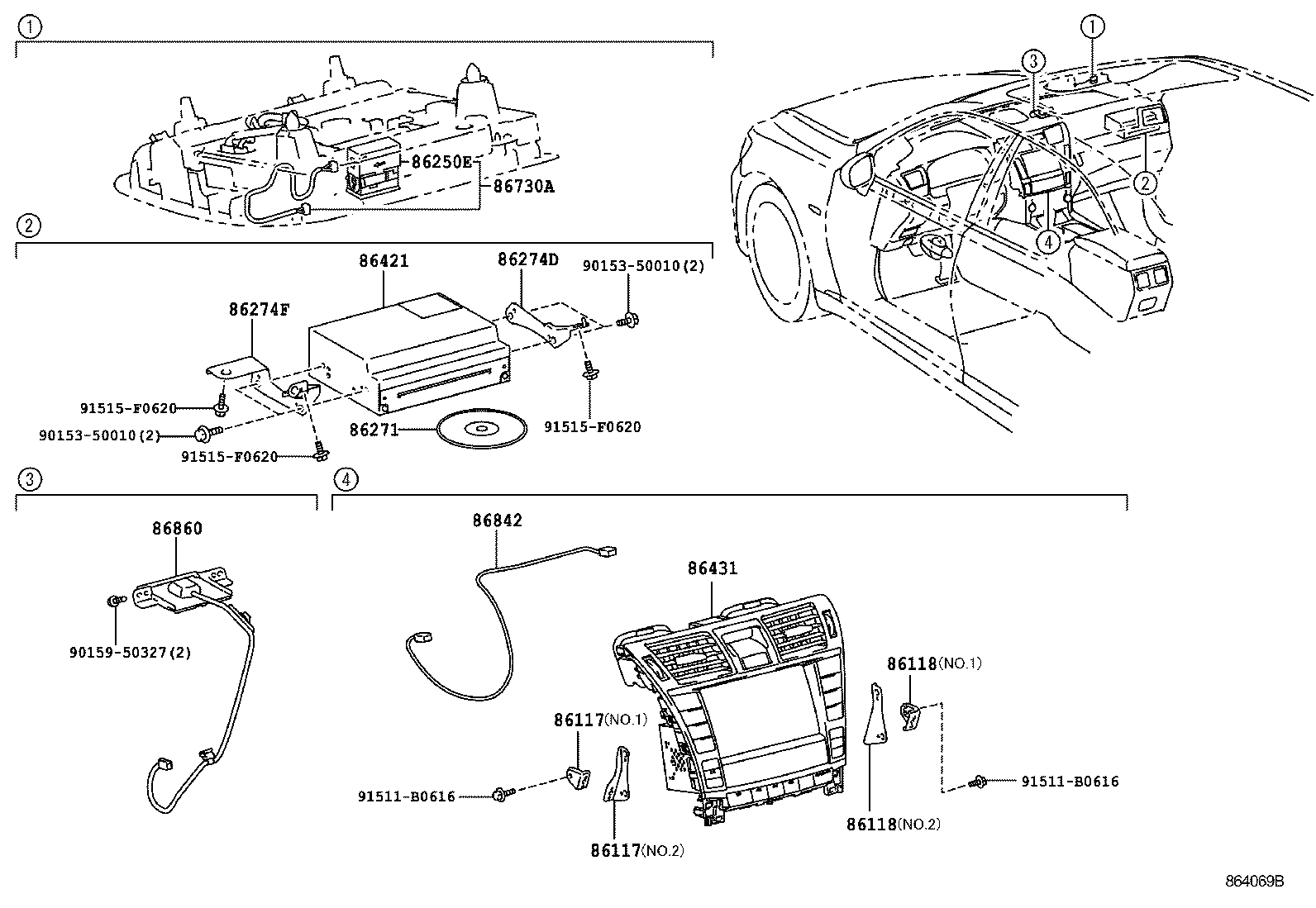

Toyota Lexus ls600h/600hl UVF46 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-50100	UVF46..GCC NO.1	11/2009 - 09/2012	1
86117-50140	UVF46..GCC NO.2	11/2009 - 09/2012	1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-50100	UVF46..GCC NO.1	11/2009 - 09/2012	1
86117-50140	UVF46..GCC NO.2	11/2009 - 09/2012	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-50040	UVF46..GCC NO.1	11/2009 - 09/2012	1
86118-50050	UVF46..GCC NO.2	11/2009 - 09/2012	1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-50040	UVF46..GCC NO.1	11/2009 - 09/2012	1
86118-50050	UVF46..GCC NO.2	11/2009 - 09/2012	1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52030	UVF4#..LHD	11/2009 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-53031	UVF4#	04/2007 - 08/2007	1
86807-0W022	UVF46..LHD BEIJING SPEC	04/2007 - 07/2007	1
86271-53031	UVF46..LHD RUSSIA SPEC	04/2007 - 08/2007	1
86271-53031	UVF46..LHD SOUTH AMERICA SPEC	04/2007 - 08/2007	1
86807-0W022	UVF46..LHD CHINA(EXCEPT BEIJING) SPEC	04/2007 - 07/2007	1
86271-53031	UVF45;UVF46..LHD EMV & NAVIGATION SYSTEM-W(EMV)	04/2007 - 08/2007	1
86271-53031	UVF46..LHD ISRAEL SPEC	04/2007 - 08/2007	1
86271-48092	UVF46..GCC	11/2009 - 07/2010	1
86271-48093	UVF46..GCC	08/2010 - 07/2011	1
86807-0W031	UVF46..LHD FORMOSA SPEC	04/2007 - 09/2007	1
86271-48181	UVF46..GCC	07/2011 - 06/2012	1
86271-48182	UVF46..GCC	07/2012 - 09/2012	1
86274D - BRACKET, DISC PLAYER
86274-50220	UVF4#..LHD	04/2007 - 09/2008	1
86274-50220	UVF46..LHD RUSSIA SPEC	04/2007 - 09/2008	1
86274-50220	UVF46..GCC	11/2009 - 12/2999	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-50230	UVF46..LHD RUSSIA SPEC	04/2007 - 09/2008	1
86274-50230	UVF4#..LHD	04/2007 - 09/2008	1
86274-50230	UVF46..GCC	11/2009 - 12/2999	1
86421 - BOARD, NAVIGATION MODULE
86421-33020	UVF46..LHD BEIJING SPEC	04/2007 - 09/2008	1
86421-53030	UVF46..LHD RUSSIA SPEC	04/2007 - 09/2008	1
86421-33020	UVF46..LHD CHINA(EXCEPT BEIJING) SPEC	04/2007 - 09/2008	1
86421-53030	UVF46..LHD ISRAEL SPEC	04/2007 - 09/2008	1
86421-33030	UVF46..LHD FORMOSA SPEC	04/2007 - 09/2008	1
86421-53030	UVF46..LHD SOUTH AMERICA SPEC	04/2007 - 09/2008	1
86421-53030	UVF4#	04/2007 - 09/2008	1
86421-48010	UVF46..GCC	11/2009 - 09/2012	1
86421-53030	UVF45;UVF46..LHD EMV & NAVIGATION SYSTEM-W(EMV)	04/2007 - 09/2008	1
86431 - DISPLAY, DISPLAY & NAVIGATION MODULE
86431-50560	UVF46..GCC FUJITSU TEN	11/2009 - 05/2012	1
86431-50561	UVF46..GCC FUJITSU TEN	06/2012 - 09/2012	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48040	UVF4#..LHD	11/2009 - 09/2012	1
86730-50060	UVF4#..LHD	04/2007 - 09/2008	1
86842 - WIRE, NAVIGATION, NO.1
86842-50610	UVF46..GCC	11/2009 - 09/2012	1
86860 - ANTENNA ASSY, NAVIGATION
86860-50100	UVF46..LHD RUSSIA SPEC	04/2007 - 09/2008	1
86860-50100	UVF4#..LHD	04/2007 - 09/2008	1
86860-50090	UVF4#	11/2009 - 12/2999	1
Common parts
90153-50010
90159-50327
91511-B0616
91515-F0620

UVF46L-AEXGHV (2009)

(0911- )LHD

(1209-1410)LHD

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90099-00262
90159-50327
90467-10201
91511-B0616
93315-13008
Linked diagrams
8601
