UVF45R-AEXGHW (2009)

Toyota Lexus Ls600h/600hl

Production Nov 2009 - Sep 2012
Engine 2URFSE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0911- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87030E 87030F 87030G 87030G 87103D 88501R 88515B 88539K 8856921010 8856921010 88578W 88578W 88578W 88578W 88625A 88710B 88710H 88710L 8871850650 8871850660 88891S 88926F 88931A 9009900264 9009900968 9009904492 9009904542 9011906833 9011906833 9017906274 9017906274 9017906274 9046804177 9048026030 91551A0625
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-50100

UVF4#

WITH(REAR COOLER)

 1
82212-50140

UVF45..RHD

W/O(REAR POWER SEAT)

 1
82212-50150

UVF46;UVF45..RHD

 1
87030A - UNIT ASSY, COOLING, REAR
87030-50050

UVF45

WITH(REAR POWER SEAT)&WITH(REAR COOLER)

 1
87030-50150

UVF46;UVF45..RHD

 1
87030-50151

UVF46;UVF45..RHD

 1
87030-50160

UVF45..RHD

W/O(REAR POWER SEAT)

 1
87030-50070

UVF4#

 1
87030-50161

UVF45..RHD

W/O(REAR POWER SEAT)

 1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-50520

UVF46;UVF45..RHD

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-50530

UVF4#

 1
87030G - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.3
87106-50540

UVF46;UVF45..RHD

 2
87030G - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.3
87106-50540

UVF46;UVF45..RHD

 2
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-50120

UVF4#

 1
87103-50130

UVF4#

 1
87103-50131

UVF4#

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-50270

UVF4#

 1
88501-50300

UVF4#

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-30740

UVF4#

 1
88515-30740

UVF4#

 1
88539K - HOSE, DRAIN COOLER
88539-50130

UVF4#

 1
88539-50170

UVF4#

 1
88539-50160

UVF4#

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88625A - THERMISTOR, COOLER NO.2
88620-50010

UVF4#

 1
88625-60190

UVF4#

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-50A30

UVF4#

 1
88710-50870

UVF4#

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-50A20

UVF4#

 1
88710-50850

UVF4#

 1
88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-50A10

UVF4#

 1
88891S - COVER, COOLER, NO.1
88891-50080

UVF45

WITH(REAR POWER SEAT)&WITH(REAR COOLER)

 1
88891-50110

UVF46;UVF45..RHD

 1
88926F - FILTER, REAR COOLER
87139-50090

UVF46;UVF45..RHD

 1
87139-50050

UVF45

WITH(REAR POWER SEAT)&WITH(REAR COOLER)

 1
88931A - SENSOR, SMOKE
88931-50040

UVF46;UVF45..RHD

 1
88931-50040

UVF45

WITH(REAR POWER SEAT)&WITH(REAR COOLER)

 1
Common parts
88569-21010
88718-50650
88718-50660
90099-00264
90099-00968
90099-04492
90099-04542
90119-06833
90179-06274
90468-04177
90480-26030
91551-A0625

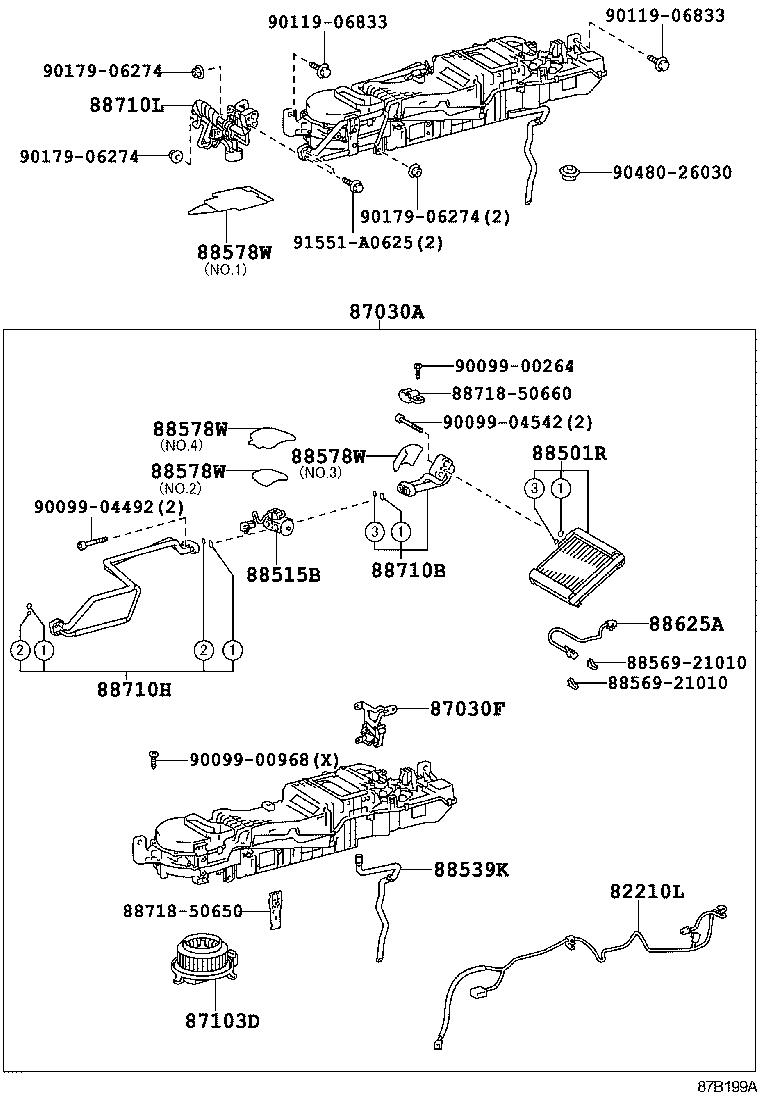

ILLUST NO. 2 OF 3(0911- )UVF45

Click highlighted areas on diagram

REAR : BATTERY COOLER

diagram 82210L 87030A 87030F 87103D 88501R 88515B 88539K 8856921010 8856921010 88578W 88578W 88578W 88578W 88625A 88710B 88710H 88710L 8871850650 8871850660 9009900264 9009900968 9009904492 9009904542 9011906833 9011906833 9017906274 9017906274 9017906274 9048026030 91551A0625
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-50100

UVF4#

WITH(REAR COOLER)

 1
82212-50140

UVF45..RHD

W/O(REAR POWER SEAT)

 1
82212-50150

UVF46;UVF45..RHD

 1
87030A - UNIT ASSY, COOLING, REAR
87030-50050

UVF45

WITH(REAR POWER SEAT)&WITH(REAR COOLER)

 1
87030-50150

UVF46;UVF45..RHD

 1
87030-50151

UVF46;UVF45..RHD

 1
87030-50160

UVF45..RHD

W/O(REAR POWER SEAT)

 1
87030-50070

UVF4#

 1
87030-50161

UVF45..RHD

W/O(REAR POWER SEAT)

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-50530

UVF4#

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-50120

UVF4#

 1
87103-50130

UVF4#

 1
87103-50131

UVF4#

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-50270

UVF4#

 1
88501-50300

UVF4#

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-30740

UVF4#

 1
88515-30740

UVF4#

 1
88539K - HOSE, DRAIN COOLER
88539-50130

UVF4#

 1
88539-50170

UVF4#

 1
88539-50160

UVF4#

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88578W - PACKING, COOLING UNIT, NO.4
88578-30840

UVF4#

NO.2

 2
88578-50270

UVF4#

NO.1

 1
88578-50270

UVF4#

NO.2

 1
88578-50310

UVF4#

NO.4

 1
88578-50290

UVF4#

NO.1

 1
88578-50300

UVF4#

NO.3

 1
88625A - THERMISTOR, COOLER NO.2
88620-50010

UVF4#

 1
88625-60190

UVF4#

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-50A30

UVF4#

 1
88710-50870

UVF4#

 1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-50A20

UVF4#

 1
88710-50850

UVF4#

 1
88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-50A10

UVF4#

 1
Common parts
88569-21010
88718-50650
88718-50660
90099-00264
90099-00968
90099-04492
90099-04542
90119-06833
90179-06274
90480-26030
91551-A0625
