UVF45R-AEXGHW (2008)
Toyota Lexus Ls600h/600hl
ILLUST NO. 1 OF12(0704- )RHD

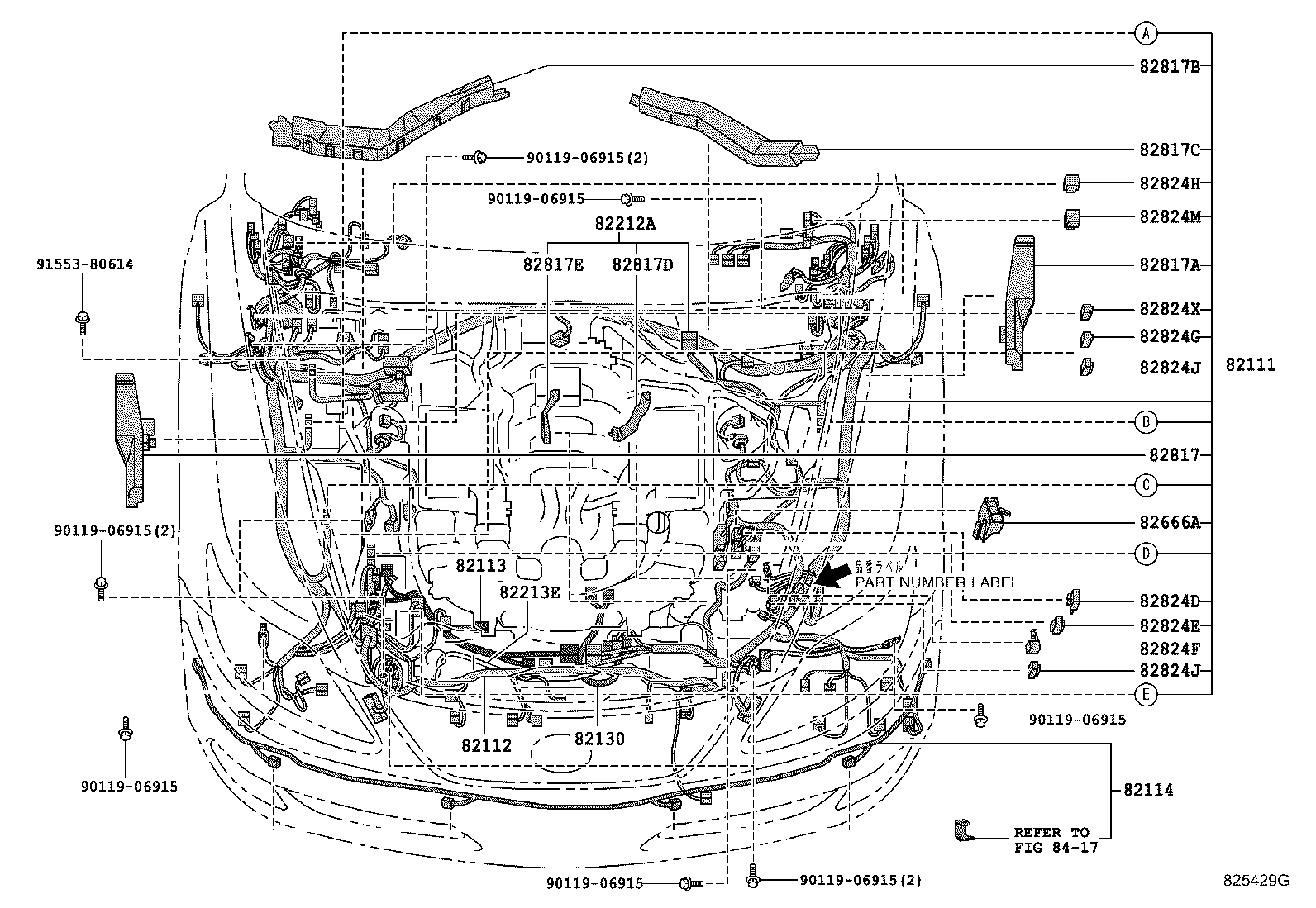

ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-50J70 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82111-50J50 |
UVF4#..RHD |
1 | ||
| 82111-50J71 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82111-50J51 |
UVF4#..RHD |
1 | ||
| 82111-50J50 |
UVF4#..RHD PART NUMBER LABEL=82111-50J50 |
1 | ||
| 82111-50J70 |
UVF45..RHD PART NUMBER LABEL=82111-50J70 |
1 | ||
| 82111-50J51 |
UVF4#..RHD PART NUMBER LABEL=82111-50J51 |
1 | ||
| 82111-50J71 |
UVF45..RHD PART NUMBER LABEL=82111-50J71 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-50150 |
UVF4#..RHD HEADLAMP-LED & HALOGEN & *AFLS |
1 | ||
| 82112-50180 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&HEADLAMP-LED & HALOGEN & *AFLS & INFRARED |
1 | ||
| 82112-50170 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PB) |
1 | ||
| 82112-50140 |
UVF4#..RHD |
1 | ||
| 82112-50180 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&HEADLAMP-DISCHARGE & HALOGEN& *AFLS & INFRARED |
1 | ||
| 82112-50171 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PB) |
1 | ||
| 82112-50151 |
UVF4#..RHD HEADLAMP-LED & HALOGEN & *AFLS |
1 | ||
| 82112-50141 |
UVF4#..RHD |
1 | ||
| 82112-50180 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PB)&HEADLAMP-LED & HALOGEN & *AFLS |
1 | ||
| 82112-50181 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*PSB & *PB)&HEADLAMP-LED & HALOGEN & *AFLS |
1 | ||
| 82112-50181 |
UVF4#..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&HEADLAMP-LED & HALOGEN & *AFLS & INFRARED |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-50060 |
UVF4#..RHD |
1 | ||
| 82113-50060 |
UVF4#..RHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-50010 |
UVF4# |
1 | ||
| 82114-50011 |
UVF4# |
1 | ||
| 82114-50021 |
UVF4# BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82114-50020 |
UVF4# BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 82130-50040 |
UVF4#..RHD |
1 | ||
| 82130-50040 |
UVF4#..RHD |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 82212-50080 |
UVF4#..RHD |
1 | ||
| 82212-50080 |
UVF4#..RHD |
1 | ||
| 82213E - WIRE, HEATER BLOWER | ||||
| 82213-50040 |
UVF4#..RHD |
1 | ||
| 82213-50040 |
UVF4#..RHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-50570 |
UVF4# |
1 | ||
| 82666-50570 |
UVF4# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-50B30 |
UVF4# |
1 | ||
| 82817-50B30 |
UVF4# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-50D40 |
UVF4# |
1 | ||
| 82817-50D40 |
UVF4# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-50E70 |
UVF4#..RHD |
1 | ||
| 82817-50E70 |
UVF4#..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-50C20 |
UVF4#..RHD |
1 | ||
| 82817-50C20 |
UVF4#..RHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50F50 |
UVF4#..RHD |
1 | ||
| 82817-50F50 |
UVF4#..RHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50J90 |
UVF4#..RHD |
1 | ||
| 82817-50J90 |
UVF4#..RHD |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
UVF4# |
1 | ||
| 82824-30130 |
UVF4# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30170 |
UVF4# |
1 | ||
| 82824-30170 |
UVF4# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48020 |
UVF4# |
1 | ||
| 82824-48020 |
UVF4# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50110 |
UVF4# |
1 | ||
| 82824-50110 |
UVF4# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# |
2 | ||
| 82824-50350 |
UVF4# |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# |
2 | ||
| 82824-52280 |
UVF4# |
2 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# |
2 | ||
| 82824-52280 |
UVF4# |
2 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-52290 |
UVF4# |
1 | ||
| 82824-52290 |
UVF4# |
1 | ||
| 82824X - CONNECTOR, WIRING HARNESS | ||||
| 82824-50300 |
UVF4# |
1 | ||
| 82824-50300 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 1 OF12(0704- )RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF12(0704- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-50581 |
UVF4# |
1 | ||
| 82121-50580 |
UVF4# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-50080 |
UVF4# |
1 | ||
| 82125-50080 |
UVF4# |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34010 |
UVF4# |
1 | ||
| 82126-34011 |
UVF4# |
1 | ||
| 82126-34021 |
UVF4# |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82127-34030 |
UVF4# |
1 | ||
| 82127-34050 |
UVF4# |
1 | ||
| 82127-34041 |
UVF4# |
1 | ||
| 82127-34031 |
UVF4# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-50D60 |
UVF4# |
1 | ||
| 82817-50D60 |
UVF4# |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-50K00 |
UVF4# |
1 | ||
| 82817-50K00 |
UVF4# |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| 82824-52280 |
UVF4# NO.2 |
1 | ||
| 82824-30290 |
UVF4# NO.1 |
3 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91553-A0614 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 7 OF12(0704-0911)RHD
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-50060 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82164-50050 |
UVF45..RHD |
1 | ||
| 82164-50051 |
UVF45..RHD |
1 | ||
| 82164-50061 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-50010 |
UVF4# |
1 | ||
| 82165-50010 |
UVF4# |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30040 |
UVF4# |
1 | ||
| 82284-30040 |
UVF4# |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-50200 |
UVF4# |
1 | ||
| 82662-50200 |
UVF4# |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-50730 |
UVF4# |
1 | ||
| 82666-50730 |
UVF4# |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F40 |
UVF4# NO.3 |
1 | ||
| 82817-50K90 |
UVF4# NO.3 |
1 | ||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F40 |
UVF4# NO.3 |
1 | ||
| 82817-50K90 |
UVF4# NO.3 |
1 | ||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F40 |
UVF4# NO.3 |
1 | ||
| 82817-50K90 |
UVF4# NO.3 |
1 | ||
| 82817-50F30 |
UVF4# NO.2 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| 82817-50F20 |
UVF45 NO.1 |
1 | ||
| Common parts | ||||
| 82712-50370 | ||||
| 90119-06407 | ||||
| 90119-06915 | ||||
| 90176-06045 | ||||
| 90178-06008 | ||||
| 90178-06012 | ||||
| 90179-06274 | ||||
| 90980-09805 | ||||
| 91511-B0614 | ||||
| 91626-A0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

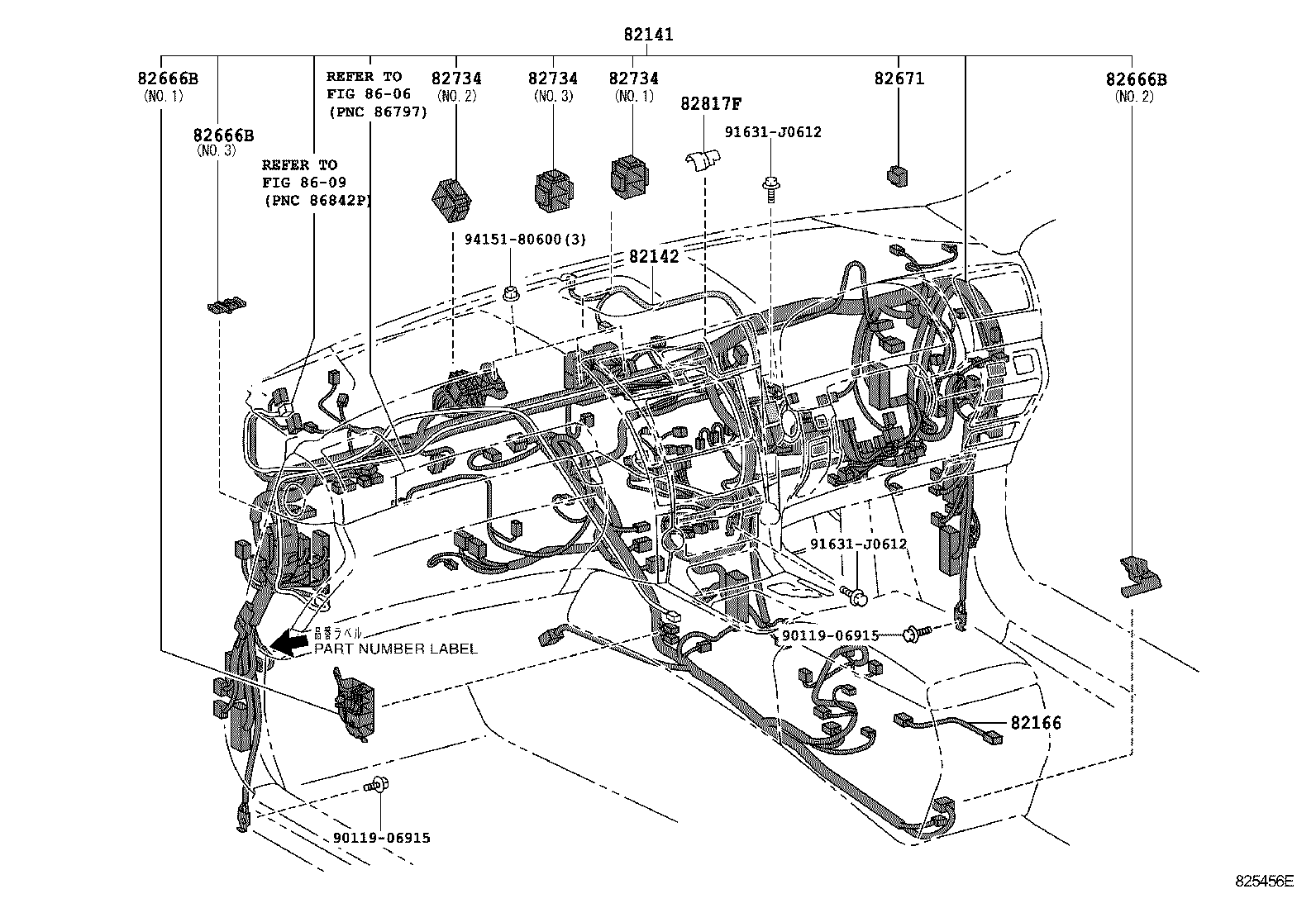

ILLUST NO. 3 OF12(0704-0911)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-50K80 |
UVF4#..RHD |
1 | ||
| 82141-50K82 |
UVF4#..RHD |
1 | ||
| 82141-50K80 |
UVF4#..RHD PART NUMBER LABEL=82141-50K80 |
1 | ||
| 82141-50K82 |
UVF4#..RHD PART NUMBER LABEL=82141-50K82 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-50010 |
UVF4# |
1 | ||
| 82142-50020 |
UVF4# INTERIOR PACKAGE |
1 | ||
| 82142-50021 |
UVF4# INSTRUMENT FINISH PANEL-LEATHER(UPPER&LOWER&DOOR) |
1 | ||
| 82142-50011 |
UVF4# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30160 |
UVF4# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-50630 |
UVF4# NO.2 |
1 | ||
| 82666-50580 |
UVF4# NO.1 |
1 | ||
| 82666-60220 |
UVF4#..RHD NO.3 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
UVF4# |
1 | ||
| 82671-30340 |
UVF4# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50030 |
UVF4# NO.2 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50020 |
UVF4# NO.1 |
1 | ||
| 82734-50040 |
UVF4# NO.3 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33820 |
UVF4# |
1 | ||
| 82817-33820 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
| 8609 | ||||
ILLUST NO. 5 OF12(0704-0911)RHD
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-50N50 |
UVF45..RHD |
1 | ||
| 82161-50N90 |
UVF45..RHD WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82161-50N70 |
UVF45..RHD WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82161-50N91 |
UVF45..RHD WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82161-50N51 |
UVF45..RHD |
1 | ||
| 82161-50N70 |
UVF45..RHD PART NUMBER LABEL=82161-50N70 |
1 | ||
| 82161-50N50 |
UVF45..RHD PART NUMBER LABEL=82161-50N50 |
1 | ||
| 82161-50N90 |
UVF45..RHD PART NUMBER LABEL=82161-50N90 |
1 | ||
| 82161-50N51 |
UVF45..RHD PART NUMBER LABEL=82161-50N51 |
1 | ||
| 82161-50N91 |
UVF45..RHD PART NUMBER LABEL=82161-50N91 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-50L70 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82162-50M10 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION&AUTO & EASY CLOSER DOOR-WITH(D&LUG CLOSER& PTL) |
1 | ||
| 82162-50M30 |
UVF45..RHD WITH(REAR POWER SEAT)&AUTO & EASY CLOSER DOOR-WITH(D&LUG CLOSER & PTL)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82162-50N80 |
UVF45..RHD |
1 | ||
| 82162-50P00 |
UVF45..RHD AUTO & EASY CLOSER DOOR-WITH(D&LUG CLOSER & PTL) |
1 | ||
| 82162-50L90 |
UVF45..RHD WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82162-50L91 |
UVF45..RHD WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82162-50L71 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION |
1 | ||
| 82162-50M11 |
UVF45..RHD STABILIZER-ACTIVE STABILIZER SUSPENSION&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID) |
1 | ||
| 82162-50M31 |
UVF45..RHD WITH(REAR POWER SEAT)&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82162-50P01 |
UVF45..RHD AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID) |
1 | ||
| 82162-50N81 |
UVF45..RHD |
1 | ||
| 82162-50M30 |
UVF45..RHD PART NUMBER LABEL=82162-50M30 |
1 | ||
| 82162-50L70 |
UVF45..RHD PART NUMBER LABEL=82162-50L70 |
1 | ||
| 82162-50M10 |
UVF45..RHD PART NUMBER LABEL=82162-50M10 |
1 | ||
| 82162-50L90 |
UVF45..RHD PART NUMBER LABEL=82162-50L90 |
1 | ||
| 82162-50P00 |
UVF45..RHD PART NUMBER LABEL=82162-50P00 |
1 | ||
| 82162-50N80 |
UVF45..RHD PART NUMBER LABEL=82162-50N80 |
1 | ||
| 82162-50L71 |
UVF45..RHD PART NUMBER LABEL=82162-50L71 |
1 | ||
| 82162-50M31 |
UVF45..RHD PART NUMBER LABEL=82162-50M31 |
1 | ||
| 82162-50M11 |
UVF45..RHD PART NUMBER LABEL=82162-50M11 |
1 | ||
| 82162-50L91 |
UVF45..RHD PART NUMBER LABEL=82162-50L91 |
1 | ||
| 82162-50P01 |
UVF45..RHD PART NUMBER LABEL=82162-50P01 |
1 | ||
| 82162-50N81 |
UVF45..RHD PART NUMBER LABEL=82162-50N81 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
UVF4# |
2 | ||
| 82163-50080 |
UVF4# |
2 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
UVF4# |
2 | ||
| 82163-50080 |
UVF4# |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-50590 |
UVF4# |
1 | ||
| 82666-50590 |
UVF4# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-50600 |
UVF4# |
1 | ||
| 82666-50600 |
UVF4# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-50610 |
UVF4# |
1 | ||
| 82666-50610 |
UVF4# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-50620 |
UVF4# |
1 | ||
| 82666-50620 |
UVF4# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50K10 |
UVF4# |
1 | ||
| 82817-30A10 |
UVF4# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-50D70 |
UVF4# |
1 | ||
| 82817-50D70 |
UVF4# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-30A10 |
UVF4# |
1 | ||
| 82817-50K10 |
UVF4# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-50D80 |
UVF4# |
1 | ||
| 82817-50D80 |
UVF4# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-50270 |
UVF45 |
1 | ||
| 82824-50270 |
UVF45 |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-50260 |
UVF4# |
1 | ||
| 82824-50260 |
UVF4# WITH(REAR COOLER) |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-48010 |
UVF4# NO.2 |
2 | ||
| 82824-26020 |
UVF4# NO.1 |
1 | ||
| 82824-52280 |
UVF4# NO.4 |
1 | ||
| 82824-50350 |
UVF4# NO.3 |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
UVF45 WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-30130 |
UVF45 WITH(REAR POWER SEAT)&MOON ROOF-WITH&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824T - CONNECTOR, WIRING HARNESS | ||||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-52290 |
UVF4# NO.4 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824-50190 |
UVF4# NO.5 |
1 | ||
| 82824-48010 |
UVF4# NO.1 |
2 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50350 |
UVF4# NO.2 |
1 | ||
| 82824-50360 |
UVF4# NO.3 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824W - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-50130 |
UVF4#..RHD NO.4 |
1 | ||
| 82824-50360 |
UVF4#..RHD NO.3 |
1 | ||
| 82824-50340 |
UVF4#..RHD NO.2 |
1 | ||
| 82824-30130 |
UVF4#..RHD NO.1 |
1 | ||
| Common parts | ||||
| 71741-50010 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90467-09050 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8609 | ||||
ILLUST NO. 9 OF12(0704- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50140 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82193-50141 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82193-50170 |
UVF45 |
1 | ||
| 82193-50170 |
UVF45 |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50140 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82193-50141 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82193-50170 |
UVF45 |
1 | ||
| 82193-50170 |
UVF45 |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50201 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82194-50200 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
2 | ||
| 82213-50020 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,NO.2 |
2 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
2 | ||
| 82213-50020 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,NO.2 |
2 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-50080 |
UVF4# |
1 | ||
| 82223-50080 |
UVF4# |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-50080 |
UVF4# |
1 | ||
| 82223-50080 |
UVF4# |
1 | ||
| 82223B - WIRE, SWITCH, NO.2 | ||||
| 82223-50110 |
UVF4# |
1 | ||
| 82223-50110 |
UVF4# |
1 | ||
| 82223B - WIRE, SWITCH, NO.2 | ||||
| 82223-50110 |
UVF4# |
1 | ||
| 82223-50110 |
UVF4# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
UVF4# |
1 | ||
| 82666-50640 |
UVF4# |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
UVF4# |
1 | ||
| 82666-50640 |
UVF4# |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-50650 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82666-50650 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-60220 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82666-60220 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-60220 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82666-60220 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF4# |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-50360 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| Common parts | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO. 8 OF12(0704- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-50210 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82191-50250 |
UVF4#..RHD |
1 | ||
| 82191-50211 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82191-50251 |
UVF4#..RHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-50310 |
UVF4#..RHD |
1 | ||
| 82192-50280 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82192-50281 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82192-50311 |
UVF4#..RHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-50680 |
UVF4# |
1 | ||
| 82666-50680 |
UVF4# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-50690 |
UVF4# |
1 | ||
| 82666-50690 |
UVF4# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-50700 |
UVF4# |
1 | ||
| 82666-50700 |
UVF4# |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-50710 |
UVF4# |
1 | ||
| 82666-50710 |
UVF4# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30340 |
UVF4# |
1 | ||
| 82671-30340 |
UVF4# |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-30340 |
UVF4# |
1 | ||
| 82671-30340 |
UVF4# |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-50380 |
UVF45 WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-50380 |
UVF45 WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82825C - CONNECTOR, WIRING HARNESS | ||||
| 82824-50380 |
UVF45 WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82824-50380 |
UVF45 WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
UVF4# |
1 | ||
| 82824-50340 |
UVF4# |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
UVF4# |
1 | ||
| 82824-50340 |
UVF4# |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||
ILLUST NO.11 OF12(0704- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82286-50010 |
UVF4# |
1 | ||
| 82286-50010 |
UVF4# |
1 | ||
| Common parts | ||||
| 82715-50D60 | ||||
| 90119-10718 | ||||
| 91651-60816 | ||||
ILLUST NO.12 OF12(0809-0911)
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10897 | ||||
| 90980-10931 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11399 | ||||
| 90980-11811 | ||||
| 90980-11856 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11918 | ||||
| 90980-11967 | ||||
| 90980-12292 | ||||
| 90980-12297 | ||||
| 90980-12303 | ||||
| 90980-12366 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||

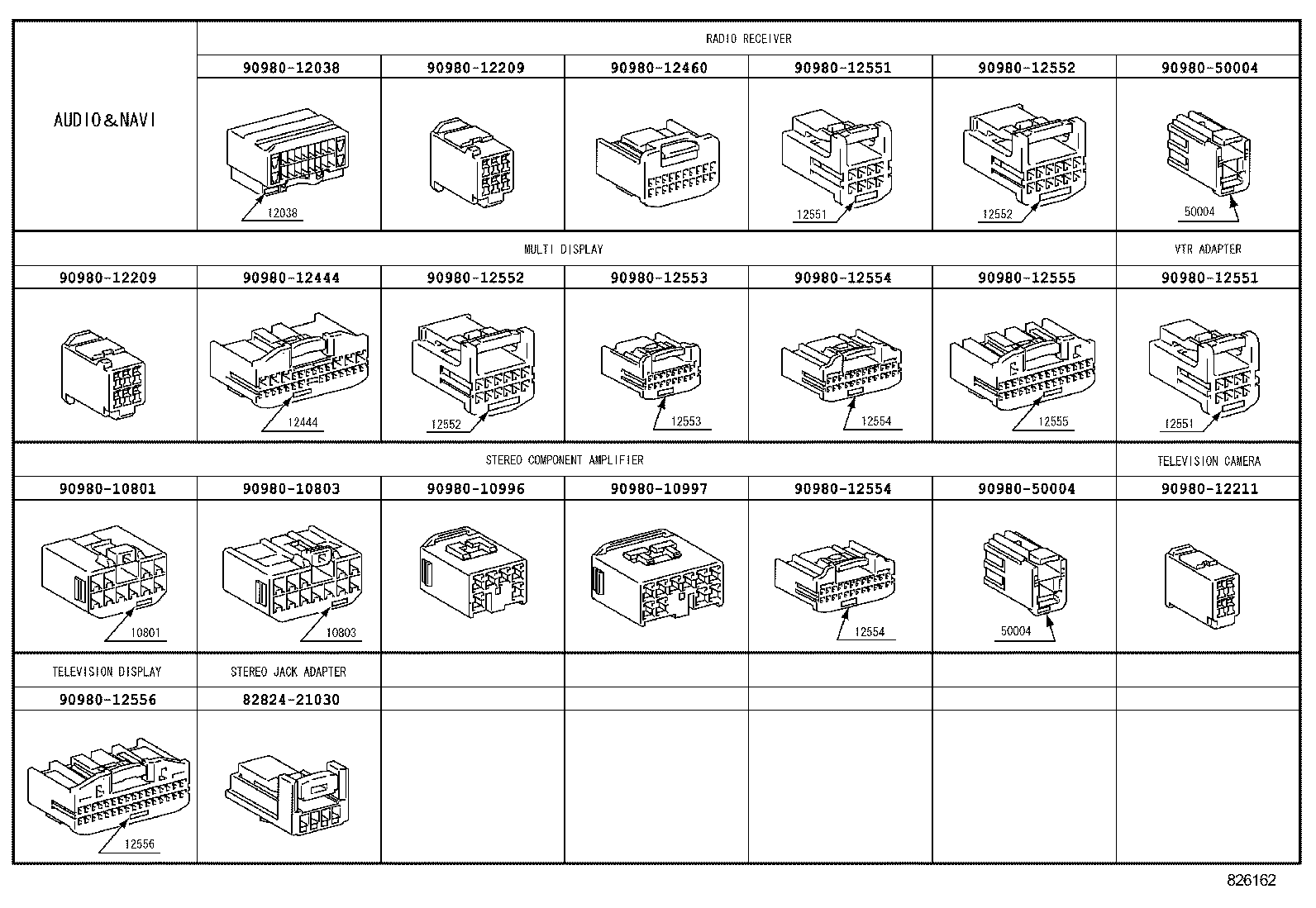

ILLUST NO.12 OF12(0809-0911)
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-21030 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-50004 | ||||
ILLUST NO. 4 OF12(0704- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-50421 |
UVF4#..RHD |
1 | ||
| 82151-50420 |
UVF4#..RHD |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-50040 |
UVF4#..RHD |
1 | ||
| 82155-50041 |
UVF4#..RHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-50410 |
UVF4#..RHD |
1 | ||
| 82152-50411 |
UVF4#..RHD |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-50050 |
UVF4#..RHD |
1 | ||
| 82156-50040 |
UVF4#..RHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82157-50030 |
UVF45 |
1 | ||
| 82157-50050 |
UVF45 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82157-50030 |
UVF45 |
1 | ||
| 82157-50090 |
UVF45 WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82157-50091 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-50180 |
UVF45 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 82153-50200 |
UVF45 |
1 | ||
| 82153-50181 |
UVF45 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 82153-50201 |
UVF45 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82158-50050 |
UVF45 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82158-50030 |
UVF45 |
1 | ||
| 82158-50030 |
UVF45 |
1 | ||
| 82158-50091 |
UVF45 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82158-50090 |
UVF45 WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-50180 |
UVF45 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 82154-50200 |
UVF45 |
1 | ||
| 82154-50181 |
UVF45 WITH(REAR POWER SEAT)&WITH(REAR COOLER) |
1 | ||
| 82154-50201 |
UVF45 |
1 | ||
| 82185A - WIRE, SMART DOOR, FRONT RH | ||||
| 82185-50010 |
UVF4# |
1 | ||
| 82185-50010 |
UVF4# |
1 | ||
| 82186B - WIRE, SMART DOOR, FRONT LH | ||||
| 82186-50010 |
UVF4# |
1 | ||
| 82186-50010 |
UVF4# |
1 | ||
| 82187A - WIRE, SMART DOOR, REAR RH | ||||
| 82187-50010 |
UVF4# |
1 | ||
| 82187-50010 |
UVF4# |
1 | ||
| 82188C - WIRE, SMART DOOR, REAR LH | ||||
| 82188-50010 |
UVF4# |
1 | ||
| 82188-50010 |
UVF4# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF12(0704-0911)RHD
ROOF & FRAME & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-50010 |
UVF4# |
1 | ||
| 82169-50010 |
UVF4# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-50610 |
UVF45 |
1 | ||
| 82171-50590 |
UVF45 MOON ROOF-WITH |
1 | ||
| 82171-50570 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 82171-50571 |
UVF45..RHD WITH(REAR POWER SEAT)&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&WITH(REAR COOLER) |
1 | ||
| 82171-50611 |
UVF45 |
1 | ||
| 82171-50591 |
UVF45 MOON ROOF-WITH |
1 | ||
| 82171-50570 |
UVF45..RHD PART NUMBER LABEL=82171-50570 |
1 | ||
| 82171-50590 |
UVF45 PART NUMBER LABEL=82171-50590 |
1 | ||
| 82171-50610 |
UVF45 PART NUMBER LABEL=82171-50610 |
1 | ||
| 82171-50591 |
UVF45 PART NUMBER LABEL=82171-50591 |
1 | ||
| 82171-50571 |
UVF45..RHD PART NUMBER LABEL=82171-50571 |
1 | ||
| 82171-50611 |
UVF45 PART NUMBER LABEL=82171-50611 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-50010 |
UVF4# |
1 | ||
| 82183-50011 |
UVF4# |
1 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
UVF4# |
1 | ||
| 82824-50130 |
UVF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8609 | ||||
ILLUST NO.10 OF12(0704- )RHD
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-2B660 | ||||
| 82715-50590 | ||||
| 82715-50600 | ||||
| 82715-50610 | ||||
| 82715-50630 | ||||
| 82715-50640 | ||||
| 82715-50650 | ||||
| 82715-50670 | ||||
| 82715-50680 | ||||
| 82715-50690 | ||||
| 82715-50720 | ||||
| 82715-50750 | ||||
| 82715-50770 | ||||
| 82715-50A50 | ||||
| 82715-50B10 | ||||
| 82715-50B30 | ||||
| 82715-50B40 | ||||
| 82715-50B60 | ||||
| 82715-50B90 | ||||
| 82715-50C00 | ||||
| 82715-50C10 | ||||
| 82715-50D30 | ||||
| 82715-50D50 | ||||
| 82715-50E10 | ||||
| 82715-50E40 | ||||
| 82715-50E50 | ||||
| 90119-06545 | ||||
| 90119-06915 | ||||
| 90176-06045 | ||||
| 90179-06274 | ||||
| 91551-A0612 | ||||
| 91621-B0616 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO.12 OF15(1209- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-50D60 | ||||
| 90119-10718 | ||||
| 91651-60816 | ||||
ILLUST NO. 8 OF15(1209- )RHD
HIGH VOLTAGE CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-50370 | ||||
| 90119-06407 | ||||
| 90119-06915 | ||||
| 90176-06045 | ||||
| 90178-06008 | ||||
| 90178-06012 | ||||
| 90179-06274 | ||||
| 90980-09805 | ||||
| 91626-A0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF15(1209- )RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
ILLUST NO. 2 OF15(1209- )RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF15(1209- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91553-A0614 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF15(1209- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 7 OF15(1209- )RHD
ROOF & FRAME & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO.10 OF15(1209- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO.11 OF15(1209- )RHD
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10070 | ||||
| 82711-1E340 | ||||
| 82711-26370 | ||||
| 82715-50590 | ||||
| 82715-50600 | ||||
| 82715-50610 | ||||
| 82715-50630 | ||||
| 82715-50640 | ||||
| 82715-50650 | ||||
| 82715-50670 | ||||
| 82715-50680 | ||||
| 82715-50720 | ||||
| 82715-50750 | ||||
| 82715-50770 | ||||
| 82715-50A40 | ||||
| 82715-50A50 | ||||
| 82715-50B10 | ||||
| 82715-50B30 | ||||
| 82715-50B40 | ||||
| 82715-50B90 | ||||
| 82715-50C00 | ||||
| 82715-50C10 | ||||
| 82715-50D30 | ||||
| 82715-50E40 | ||||
| 82715-50E50 | ||||
| 82715-50E80 | ||||
| 90119-06545 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91551-A0612 | ||||
| 91621-B0616 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
ILLUST NO. 4 OF15(1209- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
ILLUST NO. 6 OF15(1209- )RHD
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71741-50010 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90467-09050 | ||||
ILLUST NO. 9 OF15(1209- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91551-80612 | ||||
ILLUST NO.13 OF15(1209- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10789 | ||||
| 90980-10897 | ||||
| 90980-10931 | ||||
| 90980-11003 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11148 | ||||
| 90980-11399 | ||||
| 90980-11811 | ||||
| 90980-11856 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11918 | ||||
| 90980-11967 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12698 | ||||
| 90980-12699 | ||||
ILLUST NO.15 OF15(1209- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-21030 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12211 | ||||
| 90980-12367 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12556 | ||||
| 90980-12876 | ||||
| 90980-50004 | ||||
ILLUST NO.14 OF15(1209- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10619 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12155 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12297 | ||||
| 90980-12366 | ||||
| 90980-12368 | ||||
| 90980-12370 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12721 | ||||
| 90980-12983 | ||||
| 90980-50004 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
