USF41R-AEZGHW (2006)

Toyota Lexus Ls460/460l

Production Aug 2006 - Sep 2008
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

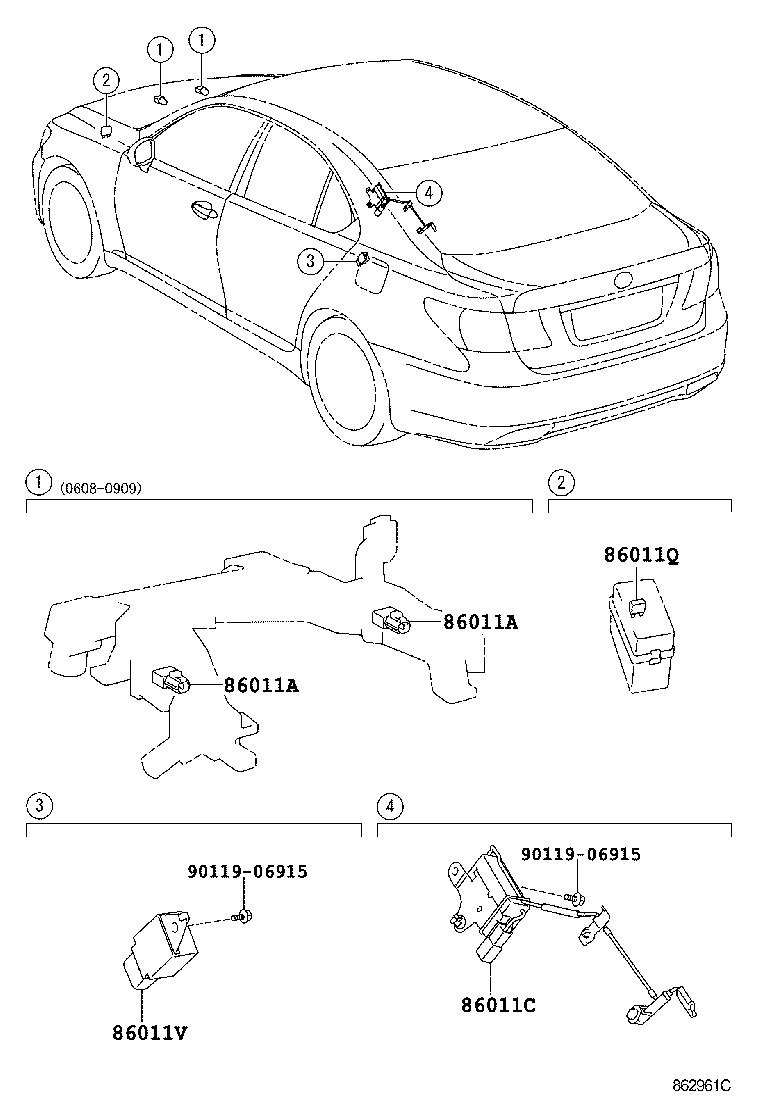

ILLUST NO. 2 OF 2(0608- )

Click highlighted areas on diagram

CONDENSER & NOISE FILTER

diagram 86011A 86011A 86011C 86011Q 86011V 9011906915 9011906915
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04083

USF4#

 2
86011A - CONDENSER, RADIO SETTING
90980-04083

USF4#

 2
86011C - FILTER, NOISE
863B0-50020

USF4#

 1
90980-05373

USF4#

 1
86011Q - CONDENSER, RADIO SETTING
90980-04161

USF4#

 1
86011V - CONDENSER, RADIO SETTING
90980-04198

USF4#

 1
Common parts
90119-06915

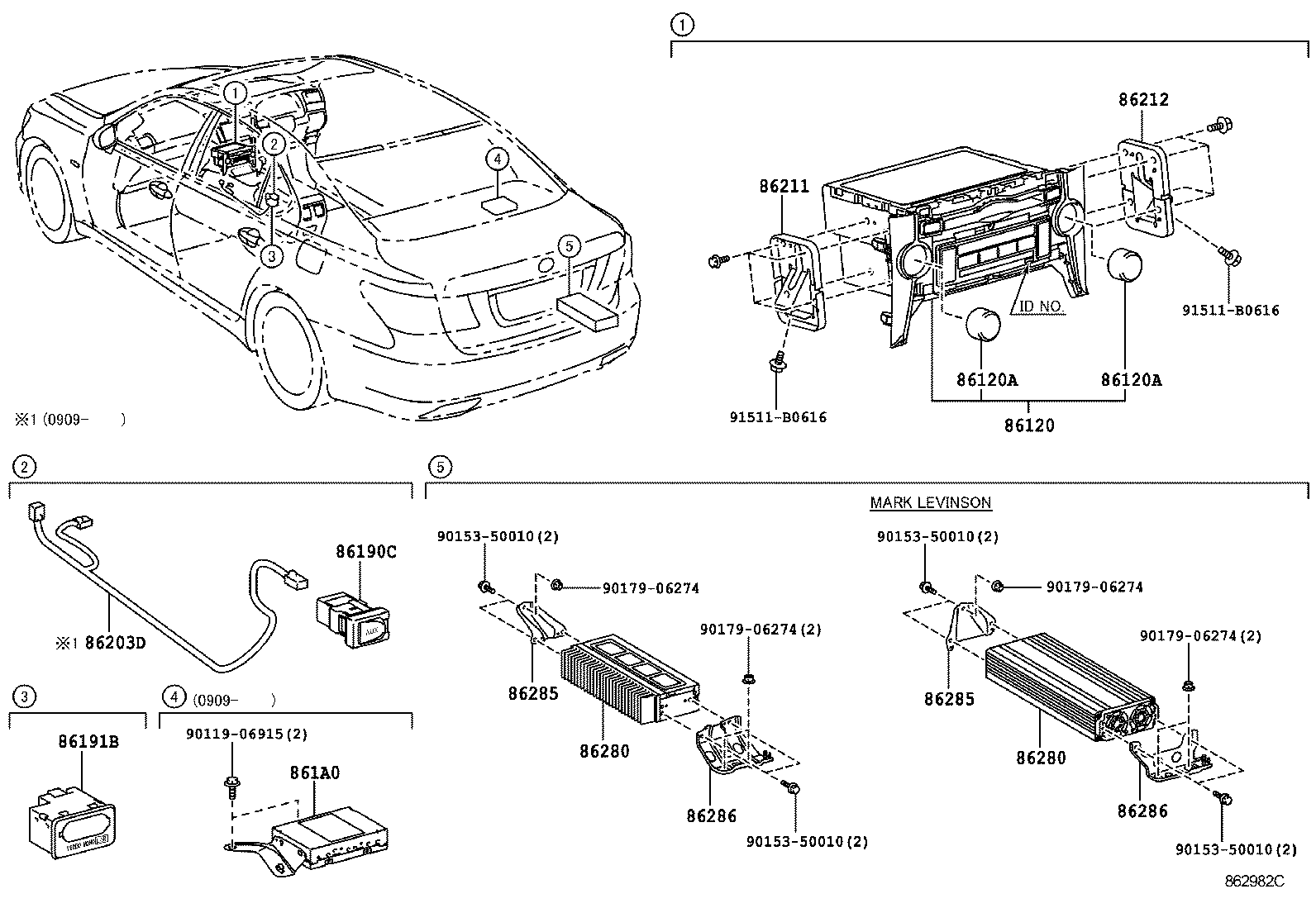

ILLUST NO. 1 OF 2(0608- )RHD

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 86191B 861A0 86203D 86211 86212 86280 86280 86285 86285 86286 86286 9011906915 9015350010 9015350010 9015350010 9015350010 9017906274 9017906274 9017906274 9017906274 91511B0616 91511B0616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-50J60

USF41..RHD

PIONEER,ID=P8603

 1
86120-50K70

USF41..RHD

PIONEER,ID=P7506,MALAYSIA SPEC

 1
86120-50K70

USF41..RHD

PIONEER,ID=P7506,THAILAND SPEC

 1
86120-50K70

USF41..RHD

PIONEER,ID=P7506,HONG KONG SPEC

 1
86120-50K70

USF41..RHD

PIONEER,ID=P7506,SINGAPORE SPEC

 1
86120-50N30

USF41..RHD

PIONEER,ID=P8609

 1
86120-50P50

USF41..RHD

PIONEER,ID=P7525,MALAYSIA SPEC

 1
86120-50P50

USF41..RHD

PIONEER,ID=P7525,SINGAPORE SPEC

 1
86120-50P50

USF41..RHD

PIONEER,ID=P7525,THAILAND SPEC

 1
86120-50P50

USF41..RHD

PIONEER,ID=P7525,HONG KONG SPEC

 1
86120-50J60

USF41..RHD

PIONEER,ID=P8603

 1
86120-50K70

USF41..RHD

PIONEER,ID=P7506

 1
86120-50N30

USF41..RHD

PIONEER,ID=P8609

 1
86120-50P50

USF41..RHD

PIONEER,ID=P7525

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-22053

USF4#

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-22053

USF4#

 2
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-53010

USF4#

 1
86211 - BRACKET, RADIO, NO.1
86211-50070

USF4#

 1
86212 - BRACKET, RADIO, NO.2
86212-50070

USF4#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W260

USF41..RHD

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W260

USF41..RHD

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-50130

USF41..RHD

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-50130

USF41..RHD

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-50060

USF41..RHD

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-50060

USF41..RHD

 1
Common parts
90119-06915
90153-50010
90179-06274
91511-B0616

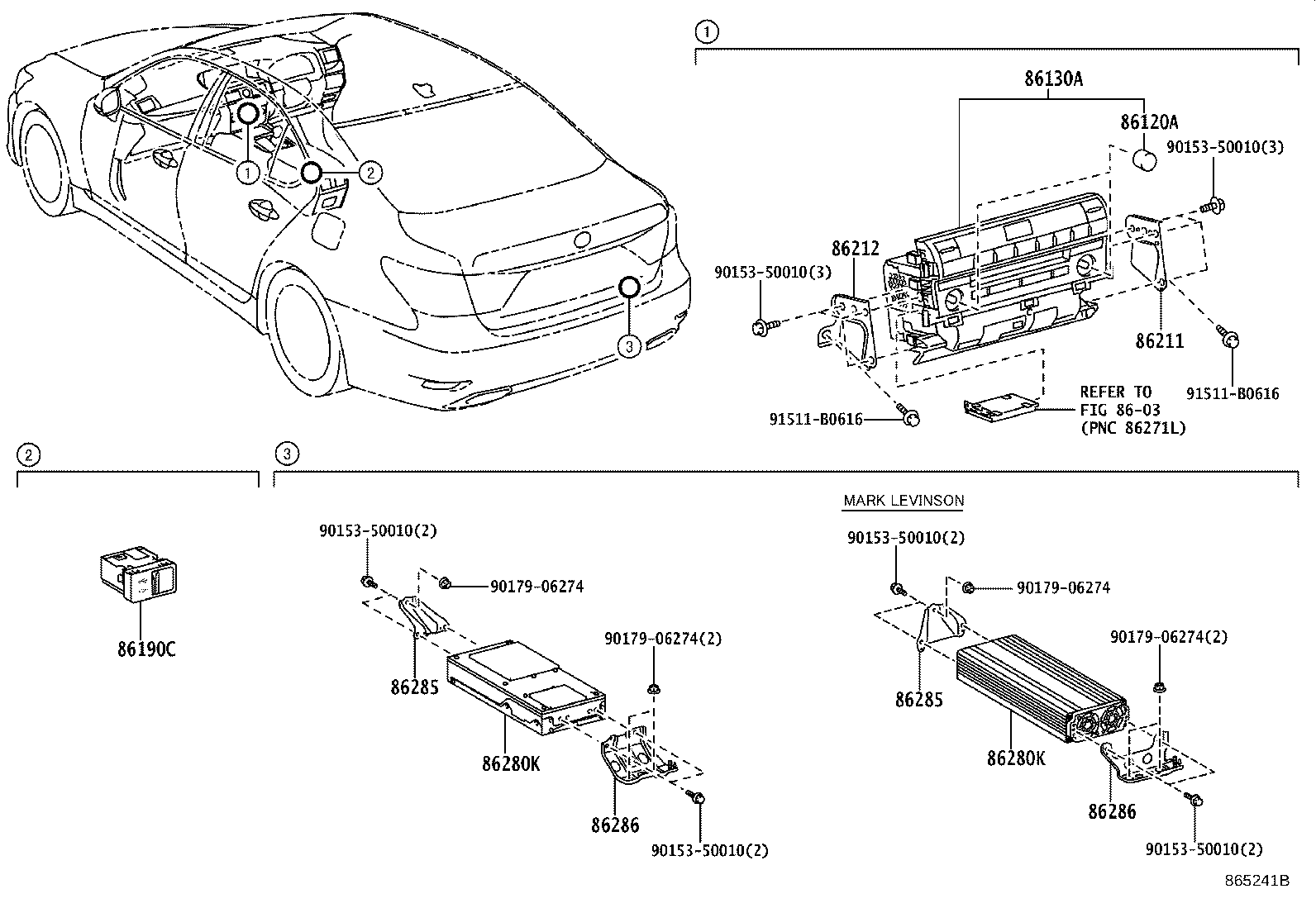

ILLUST NO. 1 OF 2(1209-1410)RHD

Click highlighted areas on diagram

diagram 8603 86120A 86130A 86190C 86211 86212 86280K 86280K 86285 86285 86286 86286 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9017906274 9017906274 9017906274 9017906274 91511B0616 91511B0616
Part # Description Qty Price
Common parts
90153-50010
90179-06274
91511-B0616
Linked diagrams
8603
