USF41R-AEZGHW (2006)

Toyota Lexus Ls460/460l

Production Aug 2006 - Sep 2008
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

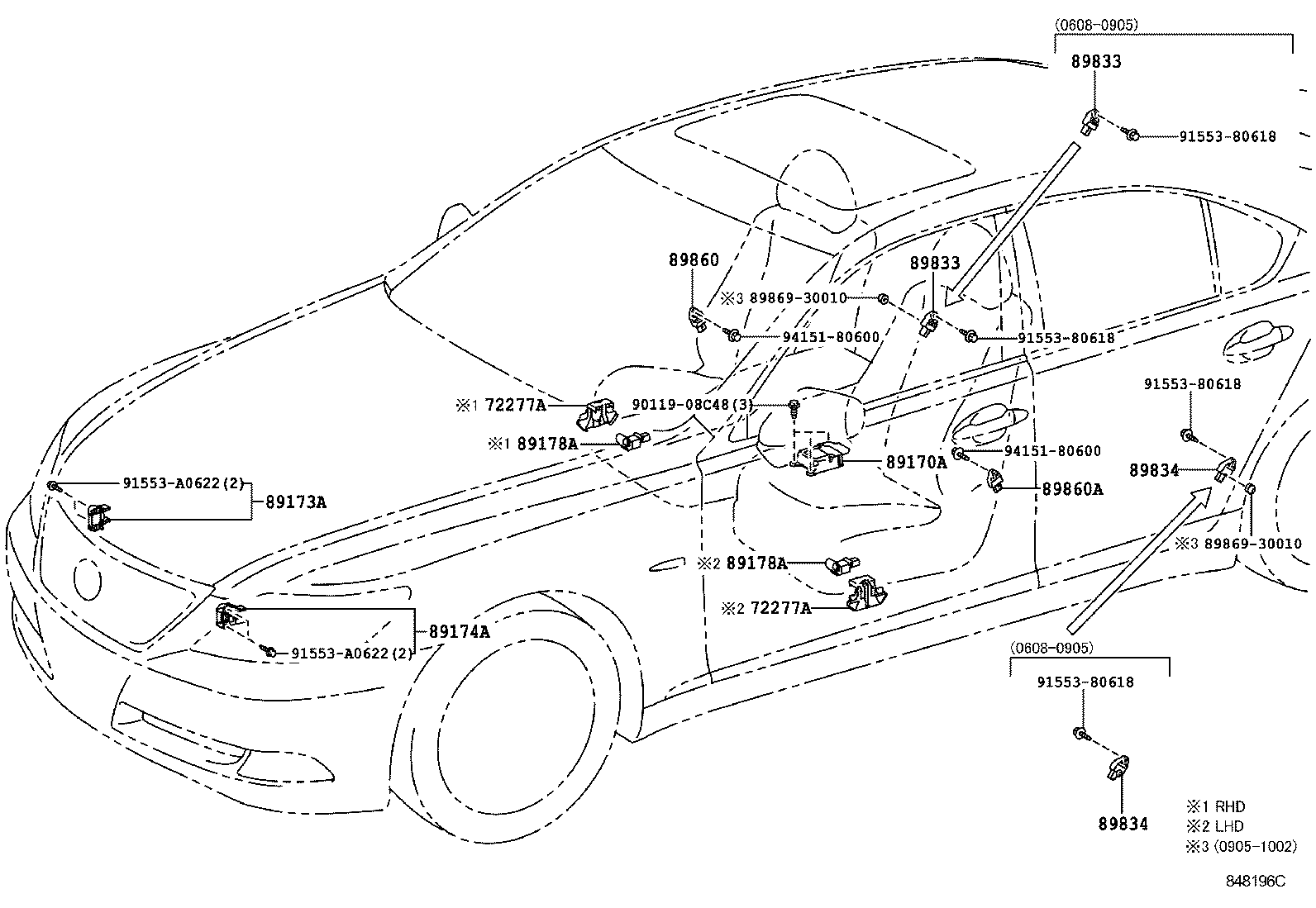

Click highlighted areas on diagram

diagram 72277A 72277A 89170A 89173A 89174A 89178A 89178A 89833 89833 89834 89834 89860 89860A 8986930010 8986930010 9011908C48 9155380618 9155380618 9155380618 9155380618 91553A0622 91553A0622 9415180600 9415180600
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

USF4#

 1
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

USF4#

 1
89170A - COMPUTER ASSY, AIR BAG
89170-50340

USF41..RHD

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39385

USF4#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39385

USF4#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

USF4#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33050

USF4#

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-50010

USF4#

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-50010

USF4#

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-50010

USF4#

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-50010

USF4#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-50020

USF4#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-50020

USF4#

 1
Common parts
89869-30010
90119-08C48
91553-80618
91553-A0622
94151-80600
